1. Киришүү
This manual provides detailed instructions for the AGPTEK HA0305-MXFBA 4-in-1 LED Moving Head Stage Light. This device is designed to create dynamic lighting effects for various events, including parties, concerts, stages, clubs, bars, and weddings. It combines multiple lighting technologies to offer a versatile and engaging visual experience.

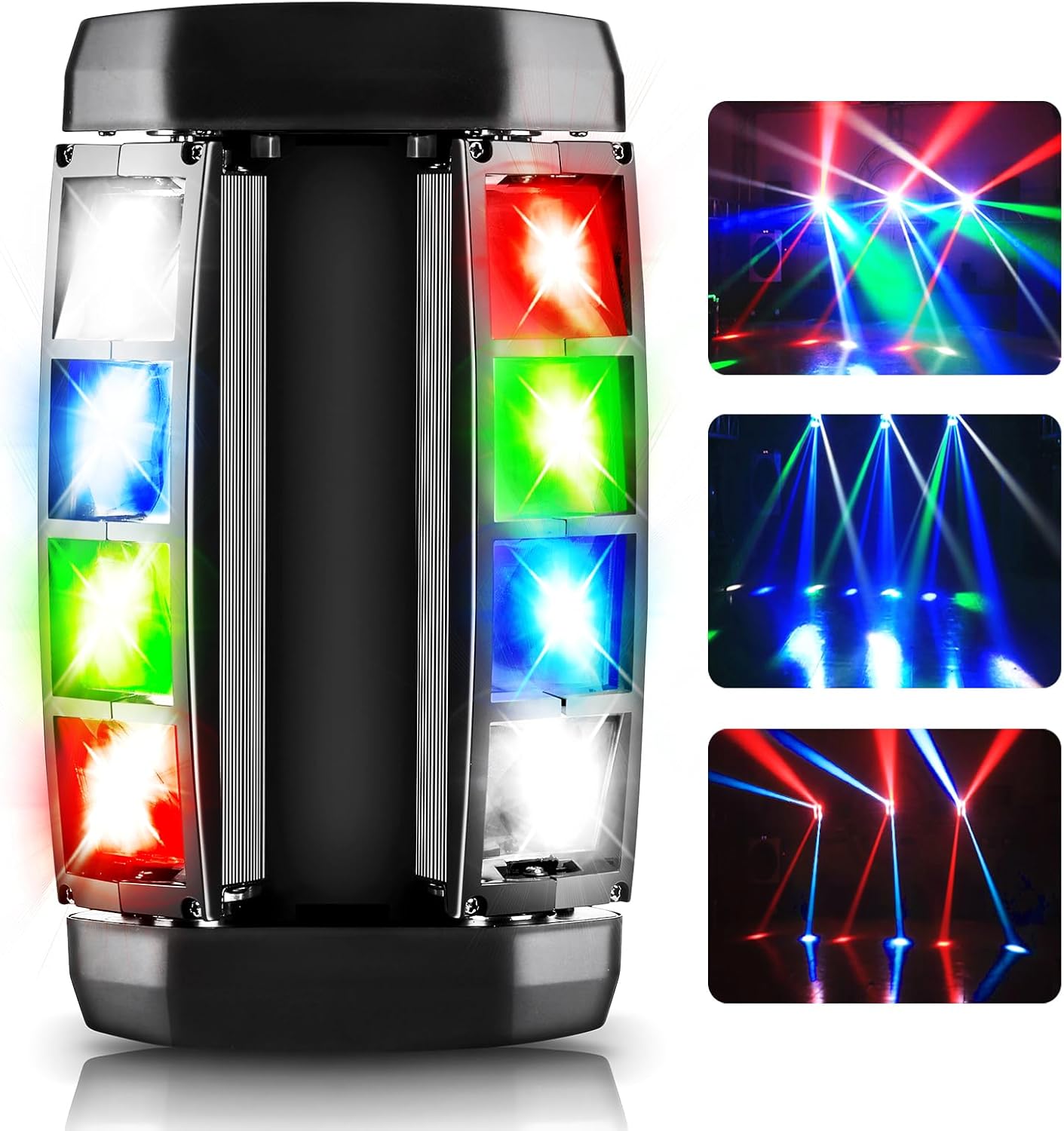

Figure 1: AGPTEK 4-in-1 LED Moving Head Stage Light
2. Коопсуздук нускамалары
- Аппаратты иштетүүдөн мурун бардык нускамаларды кылдат окуп чыгыңыз.
- Бул колдонмону келечекте маалымат алуу үчүн сактаңыз.
- кубат менен камсыз кылуу Voltagтүзмөктө көрсөтүлгөн талаптар.
- Өрт же электр тогуна урунуп калбаш үчүн аппаратты жамгырга же нымдуулукка дуушар кылбаңыз.
- Жарык булагына түздөн-түз көз тийбеңиз.
- Ашыкча ысып кетүүнүн алдын алуу үчүн аппараттын айланасында туура желдетүүнү камсыз кылыңыз.
- Түзмөктү өз алдынча оңдоого аракет кылбаңыз. Бардык тейлөө иштерин квалификациялуу адистерге тапшырыңыз.
- Mount the device securely to prevent accidental falls.
3. Продукциянын өзгөчөлүктөрү
The AGPTEK HA0305-MXFBA offers a range of features for dynamic lighting:
- RGBW 4-in-1 Full Color: Equipped with red, green, blue, and blue-green LEDs, providing color jumping, gradual color change, and strobe effects.
- Бир нече башкаруу режимдери: Supports Sound Activated, DMX 512, Master-Slave, and Automatic operation.
- DMX 512 Compatibility: Allows for precise control over color gradients, color jumps, and strobe effects, with adjustable speed.
- Quick Dual Sweeper Effect: Smooth stepper motors enable a tilt range from 60 to 150 degrees. Each side features 4 independent LED indicators, combining with RGBW LED columns for unique variations and oscillating lighting effects.
- Профессионал Сtage Жарыктандыруу: Eight bright RGBW LEDs allow for free switching and combination of red, green, blue, and blue-green colors, creating unexpected and vibrant visual effects.
Figure 2: RGBW Color Effects
Figure 3: Quick Dual Sweeper Effect
4. Продукт бүтүп калдыview жана компоненттер
Familiarize yourself with the device's components and control interface.

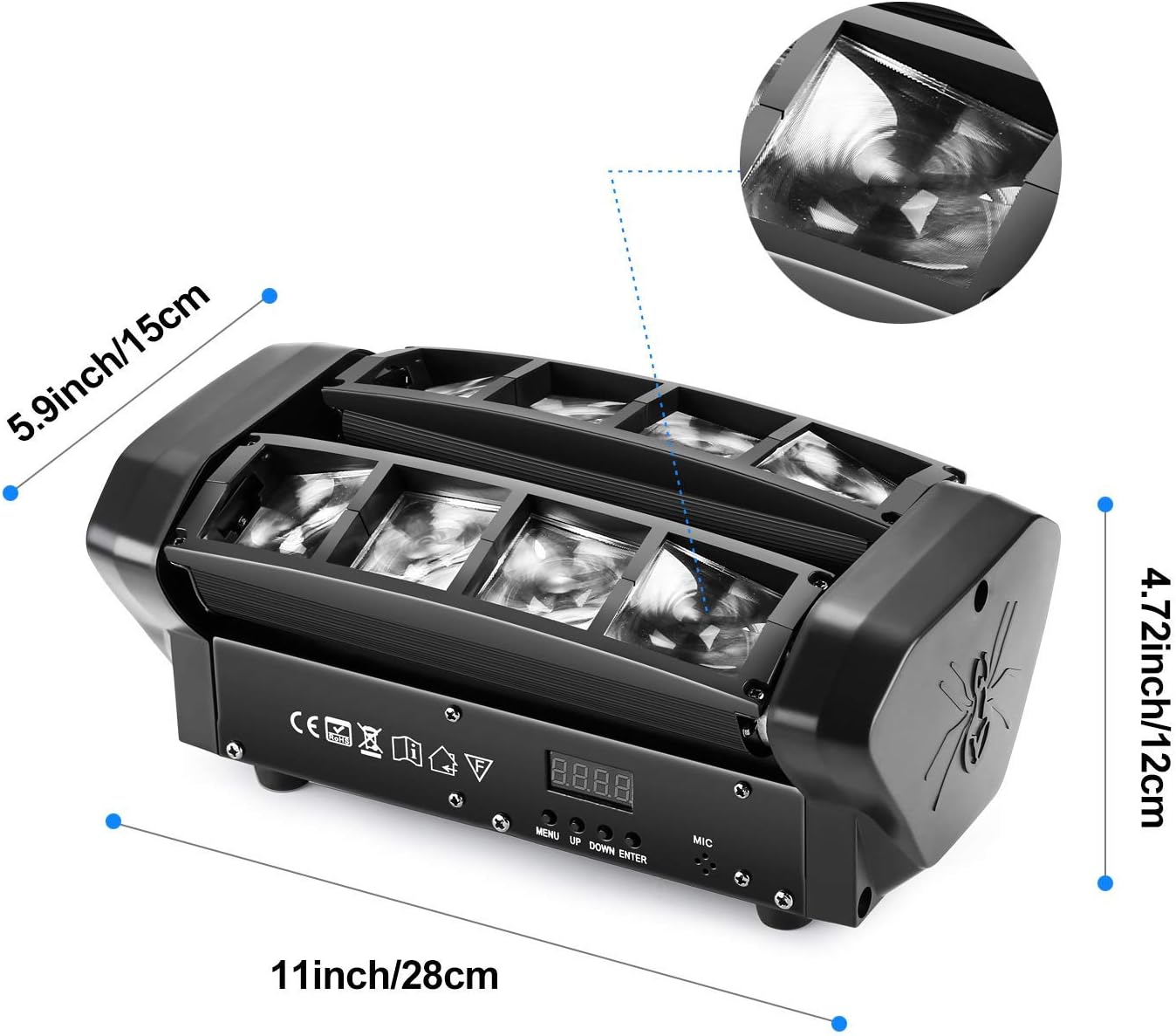

Figure 4: Front Panel Controls (Menu, Up, Down, Enter, Digital Display, MIC)
Figure 5: Rear Panel Connections (DMX In, DMX Out, Power In)
Сүрөт 6: Продукциянын өлчөмдөрү
5. Орнотуу
- Пакеттен чыгаруу: Carefully remove the device from its packaging and inspect for any damage.
- Жайгашкан жери: Position the light on a stable surface or mount it securely using appropriate hardware. Ensure adequate space for ventilation.
- Кубат туташуу: Connect the power cable to the 'POWER IN' port on the rear panel and then to a suitable power outlet.
- DMX туташуусу (милдеттүү эмес): If using DMX control, connect a DMX cable from your DMX controller to the 'DMX IN' port. For multiple units, daisy-chain them using 'DMX OUT' to the next unit's 'DMX IN'.
6. Иштөө режимдери
The light offers four primary operating modes:
- Үн иштетилген режим: The light reacts to ambient sound or music, changing patterns and colors in sync with the beat. Use the built-in microphone for detection.
- DMX 512 Control Mode: Allows for professional control over individual light parameters using a DMX controller. Refer to the DMX section for more details.
- Master-Slave режими: Connect multiple units, and one unit acts as the master, controlling all other slave units to synchronize effects.
- Автоматтык иштөө режими: The light cycles through pre-programmed patterns and color combinations automatically.
Use the 'MENU', 'UP', 'DOWN', and 'ENTER' buttons on the front panel to navigate and select operating modes.
7. DMX Control
For advanced control, connect the light to a DMX 512 controller. This mode allows for precise manipulation of various lighting parameters, including:
- Color selection and mixing (RGBW)
- Strobe speed and intensity
- Movement (tilt angle and speed for the dual sweeper effect)
- Pattern selection (for laser and disco ball effects)
Consult your DMX controller's manual for specific channel assignments and programming instructions. The light supports smooth dimming from 0-100% and various strobe effects via DMX.
Figure 7: DMX512 Control Setup
8. Техникалык тейлөө
- Тазалоо: Regularly clean the lenses and exterior with a soft, dry cloth to maintain optimal light output and prevent dust buildup.
- Сактагыч: Колдонулбай турган учурда, түзмөктү салкын, кургак жерде, күн нуру түз тийген жерден жана өтө жогорку температурадан алыс сактаңыз.
- Текшерүү: Мезгил-мезгили менен бардык кабелдерди жана байланыштарды эскирүү же бузулуу үчүн текшерип туруңуз.
9. Кыйынчылыктарды
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Күч жок | Power cable disconnected; no power from outlet | Check power cable connection; test outlet with another device |
| Жарык үнгө жооп бербейт | Sound Activated mode not selected; microphone obstructed; sound level too low | Select Sound Activated mode; ensure microphone is clear; increase music volume |
| DMX control not working | Incorrect DMX cable connection; wrong DMX address; DMX controller issue | Verify DMX cable connections; set correct DMX address on light and controller; check DMX controller functionality |
| Lights appear dim or distorted | Lenses are dirty; unit overheating; internal fault | Clean lenses; ensure proper ventilation; contact support if problem persists |
10. Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Бренд | AGPtek |
| Өндүрүүчү бөлүгүнүн номери | HA0305-MXFBA |
| Assembled Unit Height | 4.72 дюйм |
| Assembled Unit Length | 11 дюйм |
| Assembled Unit Width | 5.9 дюйм |
| Түс | Red, Green, Blue, Blue-Green |
| Материал | Plastic, Metal, and Glass |
| Аяктоо түрү | Жылтырак |
| Жарыктардын саны | 8 |
| Power Source | Электр зымдары |
| Орнотуу түрүн которуштуруу | Rack Mount |
| Батареялар талап кылынат | Жок |
| Лампанын түрү | Жарык чыгаруучу диод (LED) |
| Лампанын өзгөчөлүктөрү | Color changing and mixing |
| Продукциянын өлчөмдөрү | 27.94 x 14.99 x 11.99 см; 1.69 кг |
11. Расмий продукт Videos
Explore the dynamic lighting effects and features of the AGPTEK HA0305-MXFBA with these official product videos:
Video 1: DJ Stage Lighting Effects. This video demonstrates various colorful light beams and patterns suitable for DJ setups and stagэ спектаклдер.
Video 2: DJ Lights with Stand, Disco Ball Party Light. Showcases the light's effects, including disco ball patterns, and its use with a stand.
Video 3: Lighting Demonstration. A general demonstration of the light's various modes and color combinations.
Video 4: 150W RGBW LED Moving Head Light. Highlights the powerful RGBW LED moving head capabilities and beam effects.
Video 5: Laser Party Light. Focuses on the laser effects, showcasing various patterns and colors projected onto surfaces.
Video 6: 6-Arm Moving Head Light DWT-B91. Demonstrates the movement and light output of a similar 6-arm moving head light, providing context for the HA0305-MXFBA's capabilities.
12. Кепилдик жана колдоо
For warranty information or technical support, please refer to the contact details provided with your purchase or visit the official AGPTEK webсайт. Кепилдик дооматтар үчүн сатып алганыңыздын далилин сактаңыз.
