1. Introduction and Overview
The Santa Fe Ultra98 Whole House Dehumidifier is engineered to provide efficient and effective humidity control throughout your entire home, particularly in basements and crawlspaces. This unit helps maintain optimal indoor air quality by reducing excess moisture, which can prevent mold growth, dust mites, and other humidity-related issues. This manual provides essential information for the safe installation, proper operation, and routine maintenance of your dehumidifier to ensure its optimal performance and longevity.
Image 1.1: The Santa Fe Ultra98 Whole House Dehumidifier, a compact unit designed for comprehensive humidity control.
2. Коопсуздук маалыматы
Please read all safety instructions carefully before installing or operating the Santa Fe Ultra98 Dehumidifier. Failure to comply with these instructions may result in property damage, personal injury, or death.
- Электр коопсуздугу: Ensure the unit is connected to a properly grounded electrical outlet. Do not use extension cords. All electrical work should be performed by a qualified electrician.
- Орнотуу: The unit must be installed in accordance with local and national electrical codes. Ensure adequate clearance around the unit for proper airflow.
- Суу дренажы: Ensure the drainage hose is properly connected and routed to a suitable drain to prevent water damage.
- Тейлөө: Техникалык тейлөө же тазалоо иштерин жүргүзүүдөн мурун ар дайым шайманды электр кубатынан ажыратыңыз.
- Балдар жана үй жаныбарлары: Иштөө жана тейлөө учурунда балдарды жана үй жаныбарларын блоктон алыс кармаңыз.
3. Продукциянын өзгөчөлүктөрү
The Santa Fe Ultra98 Dehumidifier incorporates several features designed for effective and reliable humidity control:
- Жогорку кубаттуулугу: Removes up to 98 pints of moisture per day, suitable for areas up to 2300 square feet.
- Тынч иштөө: Designed to operate with minimal noise, ensuring comfort in your living space.
- MERV-13 Air Filtration: Equipped with a MERV-13 filter to capture airborne particles, improving overall air quality.
- Туруктуу курулуш: Features a heavy-duty steel exterior for enhanced durability and longevity in various environments.
- Whole Home Dehumidification: Can be integrated into your home's HVAC system for comprehensive humidity management.
- АКШда жасалган: Engineered and assembled in the USA, ensuring quality craftsmanship.
Image 3.1: The Ultra98 unit demonstrating its capacity to remove up to 98 pints of moisture daily.
Image 3.2: Key features of the Ultra98, including whole-home dehumidification, MERV-13 filtration, and ease of use (with optional controller).
Image 3.3: A visual representation highlighting the product's manufacturing origin in the USA.
4. Орнотуу жана орнотуу
Proper installation is crucial for the efficient operation of your Santa Fe Ultra98 Dehumidifier. It is recommended that installation be performed by a qualified HVAC professional.
4.1 Таңгактан чыгаруу жана текшерүү
- Агрегатты таңгагынан кылдаттык менен чыгарыңыз.
- Агрегатты ар кандай жеткирүү зыянын текшериңиз. Сиздин жеткирүүчүңүзгө кандайдыр бир зыян жөнүндө дароо кабарлаңыз.
- Verify all included components are present: the dehumidifier unit, four leveling feet, and a MERV 13 filter.
Image 4.1: The Santa Fe Ultra98 unit shown with its included accessories: leveling feet and a MERV 13 filter.
4.2 Жайгаштыруу маселелери
- The Ultra98 is designed for installation in basements, crawlspaces, or attics.
- Ensure the unit is placed on a level surface. Use the adjustable leveling feet to stabilize the unit and minimize vibration.
- Allow sufficient space around the unit for airflow and maintenance access.
4.3 Ducting and Airflow
The Ultra98 can be installed as a stand-alone unit or ducted into your HVAC system for whole-house dehumidification. Consult the detailed installation guide for specific ducting configurations.
Сүрөт 4.2: Мурункуample of the Ultra98 dehumidifier installed within a ducted system in a crawlspace environment.
4.4 Дренажды туташтыруу
Connect a suitable drain hose (not included) to the unit's drain port. Ensure the hose has a continuous downward slope to a floor drain, condensate pump, or other approved drainage system.
4.5 Электрдик туташуу
Connect the unit to a dedicated 120V, 15 Amp grounded electrical circuit. Refer to the wiring diagram in the full installation manual for detailed electrical requirements.
5. Иштөө нускамалары
The Santa Fe Ultra98 Dehumidifier operates automatically to maintain desired humidity levels. An external control (purchased separately) is required for setting and monitoring humidity.
5.1 Баштапкы баштоо
- After installation, ensure all connections (electrical, drainage, ducting) are secure.
- Аппаратты күйгүзүңүз.
- Set the desired humidity level on your external controller. A typical comfortable humidity range is between 45% and 55% Relative Humidity (RH).
5.2 External Controller
The Ultra98 is designed to work with an external dehumidistat or thermostat with dehumidification capabilities. This controller allows you to set the target humidity level, and the dehumidifier will cycle on and off as needed to maintain it.
Сүрөт 5.1: Мурункуample of an external controller used to manage the dehumidifier's operation and set humidity levels.
5.3 Иштөө режими
The unit operates in an intermittent mode, activating only when the humidity level rises above the set point and deactivating once the desired level is reached. This ensures energy-efficient operation.
6. Техникалык тейлөө
Regular maintenance ensures the longevity and efficiency of your Santa Fe Ultra98 Dehumidifier. Always disconnect power before performing any maintenance.
6.1 Аба чыпкасын алмаштыруу
The MERV-13 air filter should be inspected monthly and replaced every 3-6 months, or more frequently depending on usage and air quality. A dirty filter restricts airflow and reduces efficiency.
- Нымдандыргычты өчүрүп, сууруп алыңыз.
- Locate the filter access panel.
- Эски чыпканы алып салыңыз жана аны туура жок кылыңыз.
- Insert a new MERV-13 filter, ensuring the airflow arrow points towards the unit.
- Secure the filter access panel and restore power.
Сүрөт 6.1: Жакын план view of the MERV-13 air filter, essential for maintaining air quality and unit efficiency.
6.2 Coil Cleaning
Periodically inspect the evaporator and condenser coils for dirt and debris. If coils are dirty, clean them with a coil cleaner or a soft brush. Avoid bending the coil fins.
6.3 Drain Pan and Hose Inspection
Check the drain pan and hose regularly for blockages, algae growth, or leaks. Clean as necessary to ensure proper drainage.
7. Кыйынчылыктарды
Кардарларды колдоо кызматына кайрылуудан мурун, кайраview төмөнкү жалпы маселелер жана аларды чечүү жолдору:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Кургаткыч күйгүзүлбөй жатат | No power, external control off, or set point not met. | Check power connection, ensure external control is on, lower humidity set point. |
| Unit running but not removing moisture | Dirty air filter, blocked airflow, or low ambient temperature. | Replace air filter, clear obstructions, ensure room temperature is above 50°F (10°C). |
| Агрегаттан суу агып жатат | Clogged drain hose, improper hose slope, or loose connection. | Clear drain hose, ensure continuous downward slope, tighten hose connections. |
| Ашыкча ызы-чуу | Unit not level, loose components, or fan obstruction. | Adjust leveling feet, check for loose parts, inspect fan for obstructions. |
8. Техникалык шарттар
Detailed technical specifications for the Santa Fe Ultra98 Whole House Dehumidifier:
| Спецификация | Нарк |
|---|---|
| Бренд | Santa Fe |
| Модель аты | Ultra98 |
| Элемент моделинин номери | 4044300 |
| нымдуулуктун күч жөндөмдүүлүгү | Күнүнө 98 Пинт |
| Сунушталган полдун аянты | 2300 чарчы футка чейин |
| Продукциянын өлчөмдөрү (L x W x Y) | 35 x 19 x 25 дюйм |
| Элемент Салмагы | 95 фунт |
| Түс | Ак |
| Өзгөчө өзгөчөлүк | Тынч иштөө |
| Иштөө режими | Үзгүлтүктүү |
| Жогорку температура рейтинги | 95 градус Фаренгейт |
| Чыпка түрү | МЕРВ-13 |
| UPC | 859029004649 |

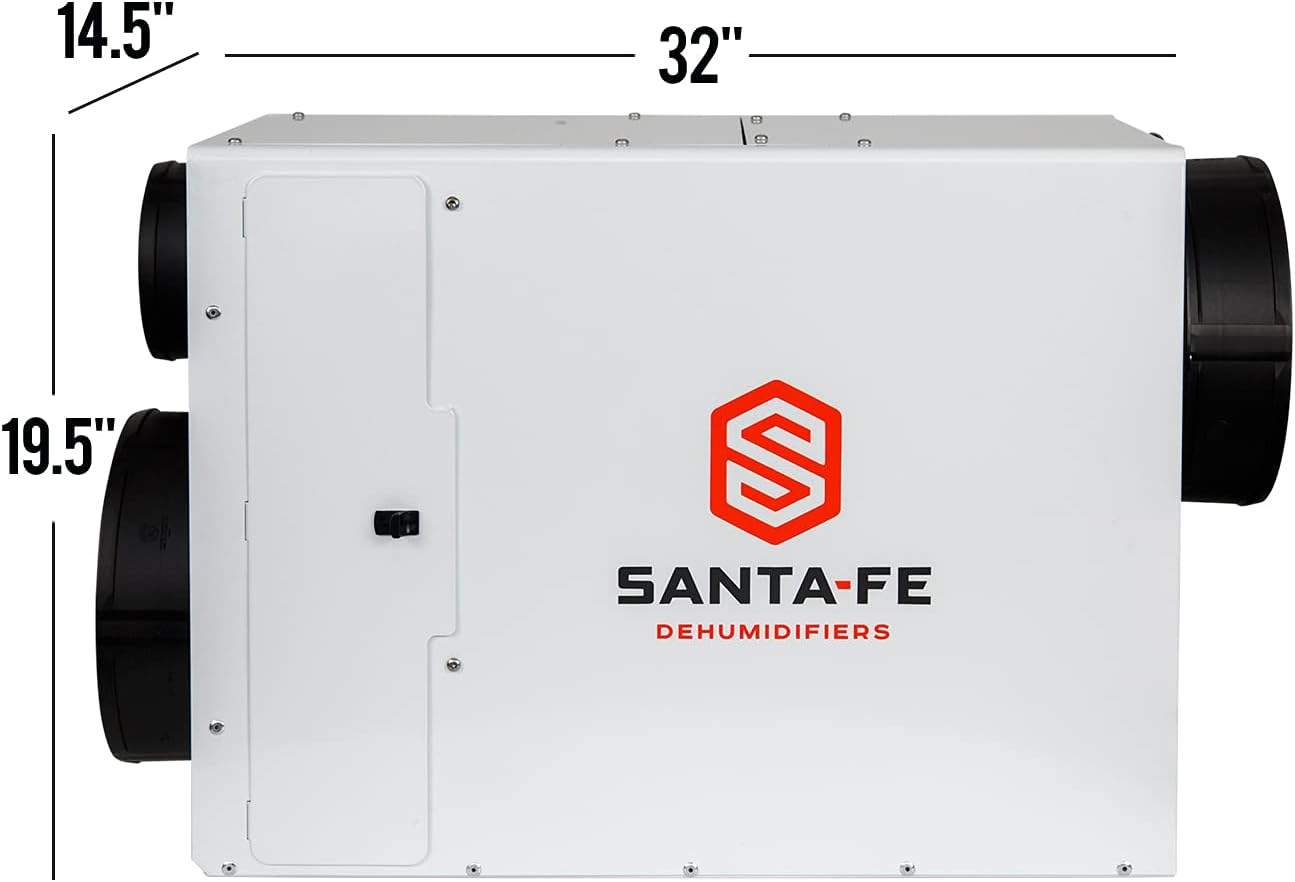

Image 8.1: The Santa Fe Ultra98 dehumidifier with its key dimensions indicated for installation planning.
9. Кепилдик жана колдоо
The Santa Fe Ultra98 Dehumidifier comes with a manufacturer's warranty. For specific warranty details, including coverage duration and terms, please refer to the warranty card included with your product or visit the official Santa Fe website. For technical support, troubleshooting assistance beyond this manual, or to inquire about replacement parts, please contact Santa Fe customer service.
Өндүрүүчү: Santa Fe
ЕБ запастык бөлүктөрүнүн болушунун узактыгы: 5 жыл
Кошумча жардам алуу үчүн, сураныч, баш багыңыз Santa Fe Store on Amazon.
