OMTech Replacement Activated Carbon Filter User Manual

Продукт бүттүview

The OMTech Replacement Activated Carbon Filter is an essential component for your XF-180 Fume Extractor, designed to effectively remove unpleasant odors and harmful gases from your workspace. This filter works in conjunction with the primary and HEPA filters to maintain high air quality during fume-heavy applications such as laser engraving, CNC machining, and welding.

Негизги өзгөчөлүктөрү:

• XF-180 Specific Replacement: Exact fit for OMTech's industrial-strength XF-180 fume extractors.
• Жогорку натыйжалуулугу: Capable of clearing 99.9% of unpleasant odors and harmful fumes, including formaldehyde, benzene, and other chemicals.
• Премиум курулуш: Made from activated charcoal and high-grade melt-blown polypropylene for high absorptive power and durability.
• Exceptional Longevity: Designed to extend your XF-180's dependable service for up to a year.
• Оңой орнотуу: Simple to fit alongside your smoke extractor's primary and HEPA filters.

Image: The OMTech Replacement Activated Carbon Filter, designed for XF-180 Fume Extractors.

Орнотуу жана орнотуу

Proper installation ensures optimal performance and air purification. Follow these steps carefully:

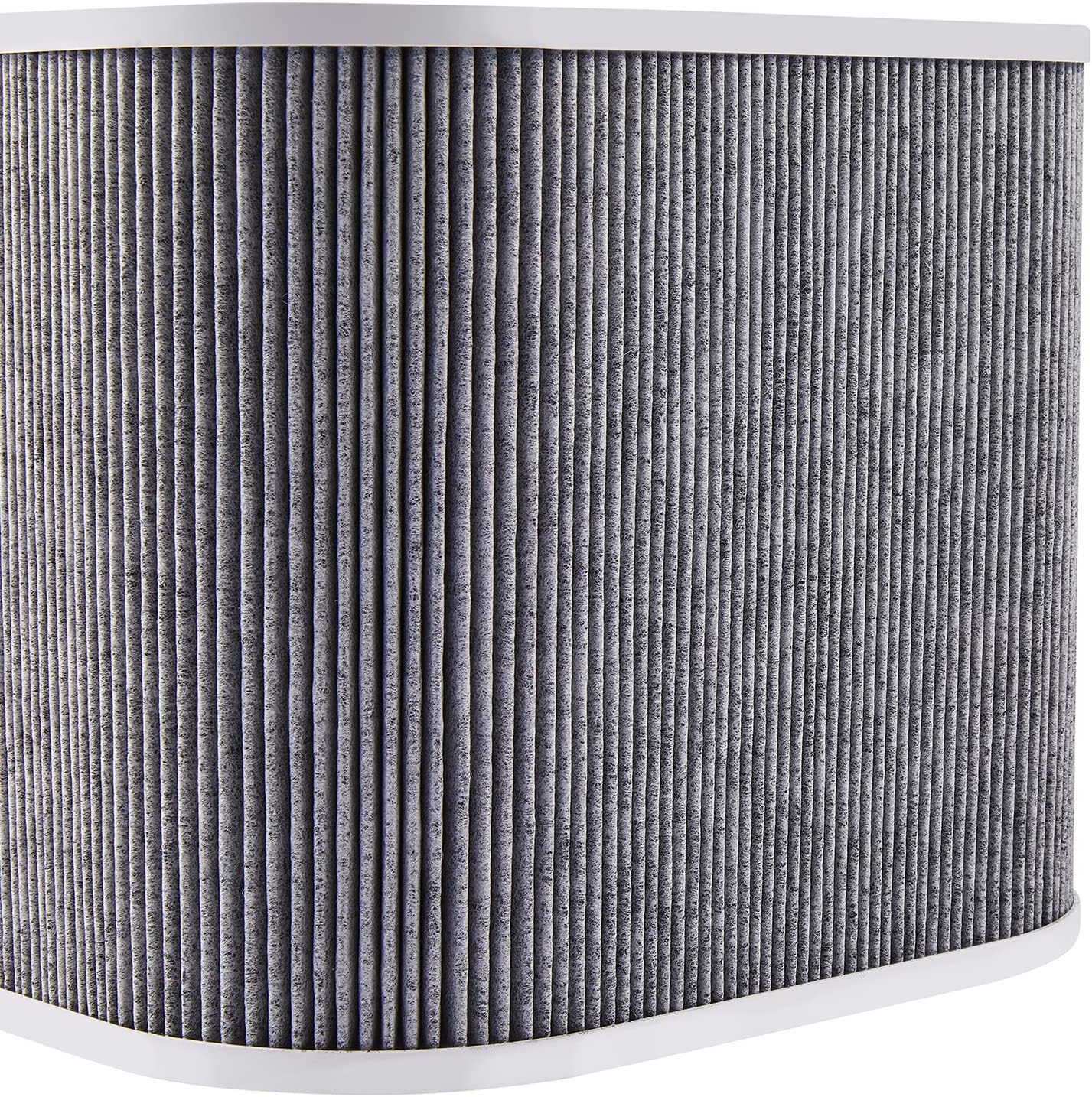

Image: Visual guide for quick and easy setup of the filter system.

Орнотуу кадамдары:

1. 1-кадам: Remove the cover of your XF-180 Fume Extractor and slot the activated carbon filter into its designated position.
2. 2-кадам: Install the H11 HEPA filter inside the carbon filter, ensuring it is securely seated.
3. 3-кадам: Fit the prefilter into the HEPA filter. Once all filters are in place, replace the machine's cover securely.

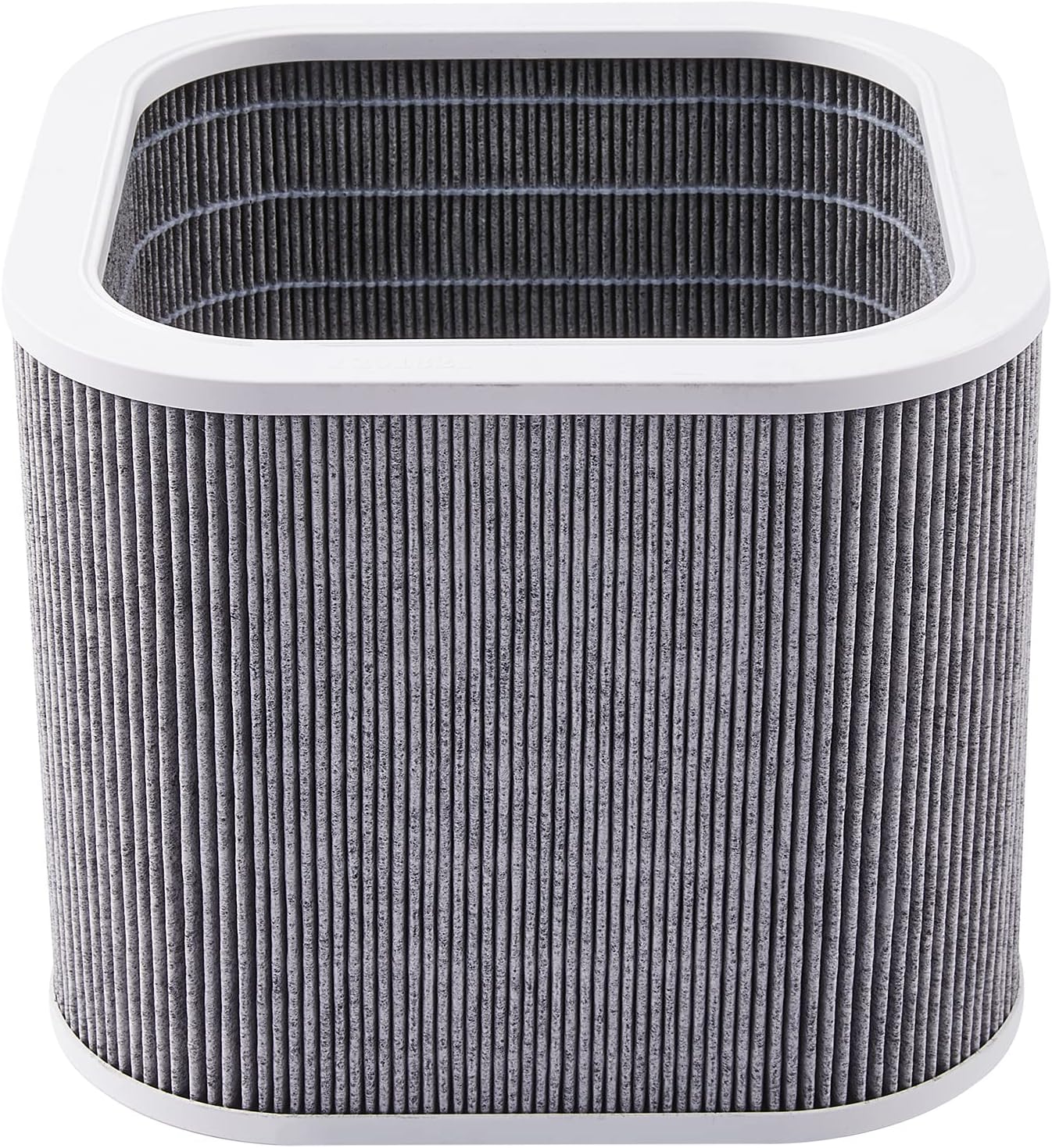

Image: The activated carbon filter with its approximate dimensions (9.4" x 9.4" x 7.7").

Иштөө нускамалары

Once installed, the activated carbon filter works in conjunction with your OMTech XF-180 Fume Extractor to purify the air. Ensure your fume extractor is powered on and operating according to its own manual to begin filtration.

Filter System Overview:

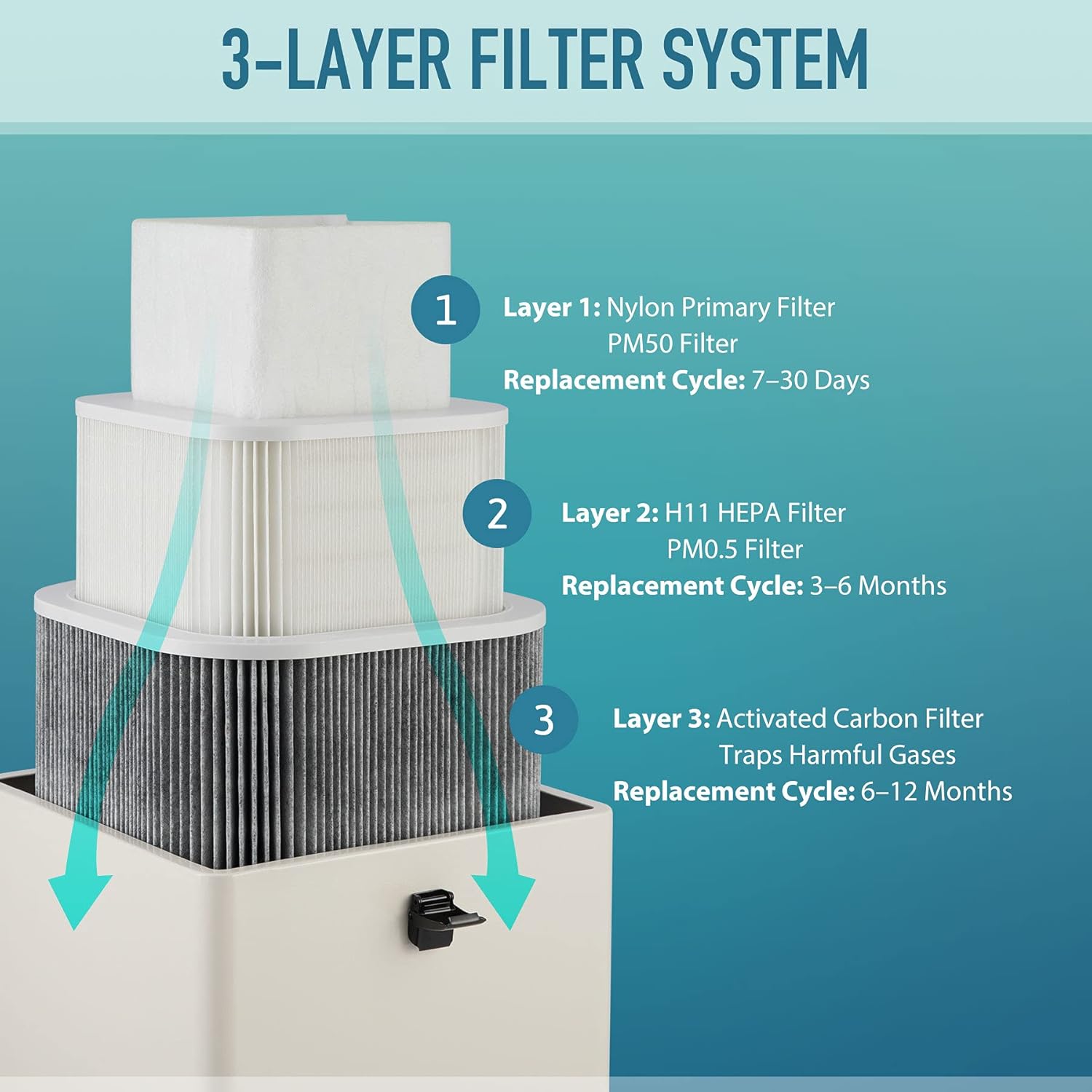

Image: Diagram illustrating the 3-layer filter system, including the Nylon Primary Filter, H11 HEPA Filter, and Activated Carbon Filter.

• Layer 1: Nylon Primary Filter (PM50 Filter) - Captures larger particles. Replacement Cycle: 7–30 Days.
• Layer 2: H11 HEPA Filter (PM0.5 Filter) - Traps fine particulate matter. Replacement Cycle: 3–6 Months.
• 3-кабат: активдештирилген көмүр чыпкасы - Absorbs harmful gases and odors. Replacement Cycle: 6–12 Months.

Тейлөө жана алмаштыруу

Regular maintenance and timely replacement of filters are crucial for maintaining optimal air quality and extending the lifespan of your fume extractor. The activated carbon filter is designed for long-term use, but its effectiveness depends on the volume and type of fumes processed.

Чыпкаларды алмаштыруу графиги:

• Активдештирилген көмүр чыпкасы: Replace every 6–12 months, or sooner if persistent odors are detected, indicating saturation.
• HEPA чыпкасы: Replace every 3–6 months.
• Негизги чыпка: Replace every 7–30 days, or when visibly soiled.

Always use original OMTech replacement filters to ensure compatibility and maintain the performance and warranty of your fume extractor.

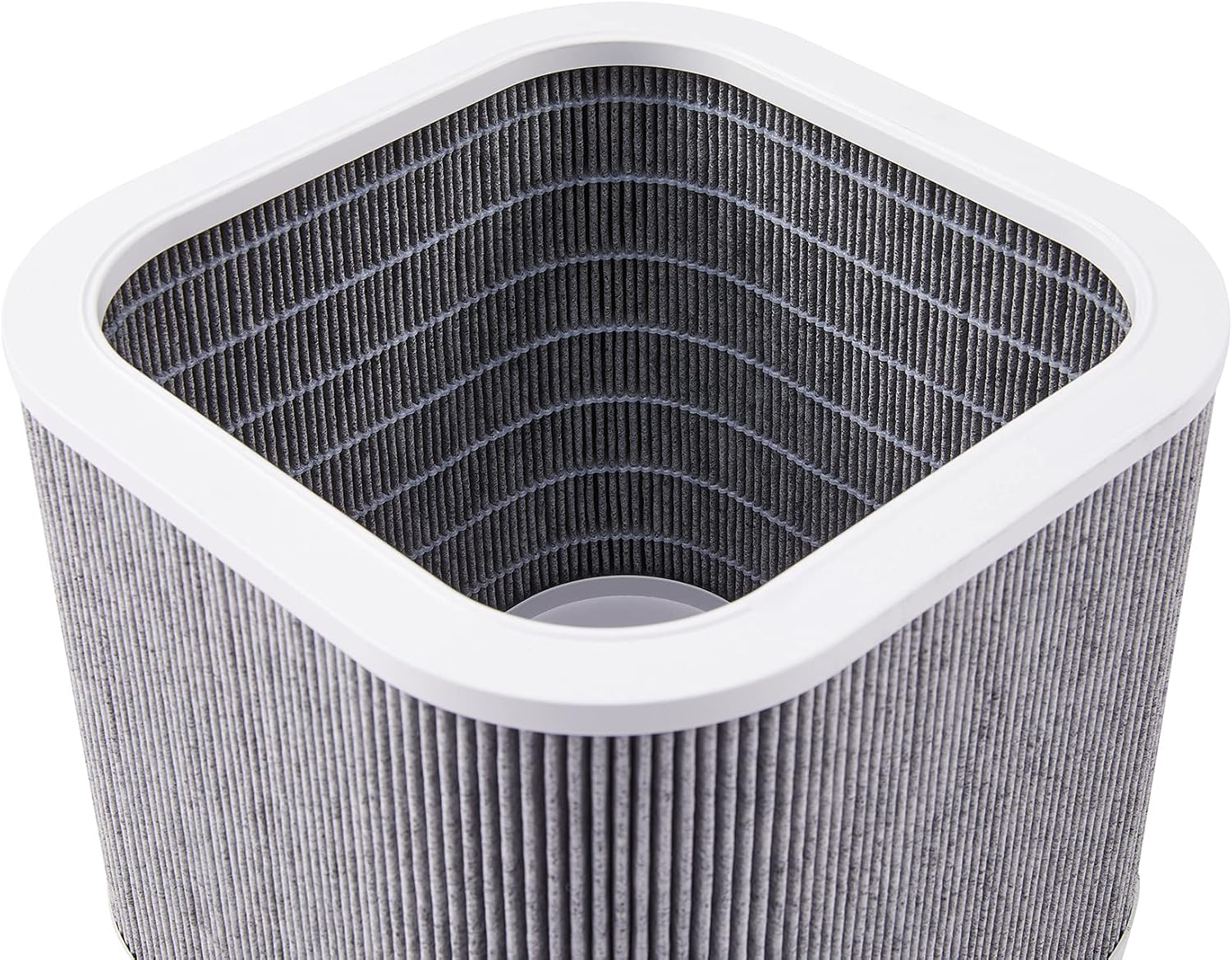

Сүрөт: жогорудан ылдыйга view of the activated carbon filter, showing its internal structure.

Проблемаларды чечүү

If you experience issues with your fume extractor's filtration, consider the following common problems and solutions related to the filter system:

• Reduced Airflow or Suction: This is typically a sign of a clogged filter. Inspect the primary filter first, as it captures the largest particles. If it's clean, check the HEPA and then the activated carbon filter. Replace any clogged filters.
• Туруктуу жыттар: If odors persist despite regular primary and HEPA filter changes, the activated carbon filter may be saturated and no longer able to absorb gases. Replace the activated carbon filter.
• адаттан тыш үндөр: Ensure all filters are correctly seated and the fume extractor unit is stable. Loose filters can cause rattling. If the noise continues, refer to your fume extractor's main manual for further troubleshooting.

For more complex issues or if the problem persists after following these steps, please contact OMTech customer support.

Техникалык шарттар

Кепилдик жана колдоо

OMTech products are designed for durability and performance. For specific warranty details regarding your OMTech XF-180 Fume Extractor and its components, including this activated carbon filter, please refer to the documentation provided with your original fume extractor purchase or visit the official OMTech webсайт.

For technical support, replacement parts, or any inquiries, please contact OMTech customer service:

• OMTech Store: Visit OMTech Store on Amazon
• Жалпы суроолор: Refer to the contact information available on the official OMTech webтүздөн-түз колдоо үчүн сайт.
