1. Киришүү
This manual provides essential instructions for the safe and effective operation of your Elinchrom ONE Off-Camera Flash. Please read this manual thoroughly before using the device to ensure proper setup, usage, and maintenance. Retain this manual for future reference.
The Elinchrom ONE is a portable off-camera flash unit featuring an integrated Li-Ion battery, designed for versatile lighting applications. Its compact size and robust construction make it suitable for various photographic environments.
2. Пакеттин мазмуну
Verify that all items listed below are present in your Elinchrom ONE package:
- 1 x Elinchrom ONE Flash Head
- 1 x Диффузиялык купол
- 1 x Wall Charger and Cable
- 1 x Elinchrom ONE Case
- 1 x 5.9' USB Type-C Cable
3. Орнотуу
3.1 Алгачкы заряддоо
Before first use, fully charge the integrated Li-Ion battery. The Elinchrom ONE features a built-in 41.04 Wh Li-Ion battery.
- Connect the provided USB Type-C cable to the flash unit's charging port.
- Connect the other end of the USB Type-C cable to the supplied 65W USB-C wall charger.
- Дубалдагы заряддагычты розеткага сайыңыз.
Заряддоо убакыттары:
- Fast Charge (unit ON): Approximately 60 minutes to 80%, 100 minutes to 100%.
- Slow Charge (unit OFF): Approximately 80 minutes to 80%, 135 minutes to 100%.
The unit supports Active Charging, allowing operation while connected to a power source, regardless of the battery's charge level.
3.2 Жарык блогун орнотуу

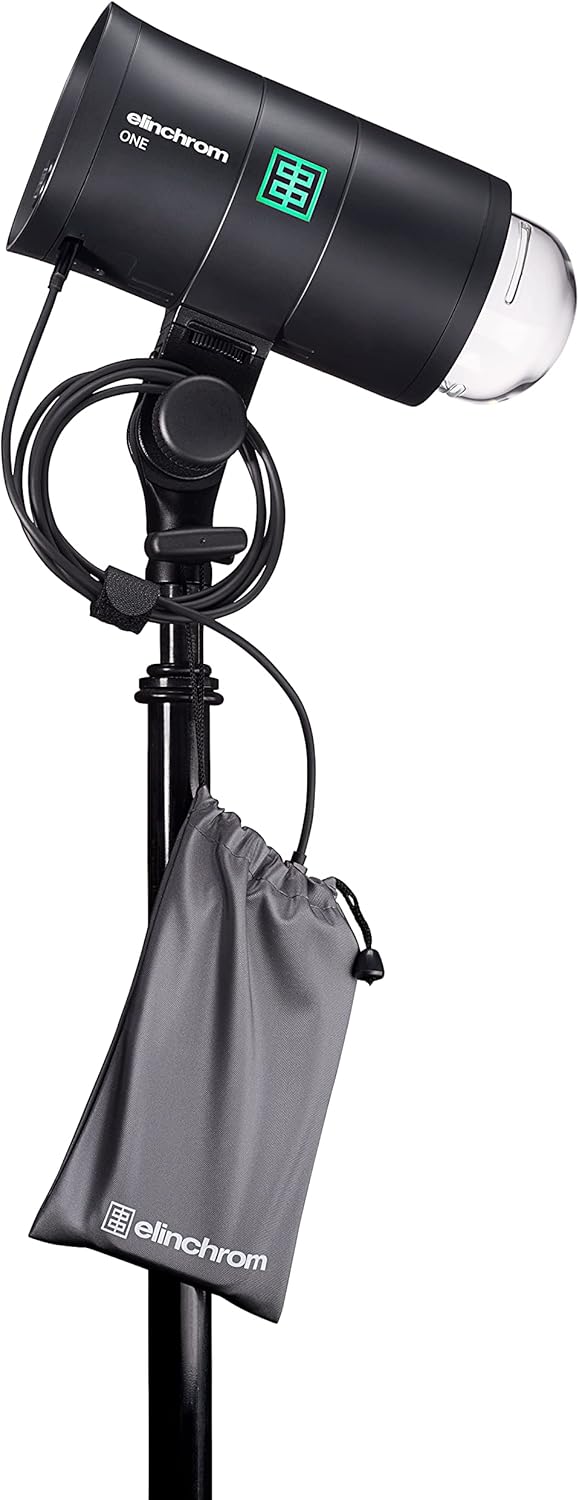

The Elinchrom ONE features a standard 5/8" receiver with dual-axis mounting for attachment to light stands or other grip equipment.
- Loosen the mounting knob on the flash unit's stand mount.
- Slide the flash unit onto the 5/8" spigot of a light stand.
- Tighten the mounting knob securely to prevent movement.
3.3 Жарык модификаторлорун бекитүү
The Elinchrom ONE is compatible with Elinchrom OCF and Profoto OCF light shapers. An included adapter allows compatibility with standard Elinchrom modifiers.
- To attach an OCF modifier, align the modifier with the flash head and twist until it locks into place.
- For standard Elinchrom modifiers, first attach the provided adapter to the flash head, then mount the modifier onto the adapter.
- The tilt head also includes an umbrella fitting (7 to 8 mm) for attaching umbrellas.
4. Иштөө нускамалары
4.1 Күйгүзүү/өчүрүү
To power on the Elinchrom ONE, press and hold the power button located on the control panel until the screen illuminates. To power off, press and hold the power button again until the screen shuts down.
4.2 Flash режимдери
The Elinchrom ONE supports the following flash modes:
- Кол режими: Жарк этүүчү кубаттуулукту так башкарууга мүмкүндүк берет.
- TTL (Объектив аркылуу) режими: Automatically adjusts flash output for correct exposure. Requires a Skyport Transmitter Pro.
- HSS (High-Speed Sync) Mode: Enables flash synchronization at shutter speeds faster than the camera's native sync speed. Requires a Skyport Transmitter Pro.
Adjust flash power within a 5 F-stop range, from 7 to 131 Ws, using the rotary dial or touchscreen interface.
4.3 Моделдөө Лamp
The integrated modeling lamp is a 20W Bicolor LED with a CRI of 95, providing 3000 Lumens (equivalent to a 120W halogen lamp).
- Түс температурасы: Adjustable presets from 2700 K to 6500 K.
- Иштөө убактысы: Up to 10 hours at minimum power, or 90 minutes at maximum power (modeling lamp гана).
Access and adjust modeling lamp settings via the touchscreen interface.
4.4 Триггерлөө
The Elinchrom ONE features a built-in Skyport radio receiver and Bluetooth connectivity.
- Skyport: Supports 20 channels and 4 groups. Radio range is up to 60m indoors and 200m outdoors.
- Bluetooth: Version 4.2 built-in, compatible with Elinchrom Studio Software for Windows, Mac, and iOS devices.
4.5 Батареяны башкаруу
The integrated Li-Ion battery provides approximately 750 full-power flashes (LED lamp OFF) or 550 full-power flashes (LED lamp ON 100%) on a single charge. Refer to Section 3.1 for charging instructions.
5. Техникалык тейлөө
- Тазалоо: Use a soft, dry cloth to clean the exterior of the flash unit. Avoid abrasive cleaners or solvents.

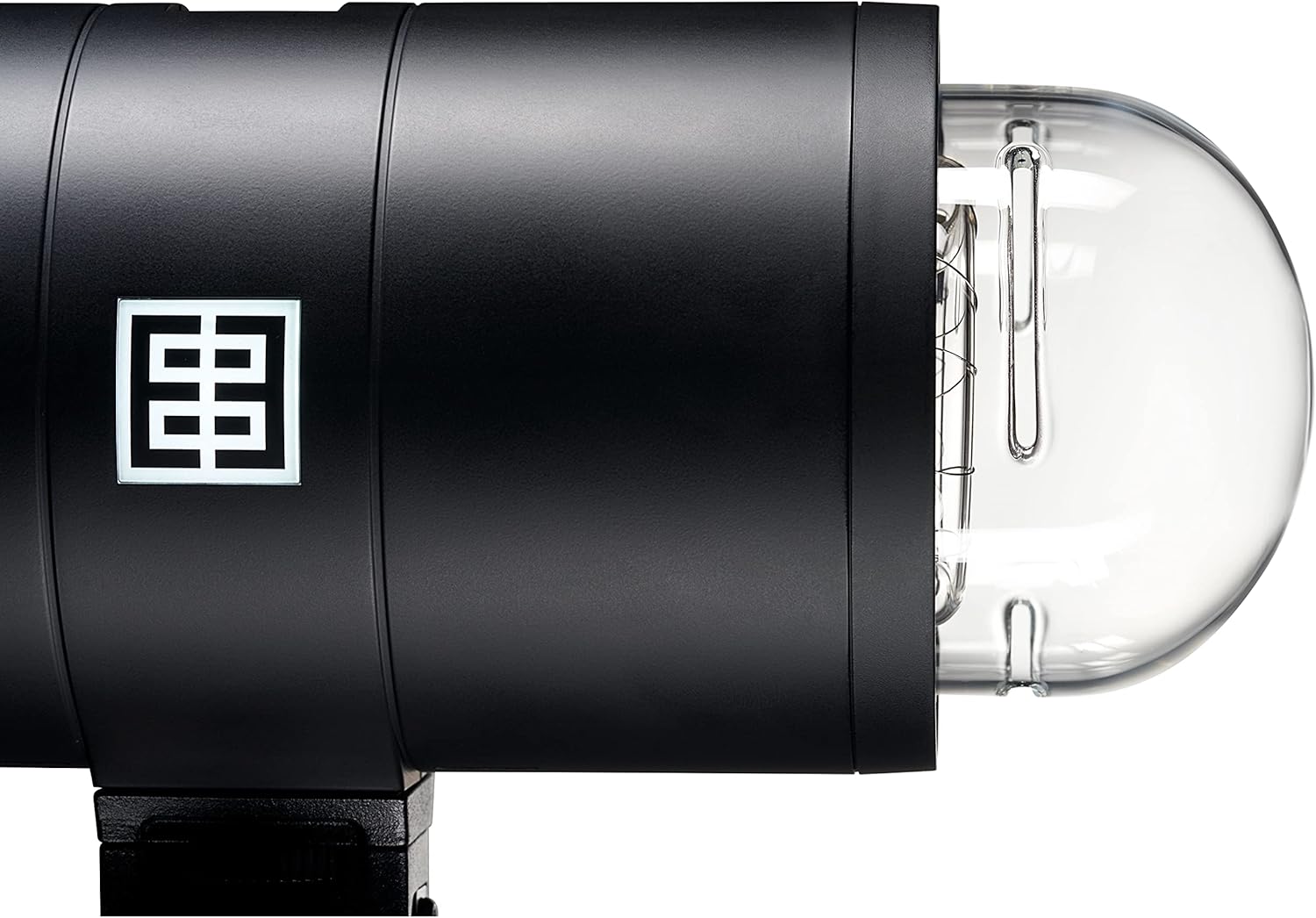

- Жаркылдатуучу түтүктү алмаштыруу: The flash tube is user-replaceable (SKU: EL24091). Refer to the detailed instructions provided with the replacement flash tube for proper installation.
- Сактагыч: Store the unit in its protective case in a cool, dry place when not in use.
6. Кыйынчылыктарды
If you encounter issues with your Elinchrom ONE, consider the following general troubleshooting steps:
- Түзмөк күйбөй жатат: Ensure the battery is sufficiently charged. Connect the unit to the charger and attempt to power on.
- Жарк күйбөйт: Verify that the flash unit is properly synchronized with your camera's trigger (e.g., Skyport Transmitter Pro). Check flash mode settings (Manual, TTL, HSS).
- Туура эмес натыйжа: Check battery level. Ensure no obstructions are blocking the flash sensor or light output.
- Ашыкча ысып кетүү: The unit features smart proactive cooling. If an overheating warning appears, allow the unit to cool down before continued use.
For persistent issues, consult the Elinchrom support webсайтка же кардарларды тейлөөгө кайрылыңыз.
7. Техникалык шарттар
| Өзгөчөлүк | Спецификация |
|---|---|
| Энергия | 131 Вт |
| Power колому | 5 F-Stops / 7 to 131 Ws |
| Flash Duration t0.1 (Normal Mode) | 1/1530с – 1/155с |
| Flash Duration t0.1 (Action Mode) | 1/7000с – 1/625с |
| Recycling Time (Min/Max) | 0.06сек/0.9сек |
| Flash режимдери | Manual / TTL / HSS (requires Skyport Transmitter Pro) |
| Flash Color Temperature (Max Power) | 5900 K (аракет) / 5600 K (HSS) |
| Күчтүн туруктуулугу | ±0.5% |
| Желдетүүчү муздатылган | Yes, with Smart Proactive Cooling |
| User Replaceable Flash Tube | Yes (SKU: EL24091) |
| Тоо | Standard 5/8" Receiver with Dual Axis Mounting |
| Modifier Mount | Elinchrom OCF, Profoto OCF, Elinchrom (via included adapter) |
| Umbrella Fitting | 7 to 8 mm on Tilt Head |
| Батарея түрү | Built-in 41.04 Wh Li-Ion |
| Моделдөө Л.amp Type | 20W Bicolor LED CRI 95, 3000 Lumens |
| Моделдөө Л.amp Түс температурасы | Алдын ала орнотуулар 2700 Кдан 6500 Кга чейин |
| Радио кабылдагыч | Built-in Skyport (20 Channels, 4 Groups) |
| Радио диапазону | Ичинде: 60 мге чейин / Сыртта: 200 мге чейин |
| Bluetooth | Version 4.2 Built-in |
| Продукциянын өлчөмдөрү | 8.86 x 3.94 x 6.5 дюйм |
| Элемент Салмагы | 6.25 фунт |
| Элемент моделинин номери | 20932.1 |
| Шайкеш орнотуулар | Canon, Nikon, Sony |
| Flash синхрондоштуруу ылдамдыгы | 1/8000 сек |
8. Кепилдик жана колдоо
The Elinchrom ONE Off-Camera Flash (Model EL20932.1) typically comes with a 2-year Elinchrom USA manufacturing warranty. Please refer to your purchase documentation or the official Elinchrom webатайын кепилдик шарттары жана шарттары үчүн сайт.
For technical support, service, or further inquiries, please visit the official Elinchrom webсайтына же алардын ыйгарым укуктуу тейлөө борборлоруна кайрылыңыз.
