Moulinex IT-128D.A Oven Thermostat Instruction Manual

1. Киришүү

This manual provides essential information for the proper installation, operation, and maintenance of your Moulinex IT-128D.A adjustable oven thermostat. This component is an original replacement part designed to ensure accurate temperature control in compatible electric ovens. Please read this manual thoroughly before proceeding with installation or use.

2. Коопсуздук маалыматы

ЭСКЕРТҮҮ: Electrical components can cause injury or death. Always disconnect power to the appliance before attempting any installation, maintenance, or repair.

• Ensure the oven is completely unplugged from the power source before beginning work.
• Only qualified personnel should perform electrical installations or repairs.
• Wear appropriate personal protective equipment, such as insulated gloves.
• Verify that the replacement part specifications match the original component.
• Do not operate the oven if any electrical connections are loose or damaged.

3. Продукт бүтүп калдыview

The Moulinex IT-128D.A is an adjustable thermostat designed for electric ovens. It features a robust construction and precise temperature sensing capabilities to maintain desired oven temperatures. This thermostat is rated for 10A at 250V~.

1-сүрөт: Жогорку view of the Moulinex IT-128D.A oven thermostat, showing its general shape and electrical terminals.

3.1. Өлчөмдөр

Accurate measurements are crucial for proper fit. Refer to the diagram below for detailed dimensions.

• Central Hole Diameter: 4.2 мм
• Жалпы бийиктиги: 37 мм
• Максималдуу туурасы: 32.5 мм
• Maximum Depth (Immersion Depth): 37 мм

Figure 2: Detailed dimensions of the Moulinex IT-128D.A thermostat, indicating total height (37mm), maximum width (32.5mm), and other key measurements.

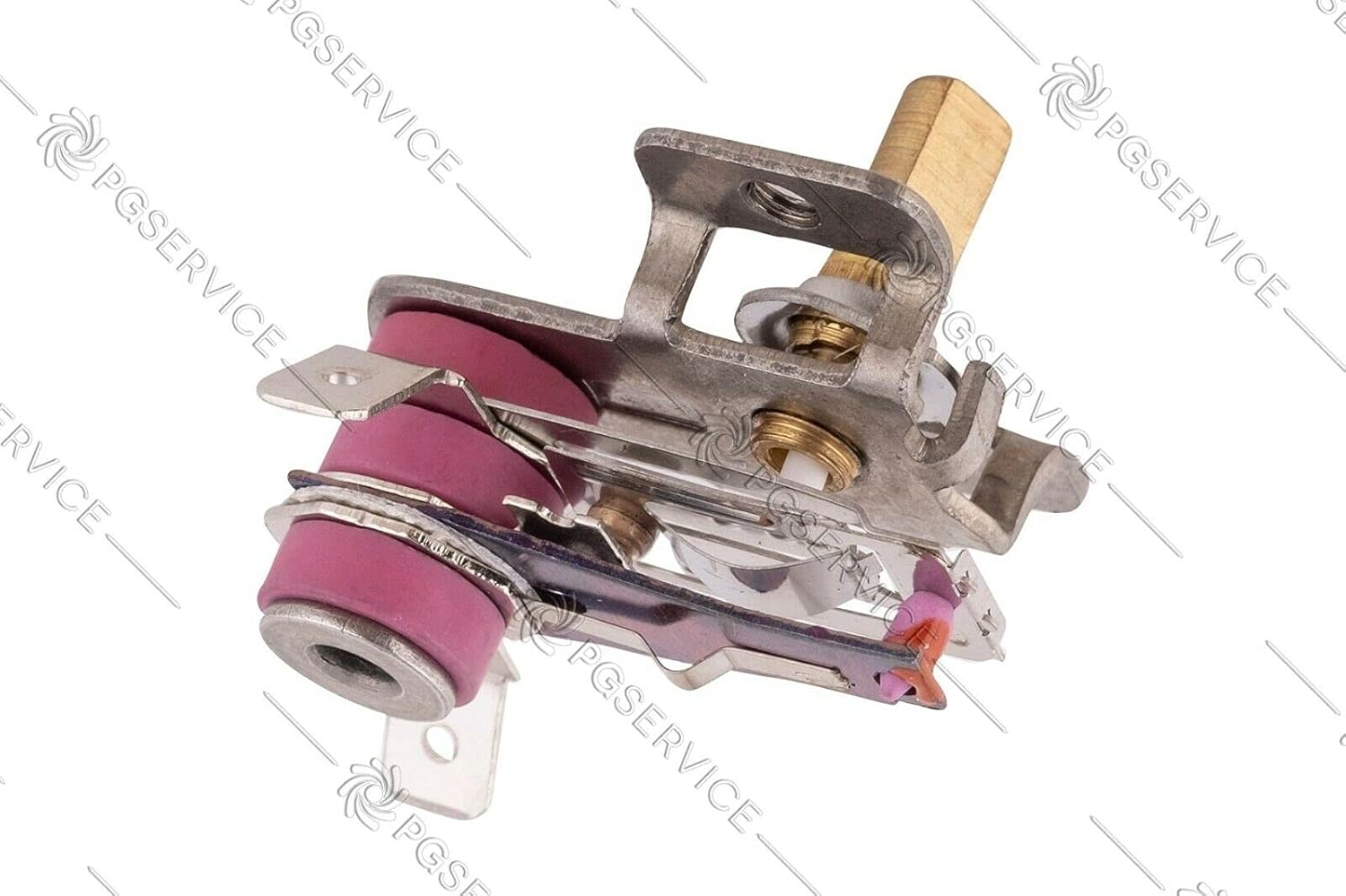

3-сүрөт: Каптал view of the Moulinex IT-128D.A oven thermostat, showing the mounting bracket and electrical terminals from a different angle.

4. Шайкештик

This thermostat is compatible with various Moulinex, Tefal, and Krups electric oven models. Always verify your appliance's model number, typically found on a rating plate at the bottom or rear of the oven, against the list below before purchasing жана орнотуу.

4.1. Compatible Moulinex Models:

• OPTIMO 33L
• OX4648
• OX464E
• OX464810/HZA
• OX464821/HZA
• OX464858/HZA
• OX464E32/HZA

4.2. Compatible Tefal Models:

• OF4648
• OF464E
• OF464810/HZA
• OF4648KR/HZA
• OF464E65/HZA

4.3. Compatible Krups Models:

• OK464E
• OK464E80/HZA

5. Орнотуу

Replacing an oven thermostat requires careful attention to safety and proper electrical connections. If you are unsure about any step, consult a qualified technician.

1. Кубатты өчүрүү: Ensure the oven is completely disconnected from the main power supply. Turn off the circuit breaker for the oven.
2. Термостатка кирүү: Depending on your oven model, you may need to remove the back panel, top panel, or control panel to access the existing thermostat. Refer to your oven's specific service manual for guidance.
3. Документ байланыштары: Before disconnecting any wires, take clear photos or make a diagram of how the wires are connected to the old thermostat. Note the position and color of each wire.
4. Эски термостатты алып салуу: Carefully disconnect the wires from the old thermostat. Then, unmount the old thermostat from its position.
5. Жаңы термостатты орнотуу: Mount the new Moulinex IT-128D.A thermostat in the same location as the old one. Ensure it is securely fastened.
6. Зымдарды туташтыруу: Reconnect the wires to the new thermostat exactly as they were connected to the old one, using your photos or diagram as a reference. Ensure all connections are tight and secure.
7. Духовканы кайра чогултуу: Carefully reassemble any panels or covers that were removed.
8. Сыноо функциясы: Restore power to the oven. Test the thermostat by setting the oven to a desired temperature and observing if it heats up correctly and maintains the temperature.

Эскертүү: The thermostat's sensing bulb (if applicable to your oven design) must be correctly positioned within the oven cavity to accurately measure temperature.

6. Операция

The IT-128D.A thermostat is an internal component that regulates the oven's heating elements based on the temperature setting selected on your oven's control knob. Once installed, its operation is automatic:

• When the oven is turned on and a temperature is selected, the thermostat monitors the internal oven temperature.
• If the temperature falls below the set point, the thermostat activates the heating elements.
• Once the temperature reaches the set point, the thermostat deactivates the heating elements.
• This cycle repeats to maintain a consistent temperature throughout the cooking process.

The thermostat is designed for internal temperature measurement and is oven-safe, capable of handling temperatures up to 300°C.

7. Техникалык тейлөө

The Moulinex IT-128D.A thermostat is a sealed unit and requires no routine maintenance. However, to ensure its longevity and proper function:

• Тазалыкты сактоо: Ensure the area around the thermostat and its sensing element (if exposed) remains free from grease and food debris. Always disconnect power before cleaning.
• Физикалык зыянды болтурбоо: Protect the thermostat from impacts or bending, especially the sensing element.
• Кесиптик текшерүү: If you suspect a malfunction, have the oven inspected by a qualified service technician.

8. Кыйынчылыктарды

If your oven is not heating correctly after thermostat replacement, consider the following:

• Жылуулук жок:
  • Check if the oven is properly plugged in and the circuit breaker is on.
  • Verify all electrical connections to the thermostat are secure and correctly wired.
  • Духовканын эшиги толугу менен жабылганын текшериңиз.
• Так эмес температура:
  • Confirm the thermostat's sensing element is correctly positioned and not obstructed.
  • Ensure the new thermostat is the correct model for your oven.
• Oven Overheating:
  • This could indicate a faulty thermostat that is not cycling off the heating elements. Disconnect power immediately and seek professional assistance.

For issues beyond basic checks, contact a qualified appliance repair technician.

9. Техникалык шарттар

10. Кепилдик жана колдоо

As an original replacement part, this thermostat is covered by the standard warranty terms provided by Moulinex for their spare parts. Please retain your proof of purchase for warranty claims.

For technical support, warranty inquiries, or to locate authorized service centers, please refer to the official Moulinex website or contact their customer service department. When contacting support, have your oven's model number and the thermostat's model number (IT-128D.A) readily available.

Moulinex Official Webсайт: www.moulinex.com (Note: This is a generic link; please refer to your region-specific Moulinex website for accurate contact information.)
