Introduction
Thank you for choosing the NEWDERY 4700 mAh Portable Charging Case for your iPhone 12 Mini or iPhone 13 Mini. This product is designed to significantly extend your phone's battery life, adding up to 110% extra power, and provide robust protection against daily wear and tear. Please read this manual carefully to ensure proper use and maintenance of your device.
Image: The NEWDERY 4700 mAh Portable Charging Case, shown with an iPhone 13 Mini inserted, displaying a full charge.
Image: A graphic illustrating the 4700 mAh battery capacity and its ability to add significant extra battery life to the iPhone 12 Mini / 13 Mini, with estimated usage hours for various activities.
Пакеттин мазмуну
Your NEWDERY Portable Charging Case package should include the following items:
- 1 x NEWDERY Portable Charging Case for iPhone 12 Mini / 13 Mini
- 1 x User Manual
Image: The NEWDERY Portable Charging Case and its accompanying user manual, as found in the product packaging.
Продукт шайкештиги
This charging case is specifically designed for the iPhone 12 Mini жана iPhone 13 Mini (5.4-inch models only). It is not compatible with other iPhone models, including the standard iPhone 12/13, iPhone 12/13 Pro, or iPhone 12/13 Pro Max.
Image: A visual guide illustrating that the charging case is compatible only with 5.4-inch iPhone 12 Mini and iPhone 13 Mini models.
Орнотуу жана орнотуу
- Баштапкы төлөм: Before first use, fully charge the battery case. Connect the case to a power source using a Lightning cable. The LED indicators will show charging progress.
- Inserting Your iPhone:
- Gently bend the soft rubber top of the case backwards.
- Slide your iPhone 12 Mini or 13 Mini into the case, ensuring the charging port on the phone aligns with the connector inside the case.
- Push the phone firmly until it is securely seated and the top rubber part snaps back into place around the phone.
- Removing Your iPhone:
- Gently bend the soft rubber top of the case backwards.
- Carefully slide the iPhone out of the case. Do not force it.
Image: A three-step visual guide demonstrating how to easily install and remove the iPhone from the charging case by bending the soft rubber and aligning the port.
Иштөө нускамалары
iPhone'уңузду кубаттоо
Батарея кутучасын колдонуп iPhone'уңузду кубаттоону баштоо үчүн:
- Activate Charging: Press the power button on the back of the case once. The LED indicators will light up, and your iPhone will begin charging.
- Заряддоону токтотуу: Press the power button on the back of the case twice quickly to stop the charging process.

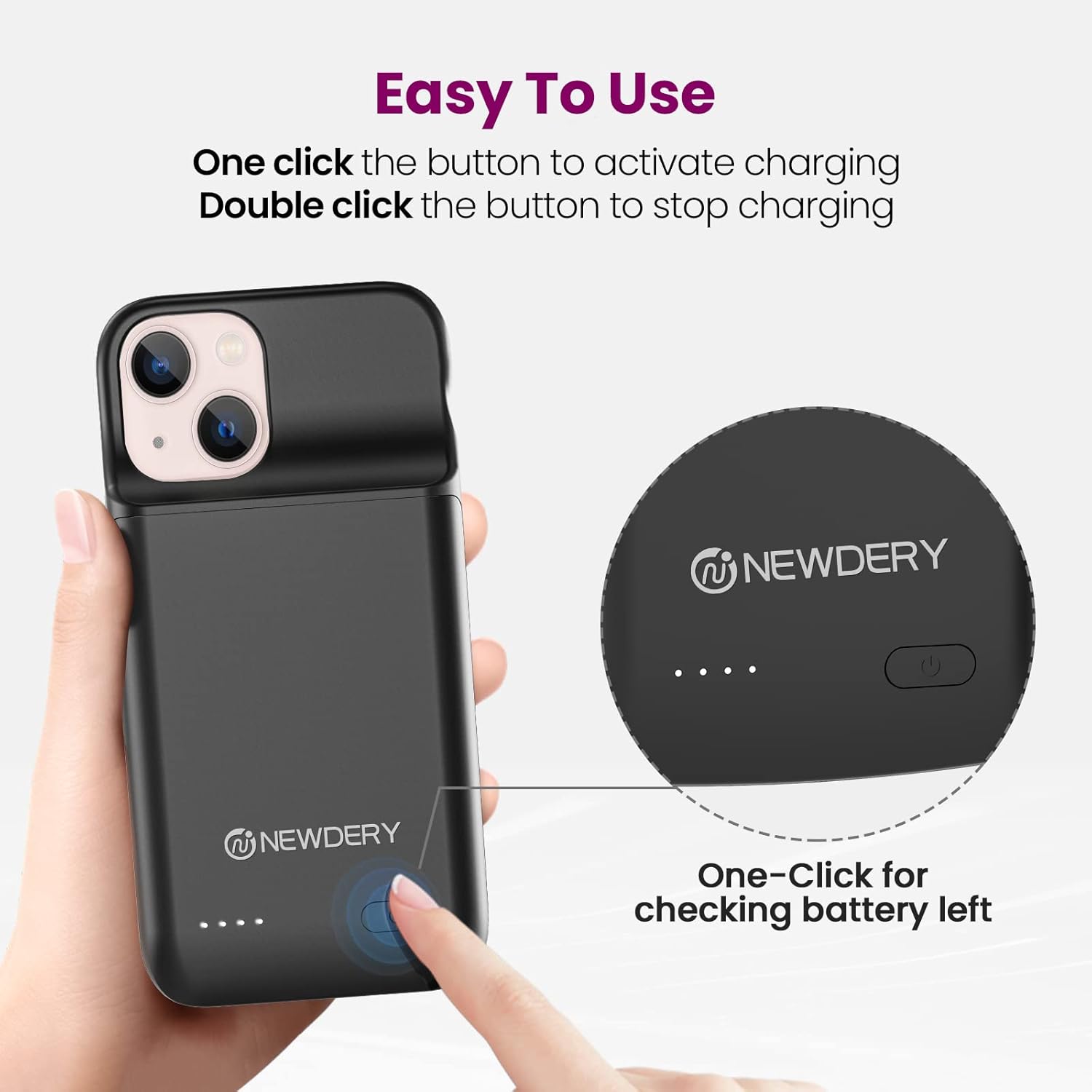

Image: A close-up of the charging case's power button and LED indicators, illustrating how a single click activates charging and a double click stops it.
Батарея деңгээлин текшерүү
The four LED indicators on the back of the case show the remaining battery power:
- 1 LED: 0% - 25% remaining battery
- 2 LED: 25% - 50% remaining battery
- 3 LED: 50% - 75% remaining battery
- 4 LED: 75% - 100% remaining battery
Image: A diagram explaining the meaning of the four LED lights on the charging case, indicating battery charge levels from 0-25% to 75-100%.
Charging the Case and Phone Simultaneously
When the case is connected to a power source with the iPhone inside, the iPhone will charge first. Once the iPhone is fully charged, the battery case will begin to charge. This product does not support data synchronization through the case, wired headphones, or wireless charging.
Image: An iPhone in the charging case connected to a power adapter, illustrating that the phone charges first, followed by the case.
Техникалык тейлөө жана кам көрүү
- Тазалоо: Use a soft, dry cloth to clean the surface of the case. Do not use harsh chemicals or abrasive cleaners.
- Сактагыч: Корпусту күн нурунан жана экстремалдык температурадан алыс салкын, кургак жерде сактаңыз.
- Суу каршылык: The battery case is суу өткөрбөйт. Суунун же жогорку нымдуулуктун таасиринен алыс болуңуз.
- Коргоо: The case offers anti-shock and anti-fall protection, with raised edges for screen protection and soft rubber parts for impact absorption.
Image: A visual representation highlighting the protective features of the case, such as camera protection, raised screen edges, and soft rubber material for shock absorption.
Проблемаларды чечүү
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Case not charging / LEDs not lighting up. | Loose cable connection, faulty cable/adapter, case fully charged. | Ensure cable is securely connected. Try a different Lightning cable and power adapter. If LEDs are off, the case might be fully charged. |
| iPhone not charging when in case. | Case battery depleted, charging not activated, poor connection between phone and case. | Check case battery level via LEDs. Press the power button once to activate charging. Re-seat the iPhone in the case, ensuring the connector is properly aligned. |
| Case or iPhone overheating during charge. | Normal during charging, but excessive heat indicates an issue. | Disconnect from power immediately. Allow to cool down. If overheating persists, discontinue use and contact customer support. The built-in smart chip protects against overheating. |
| LED indicators behave erratically. | Ички бузулуу. | Try fully discharging and recharging the case. If the issue persists, contact customer support. |
Техникалык шарттар
| Бренд | NEWDERY |
| Модель номери | ZHX-639 |
| Шайкеш түзмөктөр | iPhone 12 Mini, iPhone 13 Mini (5.4-inch) |
| Батарея сыйымдуулугу | 4700 мАч Литий-полимер |
| Киргизүү агымы | 5V 1.5A |
| Output Current | 5V 1A |
| Материал | Soft Rubber (TPU) and Hard Shell (PC) |
| Түс | Кара |
| Өлчөмдөрү (L x W x Y) | 18.3 x 10 x 2.1 см (болжол менен 7.2 x 3.9 x 0.8 дюйм) |
| Продукт Салмагы | 124 г (болжол менен 4.37 унция) |
| Өзгөчөлүктөр | Extended battery life, full protection (anti-shock, anti-fall), smart chip protection (overheating, short-circuit, overcharge). |
Image: A visual representation of the case's dimensions (length, width, thickness) and a comparison showing its added weight relative to the iPhone.
Кепилдик жана колдоо
NEWDERY provides professional customer support for its products. If you encounter any issues or have questions regarding your NEWDERY Portable Charging Case, please do not hesitate to contact us through your order details on the platform where you purchased the product.
Кепилдиктин конкреттүү шарттары жана шарттары үчүн сатып алуу документтериңизден караңыз.
