Microsoft Surface Pro Signature Keyboard User Manual

Introduction

This manual provides instructions for the Microsoft Surface Pro Signature Keyboard, designed for use with Surface Pro 8 and Surface Pro X devices. This keyboard offers a full mechanical keyset, backlit keys, a large glass trackpad, and integrated storage and charging for the Surface Slim Pen 2 (sold separately). Its design allows for versatile use, functioning as a traditional keyboard, a protective cover, and a stable base for your Surface device.

Жайгашуу

1. Баскычтопту тиркөө: Align the magnetic connector on the keyboard with the corresponding port on your Surface Pro 8 or Surface Pro X. The keyboard will click into place and securely attach. No separate power connection is required for the keyboard as it draws power directly from the Surface device.
2. Алгачкы таануу: Upon first attachment, your Surface device should automatically recognize the keyboard. If prompted, follow any on-screen instructions to complete the setup.
3. Pen Storage and Charging: The keyboard features a dedicated storage bay for the Surface Slim Pen 2 (sold separately). Insert the pen into this bay to store it securely and ensure it remains charged.

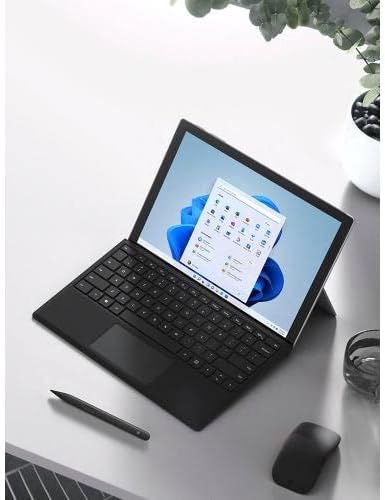

Image: Microsoft Surface Pro device with the Signature Keyboard attached, showcasing its laptop-like configuration.

Иштөө нускамалары

Typing and Trackpad Use

The Surface Pro Signature Keyboard provides a full mechanical keyset for a responsive typing experience. The large glass trackpad allows for precise navigation and multi-touch gestures within the Windows operating system.

Сүрөт: жакын план view of a key on the Surface Pro Signature Keyboard, illustrating its mechanical design.

Арткы жарык баскычтары

The keyboard features backlit keys for improved visibility in low-light conditions. The backlight intensity can typically be adjusted using dedicated function keys (e.g., F1 or F2, depending on your Surface model and software configuration).

Function Keys

Dedicated function keys (F1-F12) provide quick access to system controls such as screen brightness, volume adjustment, and media playback. Refer to your Surface device's documentation for specific function key assignments.

Ар тараптуу позициялоо

• Ноутбук режими: Attach the keyboard and use the Surface Pro's integrated kickstand to position the screen for a traditional laptop experience.
• Планшет режими: Fold the keyboard completely back behind the screen to use your Surface Pro as a tablet. The keyboard automatically deactivates in this position.
• Коргоочу капкак: Close the keyboard over the screen to protect it from scratches and conserve battery life when not in use.

Image: A Surface Pro device with the Signature Keyboard attached and propped up, ready for typing in laptop mode.

Image: A Surface Pro device with the Signature Keyboard folded back, demonstrating its use in tablet mode.

Техникалык тейлөө

• Алькантара материалын тазалоо: The keyboard's Alcantara covering can attract dust and debris. To clean, gently wipe the surface with a soft, lint-free cloth dampened with water. For stubborn spots, a mild soap solution can be used sparingly, followed by wiping with a clean, damp кездеме. Катуу химиялык заттардан же абразивдүү материалдардан алыс болуңуз.
• Cleaning Keys and Trackpad: Use a soft, dry cloth to wipe the keys and trackpad. For dust or debris between keys, a can of compressed air can be used.
• Жалпы кам көрүү: Avoid exposing the keyboard to excessive moisture, extreme temperatures, or direct sunlight. Do not attempt to disassemble the keyboard.

Проблемаларды чечүү

• Баскычтоп жооп бербейт:

  • Ensure the keyboard is securely attached to your Surface Pro. Detach and reattach it to confirm the connection.
  • Restart your Surface Pro device.
  • Check for any pending Windows updates that might affect peripheral functionality.
  • If the issue persists, try connecting the keyboard to another compatible Surface Pro device to determine if the issue is with the keyboard or the Surface device.
• Арткы жарык иштебейт:

  • Verify that the backlight function keys are being pressed correctly.
  • Check your Surface Pro's display settings or keyboard settings within Windows to ensure the backlight is enabled and adjusted.
• Трекпаддагы көйгөйлөр:

  • Сенсордук панелдин бети таза жана таштандылардан таза экенин текшериңиз.
  • Check trackpad settings in Windows for sensitivity or gesture configurations.
  • If the trackpad is unresponsive, detach and reattach the keyboard.
• Difficulty Removing Surface Slim Pen 2:

  • The pen is held securely by magnets. Apply firm, steady pressure when pulling the pen from its storage bay. Avoid twisting or prying.

Техникалык шарттар

Сүрөт: толук view of the Microsoft Surface Pro Signature Keyboard in Black, showing the keys and trackpad.

Кепилдик жана колдоо

Кепилдик маалымат

The Microsoft Surface Pro Signature Keyboard is covered by Microsoft's Limited Warranty. This warranty is provided in addition to any consumer law rights you may have. For detailed terms and conditions of the warranty, please refer to the official Microsoft warranty documentation or visit the Microsoft support webсайт.

Кардарларды колдоо

Көбүрөөк жардам, техникалык колдоо же кепилдик боюнча дооматтар үчүн, расмий Microsoft колдоо кызматына кайрылыңыз website. You can find resources, FAQs, and contact options for your Surface accessories there.

Official Microsoft Support: support.microsoft.com
