THINKCAR SD6 Scan Tool Instruction Manual

Introduction

The THINKCAR SD6 Scan Tool is an advanced diagnostic device designed to help users identify and resolve vehicle issues efficiently. It provides comprehensive diagnostics for 6 major vehicle systems, offers 28 special reset functions (with 5 free optional choices), and includes lifetime free software updates. This manual will guide you through the setup, operation, and maintenance of your SD6 Scan Tool.

Жайгашуу

Кутудан чыгаруу жана алгачкы текшерүү

Upon opening the package, ensure all components are present and in good condition. The package should contain the THINKCAR SD6 main unit and the OBD2 diagnostic cable.

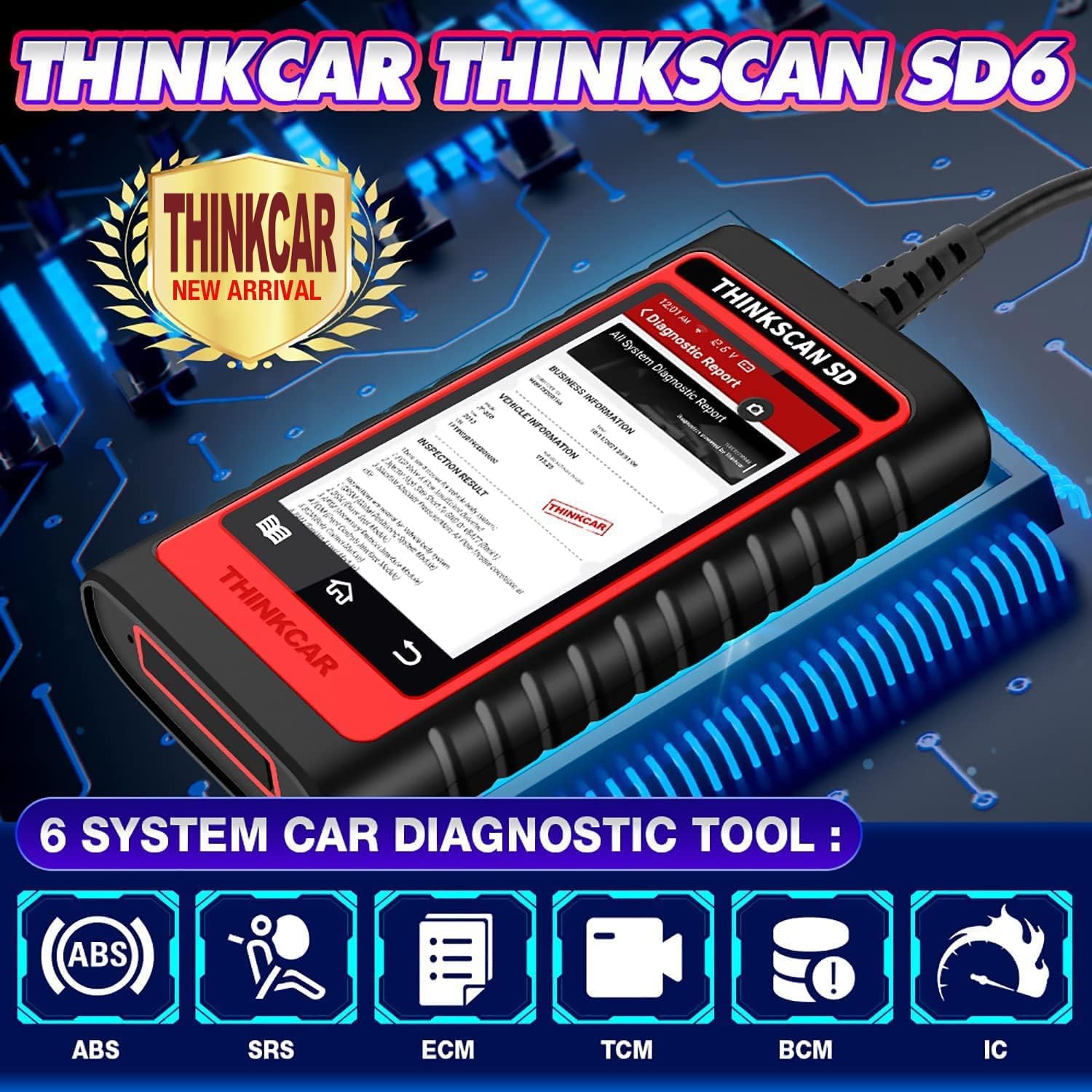

The THINKCAR SD6 Scan Tool and its components.

Күйгүзүү жана туташуу

To power on the device, connect the OBD2 diagnostic cable to the vehicle's OBD2 port. The port is typically located under the dashboard on the driver's side. Once connected, the device will automatically power on.

Connecting the THINKCAR SD6 to the vehicle's OBD2 port, typically located under the dashboard.

Official video demonstrating the initial connection and power-up sequence of the THINKCAR SD6.

Software Update and Activation

For the first use, connect the device to a Wi-Fi network to install and auto-update new car model data packets. Ensure a stable internet connection for successful updates. The device offers lifetime free updates.

The update interface of the THINKCAR SD6, showing available software updates for various vehicle brands.

Иштөө нускамалары

Basic OBDII Functions

The THINKCAR SD6 supports all 10 test modes of OBDII, allowing you to read and clear Diagnostic Trouble Codes (DTCs), view live data streams, check I/M readiness status, and more. This helps in quickly identifying and resolving emission-related issues.

Бүттүview of the main OBDII functions available on the THINKCAR SD6, including reading and clearing fault codes.

Өркүндөтүлгөн система диагностикасы

Beyond basic OBDII, the SD6 provides in-depth diagnostics for six critical vehicle systems: Engine (ECM), Transmission (AT), Airbag (SRS), Antilock Brake (ABS), Body Control Module (BCM), and Instrument Cluster (IC). This allows for a more comprehensive understanding of vehicle health.

Diagram illustrating the six main vehicle systems diagnosable by the THINKCAR SD6: Engine, Transmission, ABS, SRS, BCM, and IC.

Special Reset Functions

The device supports 28 common maintenance reset functions, such as Oil Reset, SAS Reset, TPMS Reset, Brake Reset, and more. Users can select 5 of these functions for free lifetime use. Choose wisely, as these selections cannot be changed once activated.

A visual representation of the 28 special reset functions offered by the THINKCAR SD6, from which users can select 5 for free lifetime use.

Техникалык тейлөө

Программалык камсыздоо жаңыртуулары

Keep your THINKCAR SD6 up-to-date by regularly checking for software updates via Wi-Fi. These updates ensure compatibility with new vehicle models and provide enhanced diagnostic capabilities.

The lifetime free update screen, showing ongoing updates for various vehicle software and diagnostic applications.

Маалыматтарды башкаруу

The SD6 allows you to generate and save comprehensive diagnostic reports. These reports can be reviewed at any time, providing a valuable record of vehicle information, fault codes, and recorded data streams for future reference or sharing.

А сample diagnostic report generated by the THINKCAR SD6, detailing vehicle information and diagnostic trouble codes.

Проблемаларды чечүү

Жалпы маселелер

• Түзмөк күйбөй жатат: Ensure the OBD2 cable is securely connected to the vehicle's port and the vehicle's ignition is in the ON position.
• Туташуу ишке ашкан жок: Check the diagnostic cable for damage. Try connecting to a different vehicle to rule out a vehicle-specific issue.
• Программалык камсыздоону жаңыртуудагы көйгөйлөр: Verify your Wi-Fi connection is stable. If updates fail, try restarting the device and your Wi-Fi router.
• Ката коддору тазаланбай жатат: If fault codes persist after clearing, it may indicate an underlying mechanical or electrical issue that requires further inspection and repair.

Колдоо кызматы менен байланышыңыз

For further assistance or issues not covered in this manual, please contact THINKCAR customer service. You can send an email to support@kingbolen.com for quick response and problem resolution.

Техникалык шарттар

Кепилдик жана колдоо

THINKCAR is committed to providing high-quality products and customer satisfaction. The SD6 Scan Tool is designed in the USA and manufactured to high standards. For any inquiries, technical support, or issues regarding your device, please reach out to the dedicated customer service team.

Колдоо кызматы менен байланышуу: support@kingbolen.com

Visit the official THINKCAR Store for more information and support: THINKCAR Store
