Introduction
This manual provides detailed instructions for the HXSJ L300 104-Key Wired Mechanical Gaming Keyboard. Please read this manual thoroughly before using the product to ensure proper operation and to maximize your user experience.
The HXSJ L300 keyboard is designed to offer responsive operational capabilities and an immersive gaming experience. Its sensitive, tactile keys provide good resistance, aiding in precise typing. The keyboard features multiple lighting effects and durable keycaps made with double-shot injection molding technology to prevent fading and wear. It is compatible with various operating systems, including Win Me/2000/XP/7/8/10/Vista.
Пакеттин мазмуну
- 1 x HXSJ L300 Mechanical Gaming Keyboard
- 1 x User Manual
Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Бренд | Goshyda (HXSJ) |
| Модел | L300 |
| Материал | ABS |
| Түс | Кара |
| Негизги саны | 104 Ачкычтар |
| Которуу түрү | Clicky Mechanical Switches |
| Интерфейс | USB Wired |
| Кабелдин узундугу | Болжол менен 168 см (66 дюйм) |
| Негизги өмүр | 50 миллион басуу |
| Арткы жарык эффекти | Color Backlight (RGB) |
| Шайкеш системалар | Win Me/2000/XP/7/8/10/Vista |
| Байланыш технологиясы | USB |
| Шайкеш түзмөктөр | Компьютер, ноутбук |
Сүрөт: жогорудан төмөнгө view of the HXSJ L300 mechanical keyboard, showcasing its full 104-key layout, black keycaps, and the attached USB cable with its connector.
Жайгашуу
- Баскычтопту таңгактан чыгаруу: Carefully remove the HXSJ L300 keyboard from its packaging.
- Компьютерге туташуу: Locate an available USB port on your PC or laptop. Insert the USB connector of the keyboard cable into the USB port.
- Драйверди орнотуу (Автоматтык түрдө): The keyboard is plug-and-play. Your operating system (Windows Me/2000/XP/7/8/10/Vista) should automatically detect and install the necessary drivers. No manual driver installation is typically required.
- Функционалдуулугун текшерүү: Once connected, the keyboard's backlight should illuminate. Test typing and key responsiveness to ensure proper function.
Image: The HXSJ L300 mechanical keyboard in use, connected to a laptop. The keyboard's RGB backlighting is visible, and a mouse and pen are also on the wooden desk, illustrating a typical setup.
Иштөө нускамалары
Multimedia Key Combinations (FN Key Functions)
The HXSJ L300 keyboard features a Function (FN) key that, when combined with specific F-keys, provides quick access to multimedia and system controls. Press and hold the FN key, then press the desired F-key.
- FN + F1: Open Computer / My Computer
- FN + F2: издөө
- FN + F3: Калькуляторду ачыңыз
- FN + F4: Open CD Player / Media Player
- FN + F5: Мурунку трек
- FN + F6: Кийинки трек
- FN + F7: Ойнотуу/Тыныгуу
- FN + F8: CD токтотуу
- FN + F9: Аудионун үнүн басуу
- FN + F10: Үндү төмөндөтүү
- FN + F11: Үндү көтөрүү
- FN + F12: Бардык баскычтарды кулпулоо
- WIN + L: Lock Windows and Applications

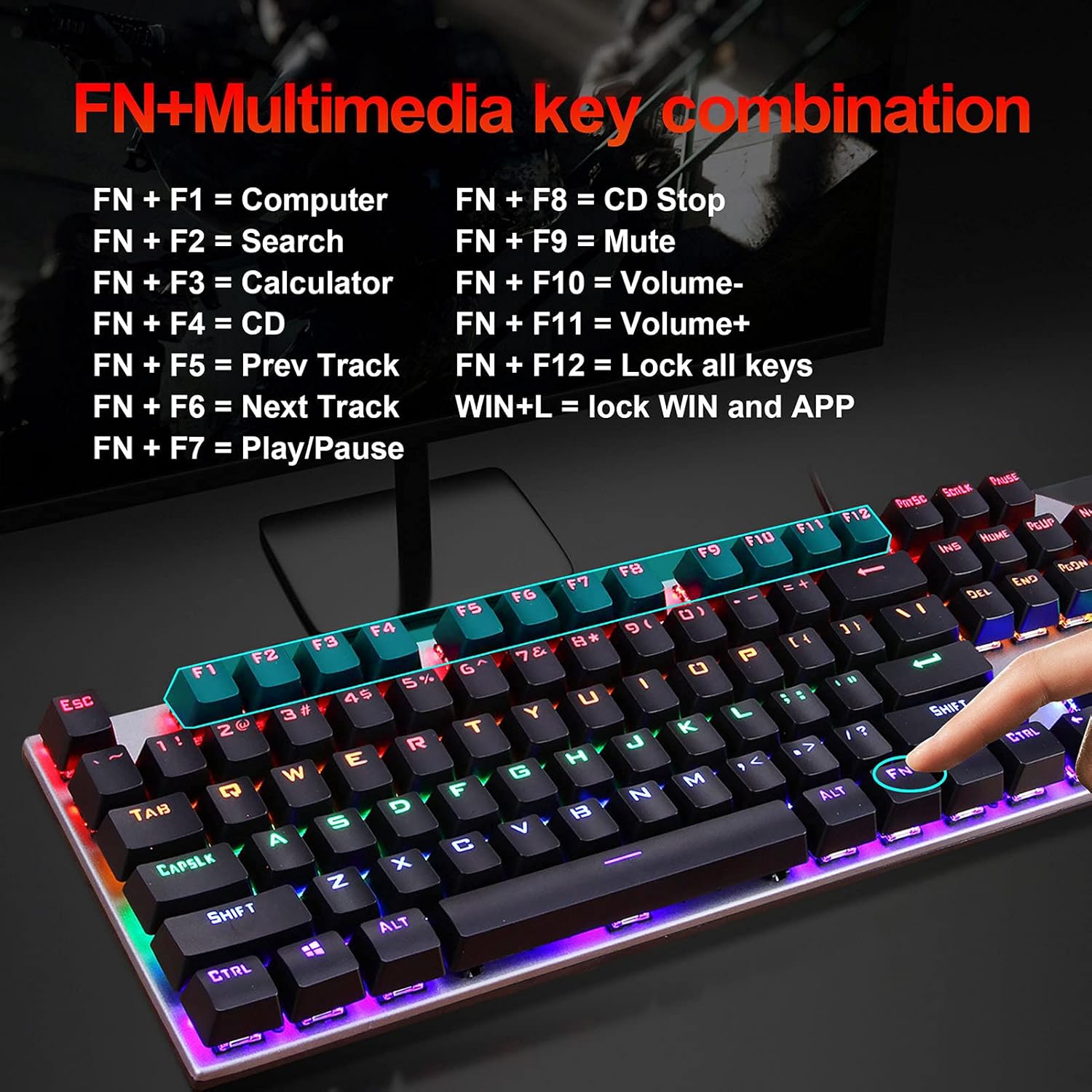

Image: A visual guide to the FN+Multimedia key combinations available on the HXSJ L300 keyboard, detailing functions like opening applications, media control, and volume adjustment.
Арткы жарыкты башкаруу
The keyboard features various RGB backlight effects. You can adjust these effects using specific key combinations:
- FN + INS: Cycle through different backlight modes/effects.
- FN + "↑" (Up Arrow): Increase backlight brightness (6 levels).
- FN + "↓" (Down Arrow): Decrease backlight brightness (6 levels).
- FN + "←" (Left Arrow): Decrease backlight effect speed (5 levels).
- FN + "→" (Right Arrow): Increase backlight effect speed (5 levels).
Image: A visual representation of the RGB backlight control functions, showing how to adjust brightness and speed of lighting effects using FN key combinations.
Image: The HXSJ L300 mechanical keyboard illuminated with vibrant RGB backlighting, showcasing its aesthetic appeal and customizable lighting options.
Техникалык тейлөө
- Тазалоо: Use a soft, dry cloth to wipe the surface of the keyboard. For deeper cleaning, you may use a can of compressed air to remove dust and debris from between the keycaps. Avoid using liquid cleaners directly on the keyboard.
- Баскычтын капкагын алып салуу (милдеттүү эмес): If necessary, keycaps can be carefully removed for thorough cleaning of the switches. Use a keycap puller tool (not included) to avoid damage. Reinstall keycaps by aligning them with the switch stem and pressing down gently.
- Сактагыч: Узак мөөнөткө колдонулбаганда, клавиатураны кургак, чаңсыз чөйрөдө сактаңыз.
- Суюктуктардан алыс болуңуз: Do not expose the keyboard to liquids, as this can cause damage to the internal components.
Сүрөт: деталдуу view of the HXSJ L300 keyboard's keycaps and mechanical switches. This image illustrates the two-color injection molding process for durable key legends and the structure of the mechanical switches, which have a lifespan of 50 million keystrokes.
Image: An exploded diagram of a mechanical keyboard switch, detailing its various components such as the stem, spring, and housing. This illustrates the "automated shaft exchange real machinery" aspect of the keyboard's design, contributing to its 50 million keystroke lifespan.
Проблемаларды чечүү
- Баскычтоп жооп бербейт:
- USB кабели клавиатурага жана компьютердин USB портуна бекем сайылганын текшериңиз.
- Баскычтопту компьютериңиздин башка USB портуна сайып көрүңүз.
- Компьютериңизди өчүрүп күйгүзүңүз.
- Көйгөй клавиатурада же компьютерде экенин аныктоо үчүн баскычтопту башка компьютерде сынап көрүңүз.
- Арткы жарык иштебейт же туура эмес:
- Check if the backlight is turned off or set to the lowest brightness. Use FN + "↑" жарыктыгын жогорулатуу үчүн.
- Жарыктан коргоо режимдерин колдонуп айланып өтүңүз FN + INS to see if it resolves the issue.
- Катталбаган же эки жолу терилген ачкычтар:
- Clean the affected key(s) using compressed air to remove any debris that might be obstructing the switch.
- If comfortable, carefully remove the keycap and inspect the switch for any visible damage or obstruction.
- Мультимедиа баскычтары иштебейт:
- басып жатканыңызды текшериңиз FN каалаган F баскычы менен бир убакта басыңыз.
- Some multimedia functions may require specific software or drivers on your operating system. Ensure your system is up to date.
Кепилдик жана колдоо
Information regarding specific warranty terms and customer support for the HXSJ L300 keyboard is not provided in the product details. For warranty claims or technical assistance, please refer to the retailer where the product was purchased or contact the manufacturer directly if contact information is available on the product packaging or official webсайт.
Ergonomics and Keycap Design
The HXSJ L300 keyboard features a floating high and low keycap layout designed for ergonomics, aiming to fit fingers comfortably and provide a pleasant typing experience.

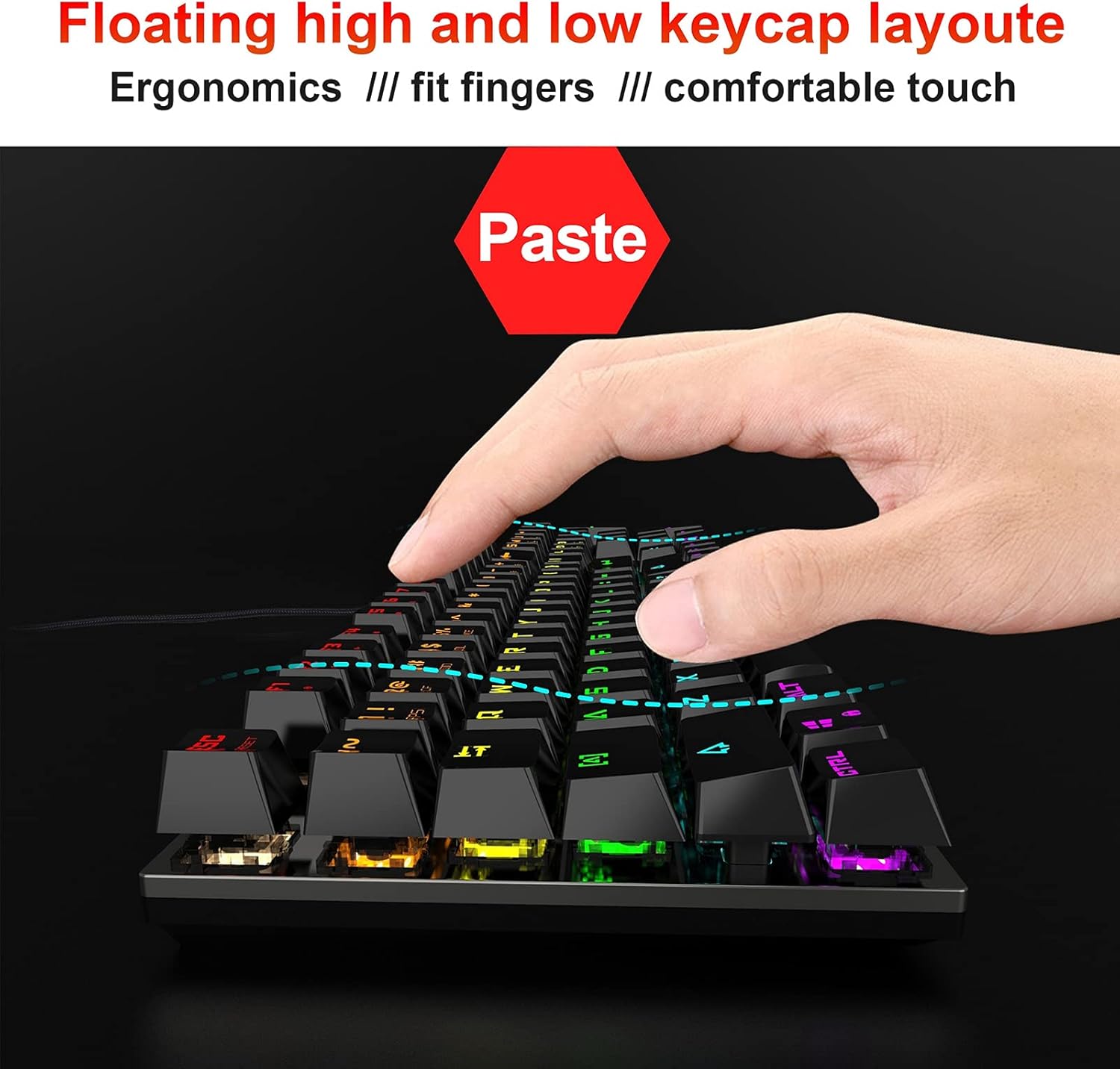

Image: A hand positioned over the HXSJ L300 keyboard, demonstrating the ergonomic "floating high and low keycap layout" which is designed to provide a comfortable and natural typing or gaming posture.
