Pyle PKBRD6112 Electric Keyboard 61 Keys - Instruction Manual

1. Киришүү

This manual provides detailed instructions for the setup, operation, and maintenance of your Pyle PKBRD6112 Portable Digital Karaoke Piano Keyboard. Please read this manual thoroughly before using the product to ensure proper function and to maximize your experience.

The Pyle PKBRD6112 is a portable digital musical keyboard featuring 61 keys, designed for both beginners and experienced users. It includes a variety of tones, rhythms, and a wired microphone for vocal accompaniment. The keyboard is equipped with built-in stereo speakers, an auxiliary input for connecting external audio sources, and a rechargeable battery for portable use.

Image 1.1: Pyle PKBRD6112 Electric Keyboard with 61 keys and included wired microphone.

2. Пакеттин мазмуну

Төмөндө тизмеленген нерселердин баары пакетиңизге камтылганын текшериңиз:

• Portable Piano Keyboard (PKBRD6112)
• Зымдуу микрофон
• USB кубаттоочу кубат кабели
• Аудио кабель (3.5 ммден 3.5 ммге чейин)
• UL Adapter (Power Adapter)
• Музыкалык баракчанын кармагычы

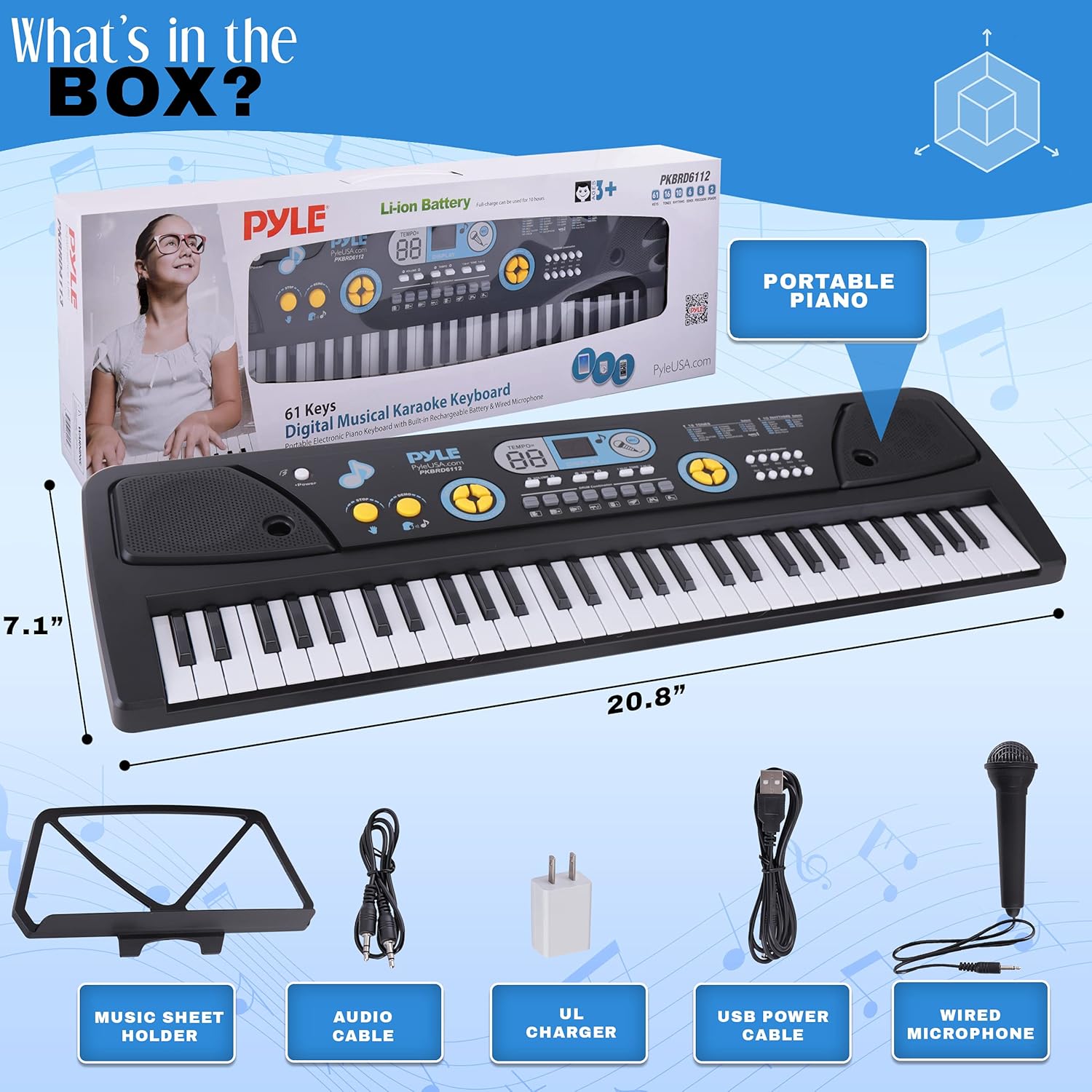

Image 2.1: All components included in the Pyle PKBRD6112 package.

3. Продукт бүтүп калдыview

Familiarize yourself with the various parts and controls of your Pyle PKBRD6112 keyboard.

Image 3.1: Top and rear view of the keyboard with labeled controls and ports.

• Кубат баскычы: Баскычтопту күйгүзөт же өчүрөт.
• Үндү көзөмөлдөө: Жалпы үн чыгаруу деңгээлин тууралайт.
• Темпти көзөмөлдөө: Adjusts the speed of rhythms and demo songs.
• Тон тандоо: Cycles through 16 different instrument sounds.
• Ритм тандоо: Cycles through 10 different rhythm patterns.
• Демо баскычы: Plays pre-recorded demonstration songs.
• Токтотуу баскычы: Stops current rhythm or demo playback.
• Single/Finger/Okon/Follow: Controls for accompaniment modes.
• Drum Combination Pads: Buttons for playing individual drum sounds.
• Rec/Play/Prog/Fill-in: Controls for recording, playback, programming rhythms, and rhythm fills.
• Дисплей: Shows current tone, rhythm, and other settings.
• AUX IN (3.5 мм уяча): Тышкы аудио түзмөктөрдү туташтыруу.
• MIC IN (3.5 мм уяча): Зымдуу микрофонду туташтырыңыз.
• PHONES IN (3.5mm Jack): Жеке практика үчүн кулакчындарды туташтырыңыз.
• USB кубат киргизүү: Connect the USB charger power cable for power and charging.

4. Орнотуу

4.1 Баскычтопту иштетүү

1. Locate the USB Power Input port on the rear of the keyboard.
2. Connect the provided USB Charger Power Cable to the keyboard.
3. Connect the other end of the USB cable to the UL Adapter.
4. Plug the UL Adapter into a standard wall outlet.
5. The keyboard has a built-in rechargeable battery. Allow sufficient time for the battery to charge before initial portable use.

4.2 Микрофонду туташтыруу

1. Locate the MIC IN (3.5mm Jack) port on the rear of the keyboard.
2. Insert the plug of the wired microphone into the MIC IN port.
3. Adjust the microphone volume using the keyboard's main volume control or dedicated microphone volume if available (refer to Image 3.1).

Image 4.1: Using the wired microphone with the keyboard.

4.3 Наушниктерди туташтыруу

1. Locate the PHONES IN (3.5mm Jack) port on the rear of the keyboard.
2. Plug your headphones into this port for private listening. The internal speakers will be muted when headphones are connected.

Image 4.2: Connecting headphones for private practice.

4.4 Connecting External Audio Devices (AUX IN)

1. Locate the AUX IN (3.5mm Jack) port on the rear of the keyboard.
2. Use the provided Audio Cable to connect your smartphone, tablet, laptop, or other audio device to the AUX IN port.
3. Audio from the connected device will play through the keyboard's speakers, allowing you to play along with music.

Image 4.3: Connecting an external device for audio streaming.

4.5 Attaching the Music Sheet Stand Holder

1. Locate the slots on the top panel of the keyboard, behind the control panel.
2. Insert the base of the music sheet stand holder into these slots until it is securely in place.

Image 4.4: Music sheet stand holder attached to the keyboard.

4.6 Microphone Storage

When not in use, the wired microphone can be stored in the dedicated holder located on the underside of the keyboard.

Image 4.5: Microphone holder on the bottom of the keyboard.

5. Иштөө нускамалары

5.1 Күйгүзүү/өчүрүү жана үндү тууралоо

• басыңыз Кубат баскычы to turn the keyboard on. The display will illuminate.
• айлантыңыз Үндү көзөмөлдөө knob to adjust the desired sound level.
• басыңыз Кубат баскычы again to turn the keyboard off.

5.2 Обондорду тандоо

• The keyboard features 16 different instrument tones.
• басыңыз Тон тандоо buttons (usually labeled with numbers or up/down arrows) to cycle through the available tones. The current tone number will be shown on the display.

5.3 Selecting Rhythms and Adjusting Tempo

• The keyboard includes 10 rhythm patterns.
• басыңыз Ритм тандоо buttons to choose a rhythm. The current rhythm number will be shown on the display.
• колдонуу Темп башкаруу buttons to increase or decrease the speed of the selected rhythm.
• басыңыз Токтотуу баскычы to halt the rhythm playback.

Сүрөт 5.1: Бүттүview of available rhythms, drum combinations, and tones.

5.4 Using Drum Combinations

• The keyboard features integrated Drum Combination Pads.
• Press these pads to play individual drum sounds, allowing you to create your own drum patterns or add percussion to your music.

5.5 демо ырлар

• басыңыз Демо баскычы to play through the pre-recorded demonstration songs.
• басыңыз Токтотуу баскычы to end the demo song playback.

5.6 Record and Playback Function

• Жаздыруу: басыңыз REC button to enter recording mode. Play your desired melody on the keys. The keyboard will record your key presses.
• Ойнотуу: After recording, press the ОЙНОО button to listen to your recorded melody.
• Эскертүү: This function typically records only the notes played on the keyboard, not external audio or microphone input.

5.7 Караоке функциясы

• Connect an external audio device (e.g., smartphone) to the AUX IN port (refer to Section 4.4).
• Зымдуу микрофонду туташтырыңыз MIC IN port (refer to Section 4.2).
• Play music from your external device and sing along through the microphone.

Image 5.2: Engaging in karaoke with the keyboard and microphone.

5.8 Энергияны үнөмдөө функциясы

The keyboard is equipped with a power-saving feature. If left inactive for a certain period, it may automatically enter a sleep mode or power off to conserve battery life. Press any key or the power button to reactivate it.

6. Техникалык тейлөө

• Тазалоо: Use a soft, dry cloth to wipe the surface of the keyboard. Do not use abrasive cleaners, waxes, or solvents.
• Сактагыч: Store the keyboard in a cool, dry place away from direct sunlight and extreme temperatures. Avoid placing heavy objects on top of the keyboard.
• Батареяга кам көрүү: For optimal battery life, avoid fully discharging the battery frequently. Charge the keyboard regularly, even if not in constant use.
• Транспорт: When transporting, ensure the keyboard is securely packed to prevent damage. Utilize the microphone holder on the underside for safe microphone storage.

7. Кыйынчылыктарды

8. Техникалык шарттар

9. Кепилдик жана колдоо

Pyle products are designed and manufactured to high-quality standards. For information regarding warranty coverage, technical support, or service inquiries, please refer to the warranty card included with your product or visit the official Pyle webсайт.

Сураныч, кепилдик дооматтар үчүн сатып алуу далилиңизди сактап коюңуз.
