1. Киришүү
This manual provides essential information for the installation, operation, and maintenance of your Okin Betadrive Recliner Motor, Model 1.25.000.205.30. This motor is designed as a replacement part for power recliners, sofas, and lift chairs, and is compatible with original Okin Betadrive motors, as well as JLDQ.1.156.333, JLDQ.11.156.333, and JLDQ.12.157.333 series motors. Please read this manual thoroughly before proceeding with installation or use to ensure proper function and safety.
2. Коопсуздук маалыматы
- Always disconnect power to the recliner or furniture before attempting any installation, maintenance, or troubleshooting.
- Электрдик коркунучтарды алдын алуу үчүн бардык туташуулардын коопсуз жана туура изоляцияланганын текшериңиз.
- Do not operate the motor if any part is damaged or if wires are frayed.
- Иштөө учурунда колдоруңузду жана кенен кийимдериңизди кыймылдуу бөлүктөрдөн алыс кармаңыз.
- Бул мотор имараттын ичинде гана колдонууга арналган.
- Эгер кандайдыр бир кадамга ишенбесеңиз, квалификациялуу техникке кайрылыңыз.
3. Продукт бүтүп калдыview
The Okin Betadrive Recliner Motor is a robust linear actuator designed for reliable performance in various reclining furniture. It consists of a motor unit and a connector, facilitating easy replacement.
3.1-сүрөт: Толук view of the Okin Betadrive Recliner Motor Model 1.25.000.205.30.
Компоненттери:
- Мотор бирдиги: The main body containing the electric motor and screw system.
- Туташтыргыч: Includes a 5-pin plug for the switch hand control and a 2-pin plug for the power supply.

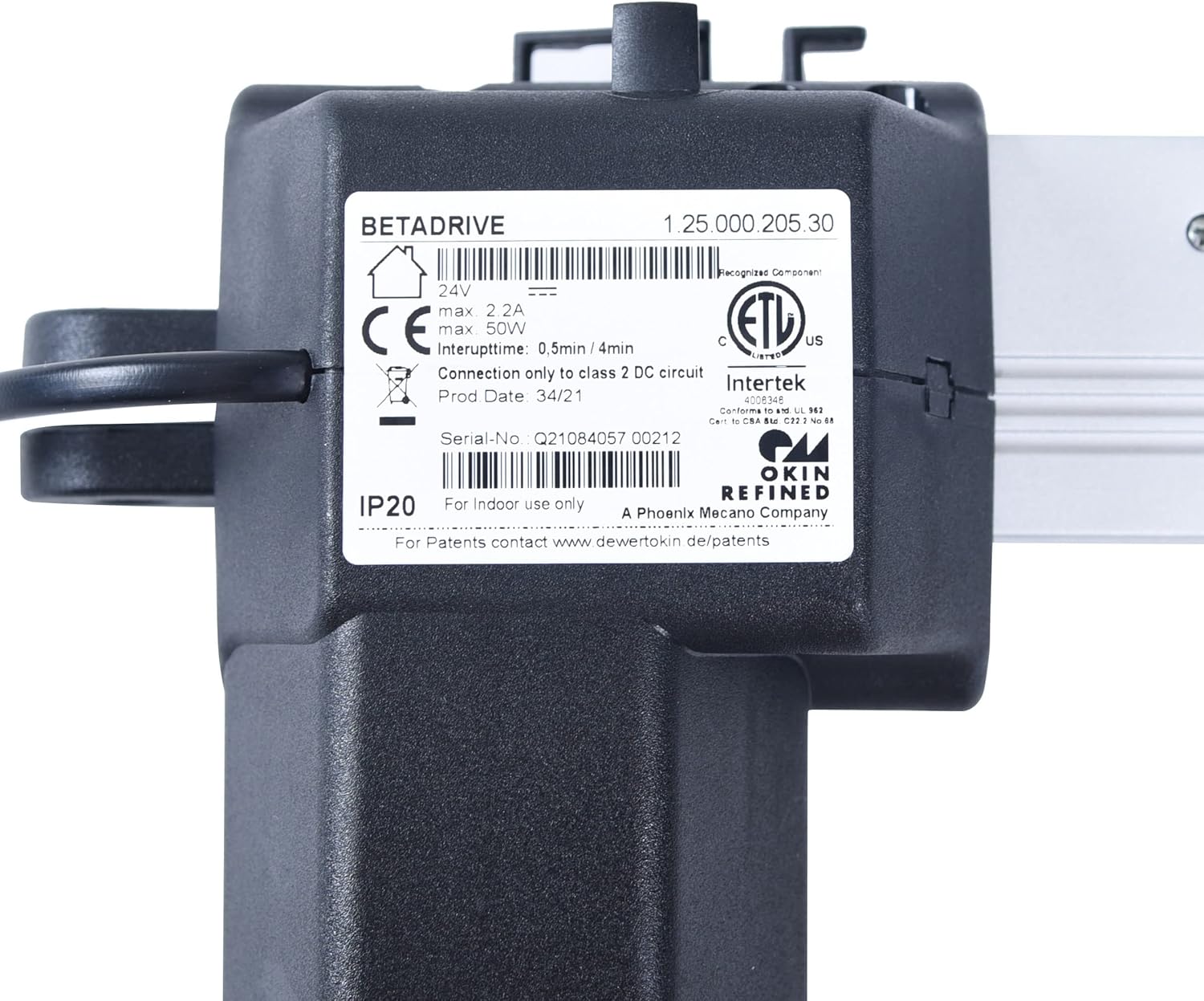

Figure 3.2: Close-up of the motor label, showing model number and technical details.
Figure 3.3: The 2-pin plug for power supply connection.
4. Техникалык шарттар
| Өзгөчөлүк | Спецификация |
|---|---|
| Модель номери | 1.25.000.205.30 |
| Көрүнүш | Кара (Пенсильвания), Күмүш Ак (Алюминий) |
| Инсульт | 333мм |
| Минималдуу өлчөмдөр (кичирейтүү) | 157мм |
| Максималдуу өлчөмдөр | 490мм |
| Жүк (Түртүү күчү) | 750N |
| Жүк (тартуу күчү) | 750N |
| Иштөө жыштыгы | Күйгүзүү 1 мүнөт / Өчүрүү 8 мүнөт |
| Элемент Салмагы | 6.78 фунт |
| Продукциянын өлчөмдөрү | 17.7 x 4 x 3 дюйм |
5. Орнотуу жана орнотуу
This Okin refined motor is designed for easy installation as a direct replacement. Before beginning, ensure you have the necessary tools (e.g., socket wrench set, hex keys) and that the new motor's specifications match your existing unit's requirements, especially regarding minimum install dimension, stroke, and plugs.
Орнотуу кадамдары:
- Кубатты өчүрүү: Unplug the recliner or furniture from the power outlet.
- Кирүү мотору: Carefully position the furniture to gain access to the existing motor. It may be helpful to take photos of the current wiring and mounting for reference.
- Эски моторду алып салуу: Disconnect the 5-pin plug (for hand control) and the 2-pin plug (for power supply). Remove the bolts or screws securing the old motor to the furniture frame. Retain all mounting hardware as the new motor package does not include them.
- Жаңы мотор орнотуу: Position the new Okin Betadrive motor in the same location as the old one. Secure it using the retained mounting hardware.
- Зымдарды туташтыруу: Connect the 5-pin plug from the hand control to the corresponding port on the new motor. Connect the 2-pin plug from the power supply to its designated port. Ensure all connections are firm.
- Сыноо функциясы: Once installed, carefully plug the furniture back into the power outlet. Test the recliner's functions (e.g., recline, lift) to ensure the motor operates correctly.
Note: While this motor is designed to replace several models, minor differences may exist. These differences should not affect functionality.
6. Иштөө нускамалары
The Okin Betadrive motor functions as the power source for your reclining furniture. Its operation is controlled directly by the furniture's existing hand control or switch. Refer to your furniture's original user manual for specific instructions on how to operate its reclining and lifting features.
Ensure the motor is properly installed and connected to a stable power source before attempting to operate the furniture.
7. Техникалык тейлөө
The Okin Betadrive motor is designed for durability and requires minimal maintenance. Follow these guidelines to ensure its longevity:
- Үзгүлтүксүз текшерүү: Моторду жана анын туташууларын эскирүүнүн, бузулуунун же зымдардын бошоп калгандыгынын белгилерин мезгил-мезгили менен текшерип туруңуз.
- Тазалыкты сактоо: Keep the motor free from dust, dirt, and debris. Use a dry cloth to wipe down the exterior. Avoid using liquid cleaners directly on the motor.
- Ашыкча жүктөөдөн качыңыз: Do not exceed the furniture's weight capacity or force the motor to operate beyond its intended limits.
- Туура колдонуу: Adhere to the specified operation frequency (On 1 min / Off 8 min) to prevent overheating and extend motor life.
8. Кыйынчылыктарды
Эгерде моторду алмаштыргандан кийин креслоңуз туура иштебей жатса, анда төмөнкү көйгөйлөрдү чечүү жолдорун карап көрүңүз:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Мотор иштебейт | Электр энергиясы жок | Check if the recliner is plugged into a working outlet. Verify the 2-pin power supply plug is securely connected to the motor. |
| Motor operates intermittently or incorrectly | Loose or faulty switch/hand control connection | Ensure the 5-pin plug from the hand control is firmly connected. Test the hand control for proper function. |
| Иш учурунда адаттан тыш үндөр | Тоскоолдук же туура эмес тууралоо | Inspect the motor and furniture mechanism for any obstructions. Ensure the motor is properly aligned and mounted. |
| Мотор ысып кетет | Ашыкча үзгүлтүксүз иштөө | Adhere to the specified operation frequency (On 1 min / Off 8 min). Allow the motor to cool down between uses. |
If the issue persists after troubleshooting, it is recommended to consult a professional technician or contact Okin customer support.
9. Кепилдик жана колдоо
For information regarding warranty coverage, technical support, or replacement parts, please visit the official Okin store or contact their customer service department. Okin is committed to providing intelligent solutions that enhance comfort and convenience.
Көбүрөөк маалыматты жана байланыш маалыматтарын төмөнкү даректен таба аласыз Amazon'догу Okin дүкөнү.
