MONODEAL CW705

MONODEAL Portable CD Player Колдонуучу колдонмосу

Модели: CW705

1. Киришүү

Сатып алганыңыз үчүн рахматasing the MONODEAL Portable CD Player. This device is designed for personal and portable audio playback, featuring built-in speakers, anti-skip protection, and dual headphone jacks. This manual provides detailed instructions for setup, operation, maintenance, and troubleshooting to ensure optimal performance and longevity of your CD player.

MONODEAL Portable CD Player

Image: The MONODEAL Portable CD Player, a compact black device with a clear top cover and control buttons on the front.

2. Кутуда эмне бар

Сураныч, пакеттин мазмунун текшерип, бардык буюмдар бар экенин текшериңиз:

  • CD ойноткуч
  • Наушник
  • USB заряддоо кабели
  • Aux кабели
  • User Manual
Contents of the MONODEAL CD Player package

Image: The MONODEAL CD Player, its packaging, and all included accessories: earphones, USB charging cable, and aux cable.

3. Продукт бүтүп калдыview

Familiarize yourself with the various parts and controls of your CD player:

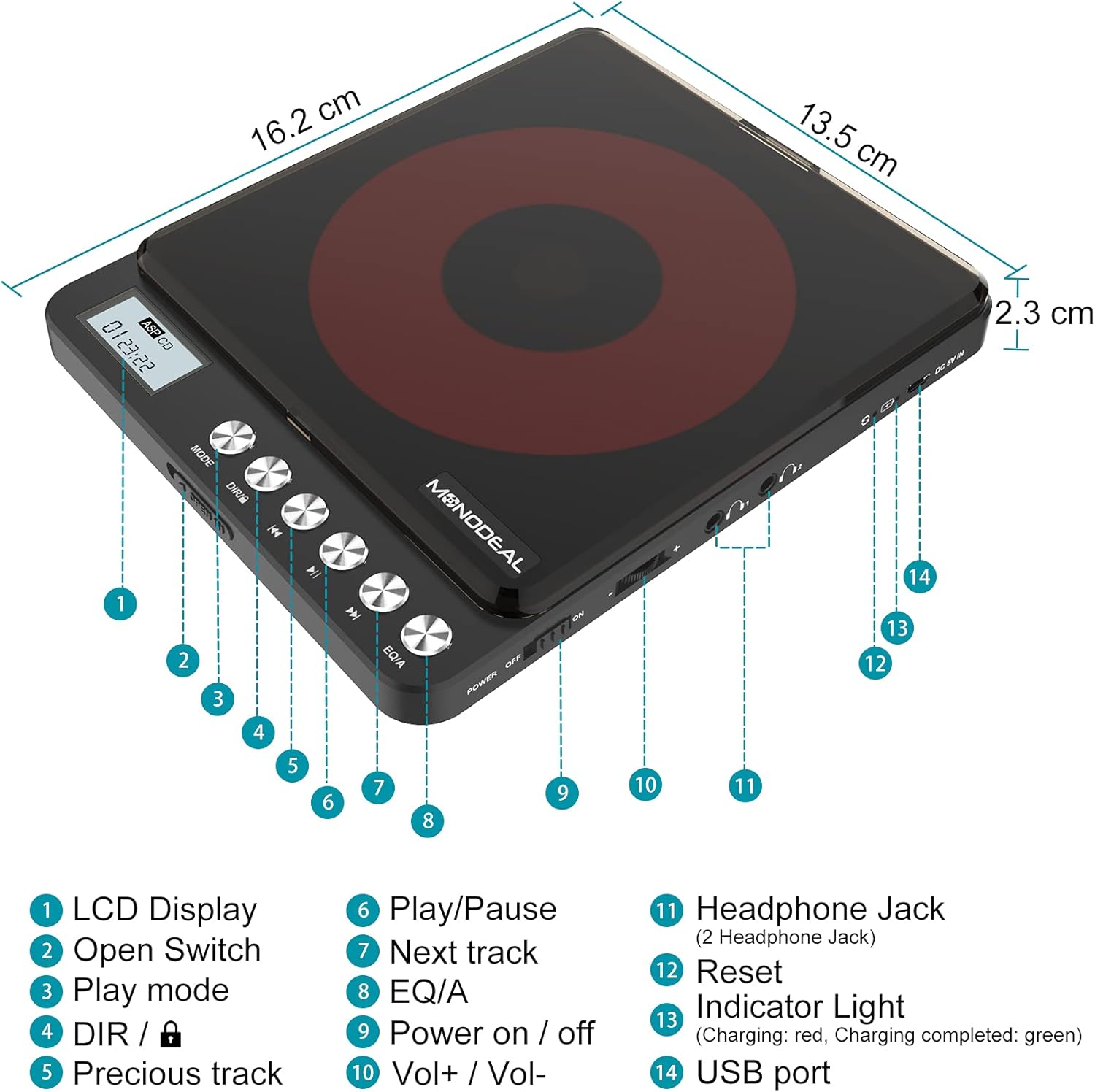

Diagram of MONODEAL CD Player with numbered parts

Image: A detailed diagram of the MONODEAL Portable CD Player, highlighting its various components with numbered labels.

  1. LCD дисплей: Трек номерин, убакытты жана ойнотуу абалын көрсөтөт.
  2. Open Switch: Used to open the CD compartment.
  3. Оюн режими: Cycles through playback modes (e.g., repeat, random).
  4. DIR / Lock: Directory navigation for MP3 CDs / Key lock function.
  5. Мурунку трек: Учурдагы же мурунку тректин башына өтөт.
  6. Ойнотуу/тындыруу: Ойнотууну баштайт же тындырат.
  7. Кийинки трек: Кийинки трекке өтүү.
  8. EQ/A: Equalizer settings / Anti-skip function indicator.
  9. Күйгүзүү/өчүрүү: Негизги электр өчүргүч.
  10. Vol+ / Vol-: Үндү көзөмөлдөө.
  11. Headphone Jack (2 Headphone Jacks): Кулакчындар үчүн аудио чыгыш.
  12. Кайтаруу: Recessed button to reset the device (requires a thin object like a needle).
  13. Индикатор жарыгы: Shows charging status (red for charging, green for fully charged).
  14. USB порт: Аппаратты заряддоо үчүн.

4. Орнотуу

4.1 Аппаратты заряддоо

The CD player has a built-in rechargeable battery. Before first use, fully charge the device. A full charge provides up to 15 hours of playback.

  • Connect the supplied USB charging cable to the USB port (14) on the CD player.
  • Connect the other end of the USB cable to a power adapter, car charger, laptop, or power bank.
  • The indicator light (13) will show red during charging and turn green when fully charged.
  • Charging typically takes approximately 4 hours.
MONODEAL CD Player charging options

Image: The MONODEAL CD Player being charged via various methods including a power bank, power adapter, laptop, and car charger.

4.2 Connecting to External Audio Systems

You can connect the CD player to external speakers, car audio systems, or home stereos using the provided 3.5mm AUX cable.

  • Insert one end of the 3.5mm AUX cable into one of the headphone jacks (11) on the CD player.
  • Insert the other end of the AUX cable into the 3.5mm auxiliary input port of your car stereo or external sound system.
  • Эскертүү: The CD player is not compatible with car's USB ports or Bluetooth connections for audio output. An AUX port is required.

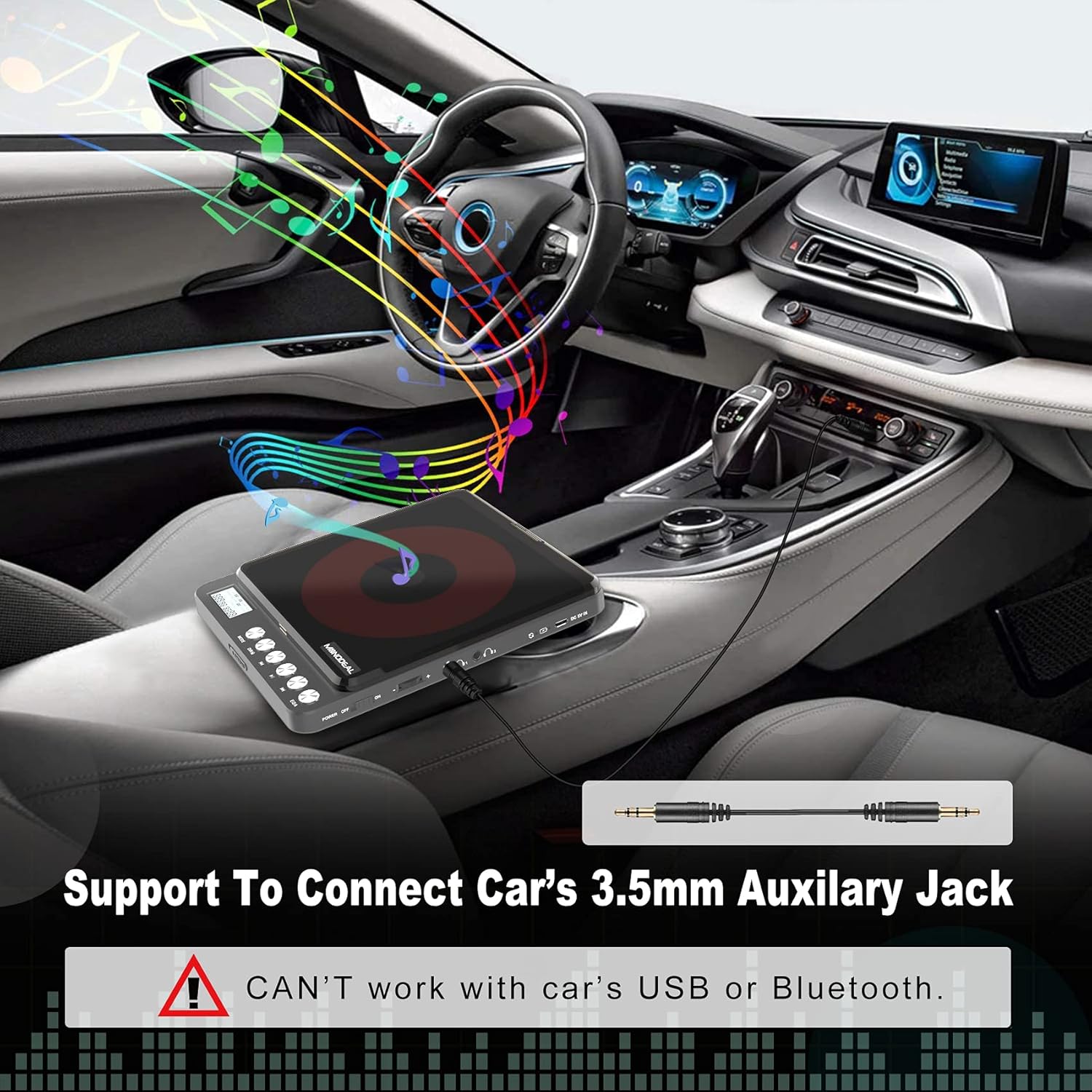

MONODEAL CD Player connected to a car's auxiliary jack

Image: The MONODEAL CD Player connected to a car's dashboard via a 3.5mm auxiliary cable, illustrating its use in a vehicle.

5. Иштөө нускамалары

5.1 Негизги ойнотуу

  1. Slide the Power On/Off switch (9) to the "ON" position.
  2. Press the Open Switch (2) to open the CD compartment.
  3. Carefully place a compatible CD (CD, MP3, CD-R, CD-RW, HDCD) onto the spindle, ensuring it is seated correctly.
  4. CD бөлүмүн жабыңыз.
  5. The LCD display (1) will show "READ" and then the total number of tracks and total playback time.
  6. Press the Play/Pause button (6) to start playback.
  7. Adjust the volume using the Vol+ / Vol- controls (10).
  8. To pause, press the Play/Pause button (6) again. Press again to resume.
  9. To skip to the next track, press the Next Track button (7).
  10. To go back to the previous track or the beginning of the current track, press the Previous Track button (5).
  11. To turn off the player, slide the Power On/Off switch (9) to the "OFF" position. The player will remember the last played position if a disc remains inside.

5.2 Ойнотуу режимдери

Press the Play Mode button (3) repeatedly to cycle through different playback modes:

  • Тартип менен ойноо: Plays tracks sequentially.
  • Repeat a track: Учурдагы тректи кайталайт.
  • Баарын кайталоо: Дисктеги бардык тректерди кайталайт.
  • Intro: Ар бир тректин алгачкы 10 секундун ойнотот.
  • Shuf (Shuffle): Тректерди туш келди тартипте ойнойт.
MONODEAL CD Player play modes for learning

Image: A visual representation of the five play modes available on the MONODEAL CD Player, including play in order, repeat track, repeat all, intro, and shuffle.

5.3 Dual Headphone Jacks

The MONODEAL CD Player is equipped with two headphone jacks (11), allowing two users to listen simultaneously. Simply plug two sets of headphones into the available jacks.

Two people sharing music with dual headphone jacks on MONODEAL CD Player

Image: Two individuals sharing the MONODEAL CD Player using both headphone jacks, emphasizing the dual listening feature.

5.4 Орнотулган динамиктер

For listening without headphones, the CD player features built-in stereo speakers. The sound quality is suitable for personal listening in quiet environments. The maximum volume of the internal speakers is designed for portability and may not be as loud as larger audio systems.

MONODEAL CD Player with built-in dual speakers

Image: The MONODEAL CD Player with an overlay indicating the location of its built-in dual speakers, shown in a setting with people dancing to music.

6. Техникалык тейлөө

  • Keep the CD player clean by wiping it with a soft, dry cloth.
  • Абразивдүү тазалагычтарды же эриткичтерди колдонбоңуз.
  • Regularly clean the disc and the optical pickup lens of the CD player with a dry, lint-free cloth.
  • Аппаратты экстремалдык температурага, нымдуулукка же тике күн нуруна тийгизүүдөн сактаңыз.
  • Колдонулбаган учурда ойноткучту салкын, кургак жерде сактаңыз.

7. Кыйынчылыктарды

КөйгөйМүмкүн себепЧечим
CD skipping or not playing.Disc is dirty, scratched, or incompatible format. Low battery.
  • 1. Ensure the CD player is fully charged.
  • 2. Clean the disc with a soft, dry cloth.
  • 3. Try a different disc. Ensure it is a supported format (CD, CD-R, CD-RW, MP3, HDCD). DVDs and VCDs are not supported.
  • 4. Reset the CD player using a thin object (like a needle) to poke the reset button (12).
No sound from internal speakers.Volume too low. Headphones plugged in.
  • 1. Increase the volume using Vol+ (10).
  • 2. Ensure no headphones are plugged into the headphone jacks (11) if you intend to use the internal speakers.
No sound when connected to car/external speakers.Incorrect connection. Car/external system not set to AUX input.
  • 1. Ensure the AUX cable is securely connected to both the CD player's headphone jack and the external system's AUX input.
  • 2. Verify that your car stereo or external system is set to the correct AUX input source.
  • 3. Confirm your car has a 3.5mm AUX jack; USB or Bluetooth are not compatible for direct audio output from the CD player.
Ойноткуч күйбөйт.Low battery. Power switch off.
  • 1. Ensure the Power On/Off switch (9) is in the "ON" position.
  • 2. Аппаратты толук заряддаңыз.
  • 3. If unresponsive, try resetting the device using the reset button (12).

8. Техникалык шарттар

ӨзгөчөлүкДеталь
Модель атыCW705
Продукциянын өлчөмдөрү6.1 x 5.1 x 1.1 дюйм
Элемент Салмагы1.3 фунт
ТүсКара
Байланыш технологиясыКөмөкчү
Өзгөчө өзгөчөлүкPortable, Built-in Speakers, Anti-Skip, Dual Headphone Jacks, Rechargeable
Колдоого алынган диск форматтарыCD, MP3, CD-R, CD-RW, HDCD
Колдоого алынган музыка форматтарыCD-DA, MP3, WMA
Батареянын иштөө мөөнөтүUp to 15 hours playback (after full charge)
MONODEAL CD Player showing rechargeable battery and compatible formats

Image: The MONODEAL CD Player highlighting its 2000mAh built-in rechargeable battery for up to 15 hours of playback, and listing supported disc and music formats.

9. Кепилдик жана колдоо

For warranty information or further assistance, please refer to the official MONODEAL website or contact customer support through your purchase platform. A digital version of this user manual is also available for download at: MONODEAL User Manual PDF.
