Tucano Urbano Termoscud R169-X Thermal Leg Cover Instruction Manual

1. Киришүү

This manual provides essential information for the correct installation, operation, and maintenance of your Tucano Urbano Termoscud R169-X thermal leg cover. Designed specifically for the Kawasaki J300 scooter (2020-2021 models), this leg cover offers thermal protection and waterproofing. Please read these instructions carefully before use to ensure proper function and longevity of the product.

2. Коопсуздук маалыматы

• Ensure the leg cover is securely fastened to the scooter before riding. Loose components can interfere with vehicle operation and cause accidents.
• Do not inflate the S.G.A.S. anti-flapping system chambers using a compressor or high-pressure pump. Use only breath or the provided hand pump adapter to prevent damage.
• Regularly inspect the leg cover for any signs of wear or damage, especially to the fastening straps and anti-theft ring.
• Ensure the leg cover does not obstruct any scooter controls, lights, or mirrors.

3. Пакеттин мазмуну

Сиздин пакетте бардык компоненттер бар экенин текшериңиз:

• Tucano Urbano Termoscud R169-X Thermal Leg Cover
• S.G.A.S. Inflation Adapter
• Storage Bag for Termoscud

4. Орнотуу жана орнотуу

Follow these steps to correctly install the Termoscud R169-X on your Kawasaki J300 scooter:

1. Positioning the Leg Cover: Carefully place the leg cover over the front and side panels of your scooter, ensuring it aligns with the contours of the vehicle.
2. Камсыздоо боолору: Fasten all straps and buckles according to the scooter's frame and bodywork. Ensure they are tight but do not overtighten, which could damage the scooter or the cover.
3. S.G.A.S. Anti-Flapping System Inflation:


   Image: Diagram illustrating the S.G.A.S. anti-flapping system. This system features inflatable chambers on the lateral edges to prevent flapping at high speeds.

   Locate the S.G.A.S. valve. Use the provided adapter to inflate the anti-flapping chambers by blowing into the valve or using a low-pressure hand pump. Inflate until the chambers are firm but not rigid. This system is designed to prevent flapping at high speeds. Do not use a compressor or high-pressure pump.
4. Integrated Seat Cover: The Termoscud includes an integrated seat cover. Pull this cover over your scooter's seat when parked to protect it from rain and dirt.


   Сүрөт: Детал view showing the integrated seat cover, a storage pocket, and the anti-theft ring.

5. Anti-Theft Ring: For models without screw-on attachments, an anti-theft ring is provided. Utilize this ring with a suitable lock (not included) to secure the leg cover to your scooter and deter theft.
6. Акыркы текшерүү: Before riding, ensure all parts are securely attached and do not interfere with steering, braking, or foot placement.

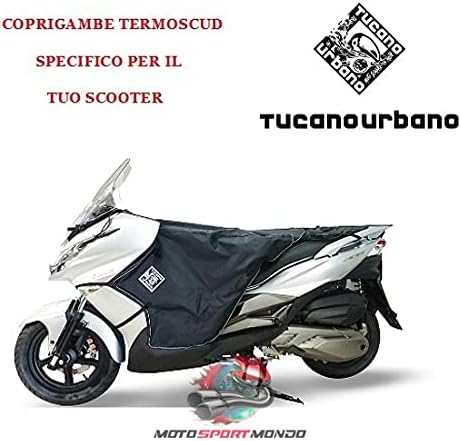

   Image: The Termoscud leg cover correctly installed on a Kawasaki J300 scooter.

5. Иштөө нускамалары

Once installed, the Termoscud R169-X provides thermal insulation and weather protection. The S.G.A.S. system actively reduces flapping during rides. The large storage pocket can be used for small items, and the Smart Holder System (for a separately sold waterproof smartphone pouch) allows for convenient access to your device.

6. Техникалык тейлөө

To ensure the longevity and performance of your Termoscud leg cover, follow these maintenance guidelines:

• Тазалоо: Жарнама колдонууamp cloth to clean the exterior. Rinse the straps thoroughly and allow the entire cover to dry completely before storage.
• Сактагыч: Store the leg cover in a dry place when not in use. The provided storage bag can be used for this purpose.
• S.G.A.S. System: Periodically check the inflation of the S.G.A.S. chambers and re-inflate if necessary using only breath or the hand pump adapter.

7. Кыйынчылыктарды

• Flapping at High Speeds: If the leg cover flaps excessively, check the inflation of the S.G.A.S. chambers. Re-inflate them to the recommended firmness. Also, ensure all fastening straps are securely tightened.
• Суу агып кетиши: Verify that the leg cover is correctly installed and that all seams are intact. The three-layer construction is designed to be waterproof; however, extreme conditions or damage can compromise this.
• Difficulty in Fastening: Ensure the leg cover is correctly aligned with your scooter model (Kawasaki J300, 2020-2021). If straps are too short or long, double-check the installation method.

8. Техникалык шарттар

9. Кепилдик жана колдоо

This Termoscud product includes a complimentary anti-theft insurance policy. Please refer to the product packaging or manufacturer's website for details on how to activate and utilize this insurance.

For technical support, warranty claims, or further assistance, please contact the retailer or the manufacturer, farbrothersonline, through their official channels.
