Honda Integra 750 DCT Sport 2019 Termoscud Leg Cover R195-X Instruction Manual

Introduction

This manual provides detailed instructions for the installation, operation, and maintenance of your farbrothersonline Termoscud R195-X leg cover, specifically designed for the Honda Integra 750 DCT Sport 2019 scooter. Please read this manual thoroughly before use to ensure proper function and longevity of the product.

The Termoscud R195-X is an original leg cover featuring a patented S.G.A.S. (Anti-Flap Inflatable System) with a new valve. Its three-layer construction ensures stable fit and thermal protection, making it waterproof and windproof for comfortable riding in various weather conditions.

Орнотуу жана орнотуу

Follow these steps to correctly install the Termoscud R195-X leg cover on your Honda Integra 750 DCT Sport 2019.

1. Unpack the Leg Cover: Carefully remove the leg cover from its packaging. Ensure all components are present, including the leg cover itself, the S.G.A.S. inflation adapter, and any included accessories like the anti-theft ring.
2. Позициялоо: Place the leg cover over the front part of your scooter, aligning it with the handlebars and the footwell area.
3. Боолорду бекитиңиз: Attach the various straps and buckles to the designated points on your scooter. These typically include straps around the handlebars, under the seat, and around the frame. Ensure all straps are securely fastened but not overly tightened to avoid damage to the scooter or the cover.
4. S.G.A.S. Inflation: Locate the S.G.A.S. valve on the side edges of the leg cover. Use the provided S.G.A.S. adapter to inflate the anti-flap chambers. You can inflate by mouth or with a pump. Inflate until the chambers are firm, which helps prevent flapping at high speeds. The new valve design includes an integrated cap and a watertight screw closure to prevent air leakage.
5. Anti-Theft Ring: If your model includes an anti-theft ring (for non-screwed models), utilize it by passing a chain or lock through it to secure the leg cover to your scooter.

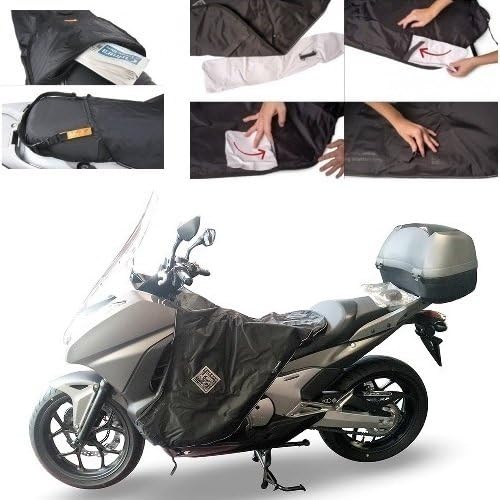

Image 1: The Termoscud R195-X leg cover fully installed on a Honda Integra 750 DCT Sport 2019 scooter, showing its overall fit and coverage.

Image 2: A sequence demonstrating the inflation process of the S.G.A.S. anti-flap system. The white inflatable chamber is shown being inserted and then inflated to provide stability.

Сүрөт 3: Жакын план view of the S.G.A.S. valve, showing the red cap and the "MAXIMUM PRESSURE 0.7 BAR / 1.0 PSI" marking, indicating the recommended inflation level.

Иштетүү өзгөчөлүктөрү

• S.G.A.S. Anti-Flap System: The patented S.G.A.S. system utilizes inflatable chambers on the lateral edges to prevent the leg cover from flapping at high speeds, ensuring a stable and secure fit.
• Thermal and Waterproof Protection: The three-layer construction, consisting of a heavy waterproof nylon exterior with welded seams, a 100% waterproof inner membrane, and a faux fur interior, provides excellent thermal insulation and protection against rain and wind.
• Large Storage Pocket: A spacious storage pocket is integrated into the leg cover, providing convenient space for small items.
• Integrated Seat Cover: The leg cover includes an integrated seat cover, which can be deployed to protect the scooter's seat when parked.
• Reflective Prints: Reflective elements are incorporated into the design to enhance visibility during low-light conditions.
• Smart Holder System: The leg cover is pre-arranged for a waterproof smartphone pouch (sold separately, Code 468), allowing for easy and secure access to your device.

Сүрөт 4: Детальдуу view of the Termoscud leg cover showing the integrated storage pocket with a newspaper inside, the seat cover deployed over the scooter's seat, and the anti-theft ring for security.

Техникалык тейлөө

Proper maintenance will extend the life and performance of your Termoscud leg cover.

• Тазалоо: Жарнама менен сыртын тазалаamp cloth and mild soap. Do not use harsh chemicals or abrasive cleaners. For the faux fur interior, gently wipe with a damp cloth. Allow to air dry completely before storage.
• Сактагыч: When not in use, store the leg cover in a dry, cool place, away from direct sunlight. Ensure it is clean and completely dry to prevent mold or mildew.
• S.G.A.S. System: Periodically check the S.G.A.S. chambers for proper inflation. Re-inflate if they feel soft. Ensure the valve cap is securely closed after inflation.
• Текшерүүлөр: Regularly inspect the leg cover for any signs of wear, tear, or damage to seams and straps. Address minor issues promptly to prevent further damage.

Проблемаларды чечүү

• Leg Cover Flaps at High Speed:

  Чечим: Ensure the S.G.A.S. anti-flap chambers are adequately inflated. Check the valve for proper sealing. Re-inflate if necessary.
• Суу агып кетиши:

  Чечим: Inspect the leg cover for any tears or damage to the waterproof exterior or inner membrane. Ensure all seams are intact. If damage is found, consider professional repair or replacement.

• Difficulty Securing:

  Чечим: Verify that all straps are correctly routed and fastened according to the installation instructions. Adjust strap tension for a snug fit without over-tightening.

Техникалык шарттар

Кепилдик маалымат

The product description mentions a free anti-theft insurance for the TERMOSCUD, valid for 1 year (12 months) from the date of purchase, offered by Tucano Urbano, but only applicable in Italy. Please refer to the specific terms and conditions provided by Tucano Urbano for details regarding this insurance.

For general product warranty, please contact your retailer or the manufacturer, farbrothersonline, for specific terms and conditions applicable in your region.

Колдоо жана Байланыш

For further assistance, technical support, or inquiries regarding your Termoscud R195-X leg cover, please contact the manufacturer or your point of purchase.

Өндүрүүчү: farbrothersonline

For specific contact details, please refer to the packaging or the retailer's webпродукт сатылып алынган сайт.

Кошумча аксессуарлар:

• Bungee Cord with Steel Hooks: Included as an accessory for various securing needs.


  Image 5: An elastic bungee cord with steel hooks, provided as an accessory for securing items or the leg cover.

• Work Gloves with Nitrile Palm: Included as an accessory, suitable for various uses.


  Image 6: A pair of work gloves with a white knit back and dark grey nitrile-coated palms, suitable for general use.
