Introduction
The myGEKOgear Orbit 500 is a high-performance Full HD 1080p Wi-Fi Dash Cam designed to capture clear footage of your drives and provide crucial evidence in the event of an incident. This manual provides comprehensive instructions for setting up, operating, maintaining, and troubleshooting your Orbit 500 Dash Cam.
Негизги өзгөчөлүктөр төмөнкүлөрдү камтыйт:
- Full HD 1080p жаздыруу: Captures clear, high-definition video.
- 120° талаа View: Provides a wide perspective of the road.
- Wi-Fi туташуусу: Allows instant file sharing, live view, and playback via a dedicated mobile application.
- G-сенсор: Видеону автоматтык түрдө кулпулайт files upon detecting sudden impacts or braking, preventing overwriting.
- 24/7 Surveillance: Utilizes the included OBD II power cable for continuous monitoring of your parked vehicle.
- MicroSD картаны колдоо: Supports up to 32GB storage, with an 8GB microSD card included.

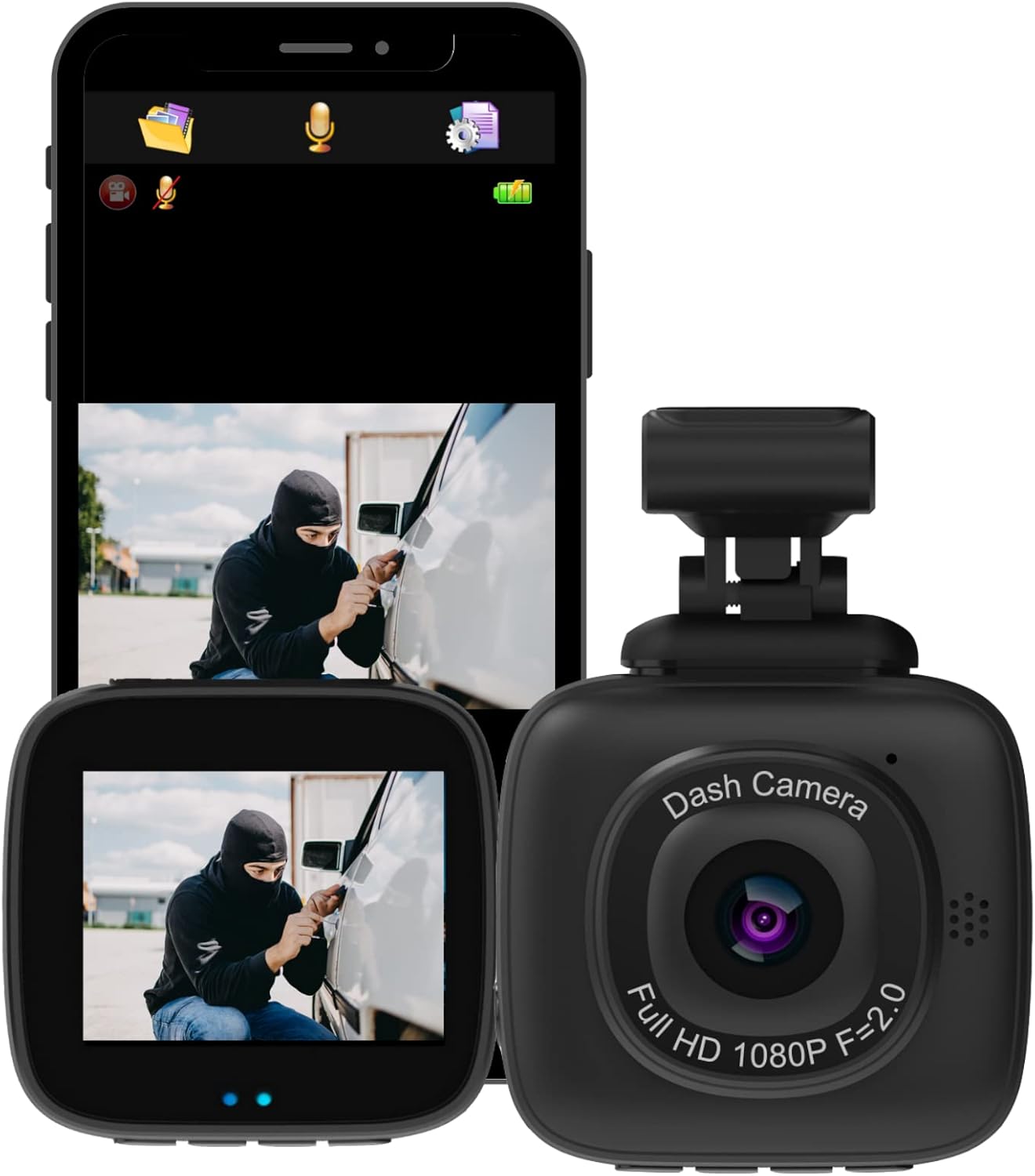

Image: The myGEKOgear Orbit 500 Dash Cam shown alongside a smartphone displaying its app interface, illustrating live view жана file башкаруу мүмкүнчүлүктөрү.
Сүрөт: An overview diagram highlighting the Orbit 500's main features: 1080p Full HD, OBD II power cable, Wi-Fi, G-Sensor, and 32GB MicroSD support.
Орнотуу жана орнотуу
1. Кутуда эмне бар
Баштоодон мурун, бардык компоненттер бар экенин текшериңиз:
- Orbit 500 Vehicle Camera
- Жабыштыруучу тоо
- Power Cable (standard 12V car charger)
- OBD II Power Cable (for 24/7 surveillance)
- 8 ГБ MicroSD карта
2. MicroSD картасын салуу
Locate the microSD card slot on the side of the Orbit 500. Gently insert the included 8GB microSD card until it clicks into place. Ensure the card is inserted correctly to avoid damage. It is recommended to format the card within the dash cam settings before first use.
Image: A close-up of the Orbit 500 dash cam next to an 8GB MicroSD card, illustrating the card's small size and its role in data storage.
3. Камераны орнотуу
Айнегиңизге тоскоолдук кылбаган жерди тандаңыз view жолдун. Эреже катары, бул арткы жагындаview mirror. Clean the area thoroughly before applying the adhesive mount. Attach the Orbit 500 to the adhesive mount, ensuring it is securely fastened and the lens has a clear view алдыдагы жолдун.
Image: The myGEKOgear brand logo.
4. Power Connection
The Orbit 500 can be powered in two ways:
- Standard Power Cable: Connect the standard power cable to your vehicle's 12V power outlet (cigarette lighter socket). Route the cable neatly to avoid interference with driving.
- OBD II Power Cable (for 24/7 Surveillance): For continuous recording even when your vehicle is parked, connect the OBD II power cable to your vehicle's OBD II port. This port is usually located under the dashboard on the driver's side. The Orbit 500 is designed with low voltage battery protection, automatically shutting off if your car battery falls below 11.6 volts to prevent complete drainage.
Image: The Orbit 500 dash cam installed in a car, with the OBD II power cable connected, illustrating its 24-hour parking monitoring capability.
5. Wi-Fi Connectivity and App Setup
The Orbit 500 features Wi-Fi connectivity for easy access to your footage via a smartphone or tablet app. Download the official myGEKOgear app from your device's app store (iOS App Store or Google Play Store).
- Turn on the Orbit 500.
- On your smartphone/tablet, go to Wi-Fi settings and connect to the Orbit 500's Wi-Fi network (SSID and password can be found on the device or in the manual's quick start guide).
- Open the myGEKOgear app. You can now view жаша фооtage, жаздырылган видеолорду ойнотуу жана жүктөп алуу files directly to your device.
Image: A smartphone screen showing the myGEKOgear app interface with video files, positioned in front of a city street, emphasizing Wi-Fi support for instant file бөлүшүү.
Иштөө нускамалары
1. Автоматтык жаздыруу
Once powered on, the Orbit 500 will automatically begin loop recording. This means it records video in segments (e.g., 1, 3, or 5 minutes) and, once the microSD card is full, it will automatically overwrite the oldest files. This ensures continuous recording without manual intervention.
2. G-Sensor for Emergency File Сактоо
The built-in G-Sensor detects sudden acceleration, braking, or impacts. When such an event occurs, the current video segment is automatically locked and saved to a protected folder on the microSD card. These locked files will not be overwritten by loop recording, preserving critical evidence. You can adjust the G-Sensor sensitivity in the device settings.
Image: A scene depicting a damaged car, with text highlighting the G-sensor's function in saving emergency files for insurance purposes during impacts or drastic braking.
3. Parking Monitor (24/7 Surveillance)
When connected via the OBD II power cable, the Orbit 500 provides 24/7 surveillance. In parking mode, the dash cam will detect motion or impact and automatically begin recording. This feature is designed to monitor your vehicle even when you are away, providing security against vandalism or theft attempts.
4. Using the Mobile App
The myGEKOgear app is your primary interface for managing the Orbit 500's recordings and settings:
- Live View: See what your dash cam is recording in real-time.
- Ойнотуу: Browse and play back recorded video files directly on your smartphone/tablet.
- Жүктөп алуу: Select and download important video clips to your device's local storage.
- Орнотуулар: Adjust various dash cam settings, including video resolution, loop recording duration, G-Sensor sensitivity, and more.
Техникалык тейлөө
1. MicroSD картасын башкаруу
Regularly format your microSD card (at least once a month) to ensure optimal performance and prevent data corruption. This can usually be done through the dash cam's menu settings or via the mobile app. Back up any important fileФорматтоодон мурун басыңыз, анткени ал картадагы бардык маалыматтарды өчүрөт.
The Orbit 500 supports microSD cards up to 32GB. Using a high-quality, high-speed (Class 10 or higher) microSD card is recommended for reliable recording.
2. Аспапты тазалоо
Wipe the dash cam lens periodically with a soft, lint-free cloth to ensure clear video quality. Avoid using abrasive cleaners or solvents. Keep the device free from dust and debris.
3. Микропрограмманы жаңыртуу
Check the myGEKOgear official website or the mobile app periodically for any available firmware updates. Firmware updates can improve performance, add new features, or fix bugs. Follow the instructions provided with the firmware update carefully.
Проблемаларды чечүү
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Dash камерасы күйбөйт. | No power supply; faulty cable; vehicle power outlet issue. | Check power cable connection. Ensure vehicle's 12V outlet or OBD II port is functional. Try a different power source if available. |
| Жаздыруу токтойт же катып калат. | MicroSD card full or corrupted; slow microSD card; firmware issue. | Format the microSD card. Use a high-speed (Class 10 or U1/U3) microSD card. Check for firmware updates. |
| Wi-Fi туташуу маселелери. | Incorrect Wi-Fi password; too far from device; app issue. | Ensure correct Wi-Fi password. Stay within close proximity to the dash cam. Restart the app and the dash cam. |
| Видеонун сапаты начар/бүдөмүк. | Кир линза; линзада коргоочу пленка дагы эле бар; чечилиш туура эмес коюлган. | Clean the lens with a soft cloth. Remove any protective film. Ensure video resolution is set to 1080p in settings. |
| Dash cam drains car battery (when using OBD II). | Vehicle battery health; prolonged parking surveillance in low-power vehicle. | While the Orbit 500 has low voltage protection, prolonged use in parking mode with a weak car battery can still cause issues. Ensure your car battery is in good health. If issues persist, consider using the standard power cable for daily driving and only use OBD II for specific surveillance needs. |
| Cannot recirculate video recording (old files not overwritten). | MicroSD card error; too many locked files; card not formatted. | Ensure the microSD card is formatted regularly. Check if the G-Sensor sensitivity is too high, leading to too many locked files. Manually delete old locked fileже картаны форматтаңыз. |
Продукт спецификациялары
- Модель аты:
- Orbit 500 Vehicle Camera
- Видео тартуу токтому:
- 1080p толук HD
- талаасы View:
- 120 градус
- Байланыш технологиясы:
- Wi-Fi
- Өзгөчөлүктөр:
- 24/7 Recording, Mobile App, G-Sensor
- Сактоо колдоо:
- Up to 32GB MicroSD (8GB included)
- Кубат булагы:
- 1 Lithium Ion battery (included), 12V Car Power Cable, OBD II Power Cable
- Продукциянын өлчөмдөрү:
- 5 x 2 x 5 дюйм
- Элемент Салмагы:
- 9.5 унция
- Түсү:
- Кара
- Монтаж түрү:
- Жабыштыруучу тоо
- Камтылган компоненттер:
- Orbit 500 Vehicle Camera, Adhesive Mount, Power Cable, 8GB MicroSD
Кепилдик жана колдоо
For detailed warranty information, please refer to the warranty card included with your product or visit the official myGEKOgear webсайт. Кепилдиктин шарттары аймакка жана сатуучуга жараша өзгөрүшү мүмкүн.
For technical support, troubleshooting assistance beyond this manual, or to inquire about replacement parts, please contact myGEKOgear customer service through their official website or the contact information provided at your point of purchase.
Сиз да зыярат кылсаңыз болот myGEKOgear Store on Amazon көбүрөөк продукт маалымат жана колдоо ресурстар үчүн.
