LEDVANCE 41257

SYLVANIA Dusk to Dawn A19 LED Light Bulb Instruction Manual

Модель: 41257

1. Киришүү

The SYLVANIA Dusk to Dawn A19 LED Light Bulb is designed to provide automatic illumination for both interior and exterior spaces. Featuring a built-in light sensor, these bulbs activate under low-light conditions and deactivate when sufficient ambient light is detected. This functionality eliminates the need for manual switching or timers, enhancing convenience and security around your home. With an estimated lifespan of 15,000 hours, these energy-efficient LED bulbs offer a long-lasting lighting solution.

2. Продукциянын өзгөчөлүктөрү

Graphic showing SYLVANIA Dusk to Dawn LED features: On/Off Sensor, Indoor & Outdoor, Home Security, 13+ Years.
An informational graphic detailing the primary benefits of SYLVANIA Dusk to Dawn LEDs, including automatic sensing, versatility for indoor and outdoor use, enhanced home security, and a long lifespan exceeding 13 years.

3. Орнотуу боюнча нускамалар

Follow these steps for safe and proper installation of your SYLVANIA Dusk to Dawn LED light bulb:

  1. Өчүрүү: Before installation, ensure the power to the light fixture is turned off at the circuit breaker or wall switch.
  2. Эски лампочканы алып салуу: Бар болгон лампочканы кылдаттык менен бурап алыңыз.
  3. Жаңы лампочканы орнотуу: Screw the SYLVANIA Dusk to Dawn LED bulb into the standard E26 medium base socket until it is finger-tight. Do not overtighten.
  4. Күчтү калыбына келтирүү: Электрди өчүргүчтөн же дубалдагы өчүргүчтөн кайра күйгүзүңүз.
  5. Сенсордун жайгашуусу: For optimal performance, ensure the light sensor on the bulb is not obstructed and is exposed to ambient light. Avoid placing the bulb in fixtures that might block the sensor or in close proximity to other light sources that could interfere with its operation.
Close-up of a single SYLVANIA A19 LED bulb with light sensor.
А деталдуу view of one SYLVANIA A19 LED bulb, highlighting its standard E26 medium base and the distinct red light sensor.

4. Иштөө нускамалары

The SYLVANIA Dusk to Dawn LED bulb operates automatically based on ambient light levels:

House exterior at dusk and dawn, illustrating automatic light operation.
A visual comparison of a house exterior, demonstrating how the SYLVANIA Dusk to Dawn bulbs automatically illuminate at night and turn off during daylight hours.

5. Техникалык тейлөө

SYLVANIA LED bulbs are designed for long-term, maintenance-free operation. However, consider the following for optimal performance:

6. Кыйынчылыктарды

If you encounter issues with your SYLVANIA Dusk to Dawn LED bulb, refer to the following common solutions:

КөйгөйМүмкүн себепЧечим
Bulb does not turn on at dusk.1. Кубат өчүргүч өчүк.
2. Сенсор тоскоол болуп калды же өтө көп жарык алып жатат.
3. Bulb is faulty.
1. Ensure the fixture's power switch is in the 'ON' position.
2. Check for obstructions over the sensor. Relocate if another light source is interfering.
3. Лампаны алмаштырыңыз.
Bulb does not turn off at dawn.1. Сенсор тоскоол болгон же жетиштүү жарык албай жатат.
2. Bulb is faulty.
1. Ensure the sensor is clear and exposed to daylight. Remove any obstructions.
2. Лампаны алмаштырыңыз.
Лампочка бүлбүлдөп же күңүрт.1. Бошоң байланыш.
2. Incompatible dimmer switch (this bulb is non-dimmable).
3. Электр маселеси.
1. Turn off power, then re-tighten the bulb.
2. Ensure the bulb is not connected to a dimmer switch.
3. Consult a qualified electrician if the issue persists.

7. Техникалык шарттар

СпецификацияНарк
Модель номери41257
Жарык түрүLED
Лампанын формасынын өлчөмүA19
Лампанын базасыE26 Орто
Ватtage9 Ватт
Кызытма эквиваленти60 Ватт
Жарыктык800 Lumens
Түс температурасы2700 Келвин (Жумшак Ак)
Тtage120 вольт
Түстөрдү көрсөтүү индекси (CRI)80
Орточо жашоо15,000 саат
ӨзгөчөлүктөрEnergy Efficient, Frosted, Light Sensor, Shatter Resistant
DimmableЖок
МатериалПластик
Ички/тышкы колдонууIndoor
UPC046135412578

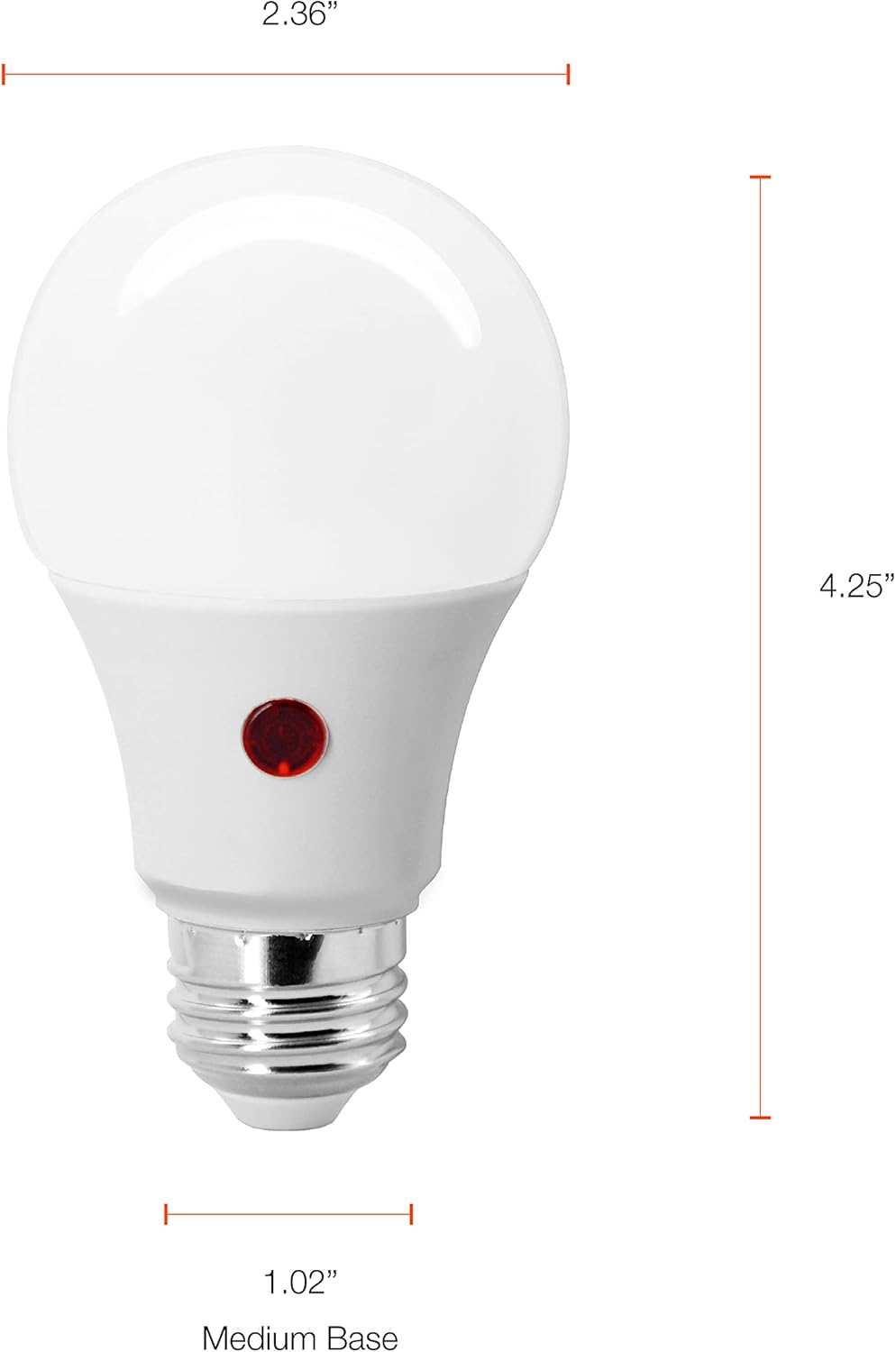

Diagram showing dimensions of SYLVANIA A19 LED bulb.
A technical diagram illustrating the physical dimensions of the A19 LED bulb, including its diameter, height, and base width.

8. Кепилдик жана колдоо

This SYLVANIA Dusk to Dawn A19 LED Light Bulb is backed by a standard 3-year warranty. For warranty claims or technical support, please refer to the contact information provided on the product packaging or visit the official LEDVANCE webсайт.

SYLVANIA warranty badge.
SYLVANIA product warranty emblem.
