1. Киришүү
The ADJ Encore LP7IP is a robust, IP65-rated outdoor LED Par fixture designed for versatile lighting applications. It features 7 x 20-Watt RGBL (Red, Green, Blue, Lime) Quad LEDs, offering a wide range of color mixing capabilities and linear color temperature control. This manual provides essential information for the safe and efficient operation of your Encore LP7IP.
Сүрөт: алдыңкы view of the ADJ Encore LP7IP LED Par Can Wash Light, showcasing its seven RGBL LEDs.
Негизги өзгөчөлүктөрү:
- Light Source: 7 x 20-Watt Quad RGBL LEDs (4-IN-1: Red, Green, Blue & Lime).
- IP65 Outdoor Rating: Protection against rain, snow, and dust.
- Linear Color Temperature Control (2700K to 6500K).
- Preset Color Temperatures (2700K, 3200K, 4000K, 5600K and 6500K).
- 16-Bit Fine Color Control (Red, Green, Blue & Lime).
- 64 built-in Color Macros.
- 10-degree beam angle for wide washes.
2. Коопсуздук нускамалары
To ensure safe operation, please read and understand all instructions in this manual before installing or operating this device. Keep this manual for future reference.
- Электр коопсуздугу: Always disconnect from main power before servicing or cleaning. Ensure the power source matches the required voltage. Use a grounded power cord.
- Экологиялык шарттар: This fixture is IP65 rated for outdoor use, protecting against dust and water jets. However, avoid submerging the unit. Ensure all protective caps for power and DMX connections are securely fastened when used outdoors.
- Монтаждоо: Always secure the fixture with a safety cable when mounting overhead. Ensure the mounting surface or structure can support the weight of the fixture.
- Температура: Do not operate the device in temperatures exceeding 104°F (40°C). Ensure adequate ventilation around the fixture.
- Көздүн коопсуздугу: Жарык булагына түздөн-түз көз тийбеңиз.
- Тейлөө: Refer all servicing to qualified service personnel. Do not attempt to repair the unit yourself.
3. Орнотуу
3.1 Пакеттен чыгаруу
Carefully unpack the fixture and check for any damage during shipping. Ensure all components are present. If any damage is found or parts are missing, contact your dealer immediately.
3.2 Монтаждоо
The Encore LP7IP comes with a dual-yoke bracket for flexible mounting. It can be hung from a truss, mounted on a wall, or placed on the floor. Always use appropriate clamps and safety cables when suspending the fixture.
Image: The ADJ Encore LP7IP LED Par Can Wash Light shown with its adjustable dual-yoke mounting bracket.
3.3 Кубат туташтыруу
Connect the supplied IP65-rated power cable to the "POWER IN" port on the rear of the fixture. The fixture supports power linking via the "POWER OUT" port to connect multiple units. Ensure the total current draw does not exceed the maximum specified for the power output.
3.4 DMX туташуу
For DMX control, connect a DMX cable from your DMX controller to the "DMX IN" port on the fixture. Use the "DMX OUT" port to daisy-chain to other DMX fixtures. Ensure all IP65 protective caps are securely tightened when used in outdoor environments.

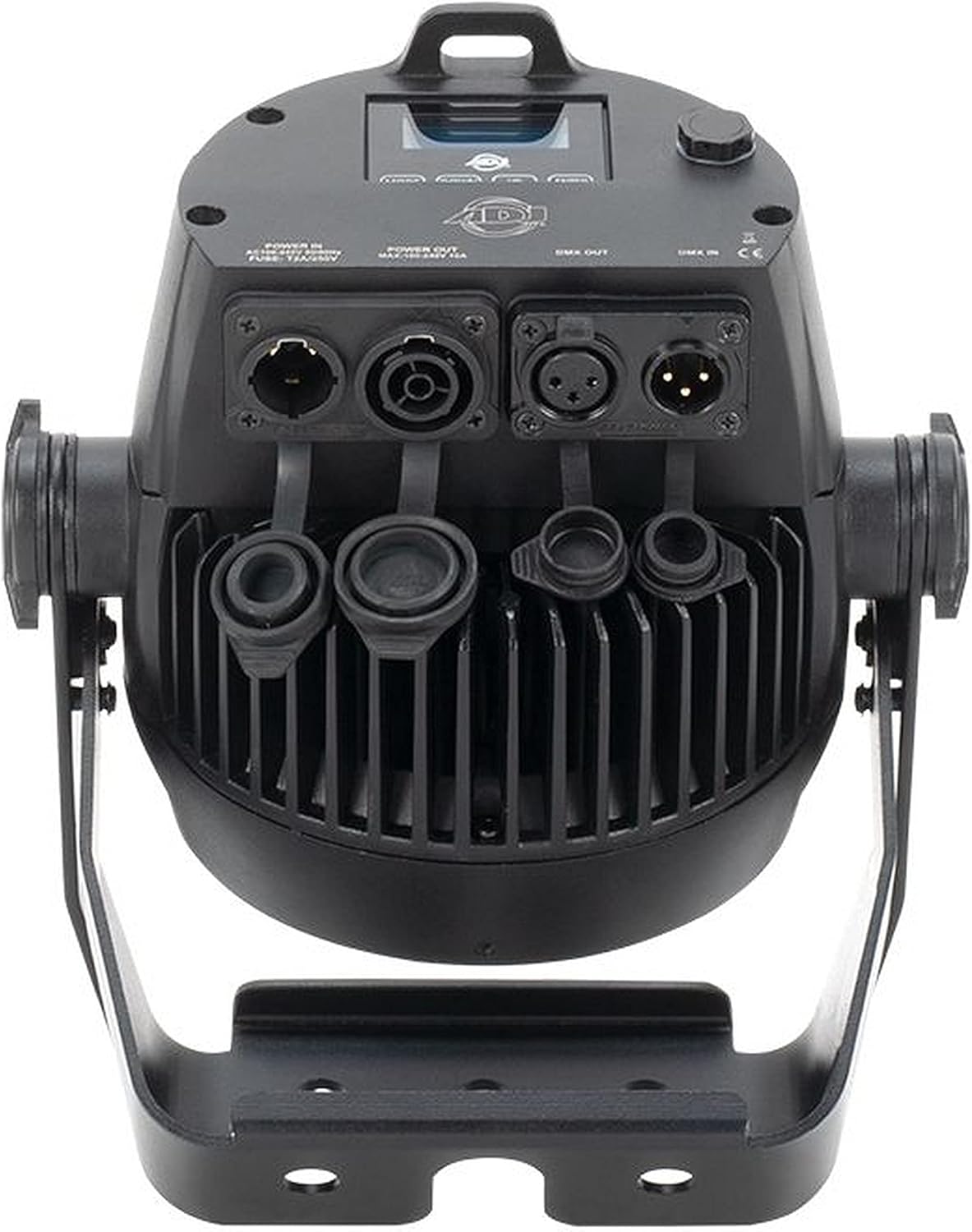

Сүрөт: Арткы бетинин деталдары view of the ADJ Encore LP7IP LED Par Can Wash Light with protective caps removed, showing powerCON and DMX input/output ports.
Сүрөт: Арткы бетинин деталдары view of the ADJ Encore LP7IP LED Par Can Wash Light with protective caps in place, securing the powerCON and DMX input/output ports for IP65 rating.
4. Иштөө
4.1 Башкаруу панелинин үстүнөview
The fixture is equipped with a 4-button control panel and a digital display for menu navigation and setting adjustments.
Сүрөт: Арткы view of the ADJ Encore LP7IP LED Par Can Wash Light, displaying the control panel, power input/output, and DMX connections.
- РЕЖИМ: Негизги меню параметрлери аркылуу айлануу.
- Өйдө: Navigates up through menu options or increases parameter values.
- ТӨМӨН: Navigates down through menu options or decreases parameter values.
- КИРҮҮ: Confirms selection or enters a sub-menu.
4.2 DMX башкаруусу
The Encore LP7IP can be controlled via DMX512 protocol. Set the DMX address and select the desired DMX channel mode through the control panel. Refer to the DMX channel chart (typically found in a separate DMX manual or appendix) for specific channel functions.
4.3 Өз алдынча иштөө
The fixture offers several standalone modes for operation without an external DMX controller.
- Статикалык түс режими: Select from a range of pre-mixed static colors.
- Түстүү макро режими: Access 64 built-in color macros for quick color selection.
- Диммер режими: Adjust the overall intensity of the light output.
- Color Temperature Mode: Adjust the white balance from 2700K to 6500K.
Сүрөт: Мисample of the ADJ Encore LP7IP LED Par Can Wash Light producing a warm, focused beam of light on a stage.
Сүрөт: Мисample of the ADJ Encore LP7IP LED Par Can Wash Light producing a cool, focused beam of light on a stage.
5. Техникалык тейлөө
5.1 Тазалоо
Regular cleaning of the optical lenses and housing is recommended to maintain optimal light output and prevent overheating. Use a soft, lint-free cloth and a mild glass cleaning solution. Avoid abrasive materials.
5.2 Сактоо
When not in use, store the fixture in a dry, dust-free environment, preferably in its original packaging or a suitable flight case to protect it from damage.
5.3 Сактагычты алмаштыруу
If the fixture does not power on, check the fuse located near the power input. Disconnect power before attempting to replace the fuse. Use only a fuse of the same type and rating (T2A/250V).
6. Кыйынчылыктарды
This section addresses common issues you may encounter. If a problem persists, contact ADJ customer support.
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Шам күйбөйт. | Электр энергиясы жок, кабели бузулган, сактагычы күйүп кеткен. | Check power connection, test cable, replace fuse (see Section 5.3). |
| Жарык чыгаруу жок. | Dimmer at 0%, DMX signal issue, fixture in blackout mode. | Increase dimmer setting, check DMX connections and controller, verify fixture mode. |
| Incorrect DMX control. | Incorrect DMX address, wrong DMX mode, faulty DMX cable. | Verify DMX address and mode settings, test DMX cable, ensure DMX terminator is used if needed. |
| Fixture overheating. | Бөгөттөлгөн желдетүү, жогорку айлана-чөйрөнүн температурасы. | Ensure clear airflow around the fixture, operate within specified temperature range. |
7. Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Модел | ENC327 |
| Жарык булагы | 7 x 20W RGBL (Red, Green, Blue, Lime) LEDs |
| Beam Angle | 10 градус |
| Түс температурасын көзөмөлдөө | 2700K to 6500K (Linear) |
| Түстү көзөмөлдөө | 16 биттик жакшы түстү башкаруу |
| Түстүү макрос | 64 орнотулган |
| IP рейтинги | IP65 (чаңга жана сууга туруктуу) |
| Power Source | Электр зымдары |
| Киргизүү көлөмүtage | AC 100-240V, 50/60Hz |
| Фузер | T2A/250V |
| Элемент Салмагы | 10.5 фунт (4.76 кг) |
| Продукциянын өлчөмдөрү | 6.3 x 9.53 x 8.66 дюйм (160 x 242 x 220 мм) |
| Өндүрүүчү | ADJ Products |
| UPC | 818651029734 |
8. Кепилдик жана колдоо
ADJ Products provides a limited warranty for its products. For detailed warranty information, please refer to the warranty card included with your product or visit the official ADJ website. For technical support, service, or to purchase replacement parts, please contact ADJ customer service directly. Ensure you have your model number (ENC327) and serial number available when contacting support.
ADJ Products, ООО
www.adj.com
