Firecore Rotary Laser FRE205G User Manual

1. Киришүү

Сатып алганыңыз үчүн рахматasing the Firecore FRE205G Green Rotary Laser. This manual provides detailed instructions for the safe and efficient operation, setup, maintenance, and troubleshooting of your device. Please read this manual thoroughly before using the product and keep it for future reference.

The Firecore FRE205G is a high-precision, self-leveling rotary laser designed for various construction and leveling tasks. It features a highly visible green laser, robust IP65 design, and a wide operating range of approximately 500m in diameter with the included receiver.

2. Коопсуздук маалыматы

Жаракат алуунун жана түзмөктүн бузулушунун алдын алуу үчүн ар дайым төмөнкү коопсуздук чараларын сактаңыз:

• Лазердик нурлануу: This product emits Class 2 laser radiation (Output: <1mW). Do not stare directly into the laser beam or view it with optical instruments.
• Көздү коргоо: Always wear the provided laser goggles when operating the device to protect your eyes from accidental exposure.
• Иштөө чөйрөсү: Use the device in a well-lit area. Avoid using it in extremely dusty or wet conditions unless specifically designed for such environments (IP65 rating provides protection against dust and water splashes).
• Батареянын коопсуздугу: Use only the specified rechargeable lithium batteries. Do not short-circuit, disassemble, or expose batteries to high temperatures.
• Колдонуу: Handle the device with care. Avoid dropping or subjecting it to strong impacts, as this can affect its calibration and accuracy.
• Уруксатсыз өзгөртүүлөр: Do not attempt to modify or repair the device yourself. Repairs should only be performed by authorized service personnel.

3. Продукт бүтүп калдыview жана компоненттер

Familiarize yourself with the main components of the Firecore FRE205G rotary laser.

Figure 3.1: Firecore FRE205G Rotary Laser with key components labeled.

• 1. Rotating Head: Emits the laser beam.
• 2. Protection Glass: Shields the rotating head from dust and water.
• 3. Large Handle: Эргономикалык жактан оңой көтөрүп жүрүү үчүн иштелип чыккан.
• 4. Laser Emitter: Point from which the laser beam exits.
• 5. Slope Setting +: Adjusts the slope upwards.
• 6. Slope Setting -: Adjusts the slope downwards.
• 7. Automatic Leveling Function / Manual Setting: Toggles between auto-leveling and manual mode.
• 8. Rotation Speed Adjustment: Controls the rotation speed of the laser head.
• 9. Directional Scan Range: Sets the scan angle (0°, 10°, 45°, 90°, 180°).
• 10. Anti-Vibration Switch: Activates the anti-vibration mode for stable operation in challenging environments.
• 11. Power Switch Button: Аппаратты күйгүзөт/өчүрөт.
• 12. Robust Body (IP65): Durable and resistant to dust and water.
• 13. Charging Connector: For charging the rechargeable battery.
• 14. Алынуучу батарея: Houses the rechargeable lithium batteries.

4. Орнотуу

4.1 Батареяны орнотуу жана заряддоо

The FRE205G uses rechargeable lithium batteries. Ensure they are fully charged before first use.

• Open the battery compartment located at the bottom of the unit.
• Insert the four rechargeable lithium batteries, ensuring correct polarity.
• Батарея отсегин бекем жабыңыз.
• Connect the AC adapter to the charging connector on the device and plug it into a power outlet. The LED indicator will show charging status.
• Толук заряддоо болжол менен 20 саат үзгүлтүксүз иштөөнү камсыз кылат.

Figure 4.1: Lithium battery pack for the Firecore FRE205G.

4.2 Аппаратты орнотуу

The FRE205G can be mounted on a tripod for stable and accurate measurements.

• The device features a 5/8-inch screw thread at the bottom for tripod mounting.
• Securely attach the rotary laser to a compatible tripod.
• Ensure the tripod is placed on a stable, level surface to minimize vibrations.

4.2-сүрөт: Төмөнкү view of the FRE205G showing the 5/8-inch tripod mount.

5. Операция

5.1 Powering On and Automatic Leveling

• Press the Power Switch Button (11) to turn on the device.
• The FRE205G will automatically self-level within a range of ±5°. The laser will begin rotating once leveled.
• If the device is outside its self-leveling range, the laser may flash or an alarm may sound. Adjust the device's position until it levels.

Figure 5.1: The FRE205G in operation, showing the green laser beam.

5.2 Operating Modes and Adjustments

The FRE205G offers various modes for different measurement needs:

• Horizontal Measurement: The default mode, providing a 360° horizontal laser plane.
• Vertical Measurement: Can be used to project a vertical laser line.
• Rotation Speed Adjustment: Use the dedicated buttons (8) to cycle through rotation speeds: 0, 60, 120, 300, 600 rpm.
• Directional Scan Mode: Use the directional scan buttons (9) to set specific scan angles (0°, 10°, 45°, 90°, 180°). This creates a visible laser line segment.
• Slope Setting: For setting a specific slope, use the Slope Setting + (5) and Slope Setting - (6) buttons. This function allows for manual adjustment of the laser plane for grading and drainage applications.
• Anti-Vibration Mode: Activate the Anti-Vibration Switch (10) for stable operation in environments with minor vibrations. This mode prevents the laser from stopping due to slight movements.

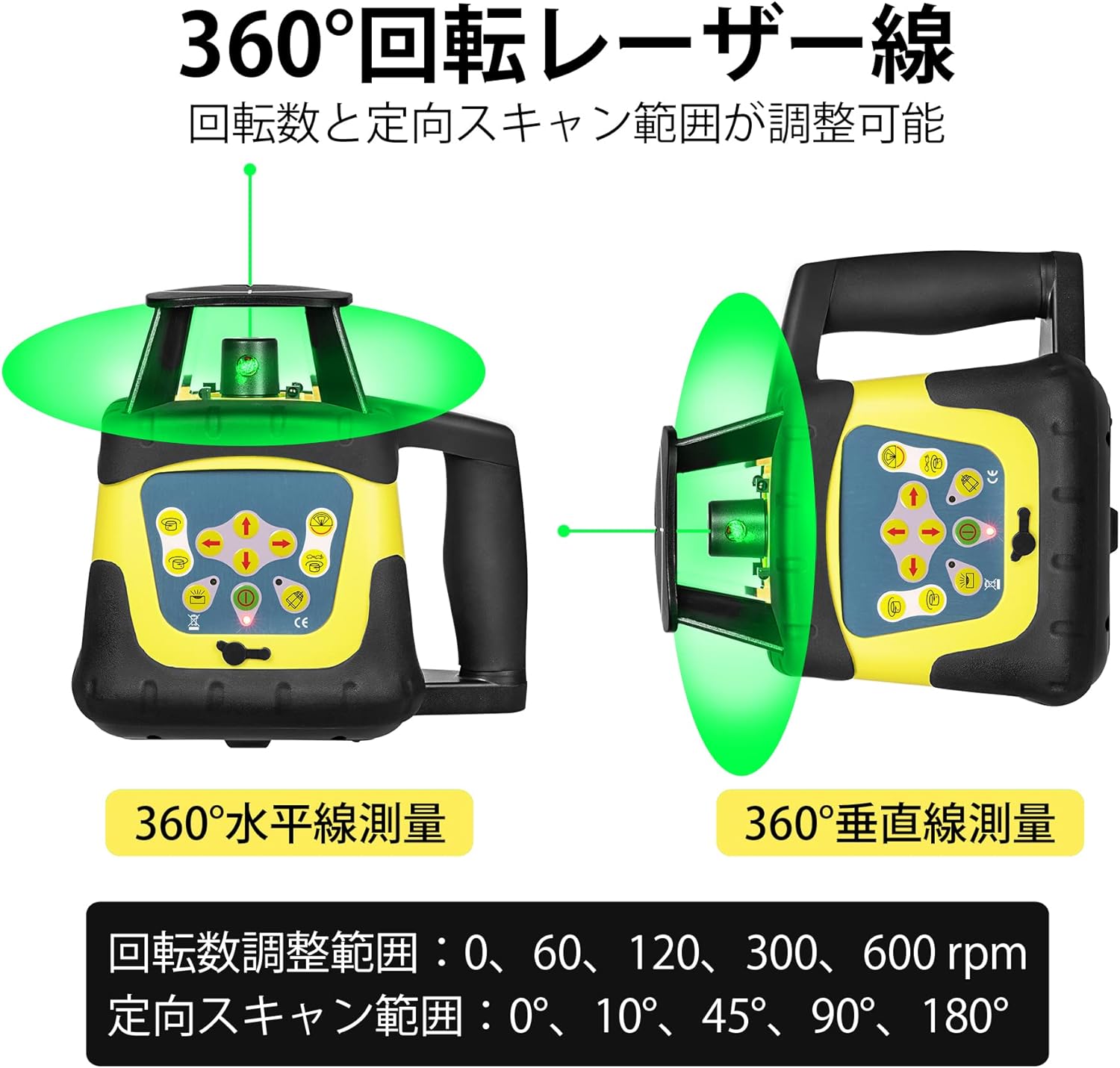

Figure 5.2: Illustrates 360° horizontal and vertical laser measurement capabilities.

5.3 Using the Laser Receiver (FRD100)

For outdoor use or when the laser beam is difficult to see, use the included FRD100 laser receiver.

• Turn on the FRD100 receiver.
• Move the receiver through the laser plane. The receiver will indicate when it detects the laser beam, typically with an audible signal and visual display.
• The receiver extends the working range to approximately 500m in diameter.

Figure 5.3: The FRE205G in use on a construction site with a laser receiver.

Figure 5.4: Illustrates the approximate 500m diameter working range with the receiver.

5.4 Алыстан башкарууну колдонуу

The included remote control allows for convenient adjustment of settings from a distance, including slope setting and rotation speed.

• Point the remote control towards the rotary laser.
• Use the corresponding buttons on the remote to adjust rotation speed, scan angle, and slope.

6. Техникалык тейлөө

• Тазалоо: After each use, wipe the device with a soft, dry cloth. Do not use abrasive cleaners or solvents. Ensure the protection glass is clean for optimal laser visibility.
• Сактагыч: Store the rotary laser in its original carrying case in a cool, dry place, away from direct sunlight and extreme temperatures.
• Батареяга кам көрүү: If storing for extended periods, remove the batteries. Recharge batteries periodically to maintain their lifespan.
• Калибрлөө текшерүү: Periodically check the calibration of the device, especially after any significant impact or if accuracy is critical for your application. Refer to the manufacturer's guidelines for calibration procedures or contact support.

7. Кыйынчылыктарды

8. Техникалык шарттар

9. Standard Package Contents

The following items are included with your Firecore FRE205G Rotary Laser:

Figure 9.1: All items included in the standard package.

• Firecore FRE205G Rotary Laser Unit
• Сактоочу куту
• Rechargeable Lithium Batteries (4 pieces)
• User Manual (Japanese) - Note: This document serves as an English translation and detailed guide.
• Dedicated Laser Receiver (FRD100)
• Laser Target Plate (1 piece)
• Лазердик көз айнек
• Алыстан башкаруу
• AC адаптер

10. Кепилдик жана колдоо

For any questions, product malfunctions, or concerns during use, please contact Firecore customer support. Refer to the contact information provided with your purchase or on the official Firecore webсайт.

Firecore is committed to providing reliable products and excellent customer service. Please retain your proof of purchase for warranty claims.
