Introduction
The BLANCO drink.hot EVOL-S Pro 4-in-1 faucet system provides conventional hot and cold water, along with filtered cold and filtered boiling water. This manual offers detailed instructions for installation, operation, and maintenance to ensure safe and efficient use of your new kitchen faucet.
Коопсуздук маалыматы
- Электр коопсуздугу: Ensure the power supply for the boiler unit is properly grounded and installed by a qualified electrician. Disconnect power before any maintenance.
- Boiling Water Hazard: The separate spout for boiling water is insulated, but exercise extreme caution when dispensing boiling water to prevent burns. Keep children away from the boiling water function.
- Суунун басымы: Verify that your household water pressure is within the recommended range for the faucet system.
- Орнотуу: Installation should be performed by a qualified plumber or technician to ensure proper function and prevent leaks.
- Тейлөө: Only use recommended cleaning agents and follow maintenance instructions to avoid damage to the faucet finish and internal components.
Пакеттин мазмуну
Орнотууну баштоодон мурун, бардык компоненттердин бар экендигин текшериңиз:
- Faucet unit
- Монтаждоо комплекти
- Электр менен жабдуу шнеси
- BWT filter
- Казан агрегаты
1-сүрөт: Included components for the BLANCO drink.hot EVOL-S Pro system, showing the faucet, boiler, and BWT filter.
Орнотуу жана орнотуу
The BLANCO drink.hot EVOL-S Pro is designed for single-hole installation. Professional installation is recommended.
- Орнотуу аймагын даярдоо: Ensure sufficient space under the sink for the boiler unit and filter. The product dimensions are approximately 44.7 x 25.2 x 16 cm for the main unit.
- Кранды орнотуу: Insert the faucet into the pre-drilled hole in your sink or countertop. Secure it from underneath using the provided mounting kit.
- Суу линияларын туташтыруу: Connect the conventional hot and cold water supply lines to the faucet.
- Install Boiler and Filter: Install the boiler unit and BWT filter according to their specific instructions. Connect the filtered water lines from the main supply through the filter to the boiler, and then from the boiler to the dedicated filtered water inlet on the faucet.
- Электр байланышы: Plug the boiler unit into a grounded power outlet.
- Агышуу үчүн сыноо: Негизги суу менен камсыздоону акырындык менен күйгүзүңүз жана бардык туташууларда агып кетпегендигин текшериңиз.
2-сүрөт: Technical drawing showing the dimensions and installation requirements for the faucet.
Иштөө нускамалары
The BLANCO drink.hot EVOL-S Pro offers four water types through distinct controls:
3-сүрөт: The BLANCO drink.hot EVOL-S Pro faucet, showcasing its matte black finish and dual spouts.
Conventional Hot and Cold Water
- The lever on the right side of the faucet controls the flow and temperature of conventional hot and cold tap water.
- Move the lever forward or backward to adjust flow.
- Ысык суу үчүн рычагды солго, муздак суу үчүн оңго жылдырыңыз.
- Water is dispensed through the flexible, arched spout.
Filtered Cold and Boiling Water
- Filtered cold and boiling water are activated via the rotary knob on the left side of the faucet.
- These water types are dispensed through a separate, fixed, and insulated spout to prevent mixing and ensure safety.
- Click & Touch Function: The rotary knob allows precise adjustment of the filtered water quantity.
- A sensor control on the front activates the comfort function for dispensing.
- An integrated safety mechanism ensures safe handling of boiling water.
4-сүрөт: Demonstrating the "Click & Touch" rotary knob for precise quantity control of filtered water.

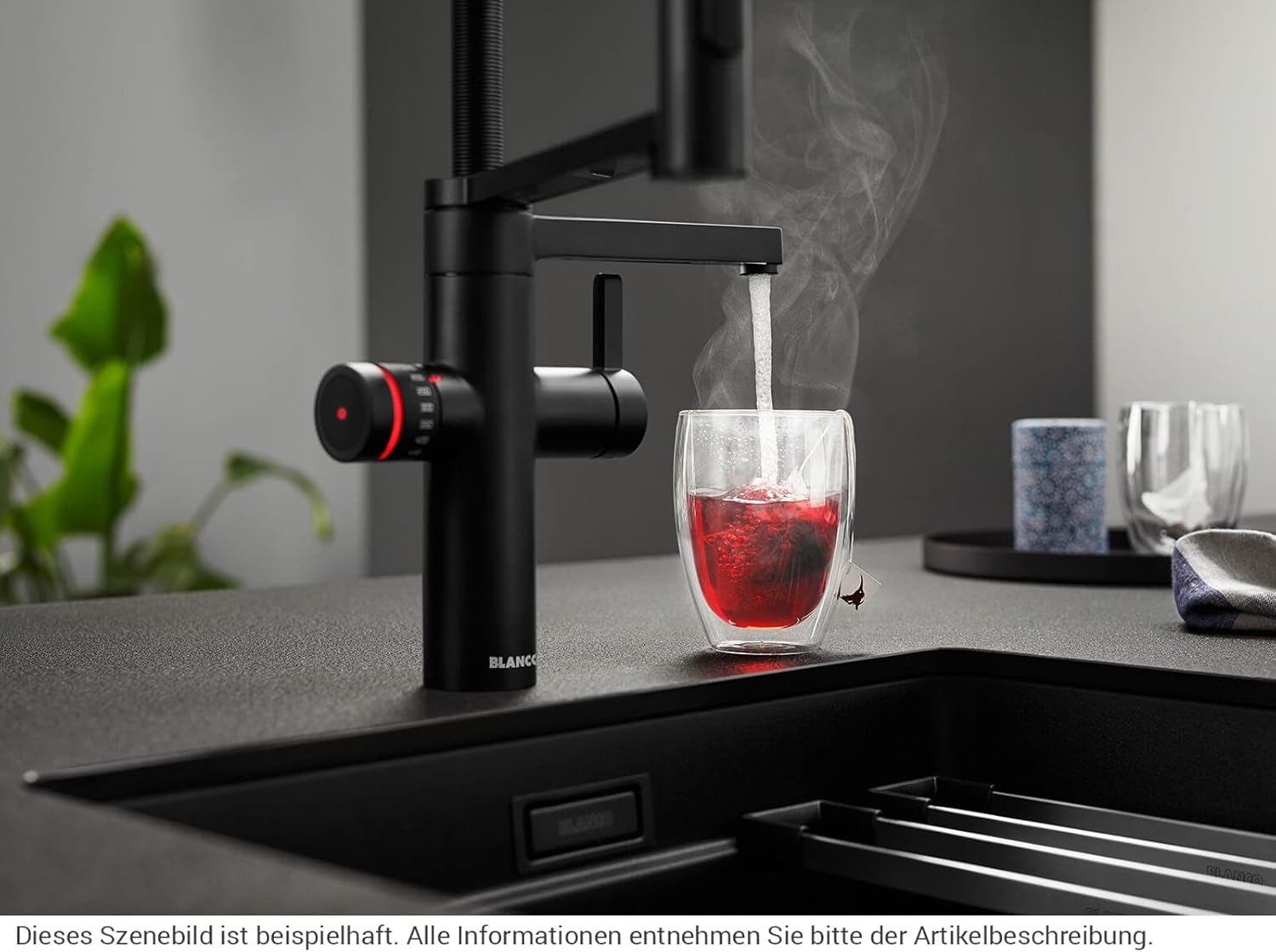

5-сүрөт: Boiling water being dispensed from the dedicated spout into a cup, illustrating the hot water function.
Dual-Jet Spray Head
- The flexible spout features a dual-jet spray head with a precise magnetic holder.
- Switch between different spray patterns as needed for various kitchen tasks.
6-сүрөт: The flexible spout in use, filling a pot with water, highlighting its versatility.
Техникалык тейлөө
- Кранды тазалоо: Clean the faucet regularly with a soft cloth and mild soap. Avoid abrasive cleaners, scouring pads, or harsh chemicals, as these can damage the matte black finish.
- Фильтрди алмаштыруу: The BWT filter requires periodic replacement to ensure optimal water quality. Refer to the filter's specific instructions for replacement intervals and procedures.
- Descaling the Boiler: Depending on water hardness, the boiler unit may require descaling. Follow the manufacturer's guidelines for descaling to maintain efficiency and longevity.
- Түтүктөрдү тейлөө: Periodically check the flexible spout and spray head for any blockages or mineral buildup. Clean as necessary.
Проблемаларды чечүү
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| No water flow (conventional) | Main water supply off; clogged aerator | Check main water supply valve; clean or replace aerator. |
| Фильтрленген суу жок | Filter clogged or expired; boiler not powered | Replace BWT filter; ensure boiler is plugged in and powered on. |
| Кайнак суу жок | Boiler not powered; safety mechanism engaged; boiler fault | Check boiler power; reset safety mechanism (refer to boiler manual); contact support if fault persists. |
| Байланыштардан агып кетүүлөр | бош байланыштар; бузулган пломбалар | Tighten connections (do not overtighten); inspect and replace seals if damaged. Professional assistance may be required. |
| Суунун басымы төмөндөйт | Clogged filter; mineral buildup in spout/aerator | Replace filter; clean aerator and spout. |
Техникалык шарттар
| Бренд | BLANCO |
| Модель аты | Drink System (EVOL-S Pro 4-in-1) |
| Модель номери | 526634 |
| ASIN | B09HCN7437 |
| Түс | Matte Black |
| Материал | Stainless Steel (Faucet body), Brass (Handle/Lever) |
| Бүтүрүү | боёлгон |
| Продукциянын өлчөмдөрү (L x W x Y) | 44.7 x 25.2 x 16 см |
| Элемент Салмагы | 11.5 килограмм |
| сүйлөйсүз Бийиктиги | 196 миллиметр |
| Чыгарылыш тереңдиги | 170 миллиметр |
| Орнотуу ыкмасы | Single Hole |
| Power Source | Wired (for boiler unit) |
| Камтылган компоненттер | Faucet, Mounting Kit, Power Supply Plug, BWT Filter, Boiler |
Кепилдик жана колдоо
For warranty information, please refer to the documentation provided with your purchase or visit the official BLANCO website. Information regarding spare parts availability is not directly provided in the product specifications. For technical support or service inquiries, please contact BLANCO customer service.
You can find more information about BLANCO products and support on their official brand store: BLANCO Brand Store.
