AMZCHEF меш соргучу 60 см YJOB-CX600-002 колдонуучунун колдонмосу

1. Introduction and Overview

This manual provides essential information for the safe and efficient operation of your AMZCHEF 60cm Cooker Hood, model YJOB-CX600-002. This appliance is designed to effectively remove cooking fumes, steam, and odors from your kitchen environment, offering both recirculation and exhaust modes. It features a powerful suction capacity, quiet operation, and user-friendly controls.

Image 1.1: The AMZCHEF 60cm Cooker Hood, showcasing its sleek design and included activated carbon filters.

Key features include a maximum suction power of 550 m³/h, three adjustable speed levels, an energy efficiency class of A+, and a low noise level starting from 43dB. The cooker hood can be controlled via a touch screen panel or a remote control, and it includes energy-saving LED lighting for your hob.

2. Коопсуздук маалыматы

Please read all safety instructions carefully before installation and use. Failure to follow these instructions may result in electric shock, fire, or injury.

• электр менен жабдууну камсыз кылуу voltage шаймандагы рейтинг белгисине дал келет.
• Орнотуу жергиликтүү эрежелерге ылайык квалификациялуу техник тарабынан аткарылышы керек.
• Шайманды бузулган электр шнуру же сайгыч менен иштетпеңиз.
• Тазалоодон же тейлөөдөн мурун шайманды электр кубатынан ажыратыңыз.
• Капотту газ же башка күйүүчү приборлор менен бир убакта колдонууда бөлмөнүн тийиштүү желдетилишин камсыз кылыңыз.
• Капчыктын астында күйбөңүз.
• Өрт коркунучун алдын алуу үчүн май чыпкаларын дайыма тазалап туруңуз.
• Бул шайман физикалык, сезүү же акыл-эс жөндөмү начар же тажрыйбасы жана билими жок адамдар (анын ичинде балдар) үчүн, эгерде алардын коопсуздугуна жооптуу адам тарабынан көзөмөлсүз же шайманды колдонуу боюнча көрсөтмө болбосо, колдонууга арналбайт.

3. Пакеттин мазмуну

Таңгактан чыгарганда бардык компоненттер бар экенин жана бузулбаганын текшериңиз:

• AMZCHEF Cooker Hood Unit
• Монтаждоо кронштейндери жана буроолор
• Exhaust Hose (for exhaust mode)
• Activated Carbon Filters (2 units, for recirculation mode)
• Aluminum Grease Filters (pre-installed)
• Алыстан башкаруу
• User Manual

4. Орнотуу жана орнотуу

The AMZCHEF cooker hood is designed for wall-mounted installation. It supports two ventilation modes: recirculation and exhaust.

4.1 Өлчөмдөр

Image 4.1: Detailed dimensions of the cooker hood, including width (600mm), depth (420mm), and height (min 400mm / max 790mm).

4.2 Ventilation Modes

Choose between recirculation mode or exhaust mode based on your kitchen setup and preferences.

Image 4.2: Visual representation of the dual ventilation modes. Recirculation mode uses activated carbon filters to purify air before releasing it back into the kitchen. Exhaust mode expels smoke and odors outdoors via an exhaust pipe.

• Рециркуляция режими: For kitchens without an external exhaust duct. Activated carbon filters (included) absorb odors and grease, and the purified air is recirculated back into the kitchen. Ensure carbon filters are installed correctly.
• Чыгаруу режими: For kitchens with an external exhaust duct. The included exhaust hose directs cooking fumes and odors outside. Carbon filters are not required for this mode but grease filters must always be in place.

Refer to the detailed installation guide provided in the packaging for specific steps on mounting the unit, connecting the exhaust hose (if applicable), and installing the carbon filters.

5. Операция

The cooker hood can be operated using the integrated touch screen panel or the supplied remote control.

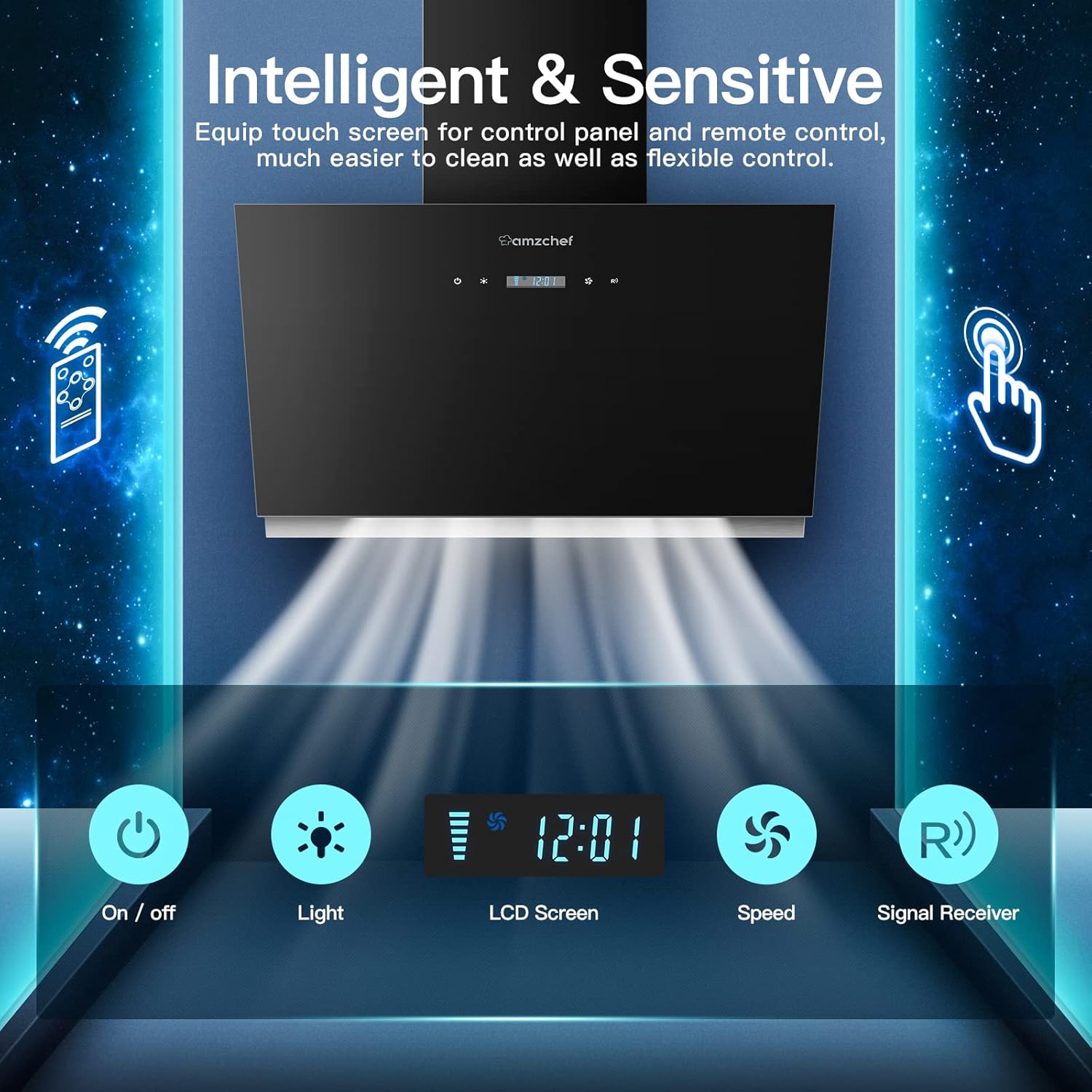

Image 5.1: The intelligent touch screen control panel and remote control, featuring intuitive icons for various functions.

• Күйгүзүү/өчүрүү: Press the power icon to turn the hood on or off.
• Желдетүүчү ылдамдыкты жөндөө: Use the speed control icon to cycle through the three available fan speeds (low, medium, high) to match your cooking intensity. The maximum suction power is 550 m³/h.
• LED жарыктандыруу: Press the light icon to turn the integrated LED lights on or off, illuminating your cooking area.
• Automatic Operation Function: The hood supports an automatic shut-off timer. The standard duration is 3 minutes. You can adjust the timer from 0 to 60 minutes as needed to ensure complete removal of residual fumes after cooking.

Image 5.2: The cooker hood operating with minimal noise, allowing for comfortable conversation while cooking.

The cooker hood operates at a low noise level, starting from 43dB, ensuring a pleasant kitchen environment.

6. Техникалык тейлөө

Үзгүлтүксүз тейлөө сиздин капюшонуңуздун оптималдуу иштешин жана узак иштөөсүн камсыздайт.

6.1 Сырты тазалоо

The smooth surface of the cooker hood is easy to clean. Use a soft cloth dampened with mild detergent and water. Avoid abrasive cleaners or scouring pads that could damage the finish.

6.2 Cleaning/Replacing Aluminum Grease Filters

The aluminum mesh filters capture grease particles. They should be cleaned regularly (e.g., monthly, depending on usage) to maintain suction efficiency and prevent fire hazards. The filters can be washed by hand with hot soapy water or in a dishwasher.

Image 6.1: Illustration of the aluminum mesh filters and the ease of cleaning the touch screen panel.

6.3 Активдештирилген көмүр чыпкаларын алмаштыруу (кайра циркуляция режими үчүн)

If using the hood in recirculation mode, the activated carbon filters absorb odors. These filters cannot be cleaned and must be replaced periodically (typically every 3-6 months, depending on usage). Refer to the product packaging for compatible replacement filters.

7. Кыйынчылыктарды

If you encounter issues with your cooker hood, refer to the following common troubleshooting steps:

• Кубат жок: Электр шнурунун иштеген розеткага бекем сайылганын текшериңиз. Ажыраткычты текшериңиз.
• Төмөн сордуруу күчү: Ensure grease filters are clean and not clogged. If in recirculation mode, check if carbon filters need replacement. Verify that the exhaust duct (if applicable) is not obstructed.
• адаттан тыш ызы-чуу: Check for loose parts or obstructions in the fan assembly. Ensure the hood is securely mounted to the wall.
• Жарыктар иштебейт: Check if the LED lights are properly connected. If individual LEDs are replaceable, consult a technician.

For persistent issues or problems not listed here, please contact AMZCHEF customer support.

8. Техникалык шарттар

Detailed technical specifications for the AMZCHEF Cooker Hood YJOB-CX600-002:

Image 8.1: A summary of key specifications, including energy efficiency, suction power, and noise level.

9. Кепилдик жана колдоо

For warranty information, technical assistance, or to purchase replacement parts, please contact AMZCHEF customer support. Keep your purchase receipt as proof of purchase for any warranty claims.
