1. Киришүү
This manual provides comprehensive instructions for the installation, operation, and maintenance of your KarParts360 Heater Control Valve. This product is designed as a direct replacement for the original equipment manufacturer (OEM) part, ensuring proper fit and function for compatible vehicles. Please read this manual thoroughly before beginning any installation or service to ensure safe and correct usage.
The heater control valve regulates the flow of engine coolant to the heater core, controlling the temperature of the air entering the vehicle's cabin. A properly functioning heater control valve is essential for effective climate control.
2. Коопсуздук маалыматы
WARNING: Automotive repair can be dangerous. Always exercise caution and follow proper safety procedures.
- Ар дайым тиешелүү жеке коргонуу шаймандарын (ЖКК), анын ичинде коргоочу көз айнектерди жана кол каптарды кийиңиз.
- Ensure the vehicle is turned off, cooled down, and properly supported on jack stands before working underneath it.
- Электр иштерин жасоодон мурун унаанын аккумуляторун сууруп алыңыз.
- Be aware that engine coolant can be hot and under pressure. Allow the engine to cool completely before draining coolant or disconnecting hoses.
- Dispose of old coolant and parts responsibly according to local regulations.
- Эгер кандайдыр бир кадамга ишенбесеңиз, квалификациялуу автотехникке кайрылыңыз.
Бул продукт түздөн-түз алмаштырылуучу рыноктон кийинки продукт. Ал OEM эмес жана тизмеде көрсөтүлгөн унаа өндүрүүчүсү тарабынан өндүрүлбөйт жана сатылбайт. Биз унаа өндүрүүчүсү менен байланышта эмеспиз.
3. Пакеттин мазмуну
Пакетти ачкандан кийин, бардык компоненттер бар экенин жана бузулбаганын текшериңиз.
- 1 x KarParts360 Heater Control Valve (Model: CLX-M0-USA-RF38310003-CL360A73)
- Accessories (if applicable, as per product description)

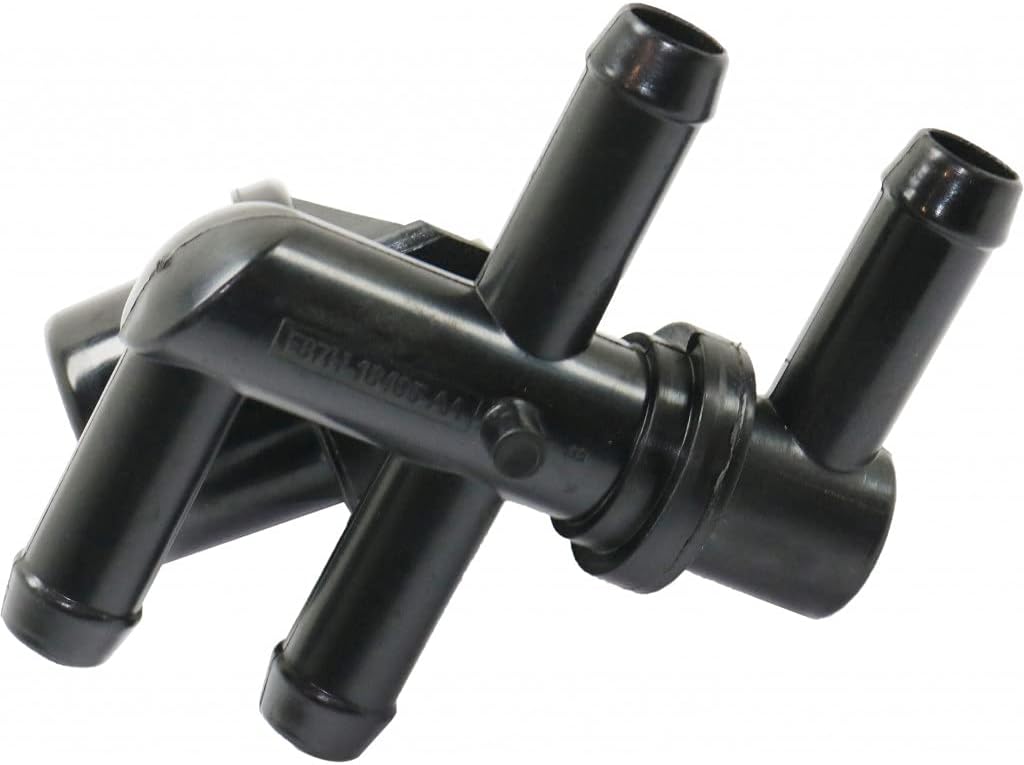

Image: The KarParts360 Heater Control Valve, showing its multi-port design. This is the main product image.
4. Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Бренд | KarParts360 |
| Модель номери | CLX-M0-USA-RF38310003-CL360A73 |
| OEM бөлүктүн номерлери | F87H18495AA, F87Z18495AA |
| Материал | Металл |
| Элементтин өлчөмдөрү (L x W x Y) | 13.5 x 6 x 4 дюйм |
| Элемент Салмагы | 4.8 унция |
| Сырткы бүтүрүү | Бүтпөгөн |
| Inlet Connection Size | 4 дюйм |
| Inlet Connection түрү | Порт |
| Розетка туташуу өлчөмү | 4 дюйм |
| Розетка туташуу түрү | Порт |
| Порттардын саны | 4 |
| Specification Met | DOT & SAE compliance standards |
Image: Display of the OEM part numbers F87H18495AA and F87Z18495AA, which this product replaces.
5. Шайкештик
This KarParts360 Heater Control Valve is designed to be a direct fit replacement for the following vehicle models:
- Mazda B2300: 1995-2004
- Mazda B3000: 1995-2004
- Mazda B4000: 1995-2004
It is also compatible with certain Ford Explorer and Ranger models. Please cross-reference the OEM part numbers (F87H18495AA, F87Z18495AA) with your vehicle's existing part to ensure proper fitment.
Image: Graphic indicating compatibility with Mazda B2300, B3000, and B4000 models from 1995 to 2004.
For a detailed list of compatible Ford models, refer to the tables below:
Ford Explorer Compatibility
Image: Table showing Ford Explorer models and years compatible with the heater control valve.
Ford Aerostar Compatibility
Image: Table showing Ford Aerostar models and years compatible with the heater control valve (Part 1).
Image: Table showing Ford Aerostar models and years compatible with the heater control valve (Part 2).
Image: Table showing Ford Aerostar models and years compatible with the heater control valve (Part 3).
6. Орнотуу жана орнотуу
Installation of the heater control valve typically involves working with the vehicle's cooling system. It is recommended that this procedure be performed by a qualified technician or individuals with experience in automotive repair.
Керектүү куралдар (камтылган эмес):
- Розетка ачкычынын топтому
- Бурагыч топтому
- Кыскыч (шлангды бекитүү үчүн)amps)
- Муздаткыч үчүн дренаждык табак
- New engine coolant (compatible with your vehicle)
- Шланг clamp tool (optional, but recommended)
Орнотуу кадамдары:
- Унааны даярдоо: Унааны тегиз жерге токтотуп, кол тормозду басыңыз. Кыймылдаткыч толугу менен муздаганча күтүңүз. Батареянын терс терминалын сууруп алыңыз.
- Муздаткычты төгүү: Place a drain pan under the radiator. Open the radiator drain cock or remove the lower radiator hose to drain the engine coolant. Ensure sufficient coolant is drained to prevent spills when removing the heater control valve.
- Locate the Heater Control Valve: The heater control valve is typically located in the engine bay, often near the firewall, where the heater hoses connect. Refer to your vehicle's service manual for the exact location.
- Эски клапанды алып салуу:
- Carefully loosen and remove the hose clamps securing the heater hoses to the old valve.
- Disconnect the heater hoses from the valve. Be prepared for some residual coolant to spill.
- Disconnect any electrical connectors attached to the valve.
- Remove any mounting bolts or clips holding the old valve in place.
- Carefully remove the old heater control valve from the vehicle.
- Жаңы клапанды орнотуу:
- Position the new KarParts360 Heater Control Valve in the same location as the old one.
- Secure the valve with any mounting bolts or clips.
- Reconnect the electrical connectors, ensuring they are fully seated.
- Attach the heater hoses to the new valve, ensuring they are correctly oriented (inlet/outlet). Secure them with the hose clampс. камсыз кылуу clamps are tight to prevent leaks.
- Муздаткычты жана абаны кайра толтуруу:
- Close the radiator drain cock or reattach the lower radiator hose.
- Refill the cooling system with the appropriate type and amount of engine coolant.
- Start the engine with the heater on full heat and the fan on low. Allow the engine to reach operating temperature.
- Monitor the coolant level in the reservoir and top up as needed. Squeeze the upper and lower radiator hoses to help purge air from the system.
- Check for any leaks around the new heater control valve and hose connections.
- Акыркы текшерүүлөр: Once the system is bled and no leaks are present, reconnect the negative battery terminal. Test the heater operation to ensure proper temperature control.
Сүрөт: деталдуу view of the heater control valve, highlighting its various hose connection ports.

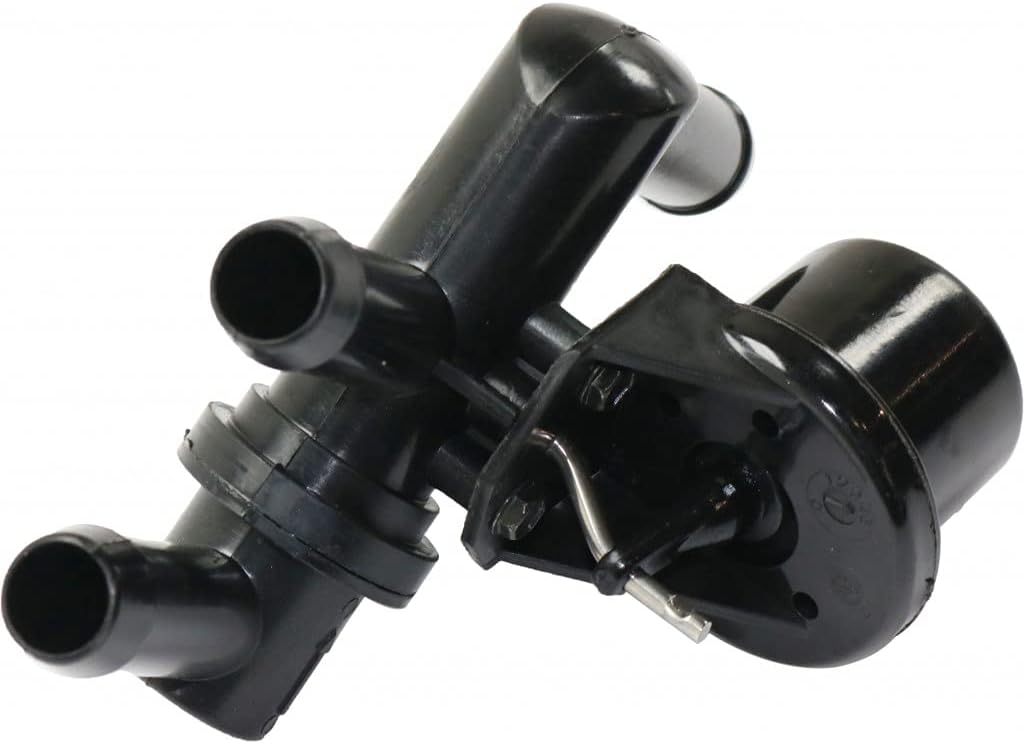

Image: Another perspective of the heater control valve, showing the electrical connection point.
7. Операция
The heater control valve operates automatically in conjunction with your vehicle's climate control system. When you adjust the temperature setting inside your vehicle:
- For Heat: The climate control system sends a signal to the heater control valve, opening it to allow hot engine coolant to flow through the heater core. Air passing over the hot heater core is warmed and then directed into the cabin.
- For Cooling/No Heat: The climate control system signals the valve to close, restricting or stopping the flow of hot coolant to the heater core. This prevents unwanted heat from entering the cabin, allowing the air conditioning system to cool the air effectively.
Ensure your vehicle's climate control system is functioning correctly to allow the heater control valve to operate as intended.
8. Техникалык тейлөө
The KarParts360 Heater Control Valve is designed for durability and typically requires minimal maintenance once installed. However, regular maintenance of your vehicle's cooling system is crucial for the longevity of all components, including the heater control valve.
- Coolant Flushes: Follow your vehicle manufacturer's recommendations for regular coolant flushes and replacements. Old or contaminated coolant can lead to corrosion and blockages, affecting the valve's operation.
- Шлангдарды текшерүү: Periodically inspect the heater hoses connected to the valve for signs of wear, cracks, or leaks. Replace any damaged hoses promptly.
- Агышууларды текшерүү: Regularly check around the heater control valve and its connections for any signs of coolant leaks. Address leaks immediately to prevent further damage to the cooling system.
9. Кыйынчылыктарды
If you experience issues with your vehicle's heating or climate control after installing the new heater control valve, consider the following common problems and solutions:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Жылуулук жок же Жылуулук жетишсиз |
|
|
| Constant Heat (Cannot Turn Off) |
|
|
| Coolant Leak at Valve |
|
|
If troubleshooting steps do not resolve the issue, it is recommended to seek assistance from a certified automotive mechanic.
10. Кепилдик жана колдоо
KarParts360 stands behind the quality of its products. This heater control valve is manufactured to meet or exceed DOT & SAE compliance standards, ensuring reliability and performance.
For specific warranty details, including coverage period and terms, please refer to the warranty information provided at the point of purchase or visit the official KarParts360 webсайт. Сатып алганыңыздын далили катары сатып алуу дүмүрчөгүңүздү сактаңыз.
Кардарларды колдоо:
If you have any questions regarding the installation, operation, or troubleshooting of your KarParts360 Heater Control Valve, please contact our customer support team:
- Webсайт: KarParts360 Official Store
- Электрондук почта: кайрылыңыз webбайланыш формасын же электрондук почта дарегин алуу үчүн сайт.
- Телефон: кайрылыңыз webтелефон номери үчүн сайт.
When contacting support, please have your product model number (CLX-M0-USA-RF38310003-CL360A73) and purchase details readily available.
