Продукт бүттүview
The Litever 4-Flex-Strip Under Cabinet LED Lighting Kit provides efficient and bright illumination for various indoor applications such as kitchen cabinets, counters, shelves, closets, and workshops. This kit includes four 20-inch flexible LED strips, a power adapter, and additional extension cables for versatile installation.
Key features include super bright daylight 5000K illumination, easy installation with slim, modular components, and a highly DIY design allowing for expansion with additional accessories like dimmers or motion sensors. Each LED strip is sealed in a silicone hose for reliable performance.
Кутуда эмне бар
Төмөндө тизмеленген бардык компоненттер пакетиңизге камтылганын текшериңиз:
- 4 x 20-inch Flexible LED Strips
- 1 x 12V 2A кубат адаптери
- 2 x DC 5521 -- L822 Connectors
- 2 x 20-inch Extension Cables (50CM)
- 3 x 12-inch Extension Cables (30CM)
- 1 x In-line Switch
- 16 х кабелдик клиптер
- 20 x Mounting Brackets with Screws
- 5 x Extra 20-inch Extension Cables (included in this bundle)

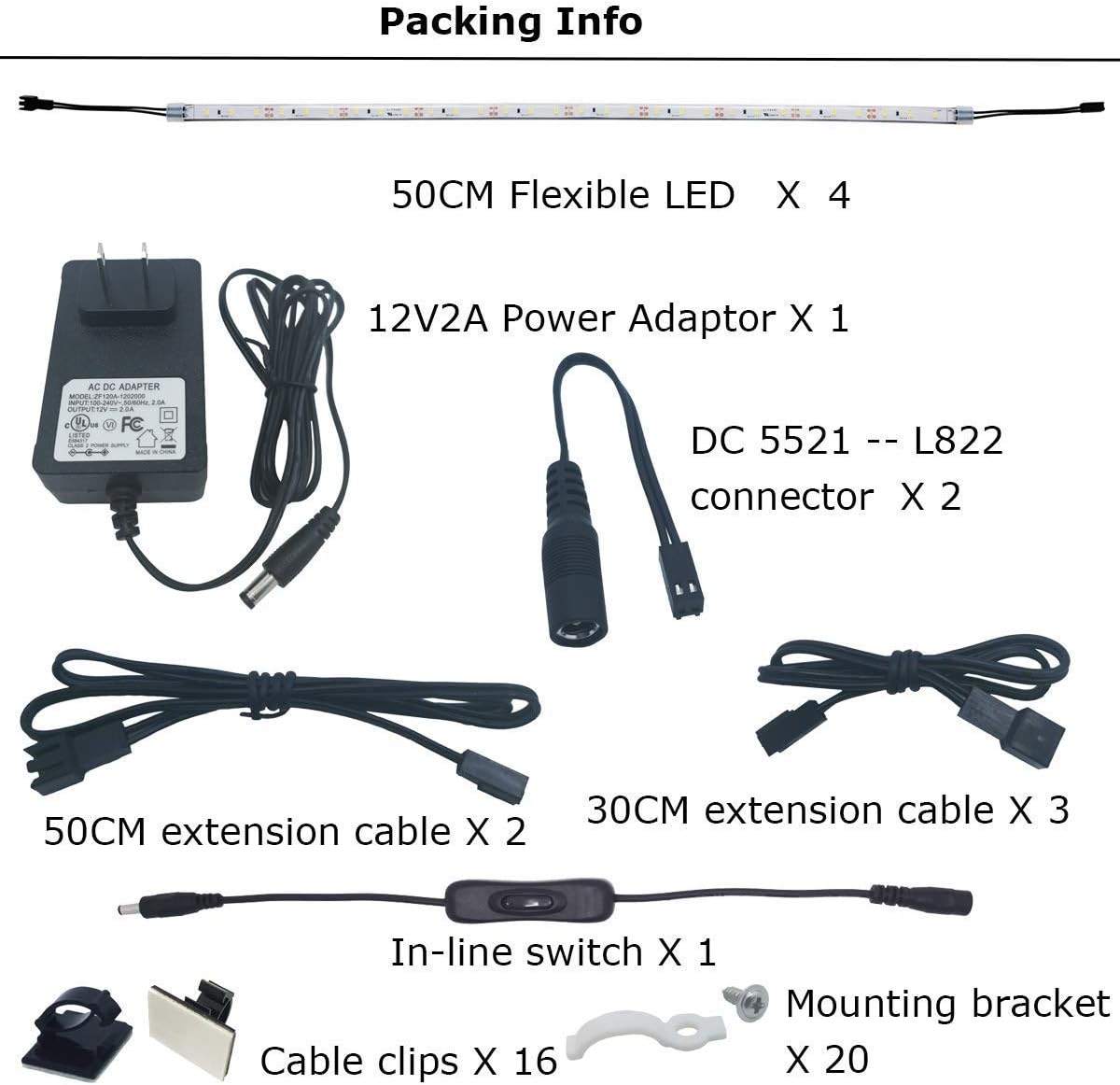

Сүрөт: деталдуу view of all components included in the Litever 4-Flex-Strip Under Cabinet LED Lighting Kit, showing flexible LED strips, power adapter, various extension cables, an in-line switch, cable clips, and mounting brackets.
Орнотуу жана орнотуу
The Litever LED lighting kit offers flexible installation options. Ensure the installation surface is clean and dry before proceeding.
Орнотуу ыкмалары:
- Self-Adhesive Tape: Each flexible LED strip has strong self-adhesive tape on the back. Peel off the protective backing and firmly press the strip onto the desired surface.
- Монтаждоо кронштейндери: For a more secure installation, use the provided mounting brackets and screws. Each 20-inch LED strip can be secured with up to 5 mounting brackets.
Image: Illustration demonstrating two installation methods for the LED strips: using the strong self-adhesive tape on the back of the strip, or securing the strip with the provided mounting brackets and screws.
Wiring Layouts:
The modular design allows for various configurations. Connect the LED strips, extension cables, and in-line switch to the power adapter.
Image: Diagram illustrating "Layout A" for connecting the LED strips. This layout shows a linear connection of multiple LED strips, extension cables, and an in-line switch, all powered by the 12V DC output plug-in adapter. The diagram indicates that the 12VDC 2A power adapter can load a maximum of 6 PCS Litever 20" flexible LED strips.
Image: Diagram illustrating "Layout B" for connecting the LED strips, which utilizes a "Y" Shape 1 to 2 Splitter (not included in the kit) to create a branched lighting setup. This layout also shows the connection to the 12V DC output plug-in adapter and an in-line switch. The diagram notes that the 12VDC 2A power adapter can load a maximum of 6 PCS Litever 20" flexible LED strips.
Ensure all connections are secure. The male and female connectors are designed for reliable plug-together assembly.
Иштөө нускамалары
Once the LED lighting kit is installed and connected to a power outlet, operate it using the in-line switch. Simply toggle the switch to turn the lights ON or OFF.
The kit provides a bright white light with a color temperature of 5000K, ideal for task lighting and general illumination in various indoor environments.
Техникалык тейлөө
The Litever LED strips are designed for durability, with each strip sealed inside a silicone hose, making them water-resistant and easy to clean.
- Тазалоо: To clean the LED strips, gently wipe them with a soft, damp cloth. Do not use abrasive cleaners or harsh chemicals. Ensure the power is disconnected before cleaning.
- Текшерүү: Алар коопсуз бойдон калуу үчүн бардык байланыштарды мезгил-мезгили менен текшерип туруңуз.
- Сактагыч: If storing the kit, ensure it is kept in a dry environment away from extreme temperatures.
Проблемаларды чечүү
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Жарыктар күйбөйт. |
|
|
| Жарыктар күңүрт же бүлбүлдөп турат. |
|
|
| Only some LED strips light up. |
|
|
Техникалык шарттар
| Бренд | Litever |
| Модел | 4-Flex-Strip-5000K |
| Жарык булагы түрү | LED |
| Power Source | Электр зымдары |
| Ачык түс | Daylight Bright White |
| Түс температурасы | 5000K |
| Ватtage | 16 ватт |
| Жарык булактарынын саны | 150 (total for 4 strips) |
| Материал | Silicone (for LED strip housing) |
| Башкаруу ыкмасы | Button Control (In-line switch) |
| Сууга туруктуулук деңгээли | Water Resistant (sealed silicone hose) |
| Камтылган компоненттер | 4 x LED Strips, 1 x Power Adapter, Extension Cables, In-line Switch, Mounting Hardware |
Сүрөт: Жакын план view of a single flexible LED strip, highlighting its 20-inch (51CM) length, 0.48-inch (12mm) width, 5000K color temperature, 4W/300lm output per strip, and the construction with super bright LEDs on a flexible PCB and sealed in a silicone hose with male and female connectors.
Кепилдик жана колдоо
For warranty information or technical support, please contact Litever customer service. Refer to your purchase documentation for specific warranty terms and contact details.
You can typically find support contact information on the Litever official webсайт же продукт сатылып алынган сатуучу аркылуу.
Note: This manual provides general instructions. Specific product features and accessories may vary.
