ANSMANN AES4 таймер которгучун колдонуучунун колдонмосу

Продукт бүттүview

The ANSMANN AES4 Timer Switch is a digital weekly timer designed to automate the switching of electrical devices. It features a clear LCD display, 10 programmable switching times, a random function for simulating presence, and a summer time adjustment feature. This device helps in managing energy consumption and enhancing home security.

1-сүрөт: Фронт view of the ANSMANN AES4 Timer Switch, showing the LCD display and control buttons.

Орнотуу жана баштапкы конфигурация

Before first use, ensure the timer switch is fully charged by plugging it into a live socket for at least 30 minutes. This will activate the internal battery for memory retention.

1. Аппаратты баштапкы абалга келтирүү

To clear all previous settings and ensure a fresh start, locate the small RESET button (usually recessed) and press it with a pointed object (e.g., a pen tip). The display will show all segments, then reset to 00:00.

2. Учурдагы убакытты жана күндү коюу

1. басыңыз СААТ button once. The display will show the current time.
2. басыңыз ЖУМА button repeatedly to set the current day (MO, TU, WE, TH, FR, SA, SU).
3. басыңыз HOUR button repeatedly to set the current hour (0-23).
4. басыңыз MINUTE button repeatedly to set the current minute (0-59).
5. To exit time setting mode, press any other button or wait approximately 30 seconds for the device to return to normal display.

2-сүрөт: Close-up of the LCD display, illustrating the day and time setting interface. Note the "SUMMER" indicator for summer time function.

3. 12/24 Hour Display Selection

While in normal clock mode, press the СААТ баскычын, анан ТАЙМЕР button simultaneously to toggle between 12-hour (with AM/PM indicator) and 24-hour display formats.

4. Summer Time Function

To activate or deactivate the summer time (Daylight Saving Time) function, press the СААТ баскычын, анан ON/AUTO/OFF button simultaneously. The display will show "SUMMER" when activated, and the time will advance by one hour.

Иштөө нускамалары

The AES4 Timer Switch allows for up to 10 ON/OFF programs per day or week, along with manual control and a random function.

1. Programming ON/OFF Times

1. басыңыз ТАЙМЕР button. The display will show "1 ON". This is the first ON program.
2. Колдонуу ЖУМА, HOUR, жана MINUTE buttons to set the desired ON time and day(s) for this program. You can select specific days, weekdays, weekends, or all days.
3. басыңыз ТАЙМЕР button again. The display will show "1 OFF". This is the first OFF program.
4. Колдонуу ЖУМА, HOUR, жана MINUTE buttons to set the desired OFF time and day(s) for this program.
5. Repeat steps 1-4 for up to 10 ON/OFF programs. Pressing ТАЙМЕР will cycle through P1 ON, P1 OFF, P2 ON, P2 OFF, ..., P10 ON, P10 OFF.
6. Программалоо режиминен чыгуу үчүн баскычты басыңыз СААТ баскычын басыңыз же 30 секунд күтө туруңуз.

3-сүрөт: Example of the timer switch being used to automate Christmas lighting, turning lights on from 17:00 to 08:00.

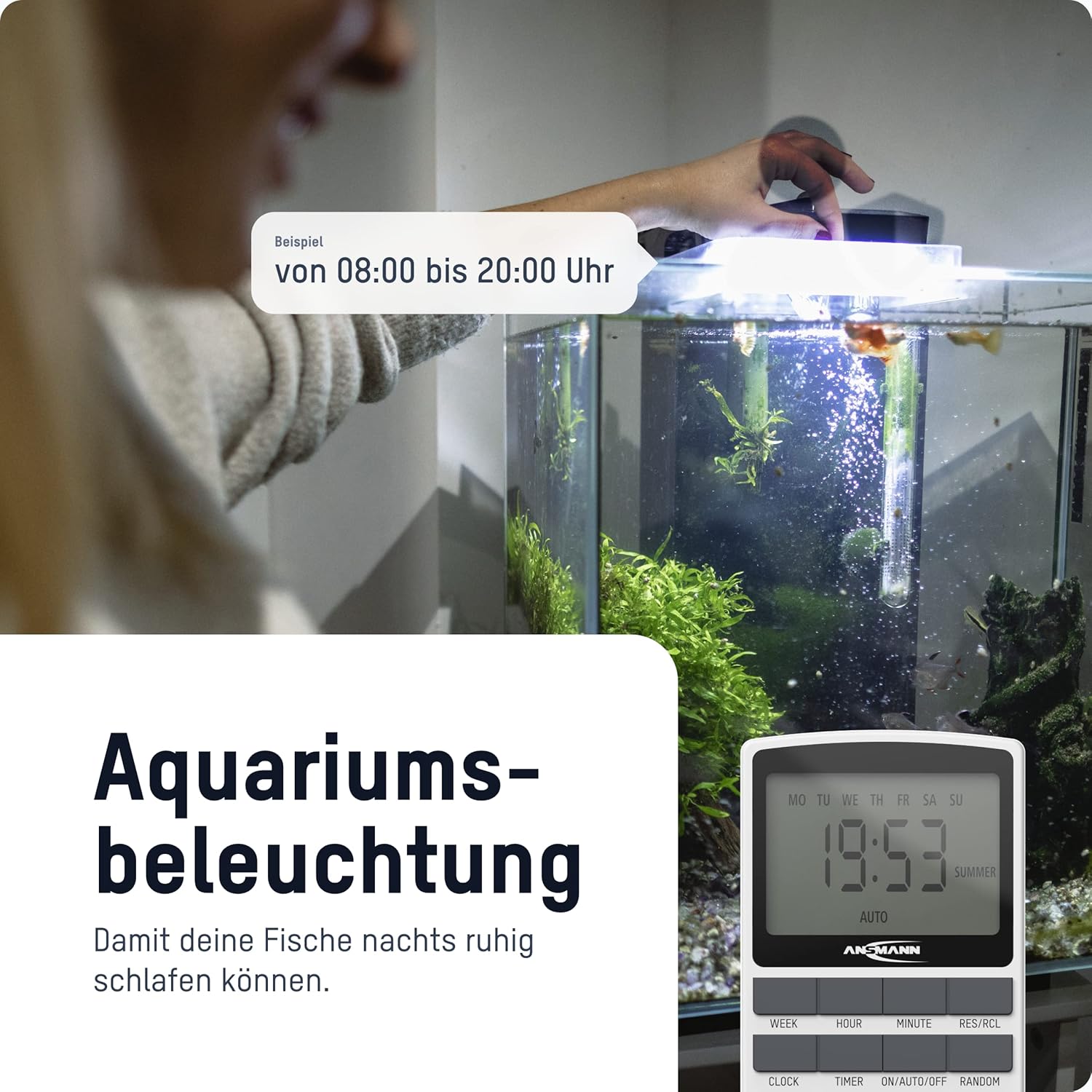

4-сүрөт: The timer switch automating aquarium lighting, ensuring fish have a regular light cycle, for exampле, 08:00ден 20:00ге чейин.

2. Manual ON/AUTO/OFF Mode

басыңыз ON/AUTO/OFF button to cycle through the operating modes:

• КҮЙҮК: The connected device is continuously ON, overriding all programs.
• АВТО: The connected device operates according to the programmed ON/OFF times. This is the standard operating mode for automated control.
• ӨЧҮК: The connected device is continuously OFF, overriding all programs.

3. Random Function

The random function is designed to simulate presence in your home by randomly switching the connected device ON and OFF within a specific time window (e.g., 18:00 to 06:00). This can deter potential intruders.

To activate the random function, press the RANDOM button. "RANDOM" will appear on the display. Press it again to deactivate.

5-сүрөт: The timer switch utilizing its random mode to simulate occupancy, enhancing home security by randomly turning lights on and off.

Техникалык тейлөө

The ANSMANN AES4 Timer Switch requires minimal maintenance.

• Тазалоо: Wipe the device with a soft, dry cloth. Do not use abrasive cleaners or solvents. Ensure the device is unplugged before cleaning.
• Сактагыч: If storing the device for an extended period, ensure it is unplugged and kept in a dry, cool place.
• Батарея: The internal battery is designed for memory retention during power outages. It is not user-replaceable.

Проблемаларды чечүү

If you encounter issues with your ANSMANN AES4 Timer Switch, try the following steps:

• Дисплей бош же жооп бербей жатат: Ensure the timer is plugged into a live power outlet. If it has been unplugged for a long time, the internal battery might be depleted. Plug it in for at least 30 minutes to charge.
• Программалар иштебей жатат:
  • Check if the timer is in "AUTO" mode. If it's in "ON" or "OFF" mode, programs will be overridden.
  • Verify that the current time and day are set correctly.
  • Review your programmed ON/OFF times to ensure they are set as intended and do not conflict.
• Device connected to timer is not turning ON/OFF:
  • Ensure the connected device is properly plugged into the timer switch.
  • Check if the connected device itself is working by plugging it directly into a wall socket.
  • Ensure the timer switch is receiving power.
• Random function not working: Ensure the "RANDOM" indicator is visible on the display.
• Жалпы бузулуу: Perform a full reset of the device by pressing the recessed RESET button. Note that this will erase all programmed settings.

Техникалык шарттар

Кепилдик жана колдоо

For detailed warranty information and technical support, please refer to the official Ansmann webсайтка же түздөн-түз кардарларды тейлөөгө кайрылыңыз. Сатып алганыңыздын далили катары сатып алуу дүмүрчөгүңүздү сактаңыз.

Official Ansmann Webсайт: www.ansmann.de
