Avalla T-9 Steam Mop & Handheld Cleaner User Manual

1. Киришүү

The Avalla T-9 Steam Mop & Handheld Cleaner is a versatile 2-in-1 cleaning solution designed for effective, chemical-free cleaning across various surfaces. It combines high steam throughput with Thermo-injection technology to deliver powerful cleaning performance. This manual provides essential information for the safe and efficient operation and maintenance of your Avalla T-9.

The Avalla T-9 Steam Mop and Handheld Cleaner, showcasing its dual functionality and included accessories.

2. Коопсуздук маалыматы

Please read all safety warnings and instructions carefully before using this appliance. Failure to follow the warnings and instructions may result in electric shock, fire, or serious injury.

• Always ensure the appliance is unplugged from the power outlet before filling with water, cleaning, or performing maintenance.
• Do not leave the steam cleaner unattended while it is switched on.
• Шайманды балдар жана үй жаныбарлары жетпеген жерде сактаңыз.
• Do not direct steam at people, animals, or electrical appliances. Steam is very hot and can cause burns.
• Use only clean tap water. Do not add cleaning solutions, perfumes, or other chemicals to the water tank, as this may damage the appliance and void the warranty.
• Ensure the water tank cap is securely closed before operating.
• Шайманды сууга же башка суюктукка салбаңыз.
• Электр зымы бузулган болсо, коркунучту болтурбоо үчүн аны өндүрүүчү, анын тейлөө агенти же ушуга окшогон квалификациялуу адамдар алмаштырышы керек.
• Бул шайман тиричиликте гана колдонуу үчүн. Сыртта же коммерциялык максатта колдонбоңуз.

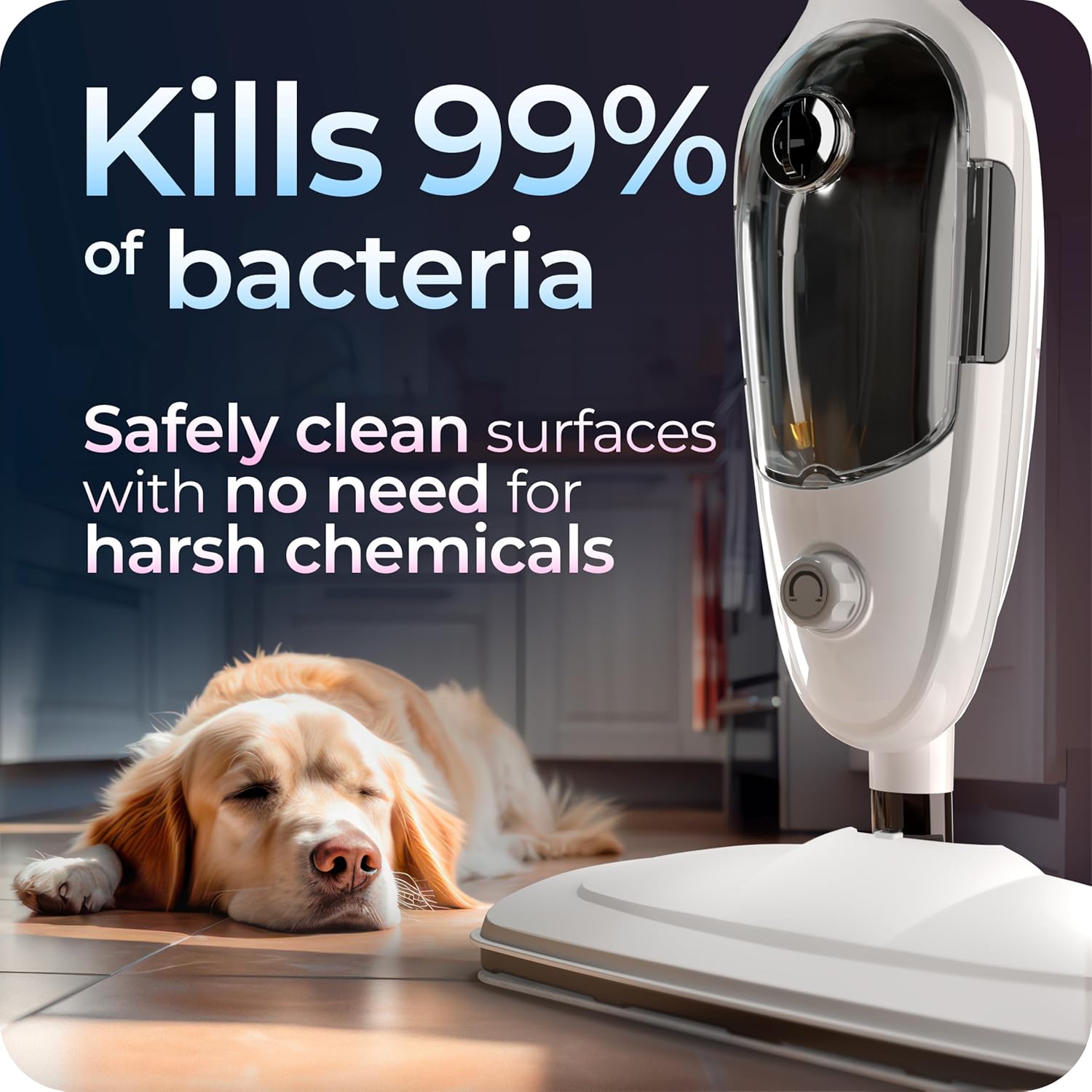

The Avalla T-9 provides chemical-free cleaning, killing 99.9% of bacteria, making it safe for homes with pets and children.

3. Пакеттин мазмуну

Carefully unpack your Avalla T-9 Steam Mop & Handheld Cleaner and ensure all items are present and in good condition:

• Avalla T-9 Main Unit (Steam Mop Body and Handheld Unit)
• Ассамблея туткасы
• Floor Mop Head
• 2 x Reusable Microfiber Mop Pads
• Carpet Glide Attachment
• 7-Piece Accessory Kit, including:
  • Чакан тегерек щетка
  • Чоң тегерек щетка
  • Grout Brush
  • Скрепер куралы
  • Бурчтуу сопло
  • Терезе сүргүч куралы
  • Кийим бууга бышкан кездеме
• Суу толтуруучу чөйчөк
• Instruction Manual

The Avalla T-9 comes with 7 focused accessories, allowing it to clean almost anything from upholstery to windows.

4. Орнотуу

Setting up your Avalla T-9 is quick and easy, allowing you to start cleaning in moments.

1. Агрегатты чогултуу: Connect the handle assembly to the main body of the steam mop until it clicks securely into place. Attach the floor mop head to the bottom of the main unit.
2. Attach Mop Pad: Secure one of the reusable microfiber mop pads to the bottom of the floor mop head using the hook-and-loop fasteners.
3. Сууну толтуруу: Locate the water tank cap on the main unit. Unscrew the cap and use the provided filling cup to fill the 450ml tank with clean tap water. Do not overfill. Securely close the water tank cap.
4. Күйгүзүү: Plug the 5-meter power lead into a suitable electrical outlet. The appliance will begin heating automatically.
5. Колдонууга даяр: The Avalla T-9 is ready for use in just 20 seconds, indicated by a change in the indicator light (refer to your unit's specific indicator).

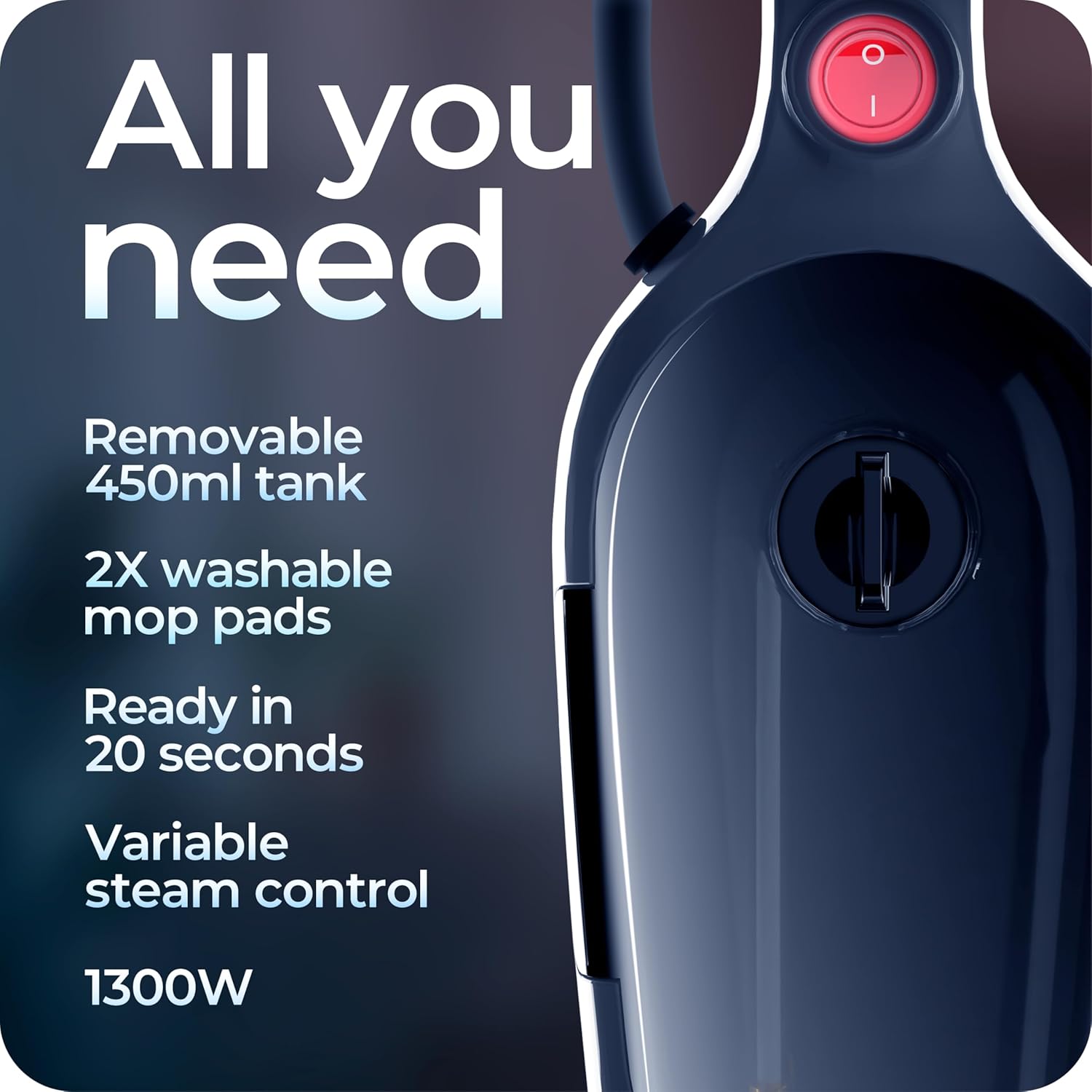

The Avalla T-9 features a removable 450ml tank and is ready to steam in just 20 seconds.

5. Иштөө нускамалары

5.1. Upright Steam Mop Mode

Ideal for hard floors, carpets (with carpet glide), and large surface areas.

1. Ensure the unit is assembled in upright mop configuration with a clean mop pad attached.
2. Once heated (after 20 seconds), the steam will be ready.
3. To activate steam, simply move the mop head back and forth across the floor. The continuous steam output will clean and sanitize surfaces.
4. For carpets, attach the carpet glide over the mop head. Move the mop slowly over the carpet to refresh and deodorize.
5. The 450ml tank provides up to 25 minutes of continuous steaming. Refill as needed.

The Avalla T-9 is ideal for various surfaces, including carpets, using the dedicated carpet glide attachment.

5.2. Handheld Steam Cleaner Mode

Perfect for targeted cleaning of ovens, windows, grout, upholstery, and hard-to-reach areas.

1. To convert to handheld mode, detach the main handheld unit from the mop body by pressing the release button (refer to your manual for exact location).
2. Select the appropriate accessory from the 7-piece kit for your cleaning task. Attach it firmly to the nozzle of the handheld unit.
3. Once heated, direct the steam nozzle towards the surface to be cleaned. For stubborn dirt, use the brush attachments.
4. Always test on an inconspicuous area first, especially for delicate surfaces like upholstery.

The Avalla T-9 quickly adapts to handheld mode, offering precision cleaning with its 7 accessories for tasks like cleaning showers.

With 2x more steam output, the Avalla T-9 effectively tackles tough cleaning tasks like oven hobs.

6. Техникалык тейлөө

Regular maintenance ensures the longevity and optimal performance of your Avalla T-9.

6.1. Швабра төшөкчөлөрүн тазалоо

The heavy-duty microfiber mop pads are designed for multiple uses. After each cleaning session:

• Remove the mop pad from the floor mop head.
• The pads are machine washable. Wash them with similar colors at a low temperature (e.g., 30-40°C) without fabric softener, as softener can reduce their absorbency.
• Air dry the pads. Do not tumble dry.

6.2. Тазалоо

Over time, mineral deposits from water can build up inside the steam cleaner, affecting performance. Descaling is recommended every 3-6 months, depending on water hardness and usage frequency.

• Бирдей бөлүктөн турган ак уксус жана суу эритмесин аралаштырыңыз.
• Ensure the appliance is cool and unplugged. Empty any remaining water from the tank.
• Pour the vinegar solution into the water tank.
• Allow the solution to sit for 30 minutes to an hour. For heavy buildup, you may leave it longer.
• Резервуарды бошотуп, бир нече жолу таза суу менен жакшылап чайкаңыз.
• Fill the tank with clean water and run the steam cleaner for a few minutes to flush out any remaining vinegar residue.

7. Кыйынчылыктарды

If you encounter issues with your Avalla T-9, refer to the table below for common problems and solutions.

8. Техникалык шарттар

9. Кепилдик жана колдоо

Avalla жогорку сапаттагы продукцияларды жана эң сонун кардарларды тейлөөнү камсыз кылууга умтулат.

9.1. Кепилдик маалыматы

Your Avalla T-9 Steam Mop & Handheld Cleaner comes with a 2 жылдык кепилдик from the date of purchase. This warranty covers manufacturing defects and ensures peace of mind. Please retain your proof of purchase for any warranty claims.

Enjoy peace of mind with a 2-year warranty included with every new Avalla purchase.

9.2. Кардарларды колдоо кызматы

For any questions, technical assistance, or warranty claims, please contact our dedicated UK-based customer support team. Our team is ready to assist you with any queries you may have regarding your Avalla product.

Please refer to the contact information provided on the product packaging or the official Avalla webакыркы колдоо маалымат үчүн сайт.

Avalla offers UK-based customer support to ensure you're always in good hands.
