Goodway GVC-1502 коммерциялык кургак буу менен иштеген буу тазалагычтын колдонуу боюнча колдонмосу

1. Киришүү

This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your Goodway GVC-1502 Commercial Dry Vapor Steam Cleaner. Please read this manual thoroughly before operating the unit and retain it for future reference.

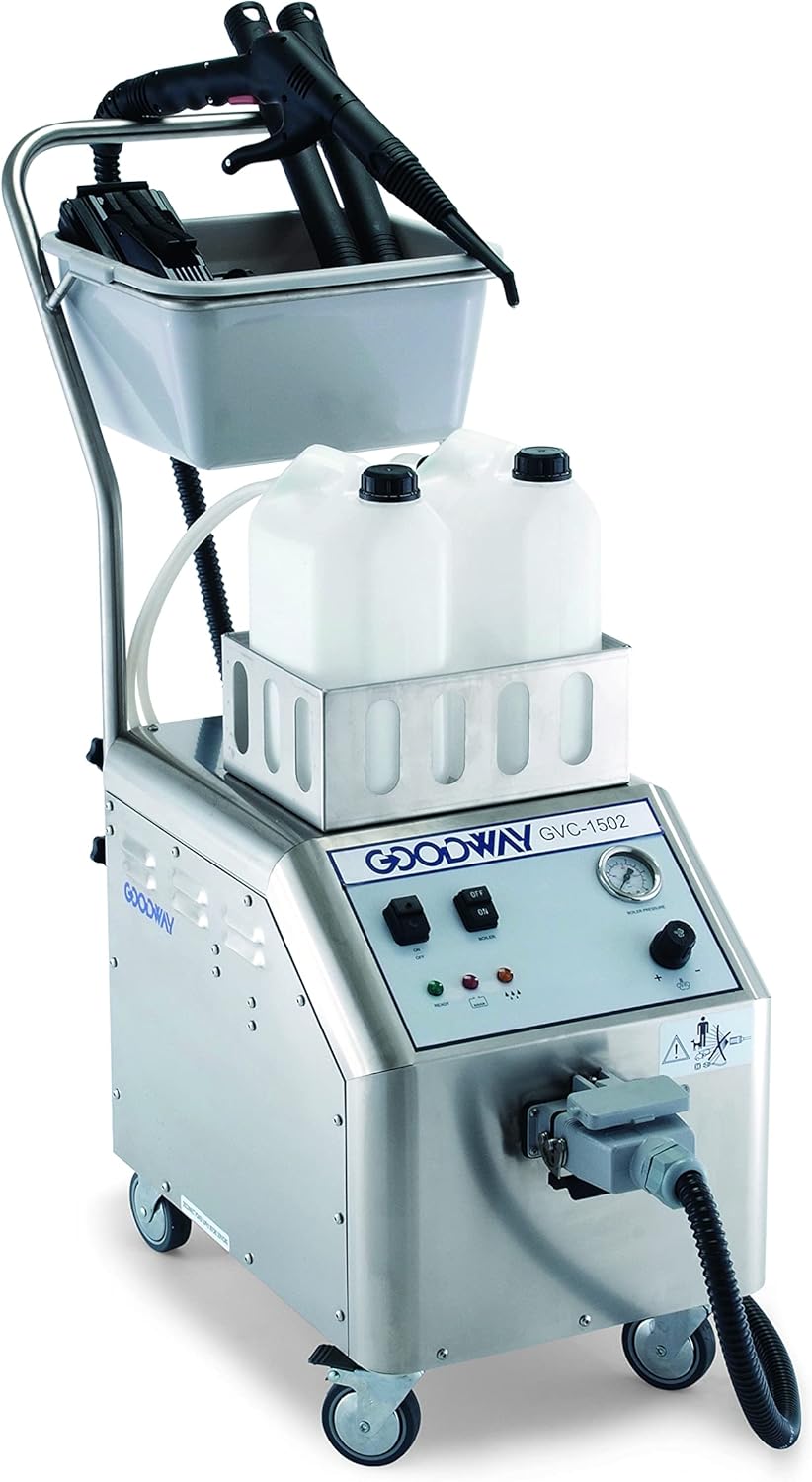

1-сүрөт: Goodway GVC-1502 Commercial Dry Vapor Steam Cleaner. This image shows the complete steam cleaner unit with its trolley, water and chemical tanks, control panel, and attached hose with nozzle.

2. Коопсуздук маалыматы

Травматизмди же түзүлүшкө зыян келтирбөө үчүн ар дайым төмөнкү коопсуздук чараларын сактаңыз.

• Колдонуудан мурун бардык нускамаларды окуп чыгыңыз.
• Электр шнур же сайгыч бузулуп калса, аппаратты иштетпеңиз.
• Агрегаттын туура жерге туташтырылганын текшериңиз.
• Keep hands, face, and body away from the steam nozzle when operating. Steam is extremely hot and can cause severe burns.
• Do not direct steam at electrical outlets, appliances, or other electrical components.
• Use only clean water in the water tank. Distilled or demineralized water is recommended to prevent mineral buildup.
• When using the chemical injection feature, ensure proper ventilation and wear appropriate personal protective equipment (PPE) such as gloves and eye protection.
• Do not leave the unit unattended while operating.
• Кандайдыр бир тейлөө же тазалоо иштерин жүргүзүүдөн мурун электр менен жабдууну өчүрүңүз.
• Store the unit in a dry, secure location when not in use.

3. Продукциянын өзгөчөлүктөрү

• Commercial Heavy-Duty Design: Built for demanding cleaning tasks.
• Cleans and Degreases: Effective for removing dirt, grime, and grease.
• Дат баспас болоттон жасалган курулуш: Ensures durability and long service life.
• In-Operation Refillable Water Tank: Allows for continuous steam generation without interruption.
• Chemical Injection: Provides additional cleaning power for stubborn stains.
• Жөнгө салынуучу басым: Control steam output for various cleaning applications.
• Multiple Cleaning Tools: Versatile attachments for different surfaces and areas.

4. Камтылган компоненттер

The Goodway GVC-1502 comes with the following accessories:

• 8’ hose with pistol grip
• Two-piece 38” wand
• 11” floor brush
• 5” triangular brush
• 9 1/2” squeegee tool
• 6 1/2” curved lance
• 2” circular nylon brush
• Three circular nylon scrubbing brushes
• Three circular copper scrubbing brushes
• Three circular stainless steel scrubbing brushes
• Самын идиш
• 1 gallon bottle of cleaner

5. Орнотуу

1. Пакеттен чыгаруу: Бардык компоненттерди таңгактан кылдаттык менен алып салыңыз. Ар кандай жеткирүү зыянын текшериңиз.
2. Ассамблея:
   • Attach the trolley handle to the main unit if not already assembled.
   • Place the water and chemical tanks into their designated holders on the unit.
   • Connect the steam hose to the steam outlet port on the unit, ensuring a secure connection.
3. Суу резервуарын толтуруу:
   • Суу куюлуучу резервуардын капкагын бурап чыгарыңыз.
   • Fill the water tank with clean tap water, distilled, or demineralized water. Do not overfill. The tank capacity is 1.3 gallons.
   • Капкакты бекем ордуна коюңуз.
4. Filling the Chemical Tank (Optional):
   • Unscrew the cap of the chemical tank.
   • Fill the chemical tank with the recommended cleaning solution. The tank capacity is 1.3 gallons.
   • Капкакты бекем ордуна коюңуз.
5. Кубат туташуу: Plug the power cord into a grounded 115V AC outlet. Ensure the outlet can support 13 amps / 1500 watts.

6. Операция

1. Күйгүзүү: Turn the main power switch to the "ON" position. The indicator light will illuminate.
2. Ысытуу: Allow the unit to heat up until the steam-ready indicator light illuminates (typically a few minutes).
3. Аксессуарларды тиркөө: Select the appropriate cleaning tool for your task and attach it to the pistol grip or wand.
4. Steam өндүрүү: Press the steam trigger on the pistol grip to release steam.
5. Adjusting Steam Pressure: Use the pressure adjustment knob on the control panel to increase or decrease steam output.
6. Химиялык инъекция (кошумча): If using a cleaning solution, activate the chemical injection switch on the control panel. The solution will mix with the steam.
7. Continuous Refill: The GVC-1502 features an in-operation refillable water tank. If the water level gets low, you can refill the tank without turning off the unit, ensuring continuous operation.
8. Тазалоо техникалары:
   • For general cleaning, hold the nozzle close to the surface and move it slowly.
   • For stubborn dirt or grease, use a brush attachment and apply steam directly.
   • For large flat surfaces, use the floor brush attachment.
9. Өчүрүү: After use, turn the main power switch to the "OFF" position and unplug the unit.

2-сүрөт: Close-up of steam being applied to grout lines. This image demonstrates the precision and effectiveness of steam cleaning for narrow and hard-to-reach areas like tile grout.

3-сүрөт: A gloved hand using a steam nozzle to clean a heavily soiled industrial surface. This illustrates the unit's capability for heavy-duty cleaning applications.

4-сүрөт: A person operating the Goodway GVC-1502 steam cleaner to clean a large industrial heat exchanger. This image highlights the unit's use in commercial and industrial settings for cleaning complex machinery.

7. Техникалык тейлөө

Regular maintenance ensures optimal performance and extends the lifespan of your steam cleaner.

• Draining Tanks: After each use, drain any remaining water from the water tank and chemical solution from the chemical tank.
• Тазалоочу аксессуарлар: Clean all attachments and nozzles after use to prevent blockages.
• Descaling (Monthly/Quarterly): Depending on water hardness and frequency of use, periodic descaling of the boiler may be necessary. Consult the manufacturer's guidelines for descaling procedures or use a recommended descaling solution.
• Тышкы тазалоо: Жарнама менен блоктун сыртын сүртүңүзamp кездеме. Абразивдүү тазалагычтарды колдонбоңуз.
• Сактагыч: Агрегатты кургак, үшүксүз чөйрөдө сактаңыз.

8. Кыйынчылыктарды

9. Техникалык шарттар

10. Кепилдик жана колдоо

For warranty information and technical support, please contact Goodway Technologies Corp. directly. Details regarding specific warranty periods and coverage are typically provided with your purchase documentation.

• Коргоо пландары: Extended protection plans may be available for purchase. Refer to your retailer for options such as 2-Year or 3-Year Protection Plans.
• Кайтаруулар: This product typically offers a 30-day easy return policy. Please check with your point of purchase for specific return conditions.
• Өндүрүүчү: Goodway Technologies
• Сатуучу: Goodway Technologies Corp.

For further assistance, please visit the official Goodway webсайтка же кардарларды тейлөөгө кайрылыңыз.
