SYNCO P2L Wireless Lavalier Microphone User Manual

1. Киришүү

The SYNCO P2L is a compact wireless lavalier microphone system designed for use with iOS devices. It features two transmitters (TX) and one receiver (RX), enabling two-person recording with high-fidelity audio transmission. This manual provides detailed instructions for setup, operation, maintenance, and troubleshooting to ensure optimal performance of your device.

2. Пакеттин мазмуну

Төмөндө тизмеленген нерселердин баары пакетиңизге камтылганын текшериңиз:

• Wireless Charging Storage Case x1
• Transmitter (TX) x2
• Receiver (RX) with Lightning Connector x1
• Кубаттоо кабели x1
• Type-C to 3.5mm Adapter x1
• Колдонуучунун колдонмосу x1

Image: Contents of the SYNCO P2L Wireless Microphone package, including the charging case, two transmitters, one receiver, charging cable, Type-C to 3.5mm adapter, and user manual.

3. Продукт бүтүп калдыview

The SYNCO P2L system consists of a charging case, two transmitters (TX), and one receiver (RX).

3.1. Өткөргүч (TX)

• Integrated microphone for audio capture.
• Clip for attachment to clothing.
• Indicator lights for battery status and pairing.

3.2. Кабыл алуучу (RX)

• Lightning connector for direct connection to iOS devices.
• Type-C port for real-time monitoring and phone charging.
• Button for activating vocal effects.
• Indicator lights for battery status and pairing.

3.3. Заряддоо иши

• Stores and charges the TX and RX units.
• Provides additional charges for extended use.
• Features a drawer design for easy access and contact pairing.

Сүрөт: бүттүview of the SYNCO P2L wireless microphone system, showing the charging case, two transmitters, and one receiver, along with a smartphone.

4. Орнотуу колдонмосу

Тез жана оңой орнотуу үчүн бул кадамдарды аткарыңыз:

1. Step 1: Open the Charging Case. Press the front of the charging case to release the drawer.


Animation: A hand pressing the front of the SYNCO P2L charging case to open its drawer.

2. Step 2: Remove Transmitters and Receiver. Take out the two TX units and one RX unit from the charging drawer. They will automatically power on and attempt to pair.


Animation: The two transmitters and one receiver being lifted out of the open charging case drawer.

3. Step 3: Connect the Receiver. Plug the RX unit directly into the Lightning port of your iOS device.


Animation: The receiver unit being plugged into the Lightning port of a smartphone.

4. Step 4: Begin Recording. Open your camera or recording application. The system is now ready for use.


Animation: A smartphone screen displaying a recording interface with a checkmark, indicating successful connection and readiness to record.

5. Иштөө нускамалары

5.1. Recording Modes (Mono/Stereo)

The SYNCO P2L supports both mono and stereo recording when using two transmitters. The system automatically detects the number of active transmitters and adjusts the recording mode. Stereo mode provides a richer and more immersive audio experience, suitable for interviews or performances with two speakers.

5.2. Vocal Effects

The P2L receiver integrates nine distinct vocal effects. These effects can be activated by pressing a dedicated button on the receiver. The available effects include:

• Original
• Studio TX
• KTV FX
• Үн Ampжашоо
• EDM
• Baby FX
• Эркектен Аялга
• Аялдан эркекке
• Monster FX

Image: Illustration of the nine vocal effects available on the SYNCO P2L receiver, shown with various visual representations of sound modification.

5.3. Реалдуу убакыттагы мониторинг

The Type-C port on the RX unit allows for real-time audio monitoring. Connect a 3.5mm headphone (using the included Type-C to 3.5mm adapter) to this port to listen to the audio being recorded. This port also supports simultaneous charging of your phone while the microphone is in use.

5.4. Заряддоо жана батареянын иштөө мөөнөтү

The charging case provides convenient storage and charging for the TX and RX units. A 10-minute charge can provide approximately 45 minutes of recording time for the transmitters. A full charge of the transmitters offers up to 5 hours of recording. The charging case itself holds enough power for two full charges of both transmitters.

Image: Visual representation of the SYNCO P2L's fast charging capabilities and battery life, showing the charging case and individual units.

6. Негизги өзгөчөлүктөрү

6.1. Obstacle-Free and High-Fidelity Transmission

Utilizing Syncoder 3.0 technology and an intelligent DSP chip, the SYNCO P2L ensures stable and clear sound transmission up to 150 meters (492 feet) in Line-of-Sight (LOS) areas. It effectively filters out low-frequency noises, reproducing clear voices even with minor obstructions.

Image: Diagram illustrating the transmission range of the SYNCO P2L wireless microphone, showing 150m (LOS) and 50m (N LOS) distances over a mountainous landscape.

6.2. Кеңири шайкештик

The P2L receiver with its Lightning connector is compatible with a wide range of iOS devices, including various models of iPhone (14/13/12/11/X/XR/XS/8/7/6/6s/5/5s/5c, Pro Max, Pro, mini, SE) and iPad (Air, Pro). It is suitable for use with popular applications for live streaming, video recording, and social media content creation.

Image: Visual showing the SYNCO P2L's compatibility with various iOS devices and popular social media and video recording applications.

7. Техникалык тейлөө

• Түзмөктү таза жана кургак кармаңыз. Нымдуулукка же өтө жогорку температурага дуушар кылбаңыз.
• Тазалоо үчүн жумшак, кургак чүпүрөк колдонуңуз. Катуу химиялык заттарды же абразивдүү материалдарды колдонбоңуз.
• Store the transmitters and receiver in the charging case when not in use to protect them and ensure they remain charged.
• Аппаратты жерге түшүрүүдөн же катуу таасирлерден сактаныңыз.

8. Кыйынчылыктарды

9. Техникалык шарттар

10. Кепилдик жана колдоо

SYNCO provides a 365-day warranty for this product. For technical assistance, troubleshooting, or warranty claims, please contact SYNCO customer service. Support is typically available within 24 hours on working days.

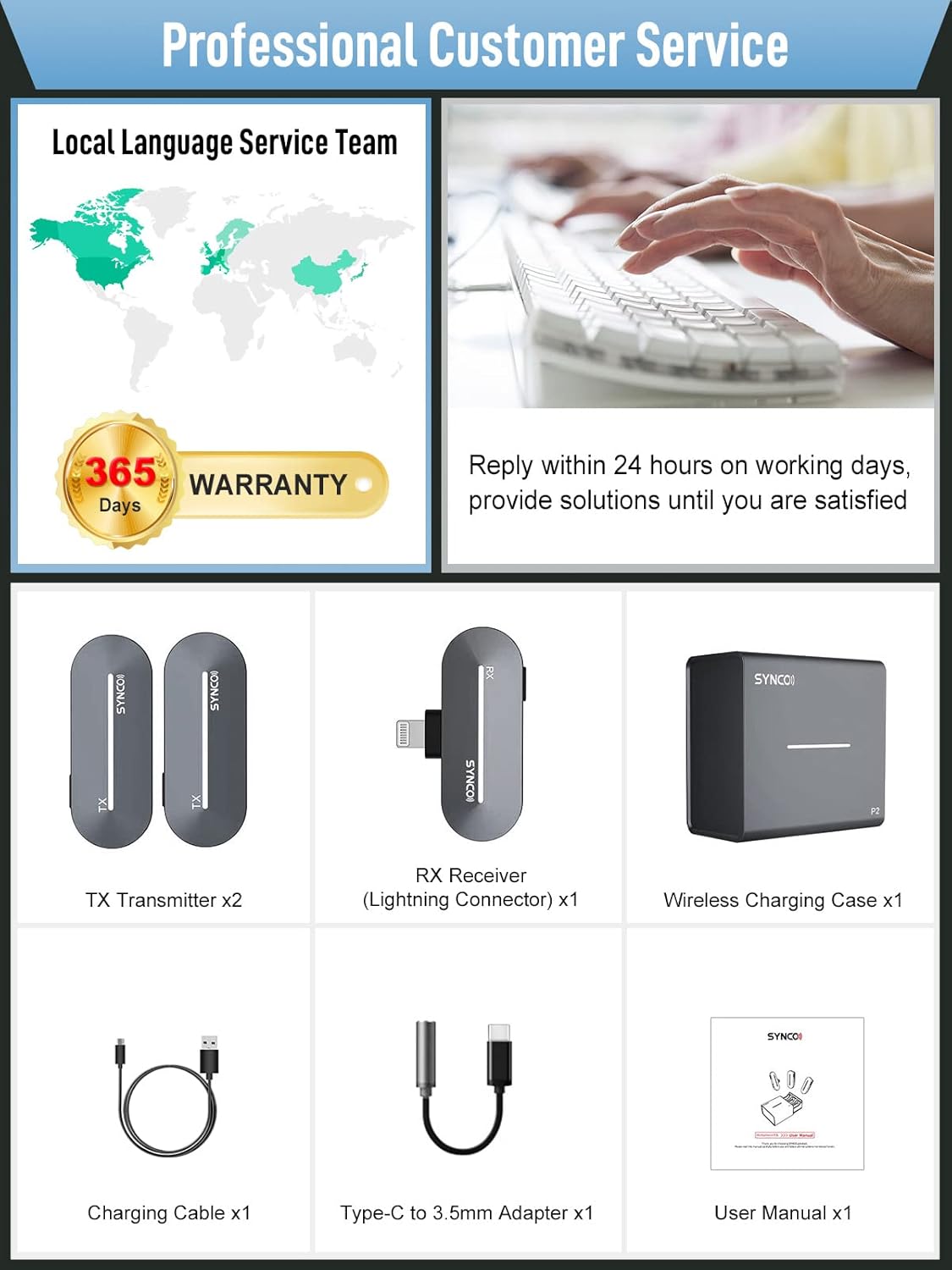

Image: Information regarding SYNCO's professional customer service and 365-day warranty.
