Introduction
The Festool Cordless VECTURO Oscillating Multi-Tool is designed for versatile cutting, sanding, and scraping applications. This manual provides essential information for the safe and efficient operation, maintenance, and care of your tool.
The VECTURO OSC 18 HPC 4,0 EI-Set features a StarlockMax® holding system for quick blade changes, a brushless EC-TEC motor for durability, and vibration isolation for user comfort. It operates on an 18V lithium-ion battery system.
1-сүрөт: The Festool VECTURO OSC 18 HPC 4,0 EI-Set, including the multi-tool, two 18V battery packs, a rapid charger, various accessories, and a Systainer SYS3 M 187 for storage and transport.
Коопсуздук маалыматы
Always observe general power tool safety guidelines. Read all safety warnings, instructions, illustrations, and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire, and/or serious injury.
- Коргоочу көз айнек, угууну коргоо жана кол кап сыяктуу тиешелүү жеке коргонуу шаймандарын (ЖКК) кийиңиз.
- Иштетүүдөн мурун, даяр бөлүктүн бекем бекитилгенин текшериңиз.
- Keep hands and body parts away from the oscillating blade during operation.
- Кандайдыр бир тууралоолорду жасоодон, аксессуарларды алмаштыруудан же аспапты сактоодон мурда батарейканын пакетин ажыратыңыз.
- Use only Festool-approved accessories and replacement parts.
Камтылган компоненттер
The Festool VECTURO OSC 18 HPC 4,0 EI-Set includes the following items:
- Vecturo Multi-Tool
- Two BP 18 Li 4.0 Ah HPC-ASI Battery Packs
- TCL 6 Rapid Charger
- OSC-A Adapter
- OSC-AH Position Aid
- OSC-AV Dust Extraction Device
- OSC-TA Depth Stop
- USB 78/32/Bi/OSC Universal Saw Blade
- USB 50/35/Bi/OSC Universal Saw Blade
- HSB 100/Bi/OSC Wood Saw Blade
- Systainer SYS3 M 187
Жайгашуу
1. Батареяны кубаттоо жана орнотуу
- Insert the battery pack into the TCL 6 Rapid Charger. The charger's indicator light will show the charging status.
- Толук заряддалгандан кийин, батареяны заряддагычтан чыгарыңыз.
- Align the charged battery pack with the battery slot on the VECTURO Multi-Tool and slide it in until it clicks securely into place.
2. Blade Installation (StarlockMax System)
The VECTURO features a keyless StarlockMax® quick-change system for fast and easy blade replacement.
- Батарея аспаптан алынганын текшериңиз.
- Press the green lever on the tool head to release the blade holder.
- Align the desired StarlockMax blade with the holder and press it firmly until it clicks into place.
- Verify the blade is securely attached before use.
2-сүрөт: Жогорку view of the tool demonstrating the StarlockMax blade attachment mechanism.
3-сүрөт: The VECTURO Multi-Tool with a saw blade securely installed.
3. Accessory Attachment (Dust Extraction, Depth Stop, Position Aid)
Attach optional accessories as needed for specific applications.
- OSC-AV Dust Extraction Device: Slide the dust extraction device onto the tool head until it locks into place. Connect a compatible dust extractor hose for dust-free operation.
- OSC-TA Depth Stop: Attach the depth stop for controlled plunge cuts. Adjust the depth setting according to your requirements.
- OSC-AH Position Aid: Use the position aid for precise guidance during cuts, especially for delicate or intricate work.

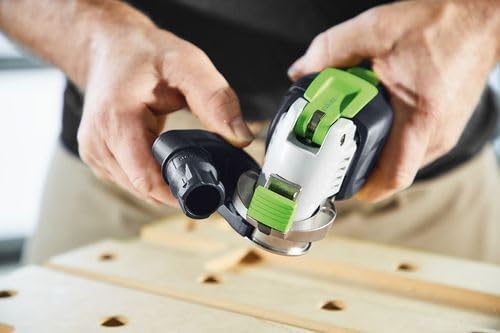

4-сүрөт: Attaching the OSC-AV Dust Extraction Device to the VECTURO Multi-Tool.
Иштөө нускамалары
1. Күйгүзүү/өчүрүү жана ылдамдыкты көзөмөлдөө
- To turn the tool on, press the power switch.
- To turn the tool off, release the power switch.
- The brushless EC-TEC motor features variable speed control. Adjust the speed dial to match the material and application for optimal results.
2. Making Cuts
Always ensure the workpiece is stable and secured. Apply gentle, consistent pressure. The tool's vibration isolation system enhances comfort during extended use.
- Чагылган кесип: For precise plunge cuts, use the OSC-TA Depth Stop. Position the blade over the desired cutting area and slowly lower the tool into the material.
- Жалпы кесүү: Guide the tool along the cutting line, allowing the blade to do the work. Avoid forcing the tool, which can lead to overheating or damage.
5-сүрөт: Demonstrating a controlled plunge cut with the VECTURO Multi-Tool.
6-сүрөт: The VECTURO Multi-Tool performing a cut with the OSC-TA Depth Stop attached for accuracy.
Техникалык тейлөө
1. Тазалоо
- After each use, disconnect the battery and clean the tool with a dry cloth.
- Ашыкча ысып кетүүнүн алдын алуу үчүн желдетүү тешиктеринен чаңды же калдыктарды алып салыңыз.
- Periodically clean the blade holder mechanism to ensure smooth operation.
2. Бычакты алмаштыруу
Replace blades when they become dull or damaged to maintain cutting efficiency and safety. Refer to the "Blade Installation" section for detailed steps.
3. Батареяга кам көрүү
- Батарея таңгактарын салкын, кургак жерде күн нурунан жана экстремалдык температурадан алыс сактаңыз.
- Do not allow battery packs to fully discharge for extended periods. Recharge them regularly.
- If a battery pack is damaged, discontinue use and replace it with an authorized Festool battery.
Проблемаларды чечүү
This section addresses common issues you might encounter with your Festool VECTURO Multi-Tool.
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Курал башталбайт | Батарея заряддалган эмес же туура эмес орнотулган. | Батарея толук заряддалганын жана коопсуз салынганын текшериңиз. |
| Начар кесүү көрсөткүчү | Dull or incorrect blade. Incorrect speed setting. | Replace blade. Select appropriate speed for the material. |
| Ашыкча титирөө же ызы-чуу | Бычак туура бекитилген эмес. Бычак бузулган. | Бычактын орнотулганын текшериңиз. Бузулган бычакты алмаштырыңыз. |
| Курал өтө ысып кетет | Blocked ventilation. Overloading the tool. | Clean ventilation openings. Reduce pressure and allow tool to cool. |
If you encounter issues not listed here or if solutions do not resolve the problem, contact Festool customer support.
Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Бренд | Festool |
| Модель номери | 576590 |
| Power Source | Батарея менен иштейт |
| Тtage | 18 вольт |
| Батарея түрү | Литий-ион (2 камтылган) |
| Мотор түрү | Brushless EC-TEC |
| Blade Holder System | StarlockMax® |
| Элемент Салмагы | 13.58 pounds (with packaging) |
| Продукциянын өлчөмдөрү | 15.59 x 11.65 x 7.36 дюйм |
| Handle Material | Thermoplastic Elastomers or Plastic |
| Surface Recommendation | Wood (compatible with various materials depending on blade) |
| Түс | Dark Gray Or Black |
Кепилдик жана колдоо
Кепилдик маалымат
All Festool power tools, including the VECTURO OSC 18 HPC 4,0 EI-Set, come with a comprehensive 3-year wear-and-tear warranty. This warranty also includes a 2-day standard repair time жана а 1 айлык канааттануу кепилдиги.
For detailed warranty terms and conditions, please refer to the official Festool webсайтка же кардарларды колдоо менен байланышыңыз.
Кардарларды колдоо
For technical assistance, service, or warranty claims, please contact Festool customer support through their official channels. Visit the Amazon'догу Festool дүкөнү же алардын кызмат адамы webбайланыш маалыматы үчүн сайт.
