1. Киришүү
This manual provides detailed instructions for the safe and efficient operation, setup, and maintenance of your Kreg Pocket-Hole Jig 720PRO. Please read this manual thoroughly before using the product to ensure proper usage and to maximize its lifespan.
The Kreg Pocket-Hole Jig 720PRO is designed for creating strong pocket-hole joints in various wood materials, ranging from 1/2 inch to 1 1/2 inches thick. It features Automaxx® clamping technology for automatic material thickness adjustment and GripMaxx™ anti-slip material for secure workpiece holding.
Image 1.1: Kreg Pocket-Hole Jig 720PRO with included accessories, including the jig, Automaxx clamp, drill bit, stop collar, and sample screws.
2. Коопсуздук маалыматы
Always wear appropriate personal protective equipment (PPE), such as safety glasses, when operating the Kreg Pocket-Hole Jig 720PRO. Ensure your workspace is clean, well-lit, and free from obstructions. Keep hands clear of moving parts and drill bits during operation. Disconnect power tools before making adjustments or changing accessories.
3. Компоненттери жана өзгөчөлүктөрү
The Kreg Pocket-Hole Jig 720PRO includes several key components:
- Pocket-Hole Jig 720PRO: The main unit with Automaxx® clamping and GripMaxx™ anti-slip material.
- Kreg Docking Station: Material support wings with a repeatable stop.
- Pocket-Hole Jig Clamp: For securing the jig to a workbench.
- 3-inch Kreg Clamp: For securing workpieces.
- Easy-Set Drill Bit: With engraved markings for material thickness.
- Stop Collar: For setting drill depth.
- Алты бурчтуу ачкыч: For adjusting the stop collar.
- Driver Bit: Square-drive bit for pocket-hole screws.
- Sample Kreg Pocket-Hole Screws: A starter pack of screws.
Image 3.1: The Kreg Pocket-Hole Jig 720PRO features convenient onboard storage for the drill bit, driver bit, and hex wrench.
Image 3.2: Illustration of the Automaxx® Dual-Action Clamping Technology, which automatically adjusts to material thickness from 1/2" to 1 1/2".
Image 3.3: The patented Quick Setup Drill Bit with engraved markings for 1/2", 3/4", and 1 1/2" material thicknesses, used with the stop collar for precise depth setting.
4. Орнотуу
4.1 Attaching the Docking Station
The Kreg Docking Station material support wings attach to the main jig unit. Align the tabs on the wings with the slots on the jig and slide them into place until they click securely. These wings provide additional support for larger workpieces and include a repeatable stop for consistent positioning.
4.2 Securing the Jig
For optimal stability, secure the Pocket-Hole Jig 720PRO to your workbench using the included Pocket-Hole Jig Clamp. Клamp to firmly hold the jig in place, preventing movement during drilling operations.
4.3 Setting Drill Bit Depth
The Easy-Set Drill Bit has engraved markings for common material thicknesses (1/2", 3/4", 1 1/2").
- Identify the thickness of your workpiece.
- Slide the stop collar onto the drill bit and align it with the corresponding thickness marking.
- Tighten the stop collar securely using the hex wrench.
- Insert the drill bit into your drill chuck and tighten it firmly.
Image 4.1: Demonstrates the simple and easy setup process, highlighting the Automaxx® clamping and the quick setup drill bit for efficient operation.
5. Иштөө нускамалары
5.1 Drilling Pocket Holes
- Place your workpiece into the jig, ensuring it rests firmly against the GripMaxx™ anti-slip surface.
- Engage the Automaxx® clamp handle. The clamp will automatically adjust to the material thickness and secure the workpiece.
- Insert the Easy-Set Drill Bit into the drill guide.
- With your drill set to a moderate speed, begin drilling. Apply steady, even pressure until the stop collar contacts the drill guide, indicating the correct depth has been reached.
- Retract the drill bit from the workpiece.
- Release the Automaxx® clamp handle and remove the workpiece.
Image 5.1: A workpiece secured in the Kreg Pocket-Hole Jig 720PRO, demonstrating the clamping mechanism and readiness for drilling pocket holes.
5.2 Joining Workpieces
After drilling pocket holes, use Kreg Pocket-Hole Screws to join your workpieces.
- Align the workpieces to be joined.
- Use a Kreg clamp (such as the included 3-inch Kreg Clamp) to hold the workpieces securely together, ensuring the joint is flush.
- Insert the appropriate Kreg Pocket-Hole Screw into the pocket hole. Refer to Kreg's screw selection guide for the correct screw type and length based on material type and thickness.
- Drive the screw using the square-drive bit until it is flush with the bottom of the pocket hole. Do not overtighten.

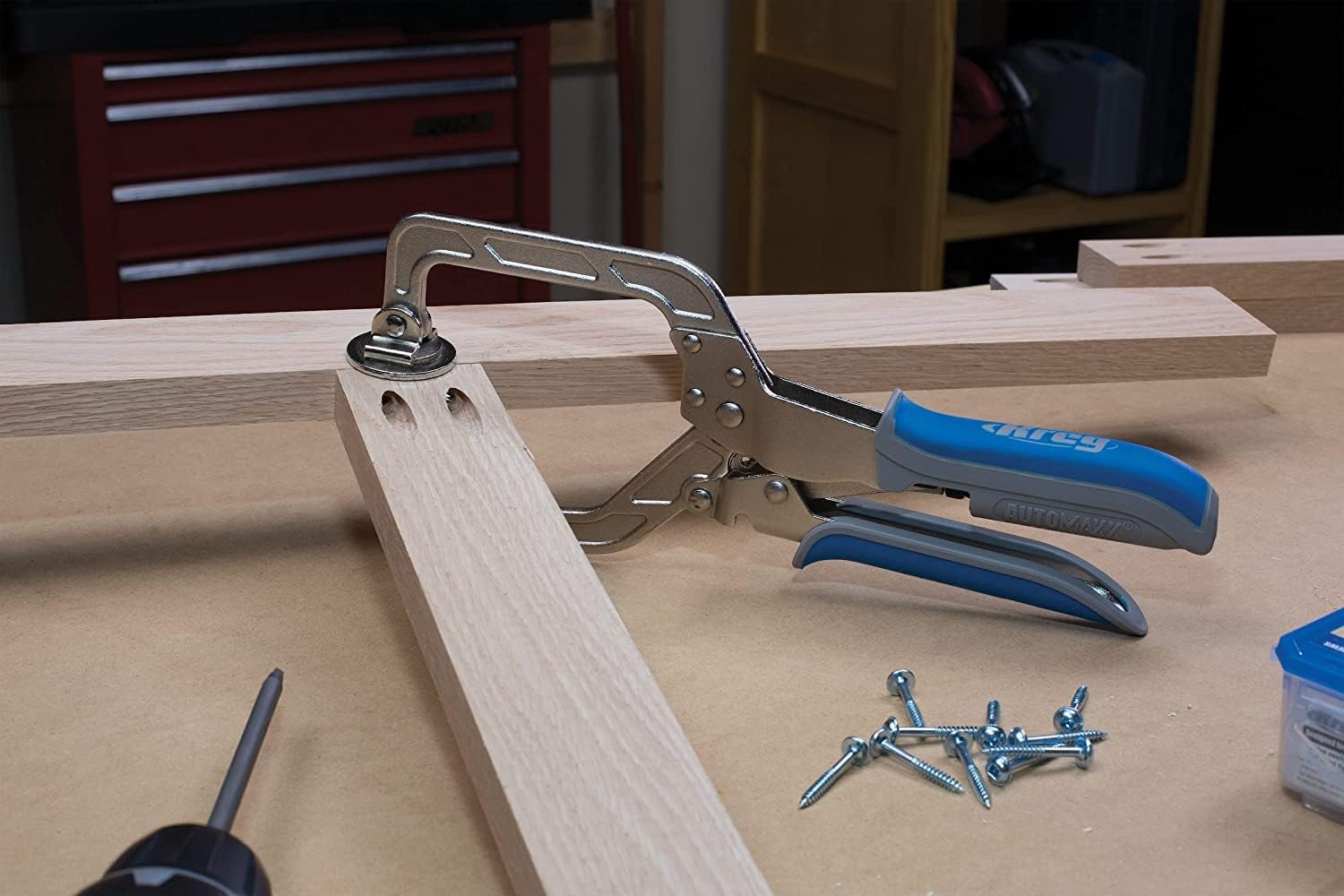

Image 5.2: A workpiece being clamped with a Kreg clamp, ready for joining using pocket-hole screws.
6. Техникалык тейлөө
Regular maintenance ensures the longevity and performance of your Kreg Pocket-Hole Jig 720PRO.
- Тазалоо: After each use, clear wood chips and dust from the drill guides and clamping mechanism using a brush or compressed air.
- Майлоо: Periodically apply a small amount of dry lubricant (e.g., silicone spray) to the clamping mechanism and drill guide surfaces to ensure smooth operation. Avoid oil-based lubricants as they can attract dust.
- Drill Bit Sharpening/Replacement: A sharp drill bit is crucial for clean pocket holes. Replace or sharpen the Easy-Set Drill Bit when it becomes dull or shows signs of wear.
- Сактагыч: Store the jig and its accessories in a clean, dry environment. The onboard accessory storage helps keep components organized.
7. Кыйынчылыктарды
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Wood chips clogging drill guide | Accumulation of sawdust | Clear with brush or compressed air. Ensure proper dust collection if available. |
| Drill bit not cutting cleanly | Dull or damaged drill bit | Replace or sharpen the Easy-Set Drill Bit. |
| Workpiece shifting during drilling | Жетишсиз clamping pressure; worn GripMaxx™ material | Ensure Automaxx® clamp is fully engaged. Clean GripMaxx™ surface. If worn, contact Kreg support. |
| Screws stripping or not seating properly | Incorrect screw length/type; overtightening; dull driver bit | Use correct Kreg Pocket-Hole Screws for material thickness. Avoid overtightening. Replace worn driver bit. |
8. Техникалык шарттар
- Модел: KPHJ720PRO-21
- Материалдык шайкештик: Wood, plywood, MDF
- Material Thickness Capacity: 1/2 inch to 1 1/2 inches (13mm to 38mm)
- Clampмеханизми: Automaxx® automatic adjustment
- Тайга каршы бети: GripMaxx™
- Кубат булагы: Hand Powered (requires external drill)
- Камтылган компоненттер: Pocket-Hole Jig 720PRO, Docking Station, Pocket-Hole Jig Clamp, 3-inch Kreg Clamp, Easy-Set Drill Bit, Stop Collar, Hex Wrench, Driver Bit, Sample Screws.
- Продукциянын өлчөмдөрү: Approximately 18 x 8 x 11 inches (Jig with Docking Station)
- Элемент Салмагы: Болжол менен 14.27 фунт
9. Кепилдик жана колдоо
Kreg Tool Company stands behind its products. For warranty information, product registration, or technical support, please visit the official Kreg webсайтка же кардарларды тейлөө бөлүмүнө кайрылыңыз.
Official Kreg Webсайт: www.kregtool.com
For additional resources, including project plans and instructional videos, explore the Kreg webсайт.
