Introduction
Thank you for choosing the FLYLINKTECH Car Jump Starter with Air Compressor. This versatile device is designed to provide emergency jump-starting for vehicles, inflate tires, and serve as a portable power bank and LED light source. Please read this manual thoroughly before use to ensure safe and optimal operation.
Продукт бүттүview
The FLYLINKTECH CF700 is a multi-functional device combining a powerful jump starter, a 150 PSI air compressor, a 24000mAh power bank, and an emergency LED light. It is suitable for all gas engines and diesel engines up to 8.0L.
Figure 1: What's in the Box - The jump starter unit, smart jumper cables, air hose with various nozzles, USB charging cable, and carrying case.
Негизги өзгөчөлүктөрү
- Battery Starter: 2500A peak current, 1200A starting current, capable of starting all gas and 8.0L diesel engines.
- Power Bank: 24000mAh capacity with 2 USB outputs (one Quick Charge) and a DC 12-16.8V / 10A port for charging various devices and car accessories.
- Tire Compressor: Powerful 150 PSI inflator with a digital display for setting desired pressure and automatic shut-off. Includes pins for inflating balls, rubber boats, and mats.
- Авариялык LED жарыгы: 5W bright LED light with multiple modes (stable, SOS, strobe) for emergency situations, night breakdowns, or repairs.
- 12V розетка: Connects various car accessories such as additional USB chargers or car fans.
- Smart коргоо системасы: Features short circuit protection, high/low temperature protection, reverse connection protection, surge voltage коргоо, жогорку томtage protection, and over discharge protection.
Figure 2: ашыкview of the multi-functional features of the device.
Коопсуздук маалыматы
Always follow these safety guidelines to prevent injury or damage to the device and vehicle:
- Продукцияны колдонуудан мурун бардык нускамаларды окуп чыгыңыз.
- Продукцияны сууга салбаңыз.
- Буюмду жарылуучу чөйрөдө, мисалы, күйүүчү суюктуктар, газдар же чаң бар жерде иштетпеңиз.
- Балдар жетпеген жерде сактаңыз.
- Ensure proper polarity connection when jump-starting to avoid sparks and damage. The smart clamp provides protection against reverse connection.
- Do not touch the air hose connector immediately after prolonged inflation, as it may be hot.
Figure 3: The device incorporates multiple safety protections for user and vehicle safety.
Жайгашуу
Аппаратты заряддоо
Before first use, fully charge the jump starter. Use the provided USB-C charging cable to connect the device to a compatible USB power adapter (not included). The digital display will indicate the charging status. It is recommended to recharge the device every 3-6 months to maintain battery health, even if not in use.
Иштөө нускамалары
1. Унааны баштоо
- Секирүү стартер жетиштүү заряддалганын текшериңиз.
- Connect the smart jumper cables to the jump starter's jumping port.
- кызыл clamp унаанын аккумуляторунун оң (+) терминалына.
- Кара clamp унаанын аккумуляторунун терс (-) терминалына. Акылдууamp will indicate a safe connection (e.g., green light).
- Унаанын моторун иштетиңиз.
- Once the engine starts, immediately remove the clamps from the battery, then disconnect the smart jumper cables from the jump starter.
4-сүрөт: Унааны от алдыруу үчүн туура туташтыруу.
Video 1: Demonstration of jump starting a vehicle using a similar device. The video shows connecting the clamps to the battery and starting the car.
2. Дөңгөлөктүн көбүгү
- Screw the air hose into the designated port on the jump starter.
- Attach the air hose nozzle securely to the tire valve stem.
- Turn on the device and select the desired pressure unit (PSI, BAR, KPA).
- Use the '+' and '-' buttons to set the target tire pressure.
- Инфляцияны баштоо үчүн баштоо баскычын басыңыз. Алдын ала коюлган басымга жеткенде компрессор автоматтык түрдө токтойт.
- Disconnect the air hose from the tire valve and then from the jump starter.

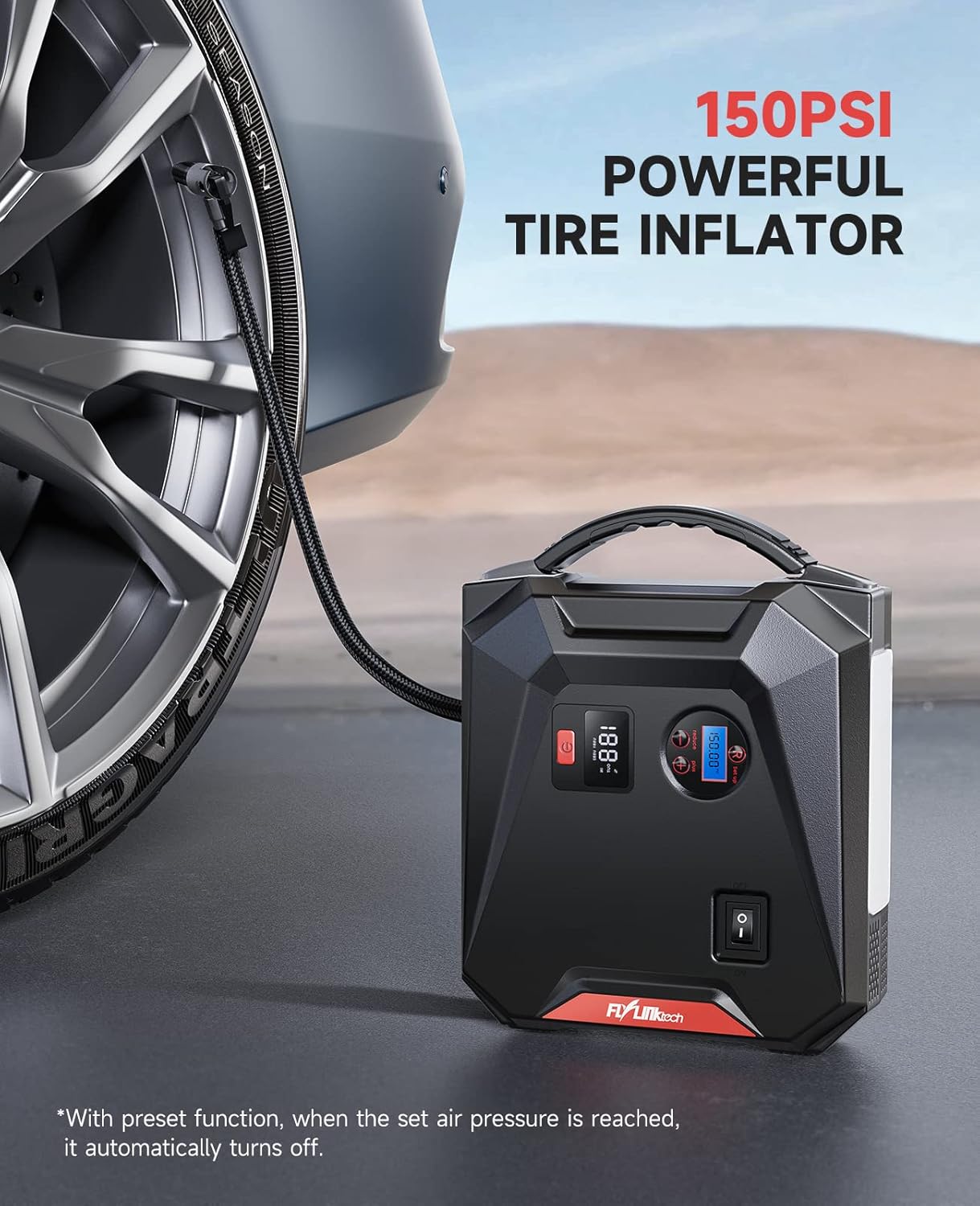

Figure 5: The device connected to a car tire for inflation.
Video 2: A seller demonstration of the car jump starter's air compressor function, showing how to connect and inflate a tire.
3. Power Bank катары колдонуу
Connect your electronic devices (phones, tablets, etc.) to the USB output ports or car accessories to the DC 12-16.8V / 10A port for charging.
Figure 6: The device being used to charge multiple electronic devices.
4. LED жарыгын колдонуу
Press and hold the light button to turn on the LED light. Short presses will cycle through different modes: stable light, SOS signal, and strobe light. Press and hold again to turn off.
Figure 7: The device's LED light providing illumination in a dark setting.
Техникалык тейлөө
- Аппаратты таза жана кургак кармаңыз.
- Кургак, салкын жерде, күн нуру түз тийбеген жана жогорку температурадан алыс сактаңыз.
- Recharge the device at least once every 3-6 months to prevent deep discharge and prolong battery life.
- Inspect cables and accessories for any damage before each use.
Проблемаларды чечүү
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Device does not turn on/charge | Battery completely depleted or charging cable/adapter faulty. | Ensure charging cable and adapter are working. Try a different charging source. Allow sufficient time for initial charge. |
| Унаа от албай жатат | Туура эмес clamp connection, insufficient device charge, or vehicle battery severely damaged. | Текшерүү clamp polarity and ensure secure connection. Fully charge the jump starter. Consult a mechanic if vehicle battery is beyond jump-starting. |
| Аба компрессору үйлөтүлбөйт | Air hose not securely attached, incorrect pressure setting, or device not powered on. | Ensure air hose is tightly screwed in and nozzle is secure on valve. Verify pressure setting and device power. |
| Air compressor stops prematurely | Preset pressure reached (automatic shut-off). | This is normal operation. Check the current tire pressure. |
Техникалык шарттар
- Бренд: FLYLINKTECH
- Модел: CF700
- Жогорку ток: 2500A
- Баштоо агымы: 1200A
- Батарея сыйымдуулугу: 24000mAh
- Унаа тейлөө түрү: Passenger Car (All Gas or 8.0L Diesel)
- Аба компрессорунун басымы: 150 PSI
- USB чыгышы: 2 ports (one Quick Charge)
- DC чыгаруу: 12-16.8В / 10А
- Элемент Салмагы: 5.74 фунт
- Продукциянын өлчөмдөрү: 8.66 x 6.69 x 3.35 дюйм
- Батарея клеткасынын курамы: Литий ион
- Тtage: 12 вольт
Кепилдик жана колдоо
Бул продукт менен келет 24-Months Global Warranty. FLYLINKTECH is committed to providing Life Time After-sale Service & Technical Support. For any inquiries or assistance, please contact FLYLINKTECH customer service.
