Introduction
The SilverStone SUGO 16 is a compact Mini-ITX Small Form Factor (SFF) computer case designed for efficient space utilization without compromising hardware compatibility. Constructed with high-grade steel, this 13-liter chassis offers a versatile platform for building powerful systems, from gaming PCs to compact workstations. Its thoughtful design prioritizes airflow and ease of assembly, making it an excellent choice for users seeking a small footprint solution.
Сүрөт 1: Алдыңкы-сол view of the SilverStone SUGO 16 Black Mini-ITX case, showcasing its compact size and perforated side panels for airflow.
Продукт бүттүview
The SUGO 16 features a shoebox-shaped design with an all-steel construction, ensuring durability and a premium feel. Its compact 13-liter volume belies its impressive hardware support, making it suitable for a wide range of components.
Негизги өзгөчөлүктөрү:
- Supports standard length graphics / expansion cards of up to 275mm.
- Compatible with Mini-DTX / Mini-ITX motherboards and ATX PSUs.
- Supports 120mm All-In-One liquid cooling radiators.
- CPU cooler opening on motherboard back plate for convenient assembly and upgrade.
- Front I/O port includes 2 x USB 3.0 and 1 x combo audio jack.
Design and Airflow:
The case incorporates a modernistic design with perforated panels on multiple sides to facilitate excellent airflow, crucial for cooling high-performance components within a small enclosure. Magnetic dust filters are included for easy maintenance and to prevent dust accumulation.
2-сүрөт: Каптал view of the SUGO 16, highlighting the extensive perforation pattern for optimal ventilation.
3-сүрөт: Жогорку view of the SUGO 16, showing the magnetic dust filter which can be easily removed for cleaning.

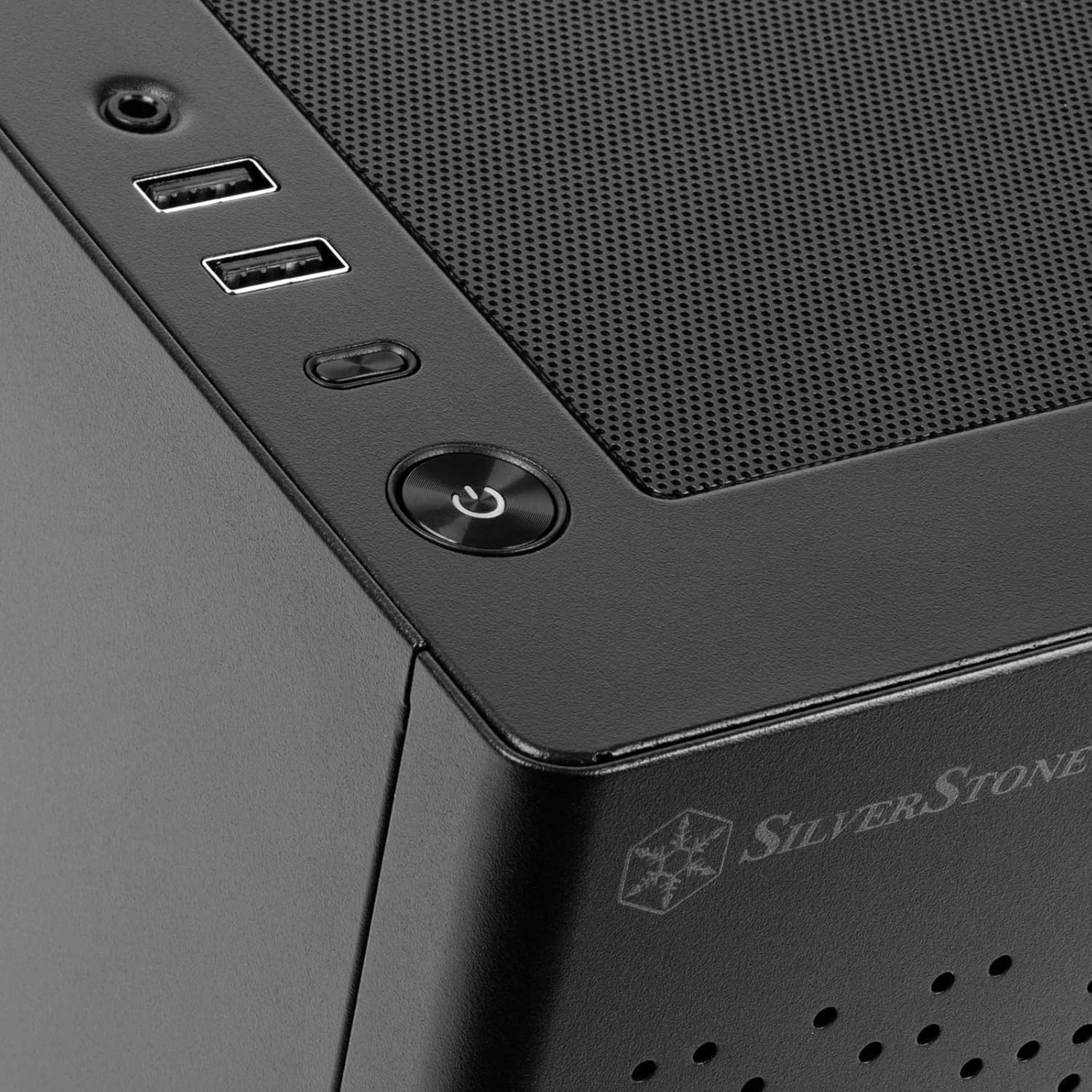

Figure 4: Close-up of the front I/O panel, featuring the power button, reset button, two USB 3.0 ports, and a combo audio jack.
Расмий продукт бүттүview Видео:
Видео 1: Аткаминер бүттүview of the SilverStone SUGO 16 case, detailing its features and design. This video is provided by the manufacturer, SilverStone.
Орнотуу жана компоненттерди орнотуу
The SUGO 16 offers flexible hardware compatibility, allowing users to configure their system based on specific requirements. Careful planning is recommended due to its small form factor.
Motherboard and Power Supply Installation:
The case supports Mini-DTX and Mini-ITX motherboards with a unique 180-degree rotated layout. The choice of power supply (PSU) affects available space for other components, particularly CPU coolers and front-mounted fans/radiators.
- ATX PSU: If an ATX power supply is installed, the option for a 120mm front fan is not feasible, and the CPU cooler height is limited to 85mm.
- SFX/SFX-L PSU: Using an SFX or SFX-L power supply allows for the installation of 80mm, 92mm, or 120mm fans at the front, and provides a CPU cooler height clearance of up to 172mm.
5-сүрөт: Интерьер view of the SUGO 16, showing the placement of the power supply, CPU cooler, and graphics card.
Figure 6: Diagram illustrating component placement with an ATX power supply, including fan and radiator options.
Figure 7: Diagram illustrating component placement with an SFX power supply, showing increased flexibility for cooling and drive bays.
Graphics Card and Cooling:
The top compartment is dedicated to the graphics card, supporting dual-fan cards up to 275mm in length and 147mm in width. For liquid cooling, the case supports a 120mm All-In-One (AIO) radiator.
- Радиатор колдоо: With an ATX PSU, only one 120mm radiator can be installed at the rear. With SFX/SFX-L PSUs, 120mm radiators can be installed at both the front and rear.
8-сүрөт: View of the interior showing the graphics card installed in the upper compartment.
9-сүрөт: Интерьер view focusing on the power supply and the large air cooler, demonstrating component density.
Сактоочу дисктер:
The SUGO 16 accommodates up to two 2.5" drives and one 3.5" drive, providing sufficient storage options for a compact system.
Иштөө нускамалары
To power on your system, press the power button located on the front I/O panel. The case is designed for optimal airflow to keep internal components cool during operation. Ensure adequate space around the case for proper ventilation.
Техникалык тейлөө
Regular maintenance is essential to ensure the longevity and optimal performance of your SUGO 16 case and its components.
Чаң чыпкасын тазалоо:
The SUGO 16 features magnetic dust filters on the top, front, and right side panels. These filters are easily removable for cleaning.
- Gently lift the magnetic dust filter from the top or side panel.
- Clean the filter using compressed air or a soft brush to remove accumulated dust.
- Чыпканы панелге тууралаңыз жана магниттерге аны кайра ордуна бекитүүгө мүмкүнчүлүк бериңиз.
Figure 10: The top magnetic dust filter, easily removable for cleaning.
Жалпы тазалоо:
Корпустун сыртын жумшак менен сүртүңүз, гamp кездеме. Финишке зыян келтирүүчү катаал химиялык заттарды же абразивдүү материалдарды колдонуудан алыс болуңуз.
Проблемаларды чечүү
If you encounter issues with your SUGO 16 case, consider the following common troubleshooting steps:
- Кубат жок: Ensure all power cables are securely connected to the power supply, motherboard, and wall outlet. Check the power button connection to the motherboard.
- Ашыкча ысып кетүү: Verify that all fans are spinning correctly and that dust filters are clean. Ensure there is adequate space around the case for proper airflow. Consider optimizing fan configurations for better cooling.
- Компонентти тууралоо маселелери: Double-check component dimensions against the case specifications, especially for CPU coolers and graphics cards, as space is limited in SFF cases.
- Бошоң байланыштар: If components are not detected or behaving erratically, open the side panel and ensure all internal cables (power, data, front I/O) are firmly seated.
Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Бренд | SilverStone |
| Сериялар | SUGO 16 |
| Модель номери | SST-SG16B |
| Элемент Салмагы | 1 фунт |
| Продукциянын өлчөмдөрү (LxWxH) | 11.02 x 7.87 x 9.13 дюйм |
| Түс | Кара |
| Материал | Эритме болот |
| Motherboard шайкештиги | Mini-DTX / Mini-ITX |
| Иштин түрү | Мини-Мунара |
| Кубат менен камсыздоону орнотуу түрү | Төмөнкү тоо |
| Муздатуу ыкмасы | Күйөрман |
| Алдыңкы I / O порттору | 2 x USB 3.0, 1 x Combo Audio |
| Макс графикалык карта узундугу | 275мм |
| Max CPU Cooler Height (with SFX/SFX-L PSU) | 172мм |
| Max CPU Cooler Height (with ATX PSU) | 85мм |
| Радиатор колдоо | 120mm (front/rear depending on PSU) |
| Drive Bays | 2 x 2.5", 1 x 3.5" |
Figure 11: Dimensional diagram of the SilverStone SUGO 16 case.
Кепилдик жана колдоо
Кепилдик жөнүндө маалымат жана техникалык колдоо алуу үчүн, расмий SilverStone Technology компаниясына кайрылыңыз webсайтка же кардарларды тейлөөгө кайрылыңыз. Кепилдик дооматтар үчүн сатып алуу дүмүрчөгүңүздү сактаңыз.
Additional protection plans may be available through your retailer. Please consult your retailer for details on extended warranty options.
