Introduction
This manual provides comprehensive instructions for the installation, operation, and maintenance of your Soundstream MPQ-5V 5-Band Parametric Equalizer. Please read this manual thoroughly before using the product to ensure proper function and to maximize your audio experience. Keep this manual for future reference.
Коопсуздук маалыматы
- Always disconnect the vehicle's battery negative terminal before installation to prevent electrical shorts.
- Ensure all wiring is properly insulated and secured to prevent damage and interference.
- Do not operate the equalizer in wet conditions or expose it to excessive moisture.
- Орнотуу кадамдарына ишене албасаңыз, профессионал унаа аудио орнотуучусуна кайрылыңыз.
- Avoid setting volume levels excessively high to prevent hearing damage and speaker damage.
Продукт бүттүview
The Soundstream MPQ-5V is a high-quality 5-band parametric equalizer designed to provide precise control over your car audio system's frequency response. It features a voltage level indicator, multiple input/output options, and independent subwoofer control for enhanced sound customization.
1-сүрөт: жогорудан ылдыйга view of the Soundstream MPQ-5V Parametric Equalizer, showing the overall unit with controls and connections.
Негизги өзгөчөлүктөрү:
- 5-Band Parametric Equalization with +/- 18dB Boost/Cut
- Тtage Level Indicator
- 2 Selectable Balanced RCA Inputs with Input Gain
- Front, Rear, and Subwoofer RCA Outputs
- Independent Subwoofer Level Control
- Selectable Low-Pass Filter (32Hz, 64Hz, 125Hz)
- Input Selector Switch & Fader Control
- Blue Backlit Control Knobs
Орнотуу жана орнотуу
Proper installation is crucial for optimal performance. It is recommended to have this unit installed by a qualified car audio technician.
Монтаждоо:
Choose a secure, dry location within your vehicle, away from direct heat or moisture. Ensure adequate ventilation around the unit. Use the provided mounting hardware to secure the equalizer firmly.
Зымдарды туташтыруу:
- Кубат туташуу: Connect the +12V terminal to a switched +12V power source (e.g., ignition wire). Connect the GND terminal to a solid chassis ground point. Connect the REM (remote) terminal to the remote output of your head unit.
- Киргизүү байланыштары:
- Connect your head unit's RCA outputs to the MPQ-5V's БАС КИРҮҮ or AUX IN RCA inputs. The MPQ-5V features 2 selectable balanced RCA inputs.
- тууралаңыз Киргизүү пайда control to match the output level of your head unit.
- Чыгуу туташуулары:
- Connect the MPQ-5V's FRONT OUT, REAR out, жана ЧЫГАРЫҢЫЗ RCA outputs to the corresponding inputs on your ampаман калгандар.
Иштөө нускамалары
Familiarize yourself with the controls on the front panel of the MPQ-5V to effectively tune your audio system.

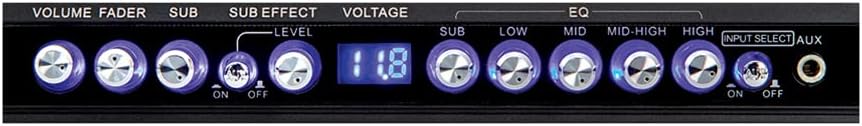

Сүрөт 2: Жакын пландан view of the Soundstream MPQ-5V front panel, highlighting the various control knobs and the voltage дисплей.
Алдыңкы панелдин башкаруу элементтери:
- VOLUME FADER: Controls the overall volume level of the system and balances the front-to-rear speaker output.
- SUB: Adjusts the output level of the subwoofer channel independently.
- SUB EFFECT (ON/OFF & LEVEL): Activates or deactivates the subwoofer effect and adjusts its intensity.
- ТОМTAGE: Digital display showing the current system voltage.
- EQ Bands (SUB, LOW, MID, MID-HIGH, HIGH): These five rotary controls allow you to boost or cut specific frequency ranges by up to +/- 18dB.
- SUB: Adjusts the lowest frequencies, typically for subwoofers.
- ТӨМӨН: Controls lower mid-range frequencies.
- ОРТО: Adjusts central mid-range frequencies.
- ОРТО-ЖОГОРКУ: Controls upper mid-range frequencies.
- ЖОГОРКУ: Adjusts the highest frequencies, for treble.
- INPUT SELECT (AUX/MAIN): Switches between the MAIN IN and AUX IN RCA inputs.
- LOWPASS FREQUENCY (32Hz, 64Hz, 125Hz): (Located on the top panel, typically near inputs) Selects the cutoff frequency for the subwoofer output. This filter allows only frequencies below the selected point to pass to the subwoofer ampөмүрлүү.
Техникалык тейлөө
- Keep the unit clean by wiping it with a soft, dry cloth. Do not use harsh chemicals or abrasive cleaners.
- Ensure all connections remain secure. Periodically check wiring for any signs of wear or damage.
- Avoid exposing the equalizer to extreme temperatures or direct sunlight for extended periods.
Проблемаларды чечүү
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Аппаратка кубат жок. | Blown fuse, incorrect wiring, no remote turn-on signal. | Check the fuse on the power wire. Verify +12V, Ground, and Remote connections. |
| Үн чыгышы жок. | Incorrect input/output connections, input selector switch setting, ampкөтөрүүчү маселелер. | Ensure RCA cables are securely connected. Check the INPUT SELECT switch. Verify ampкөтөргүчтөр иштетилип, иштеп жатат. |
| Бурмаланган үн. | Input gain too high, EQ settings over-boosted, poor ground connection. | Reduce input gain. Adjust EQ bands to avoid excessive boost. Check ground connection for cleanliness and security. |
| No subwoofer output. | SUB level too low, low-pass filter setting, subwoofer ampкөтөргүч маселеси. | Increase the SUB level control. Check the LOWPASS FREQUENCY setting. Verify subwoofer ampкөтөргүч туура иштеп жатат. |
Техникалык шарттар
| Өзгөчөлүк | Спецификация |
|---|---|
| Теңдөө тилкелери | 5 (Sub, Low, Mid, Mid-High, High) |
| Equalization Range | +/- 18dB Boost/Cut |
| Киргизүү сезгичтиги | 3V |
| Max Output Voltage | 8.5V |
| Frequency Response | 10Гц-50кГц (+/- 1дБ) |
| Сигнал-ызы-чуу катышы (S/N) | 115дБ |
| Жалпы гармоникалык бурмалоо (THD) | 0.05% |
| Стерео бөлүү | 82dB/1K Hz |
| Импеданс | 2k Ом |
| Low-Pass Filter Frequencies | 32Hz, 64Hz, 125Hz (Selectable) |
| Өлчөмдөрү (L x W x Y) | 17.8 x 10.5 x 2.54 см (7.0 x 4.1 x 1.0 дюйм) |
| Салмагы | 1.5 фунт (0.68 кг) |
Кепилдик жана колдоо
Soundstream products are designed and manufactured to the highest quality standards. For warranty information, please refer to the warranty card included with your product or visit the official Soundstream webсайт. Техникалык колдоо же тейлөө боюнча суроолоруңуз болсо, Soundstream кардарларды тейлөө кызматына алардын расмий каналдары аркылуу кайрылыңыз.
Эскертүү: Сатып алуу квитанциясын кепилдик дооматтары үчүн сатып алуунун далили катары сактаңыз.
