1. Киришүү
This manual provides detailed instructions for the safe and effective use of your RovyVon Aurora A33 5000K LED Penlight. Please read this manual thoroughly before operating the device and retain it for future reference.
Image 1.1: The RovyVon Aurora A33 5000K LED Penlight, showcasing анын компакт дизайн жана интеграцияланган чөнтөк клип.
2. Пакеттин мазмуну
Төмөндө тизмеленген нерселердин баары пакетиңизде бар экенин текшериңиз:
- RovyVon Aurora A33 LED Penlight
- Pocket clip (pre-installed or separate)
- USB-C заряддоо кабели
- RovyVon Information Card
3. Продукт бүтүп калдыview
The Aurora A33 is a compact and durable LED penlight designed for everyday carry and professional use. Its features include:
- Туруктуу курулуш: Crafted from aluminum alloy with a unique dragon scale knurling for enhanced grip and durability.
- Integrated Pocket Clip: Allows for convenient attachment to pockets, belts, or gear.
- Hidden Type-C Charging Port: Located at the tail, it ensures better waterproof performance when closed.
- Компакт өлчөмү: Measuring 127mm (L) x 15.7mm (Dia) and weighing 41g, it is designed for easy portability.
Image 3.1: The Aurora A33 penlight demonstrated in practical applications, including being carried in a shirt pocket, illuminating an electrical panel, attached to a belt, and stored on a pegboard.
Image 3.2: The Aurora A33 penlight held securely in a gloved hand, highlighting its ergonomic design and knurlкармоо үчүн.
4. Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Модел | Аврора A33 |
| Жарык булагы | 5000K LED |
| Материал | Алюминий эритмеси |
| Батарея | Камтылган 600mAh литий полимери |
| Заряддоо порту | USB Type-C |
| Өлчөмдөрү (L x Dia) | 127mm x 15.7mm (5"D x 0.62"W x 0.62"H) |
| Салмагы | 41г (1.45 унция) |
| Суу каршылык | IPX8 суу өткөрбөйт |
| Тtage | 3.7 вольт |
| Brightness Modes & Runtime |
|

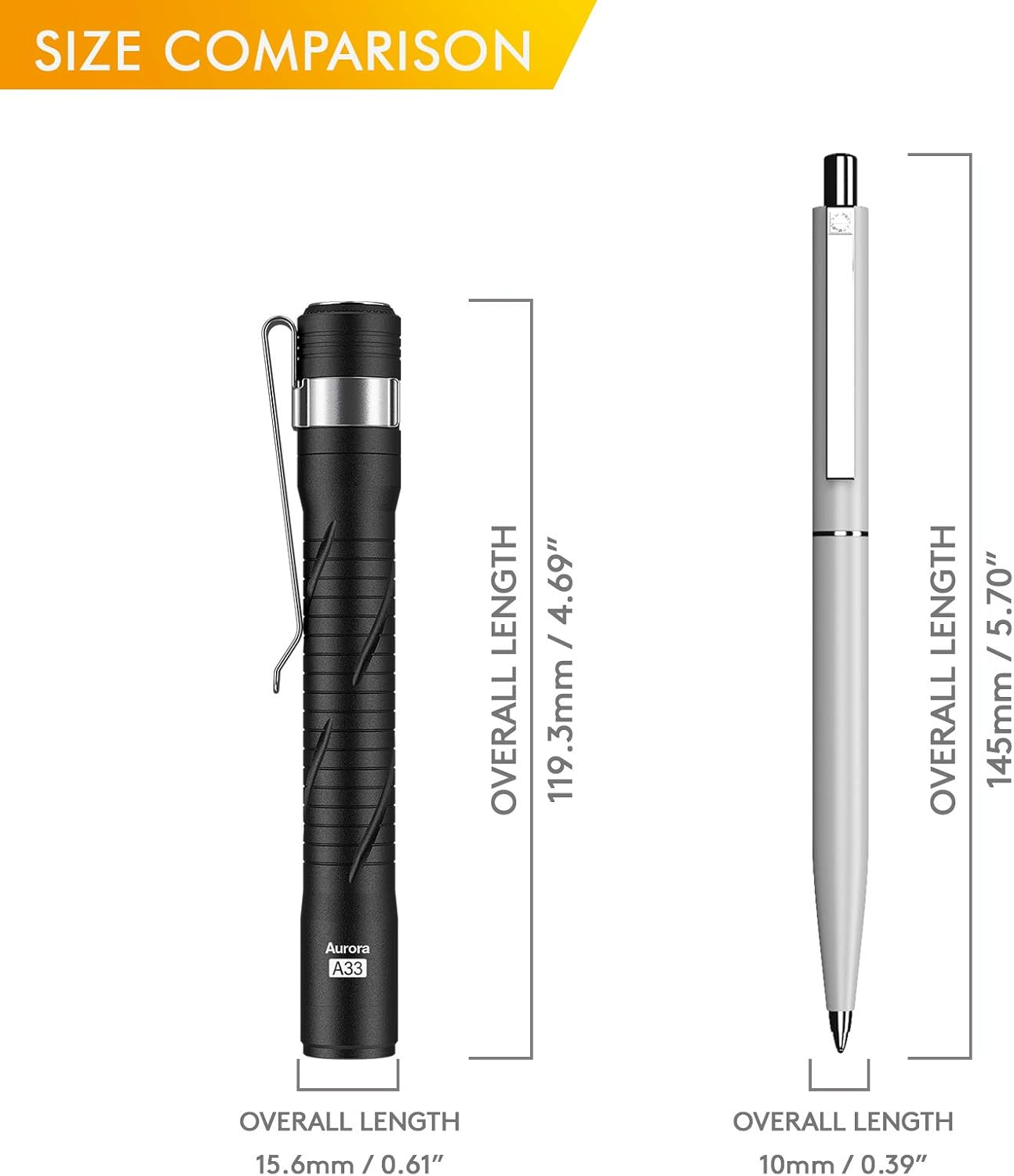

Image 4.1: A visual comparison illustrating the compact size of the Aurora A33 penlight next to a standard writing pen, highlighting its portability.
Image 4.2: An illustration detailing the 600mAh battery capacity and the corresponding runtimes for each of the four brightness modes: Moonlight, Low, Medium, and High.
5. Орнотуу
5.1 Алгачкы заряддоо
Before first use, fully charge your Aurora A33 penlight. The device comes with a built-in 600mAh rechargeable battery.
- Locate the tail cap of the penlight.
- Turn the tail cap anticlockwise to reveal the hidden USB Type-C charging port.
- Connect the provided USB-C cable to the charging port and plug the other end into a compatible USB power source (e.g., computer, wall adapter).
- A charging indicator light will illuminate. The light is fully charged when the indicator changes color or turns off (refer to specific product behavior if different). Full charge typically takes approximately 70 minutes.
- Once charging is complete, securely tighten the tail cap clockwise to ensure waterproof performance.
Image 5.1: Diagram illustrating how to access the hidden Type-C charging port by twisting the tail cap anticlockwise, along with the charging indicator and estimated charging time.
6. Иштөө нускамалары
The Aurora A33 features multiple brightness modes for various applications.
6.1 Негизги операция
- Күйгүзүү/өчүрүү: Press the tail switch once to turn the light on. Press and hold the tail switch for approximately 0.5 seconds to turn the light off from any mode.
- Велосипед тебүү режими: With the light on, press the tail switch repeatedly to cycle through the modes: Low → Medium → High.
- Ай жарыгы режими: From the OFF state, press and hold the tail switch for approximately 1 second to directly access Moonlight mode (0.5 lumens). This mode is suitable for close-up tasks or situations requiring minimal light, such as medical examinations.
- Режимдин эс тутуму: The penlight will remember the last used mode (Low, Medium, or High) when turned off. A double-click from the OFF state will activate the last memorized mode.
6.2 Brightness Modes and Runtimes
| Mode | Жарыктык | Болжолдуу Runtime |
|---|---|---|
| Ай жарыгы | 0.5 люмен | 60 саат |
| Төмөн | 12 люмен | 15 саат |
| Орто | 50 люмен | 5 саат |
| Жогорку | 180 люмен | 1 саат |
Image 6.1: A visual representation comparing the light output of a 5000K LED (left) with a 6500K LED (right), demonstrating the warmer tone of the 5000K light in the Aurora A33.
7. Техникалык тейлөө
7.1 Тазалоо
Оптималдуу аткарууну жана көрүнүштү сактоо үчүн:
- Wipe the penlight with a soft, damp кездеме.
- Абразивдүү тазалоочу каражаттарды же эриткичтерди колдонуудан алыс болуңуз, анткени алар бетке зыян келтириши мүмкүн.
- Ensure the charging port is free of debris before charging.
7.2 Гидроизоляция
The Aurora A33 is rated IPX8 waterproof. To maintain this rating, ensure the tail cap is fully tightened after charging or inspection.
Image 7.1: The Aurora A33 penlight partially submerged in water, visually confirming its IPX8 water resistance rating.
8. Кыйынчылыктарды
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Жарык күйбөйт. | Батарея түгөнүп калды. | Charge the penlight using the provided USB-C cable. |
| Жарык күтүлбөгөн жерден бүлбүлдөп же өчүп калат. | Батареянын деңгээли төмөн. | Recharge the penlight. |
| Кубаттоо индикатору күйбөйт. | Charging cable or power source issue; charging port obstructed. | Try a different USB-C cable or power source. Ensure the charging port is clean and free of debris. Confirm the tail cap is sufficiently unscrewed to expose the port. |
| Tail switch unresponsive. | Ички өчүргүчтүн бузулушу. | Жардам алуу үчүн кардарларды колдоо бөлүмүнө кайрылыңыз. |
9. Кепилдик жана колдоо
9.1 Кепилдик маалыматы
The RovyVon Aurora A33 Penlight comes with a 2 жылдык чектелген кепилдик from the date of purchase. This warranty covers manufacturing defects and issues arising from normal use. It does not cover damage caused by misuse, unauthorized modification, or improper maintenance.
9.2 Кардарларды колдоо
For technical assistance, warranty claims, or any questions regarding your RovyVon Aurora A33, please contact RovyVon customer support through their official webпродукт сатылып алынган сайт же сатуучу.
Please have your purchase receipt and product model number (Aurora A33) available when contacting support.
