ABASK Dash Cam J05 User Manual

1. Продукт бүтүп калдыview

The ABASK Dash Cam J05 is a high-definition dual-lens dash camera designed to record both the road ahead and the vehicle's interior simultaneously. It features 1080P+1080P resolution, a wide 3100 field of view, enhanced night vision, and essential safety functions like G-Sensor, Parking Monitor, and Loop Recording. A 32GB SD card is included for immediate use.

Figure 1.1: ABASK Dash Cam J05, showing the main unit, suction cup mount, and included 32GB Micro SD card.

Негизги өзгөчөлүктөрү:

• Dual 1080P Recording: Captures crisp video from both front and interior cameras.
• 3100 Wide Angle: комплекстүү камсыз кылат view with 1700 for the front and 1400 for the interior.
• Night Vision with 4 IR Lights: Ensures clear recordings in low-light conditions, especially for the cabin.
• WDR (Кең динамикалык диапазон): Optimizes video quality in varying light conditions.
• G-сенсор: Automatically locks and saves video footage upon detecting a collision or sudden movement.
• 24 сааттык унаа токтотуучу монитор: Records impacts when the vehicle is parked (requires hardwire kit, not included).
• Цикл жаздыруу: Эң эски кулпуланган нерселердин үстүнөн жазылат fileэстутум картасы толгондо, үзгүлтүксүз жаздырууну камсыз кылат.
• Кыймыл детектору: Initiates recording when motion is detected in front of the camera.
• Included 32GB Micro SD Card: Дароо колдонууга даяр.

Figure 1.2: Illustration of the dual 1080p HD video recording capability, capturing both the road ahead and the vehicle's interior.

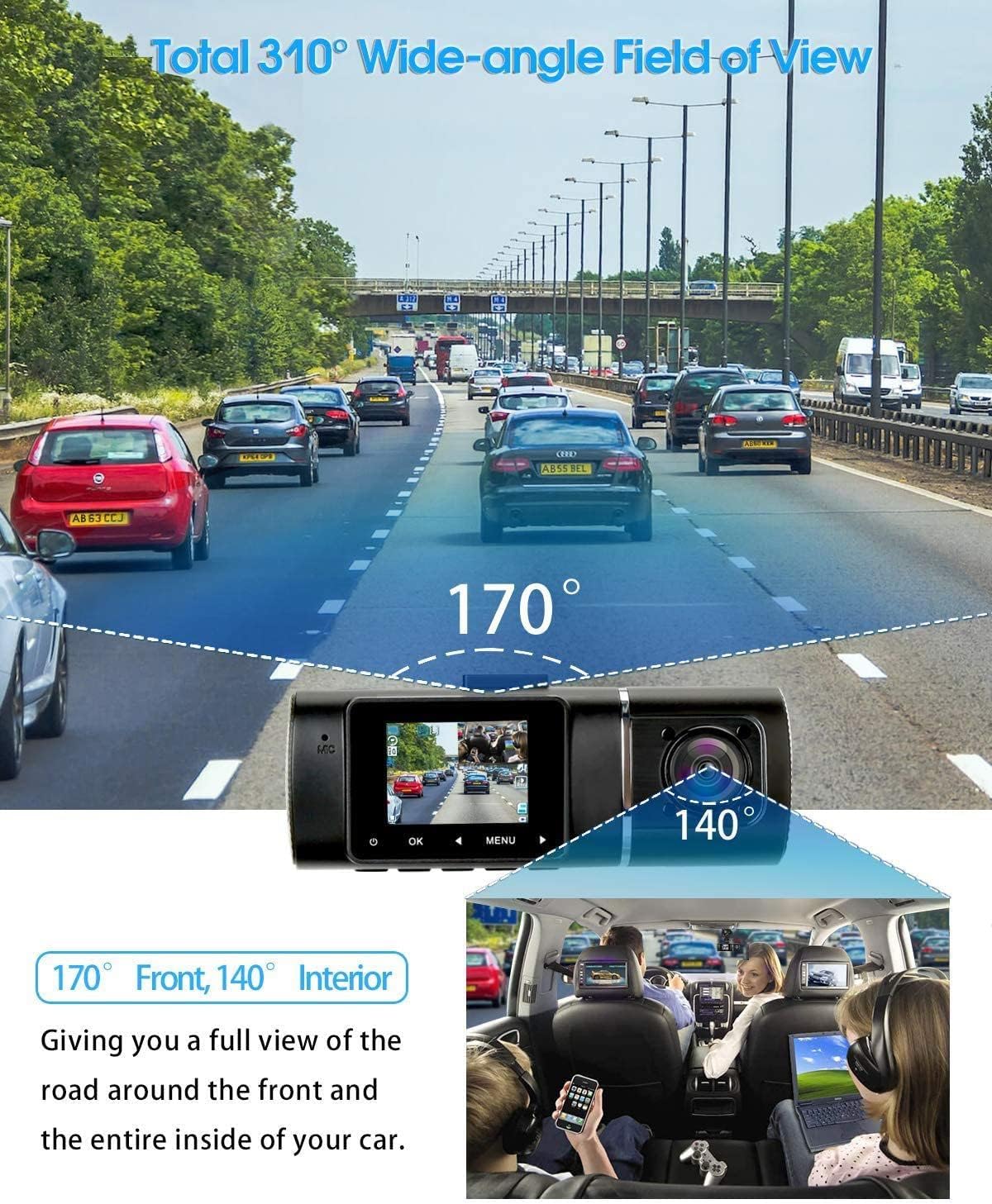

Figure 1.3: Visual representation of the dash cam's total 3100 wide-angle field of view, comprising 1700 for the front and 1400 for the interior.

Figure 1.4: The interior camera features 4 IR lights to capture clear video of passengers even in completely dark conditions.

2. Кутуда эмне бар

Please check the contents of your package upon arrival to ensure all items are present and undamaged:

• Dual Dash Cam x1
• Cigarette Lighter Adapter (3.5m) x1
• Mini USB Cable (0.5m) x1
• Suction Cup Mount x1
• Crowbar x1 (for cable routing)
• Кабель Clamps x1 (set)
• 32 ГБ Micro SD карта x1
• Колдонуучунун колдонмосу x1

3. Орнотуу колдонмосу

Follow these steps to set up your ABASK Dash Cam J05 for the first time:

3.1. Micro SD картаны салуу

1. Камера өчүрүлгөнүн текшериңиз.
2. Камеранын капталындагы Micro SD карта уячасын табыңыз.
3. Insert the 32GB Micro SD card into the slot until it clicks into place. Ensure the gold contacts are facing the correct direction (usually towards the back of the camera).

3.2. Initial Settings (Language, Date/Time, Format SD Card)

1. Power on the dash cam by connecting it to a power source.
2. басыңыз МЕНЮ button to access the settings.
3. Navigate through the menu using the arrow buttons to find "Language" and select your preferred language.
4. Find "Date/Time" and set the correct date and time.
5. Locate the "Format" option in the settings menu. Select it and confirm to format the Micro SD card. This prepares the card for recording and ensures optimal performance.

3.3. Камераны орнотуу

1. Clean the area on your windshield where you intend to mount the dash cam. Ensure it is free of dust and grease for optimal suction.
2. Attach the dash cam to the suction cup mount.
3. Press the suction cup firmly against the cleaned windshield and engage the locking lever to secure it.
4. Adjust the camera angle to ensure both the front and interior lenses have a clear, unobstructed view.

Figure 3.1: Steps for easy installation, including mounting the camera on the windshield and routing the power cable.

3.4. Routing the Power Cable

1. Connect the mini USB cable to the dash cam.
2. Carefully route the power cable along the edge of your windshield, down the A-pillar, and under the dashboard towards your vehicle's cigarette lighter socket. Use the provided crowbar and cable clamps to tuck the cable neatly and securely.
3. Plug the cigarette lighter adapter into your vehicle's 12V power outlet.

The dash cam is designed to automatically power on and begin recording when your vehicle starts and power off when the vehicle is turned off.

4. Даш камерасын иштетүү

4.1. Негизги операция

• Күйгүзүү/өчүрүү: The camera automatically turns on/off with the vehicle's ignition. You can also manually power it on/off by long-pressing the power button.
• Жаздыруу: Once powered on, the dash cam automatically starts loop recording. A red dot or indicator on the screen confirms recording is active.
• Которуу режимдери: көпкө басыңыз МЕНЮ button to switch between Video Recording, Still Camera, and Playback modes.

4.2. Өркүндөтүлгөн функциялар

• G-сенсор (авариялык кулпу): The built-in G-sensor detects sudden shakes or collisions. When triggered, it automatically locks the current video segment to prevent it from being overwritten by loop recording. This ensures critical footagе сакталган.
• Цикл жаздыруу: Videos are recorded in continuous loops (e.g., 1, 3, or 5-minute segments). When the memory card is full, the oldest unlocked files are automatically overwritten. Locked fileлар корголот.
• Унаа токтотуучу жай: When enabled (and with an optional hardwire kit), the dash cam will automatically turn on and record if it detects an impact while the vehicle is parked. This provides 24/7 surveillance.
• Кыймылды аныктоо: If enabled, the camera will start recording when it detects movement in its field of view, useful for monitoring while parked (short-term).

Figure 4.1: Explanation of G-sensor and Loop Recording functions, showing how important files are locked and protected from overwriting.

Figure 4.2: Illustration of the 24-hour Parking Mode, which monitors your car when you are away and records upon impact. Note: Requires a hardwire kit for continuous power.

4.3. Видеону ойнотуу

• In Playback mode, use the arrow buttons to navigate through recorded videos.
• басыңыз OK button to play or pause a selected video.
• To transfer videos to a computer, connect the dash cam via the mini USB cable or insert the Micro SD card directly into a card reader.

4.4. Footage Мисamples

Кийинки эксamples demonstrate the video quality from both the front and cabin cameras under different lighting conditions:

5. Техникалык тейлөө

Proper maintenance ensures the longevity and optimal performance of your dash cam:

• Кадимки SD картаны форматтоо: It is highly recommended to format the Micro SD card at least once a month to prevent data corruption and ensure smooth recording. This can be done through the camera's settings menu.
• Линзаны тазалоо: Periodically clean the front and interior camera lenses with a soft, lint-free cloth to ensure clear video quality. Avoid abrasive materials that could scratch the lenses.
• Кабелдик башкаруу: Ensure all cables are securely routed and not pinched or exposed to excessive heat, which can cause damage or intermittent power issues.
• Температураны эске алуу: Avoid leaving the dash cam in direct sunlight for extended periods in extremely hot weather, as this can affect battery life and overall performance. If parking for several days, consider unplugging the device.

6. Кыйынчылыктарды

If you encounter any issues with your ABASK Dash Cam J05, please refer to the following common problems and solutions:

7. Техникалык шарттар

8. Кепилдик жана колдоо

ABASK is committed to providing high-quality products and excellent customer service. Your Dash Cam J05 comes with the following assurances:

• 2 жылдык кепилдик: Өндүрүштүк кемчиликтерди камтыган комплекстүү 2 жылдык кепилдик менен жан дүйнө тынчтыгынан ырахат алыңыз.
• 30 күндүк акчаны кайтарып берүү кепилдиги: Эгерде сиз толугу менен канааттанбасаңыз, анда товарды 30 күндүн ичинде кайтарып берип, акчаңызды толугу менен кайтарып алсаңыз болот.
• 24/7 Кардарларды колдоо: Our dedicated support team is available around the clock to assist you with any questions or issues.

For further assistance, please visit the official ABASK store or contact our customer support team directly. We are your reliable eye on the road!

Figure 8.1: ABASK customer support team ready to assist with product inquiries.
