Introduction
This manual provides detailed instructions for assembling the Revell Porsche 911 Carrera 3.2 Targa (G model) plastic model kit, model number 67689. This kit allows you to build a high-quality replica of the classic Porsche 911 Carrera 3.2. Please read all instructions carefully before beginning assembly to ensure a successful and enjoyable building experience.
Коопсуздук маалыматы
Эскертүү: Not suitable for children under 8 years. Solvent-based adhesive (12.5g) and water-soluble paints are included. The adhesive bottle has a functional, sharp tip. Flammable liquid and vapor. May cause drowsiness and dizziness. Store under lock and seal. Disposal must be conducted according to local, regional, national, and international regulations. Use under adult supervision. Read and follow all instructions with your child before use and keep them readily available for reference. Contains: n-butyl acetate CAS 123-86-4.
Кутуда эмне бар
Before starting, please verify that all components listed below are present in your kit:
- Plastic model kit (unassembled components on sprues)
- Illustrated multilingual building instructions
- Decals (including various number plates)
- Base colors (Revell Aqua Color)
- Желим (Revell Contacta Professional Mini)
- Brush
Орнотуу жана чогултуу
Follow these steps carefully to assemble your Revell Porsche 911 Carrera 3.2 Targa model kit:
- Даярдоо: Unpack all components. Familiarize yourself with the parts on the plastic sprues and review the entire instruction manual. Ensure you have a clean, well-lit, and organized workspace.
- Бөлүктү алып салуу: Carefully cut each part from the plastic sprues using a hobby knife or side cutters. Exercise caution to avoid damaging the parts. Remove any excess plastic (flash) with a hobby knife or fine sandpaper for a smooth finish.
- Жыйындын ырааттуулугу: Adhere strictly to the illustrated building instructions provided in the kit. The manual will guide you through the step-by-step assembly of the chassis, engine, interior, and body sections.
- жабыштыруу: Apply a small, precise amount of the included Revell Contacta Professional Mini adhesive to the joining surfaces. Hold the parts together firmly until the glue sets, typically for a few seconds to a minute depending on the part size.
- Мотор жыйындысы: Assemble the multi-part six-cylinder engine according to the detailed diagrams in the instructions. Pay attention to small details for an authentic look.
- Ички ассамблея: Construct the interior components, including the dashboard, steering wheel, and seats. The kit offers the flexibility for an optional left or right-hand drive configuration; choose your preference before gluing.
- Дене жыйыны: Carefully attach the assembled interior and chassis to the main body shell. The roof center section is designed to be removable, allowing for versatile display options.
- Сүрөт: Use the included Revell Aqua Color base paints to paint the model as indicated in the instructions or to your personal preference. Apply thin, even coats and allow each coat of paint to dry completely before applying the next to prevent smudging or uneven texture.
- Декалдар: Apply the decals, including the various number plates, to the model as shown in the instructions. Use water to carefully slide the decals into position and gently blot away any excess water with a soft cloth or tissue.
Figure 1: ашыкview of the plastic sprues containing various model components.

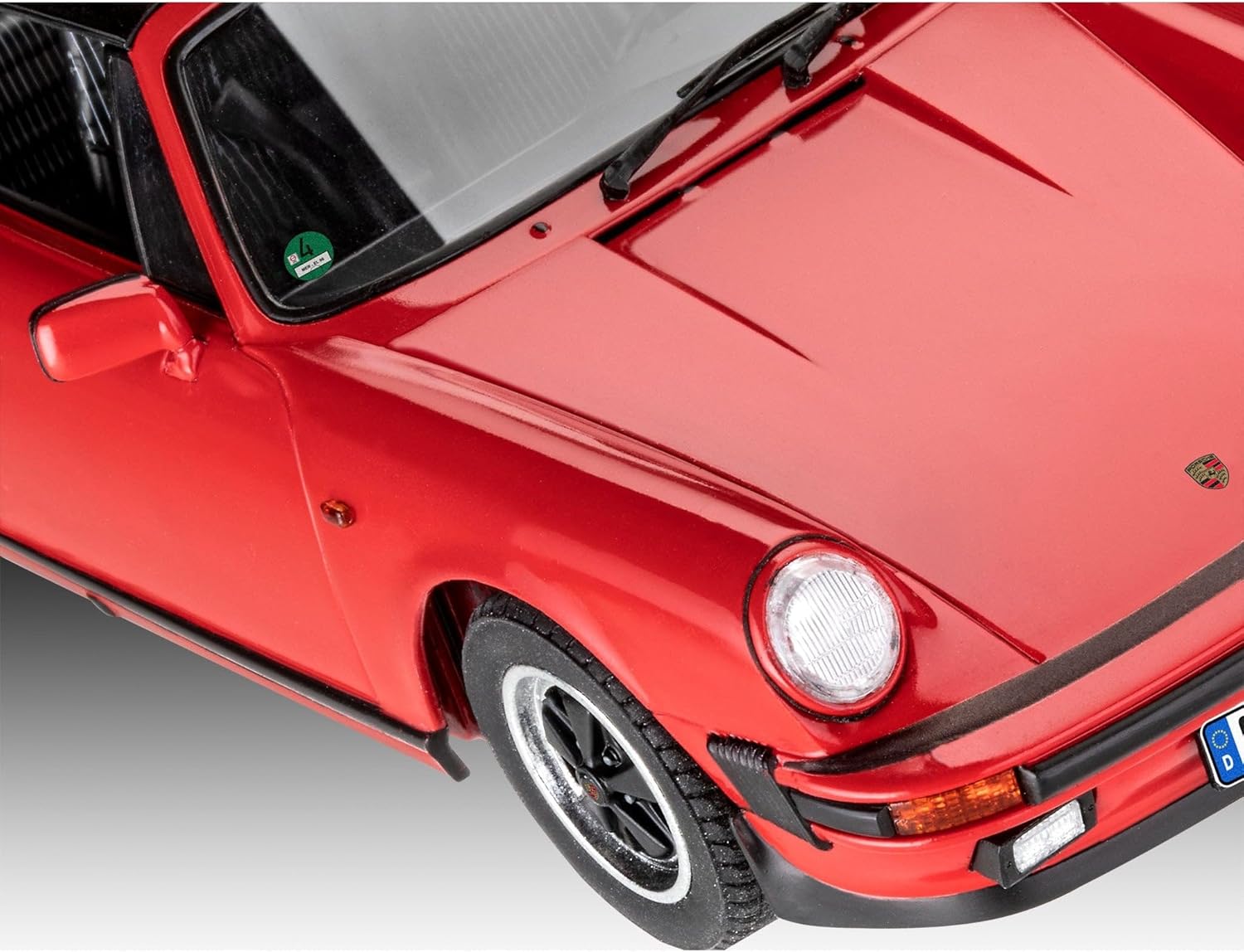

Figure 2: The completed Revell Porsche 911 Carrera 3.2 Targa model, front view.
3-сүрөт: Детальдуу view of the assembled chassis and engine components from the underside.
Figure 4: Interior details of the model, showing the dashboard and seats.
Figure 5: Rear engine compartment with detailed engine components.
Figure 6: Close-up of the front section of the model, showing headlights and bumper.
Моделиңизди көрсөтүү
Once assembly and painting are complete, your Revell Porsche 911 Carrera 3.2 Targa model is ready for display. The removable roof center section allows for versatile presentation options. Handle the model with care to preserve its intricate details and finish.
Техникалык тейлөө
To keep your model in pristine condition and ensure its longevity, follow these maintenance guidelines:
- Тазалоо: Gently dust the model with a soft, dry brush or a lint-free cloth. Avoid using harsh chemicals, abrasive cleaners, or excessive moisture, as these can damage the paint and plastic.
- Сактагыч: Store the model in a cool, dry place away from direct sunlight. Prolonged exposure to sunlight can cause paint fading and plastic warping. Consider a display case for added protection.
- Колдонуу: Always handle the model by its base or sturdy sections. Avoid touching delicate parts like mirrors, antennas, or small decals, as they can be easily damaged or detached.
Жалпы көйгөйлөрдү чечүү
Here are solutions to common challenges you might encounter during model assembly:
- Жараксыз бөлүктөрү: Ensure all excess plastic (flash) has been thoroughly removed from the edges of the parts. Double-check the instruction manual to confirm the correct part orientation and ensure you are using the right parts for that step.
- Желим кармабайт: Verify that the surfaces to be joined are clean, dry, and free of paint or grease. Apply a thin, even layer of adhesive to both surfaces and hold the parts firmly together for the recommended setting time.
- Paint issues (e.g., brush marks, uneven coverage): Ensure surfaces are clean before painting. Apply paint in thin, multiple coats rather than one thick coat to avoid brush marks, drips, or uneven coverage. Allow sufficient drying time between each coat.
- Decal problems (e.g., not adhering, silvering): If decals do not adhere properly, ensure the surface is smooth and glossy. For stubborn decals or to eliminate 'silvering' (air trapped under the decal), a decal setting solution (not included) can be used.
Техникалык шарттар
Key specifications for the Revell Porsche 911 Carrera 3.2 Targa Model Kit (67689):
- Бренд: Revell
- Модель номери: 67689
- Тема: Vehicle (Porsche 911 Carrera 3.2 Targa)
- Материал: Пластик
- Даана саны: 114
- Элементтин өлчөмдөрү (L x W x Y): 7.05 x 3.11 x 2.17 дюйм (179 мм x 79 мм x 55 мм)
- Элемент Салмагы: 1.21 фунт
- Сунушталган жаш: 10 жаш жана андан жогору
- Камтылган компоненттер: Plastic model kit, illustrated instructions, decals, base colors, adhesive, brush
- Негизги өзгөчөлүктөрү: Multi-part six-cylinder engine, optional left or right-hand drive, removable roof center section
Кепилдик жана колдоо
For product support, inquiries regarding missing parts, or warranty information, please contact Revell customer service directly. Refer to the contact information provided on the product packaging or visit the official Revell webакыркы колдоо маалымат үчүн сайт.
