CAM-WiFi 2MP HD коопсуздук камерасын колдонуу боюнча колдонмо менен камсыз кылуу

1. Продукт бүтүп калдыview

The Provision CAM-WiFi 2MP HD Security Camera (Model WP-919) is a high-definition outdoor surveillance device designed for reliable monitoring. It features 2-megapixel resolution, infrared night vision up to 10 meters, and two-way audio communication with a built-in speaker and microphone. The camera supports Wi-Fi connectivity for easy integration into your network and can be managed via a mobile application on iOS and Android devices.

1.1-сүрөт: алдыңкы жана каптал view of the Provision CAM-WiFi 2MP HD Security Camera, showing the lens, antenna, and mounting bracket.

Figure 1.2: Key features of the camera including 2MP resolution, Day & Night (ICR), 10m IR, SD card support, 2-Way Audio, WiFi connectivity, and mobile app compatibility.

2. Коопсуздук маалыматы

• Ensure the power supply matches the camera's requirements to prevent damage.
• Do not expose the camera to extreme temperatures, humidity, or strong magnetic fields.
• Avoid direct exposure of the lens to strong light sources, as this may affect image quality or damage the sensor.
• Handle the camera with care. Do not drop or subject it to strong vibrations.
• Камераны балдардан жана үй жаныбарларынан алыс кармаңыз.
• For outdoor installation, ensure proper waterproofing of all connections.

3. Пакеттин мазмуну

Сураныч, пакетте төмөнкү нерселерди текшериңиз:

• Provision CAM-WiFi 2MP HD Security Camera (WP-919)
• Монтаждоо бурамалар жана дубал сайгычтар
• Power Adapter (may be sold separately in some regions)
• Quick Start Guide

4. Орнотуу

4.1 Физикалык орнотуу

1. Жайгашкан жерди тандаңыз: Select a suitable outdoor location for installation, ensuring a clear view and strong Wi-Fi signal.
2. Монтаждоо:
   • Mark the drilling points using the camera's mounting base as a template.
   • Эгерде кыштын үстүнө орнотуп жатсаңыз, тешиктерди бургулап, дубалга тыгындарды киргизиңиз.
   • Secure the camera's mounting base to the wall or ceiling using the provided screws.
   • Камера бурчун керек болсо тууралаңыз.
3. Туташуу кубаты: Connect the power adapter to the camera's power input port and plug it into a power outlet.
4. SD Card Installation (Optional):


   4.1-сүрөт: Каптал view of the camera showing the cover for the SD card slot and the integrated speaker.

   • Locate the SD card slot cover on the side of the camera.
   • Этияттык менен капкакты ачыңыз.
   • Insert a compatible microSD card (up to 128GB, Class 10 recommended) into the slot with the contacts facing down.
   • Close the cover securely to maintain weather resistance.
5. Зымдуу туташуу (кошумча): If a wired connection is preferred, connect an Ethernet cable to the camera's RJ45 port and to your router.


   Figure 4.2: The camera's connection cables, including power input, Ethernet (RJ45), and a reset button.

4.2 Мобилдик колдонмону орнотуу

1. Колдонмону жүктөп алыңыз: Издөө the "Provision Cam2" or "Provision PnV" app (refer to your Quick Start Guide for the exact app name) on the Apple App Store (for iOS) or Google Play Store (for Android).
2. Каттоо эсебин каттоо: Open the app and follow the on-screen instructions to register a new user account.
3. Камера кошуу:
   • Tap the "+" icon or "Add Device" option in the app.
   • Select "Wi-Fi Camera" or scan the QR code on the camera (if available).
   • Follow the in-app prompts to connect the camera to your Wi-Fi network. This usually involves entering your Wi-Fi password and allowing the camera to connect.
   • Once connected, give your camera a name and set a password for security.

5. Камераны иштетүү

5.1 Live View

After adding the camera, tap on its name in the app to access the live video feed. You can view реалдуу убакыт footagсиздин камераңыздан.

5.2 Эки тараптуу аудио

The camera is equipped with a built-in speaker and microphone, enabling two-way audio communication.

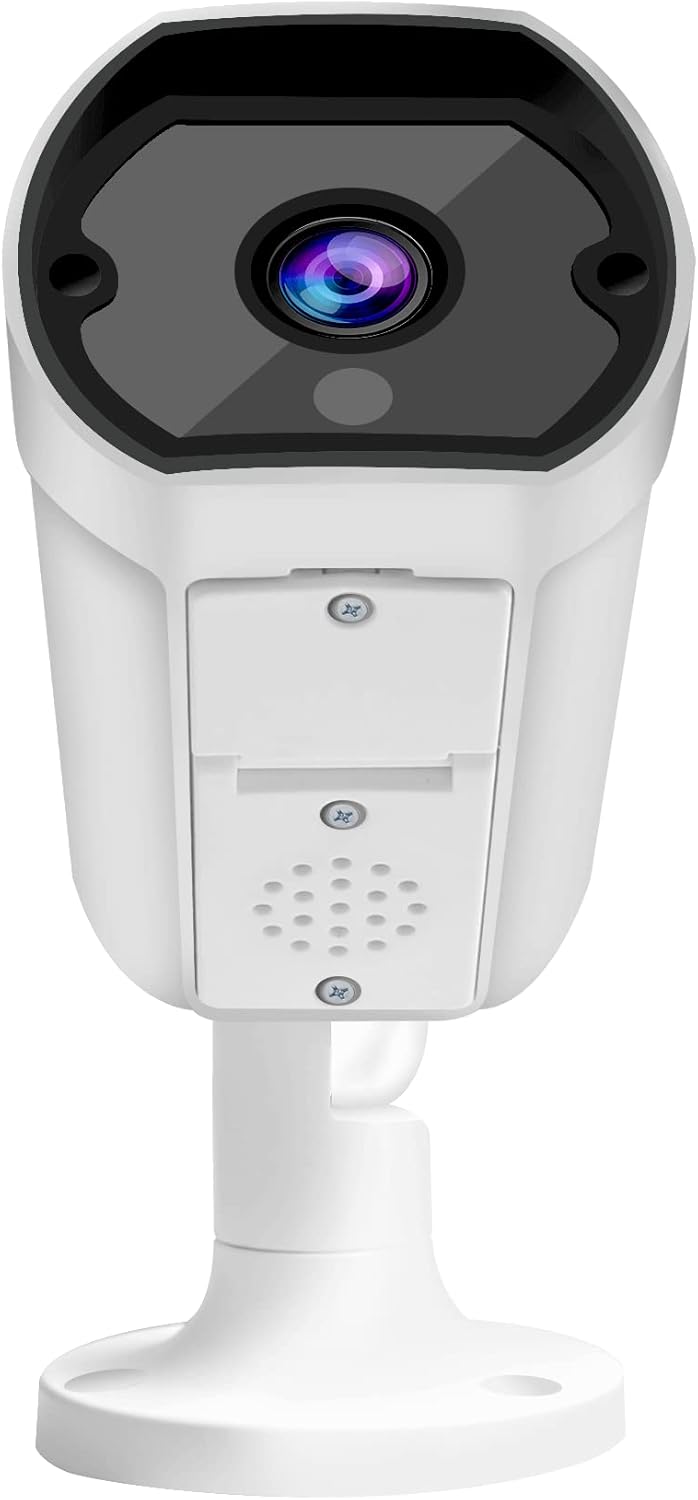

Сүрөт 5.1: Алдыңкы view of the camera, highlighting the lens and the integrated speaker/microphone area below it.

• To Listen: Ensure the speaker icon in the app is enabled to hear audio from the camera's location.
• To Speak: Press and hold the microphone icon in the app to transmit your voice through the camera's speaker. Release to stop speaking.

5.3 Түнкү көрүнүш

The camera automatically switches to infrared (IR) night vision mode in low-light conditions, providing clear black-and-white images up to 10 meters.

5.4 Жазуу жана ойнотуу

• Тынымсыз жаздыруу: If an SD card is installed and configured, the camera can record continuously.
• Кыймылды аныктоо жазуусу: Configure motion detection settings in the app to record only when movement is detected.
• Ойнотуу: Жазылган footage through the app's playback feature, typically found in the camera's settings or timeline view.

5.5 Mobile Notifications

Enable push notifications in the app settings to receive alerts on your mobile device when motion or other events are detected by the camera.

6. Техникалык тейлөө

• Тазалоо: Камеранын линзасын жана корпусун тазалоо үчүн жумшак, кургак чүпүрөктү колдонуңуз. Катуу химиялык заттарды же абразивдүү тазалагычтарды колдонбоңуз.
• Программалык камсыздоонун жаңыртуулары: Regularly check for and install firmware updates via the mobile app to ensure optimal performance and security.
• Тармактын туруктуулугу: Ensure your Wi-Fi network is stable and strong for uninterrupted camera operation.
• Сактагычты башкаруу: Periodically check the SD card storage status and format it if necessary (this will erase all recorded data).

7. Кыйынчылыктарды

8. Техникалык шарттар

9. Колдоо

For technical assistance, warranty claims, or further inquiries, please contact Provision ISR customer support. Refer to the contact information provided with your product packaging or visit the official Provision ISR webсайт.

Note: This manual provides general instructions. Specific features and app interfaces may vary with firmware updates.
