ACEMIC VT-5 скрипка зымсыз микрофонунун колдонуу боюнча колдонмосу

1. Киришүү

The ACEMIC VT-5 is a portable wireless microphone system designed specifically for violins, suitable for various performances including stage and street settings. It features digital wireless audio transmission, ensuring clear sound quality and freedom of movement.

Пакеттин мазмуну

• VT-5 Transmitter with integrated microphone
• VT-5 Receiver (6.35mm plug-on type)
• USB заряддоо кабели

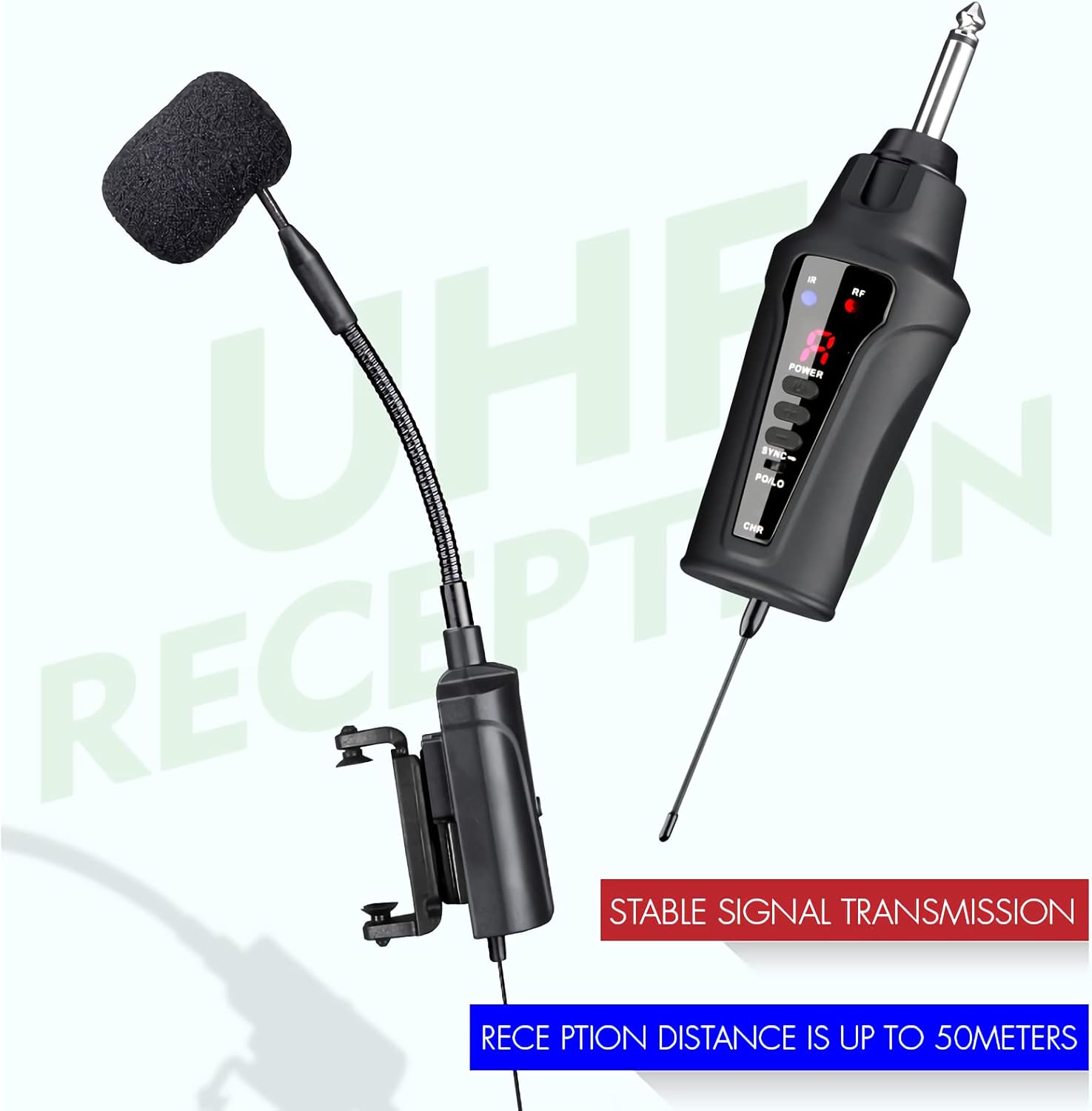

Image 1.1: ACEMIC VT-5 Wireless Microphone System showing the transmitter with microphone and the plug-on receiver.

2. Орнотуу нускамалары

2.1 Attaching the Microphone Transmitter to the Violin

1. Carefully open the clip on the microphone transmitter unit.
2. Attach the clip securely to the edge of your violin, ensuring it does not obstruct playing or damage the instrument's finish.
3. Adjust the flexible gooseneck of the microphone to position the microphone head optimally for sound capture, typically near the f-hole or bridge.

Image 2.1: The VT-5 microphone transmitter securely clipped onto the body of a violin.

Сүрөт 2.2: Жакын план view of the microphone's clip, designed for secure attachment to the violin.

2.2 Кабыл алгычты туташтыруу

1. Locate a 6.35mm (1/4 inch) input jack on your mixer, amplifier, or active speaker.
2. Plug the VT-5 receiver directly into this input jack. Ensure a firm connection.

Image 2.3: The VT-5 receiver connected to an audio mixer, ready for sound transmission.

Image 2.4: The VT-5 receiver plugged into an amplifier, illustrating direct connection capability.

2.3 Күйгүзүү жана жупташтыруу

1. Press and hold the power button on both the transmitter and the receiver until their respective indicator lights illuminate.
2. The system features IR sync for automatic frequency downloading from the receiver. The units should automatically pair.
3. If pairing does not occur automatically or if you experience interference, you can manually select one of the 16 pre-set frequencies on both the transmitter and receiver to find a clear channel.

3. Иштөө нускамалары

3.1 Негизги операция

• Once paired, the system is ready for use. Ensure the volume on your connected mixer or amplifier is set appropriately.
• The digital ID code technology helps to completely solve frequency interference, providing a stable and clear audio signal.
• The portable design allows for freedom of movement, making it ideal for stage performances, street performances, and other dynamic settings.

3.2 Using Multiple Systems

If using multiple VT-5 systems simultaneously, ensure each system is set to a different channel to prevent interference. The system offers 16 selectable frequencies for this purpose.

4. Техникалык тейлөө

4.1 Батареяны заряддоо

• The transmitter and receiver are powered by 3.7V lithium batteries.
• Connect the provided USB charging cable to the charging ports on both units and a suitable USB power source.
• A full charge provides over 6 hours of continuous use. Charge the units when the battery indicator lights show low power.

4.2 Жалпы кам көрүү

• Keep the units clean and dry. Avoid exposure to extreme temperatures, moisture, or direct sunlight.
• Do not attempt to disassemble or modify the units, as this will void the warranty and may cause damage.

5. Кыйынчылыктарды

Үн чыгышы жок

• Ensure both the transmitter and receiver are powered on and fully charged.
• Verify that the receiver is correctly plugged into the audio input of your mixer/ampөмүрлүү.
• Check that the selected channel on the transmitter matches the channel on the receiver. Adjust if necessary.
• Confirm that the volume on your mixer/amplifier is turned up and not muted.

Interference or Poor Sound Quality

• Change the operating channel on both the transmitter and receiver to avoid interference from other wireless devices.
• Ensure the transmitter and receiver are within the optimal operating range (up to 60m line-of-sight). Obstacles can reduce range.
• Check for any strong electromagnetic interference sources nearby.

Кыска батареянын иштөө мөөнөтү

• Ensure the units are fully charged before each use.
• Battery performance may degrade over time with repeated charging cycles.

6. Техникалык шарттар

Image 6.1: Visual representation of the dimensions for the VT-5 microphone transmitter and receiver.

7. Кепилдик жана колдоо

For warranty information and technical support, please refer to the documentation provided with your purchase or contact ACEMIC customer service directly. Keep your proof of purchase for any warranty claims.
