Karinear Built-in Ceramic Hob 3 Burners Instruction Manual

1. Коопсуздук боюнча маанилүү маалымат

Please read this manual carefully before using the appliance and keep it for future reference. Improper installation or use may cause electric shock, fire, or injury.

• Электр коопсуздугу: Ensure the appliance is correctly connected to a suitable power supply (220V-240V, 50Hz/60Hz). Installation must be performed by a qualified electrician. The appliance does not include a plug and requires hardwiring.
• Жылуулук коопсуздугу: The ceramic hob generates heat during operation. Do not touch hot surfaces. Use oven mitts or pot holders. Residual heat indicators will show when a zone is still hot.
• Балдар кулпусу: Utilize the child lock function to prevent accidental operation by children.
• Ашыкча ысып кетүүдөн коргоо: The hob is equipped with overheat protection to prevent damage.
• Автоматтык түрдө өчүрүү: The hob will automatically shut off if left unattended or if no cookware is detected on a zone for a certain period.
• ӨҮлөрдүн: Use only appropriate cookware as described in this manual.

2. Продукт бүтүп калдыview

The Karinear Built-in Ceramic Hob features a sleek black crystal glass surface with three powerful heating zones and intuitive touch controls.

2.1-сүрөт: Жогорку view of the Karinear 3-burner ceramic hob, showcasing its black crystal glass surface and three active heating zones.

Негизги өзгөчөлүктөрү:

• 3 Powerful Burners: Total output of 5700W, providing efficient heating for various cooking needs.
• 9 кубаттуулук деңгээли: Precise heat adjustment from simmering to boiling.
• Акылдуу таймер: Set cooking times up to 99 minutes, with automatic shut-off.
• Сенсордук башкаруу: Easy and precise control of each cooking zone.
• Балдардын коопсуздук кулпусу: Кокус активдештирүүнүн алдын алат.
• Калдык жылуулук көрсөткүчү: Warns when a cooking zone is still hot after use.
• Автоматтык түрдө өчүрүү: Enhances safety by turning off the hob under certain conditions.
• Энергияны үнөмдөө: Efficient design for reduced energy consumption.

2.2-сүрөт: Детальдуу view of the sensitive touch control panel, highlighting the safety lock, timer, and residual heat warning features.

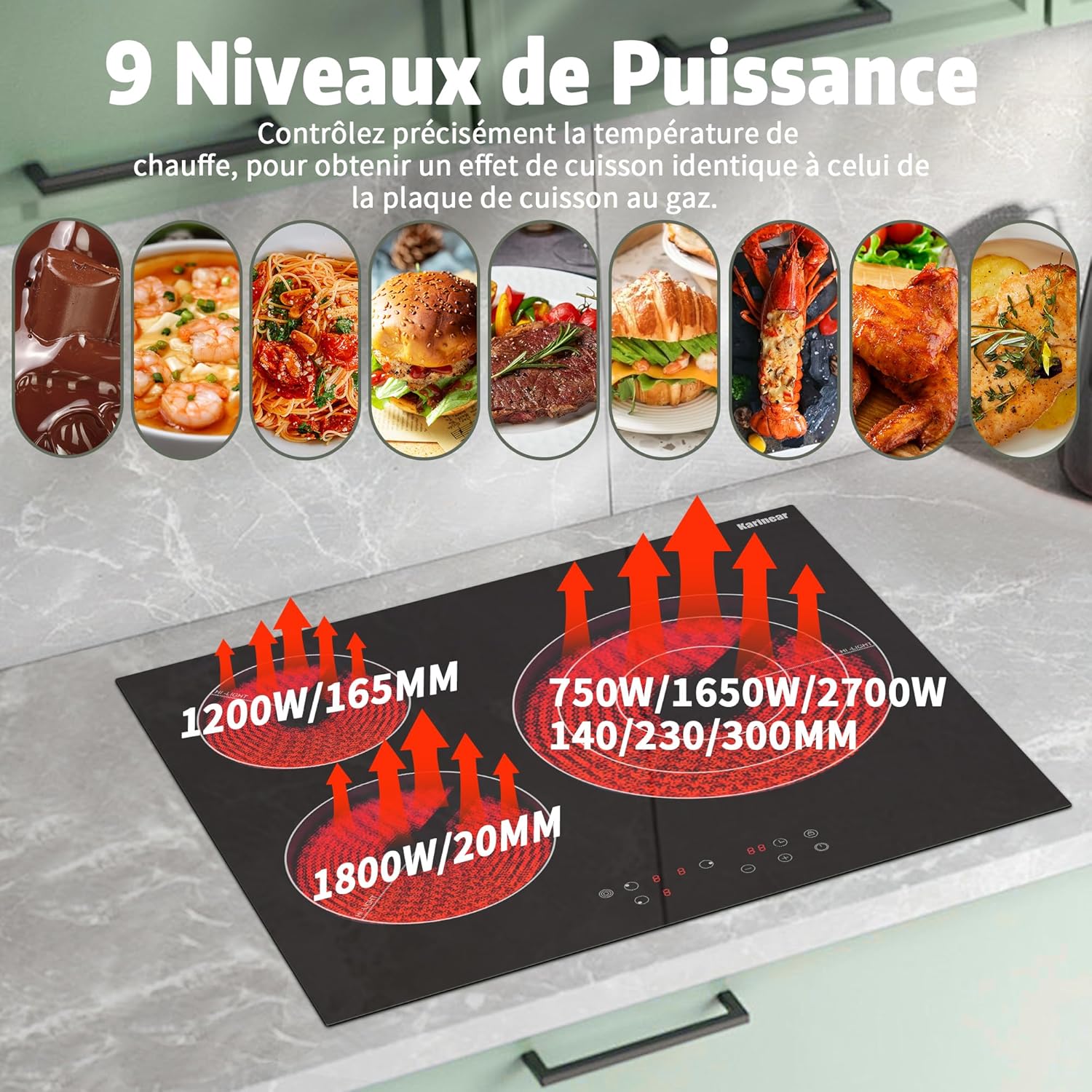

Figure 2.3: Illustration of the 9 power levels and the wattage distribution across the three heating zones (1800W, 1200W, and a triple zone with 750W/1650W/2700W).

3. Орнотуу жана орнотуу

This ceramic hob is designed for built-in installation. Ensure proper ventilation and electrical connections are made according to local regulations.

Өлчөмдөрү жана кесилиши:

• Product Size: 590 mm (L) x 520 mm (W) x 44 mm (H)
• Built-in Size (Cut-out): 560 mm (L) x 490 mm (W)

Электр байланышы:

The hob requires a 220V-240V, 50Hz/60Hz power supply. It comes with a 1.2m 2-conductor power cable but no plug. It must be hardwired by a qualified electrician.

Figure 3.1: Detailed dimensions for installation and recommended wiring diagrams for 220-240V household electrical supply. Ensure correct wiring for safety and optimal performance.

4. Иштөө нускамалары

The Karinear ceramic hob features intuitive touch controls for easy operation.

Негизги операция:

1. Күйгүзүү/өчүрүү: Конфорканы күйгүзүү же өчүрүү үчүн кубат белгисине тийиңиз.
2. Бышыруу зонасын тандоо: Тиешелүү зонаны тандоо баскычын басыңыз.
3. Кубаттын деңгээлин тууралоо: 9 кубаттуулук деңгээлинин бирин тандоо үчүн '+' жана '-' баскычтарын колдонуңуз.
4. Таймер функциясы: Touch the timer button and use '+' and '-' to set the desired cooking time (up to 99 minutes). The hob will automatically shut off when the timer expires.
5. Балдар кулпусу: To activate, press and hold the child lock button until the indicator lights up. This prevents accidental changes to settings. To deactivate, press and hold the child lock button again.

Идиш шайкештиги:

This ceramic hob is compatible with all types of cookware, including:

• Чоюн
• Дат баспаган болот
• Concave Bottom Pots
• Эмальдалган чоюн
• Алюминий
• Жез
• Керамикалык
• Ысыкка чыдамдуу айнек

Figure 4.1: Visual guide to the types of cookware that can be safely and effectively used on the Karinear ceramic hob.

Three-Loop Control:

The largest cooking zone features a three-loop control, allowing you to adjust the heating area to match the size of your cookware for optimal efficiency.

Figure 4.2: The three-loop control allows for flexible heating area adjustment, accommodating various pot and pan sizes on the largest burner.

5. Техникалык тейлөө жана тазалоо

The black crystal glass surface is designed for easy cleaning and maintenance.

• Күнүмдүк тазалоо: After each use, allow the hob to cool down. Wipe the surface with a damp кездеме жана жумшак жуучу каражат. Таза чүпүрөк менен жакшылап кургатыңыз.
• Кежир тактар: For burnt-on food or stubborn stains, use a ceramic hob scraper (one is included in the package) to gently remove residue. Then clean as usual.
• Абразивтерден качыңыз: Абразивдик тазалагычтарды, жуугучтарды же катуу химиялык заттарды колдонбоңуз, анткени алар айнектин бетин чийип же зыян келтириши мүмкүн.
• Төгүлүүлөр: Төгүлгөн нерселерди, айрыкча канттуу суюктуктарды, күйүп кетип, туруктуу зыян келтирбеши үчүн, аларды дароо тазалап салыңыз.

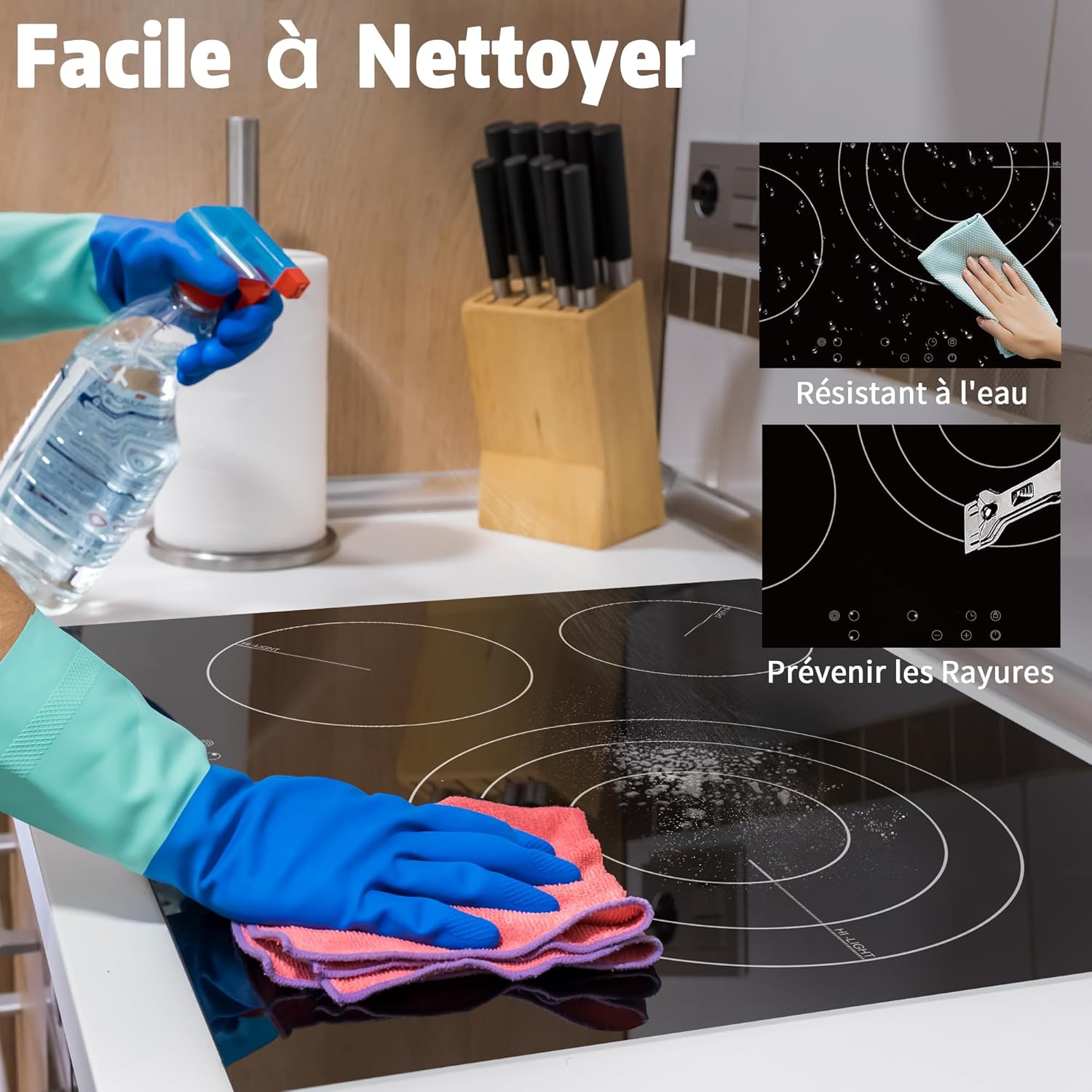

Figure 5.1: The smooth glass surface is water-resistant and designed to prevent scratches, making it simple to wipe clean with a spray and cloth.

6. Кыйынчылыктарды

If you encounter any issues with your Karinear ceramic hob, please refer to the following common troubleshooting tips:

If the problem persists after attempting these solutions, please contact Karinear customer service.

7. Техникалык шарттар

8. Кепилдик жана колдоо

Karinear is committed to providing high-quality products and professional service.

• Төлөмдү кайтаруу саясаты: Enjoy a 30-day refund period from the date of purchase.
• Кепилдик: The product comes with a 12-month warranty from the date of order.
• Кардарларды тейлөө: If you have any questions or concerns about your product, please do not hesitate to contact Karinear customer service. We are dedicated to addressing your needs and providing assistance.
