MB Quart GMR1.5S2W Marine Audio System Instruction Manual

1. Киришүү

This manual provides detailed instructions for the installation, operation, and maintenance of your MB Quart GMR1.5S2W Marine Audio System. This system includes a Bluetooth-enabled gauge mount source unit and two 6.5-inch coaxial marine-grade speakers, designed for durability and high-quality audio in marine and powersport environments.

The MB Quart GMR1.5S2W system is built to withstand harsh outdoor conditions, featuring waterproof, dustproof, sunproof, and shockproof construction that meets or exceeds IP67 requirements. It delivers 160 Watts peak power, ensuring clear and robust sound for your adventures.

2. Кутуда эмне бар

Upon opening your MB Quart GMR1.5S2W package, you will find the following components:

• MB Quart GMR1.5S2W Bluetooth Source Unit
• Two 6.5-inch Coaxial Marine Speakers
• Complete Wiring Harnesses
• Монтаждоочу жабдык

Figure 2.1: All components of the MB Quart GMR1.5S2W Marine Audio System.

3. Орнотуу жана орнотуу

Installation of the MB Quart GMR1.5S2W system is designed to be straightforward, requiring basic hand tools. The entire process can typically be completed within an hour, depending on your specific system configuration and vehicle.

3.1 Динамик орнотуу

The 6.5-inch coaxial speakers are universal in size, making them easy to integrate into most marine and powersport applications. They require a total mounting depth of 2.99 inches (75.95mm) and a cutout diameter of 3.14 inches (79.76mm).

3.1-сүрөт: Мисample of a 6.5-inch marine speaker installed in a boat panel.

3.2 Зымдарды туташтыруу

The system includes all necessary wiring harnesses. Each wire is conveniently labeled to ensure correct and easy connections, minimizing installation errors. The source unit provides four channels of output for the speakers and an additional RCA subwoofer output for expanding your audio system.

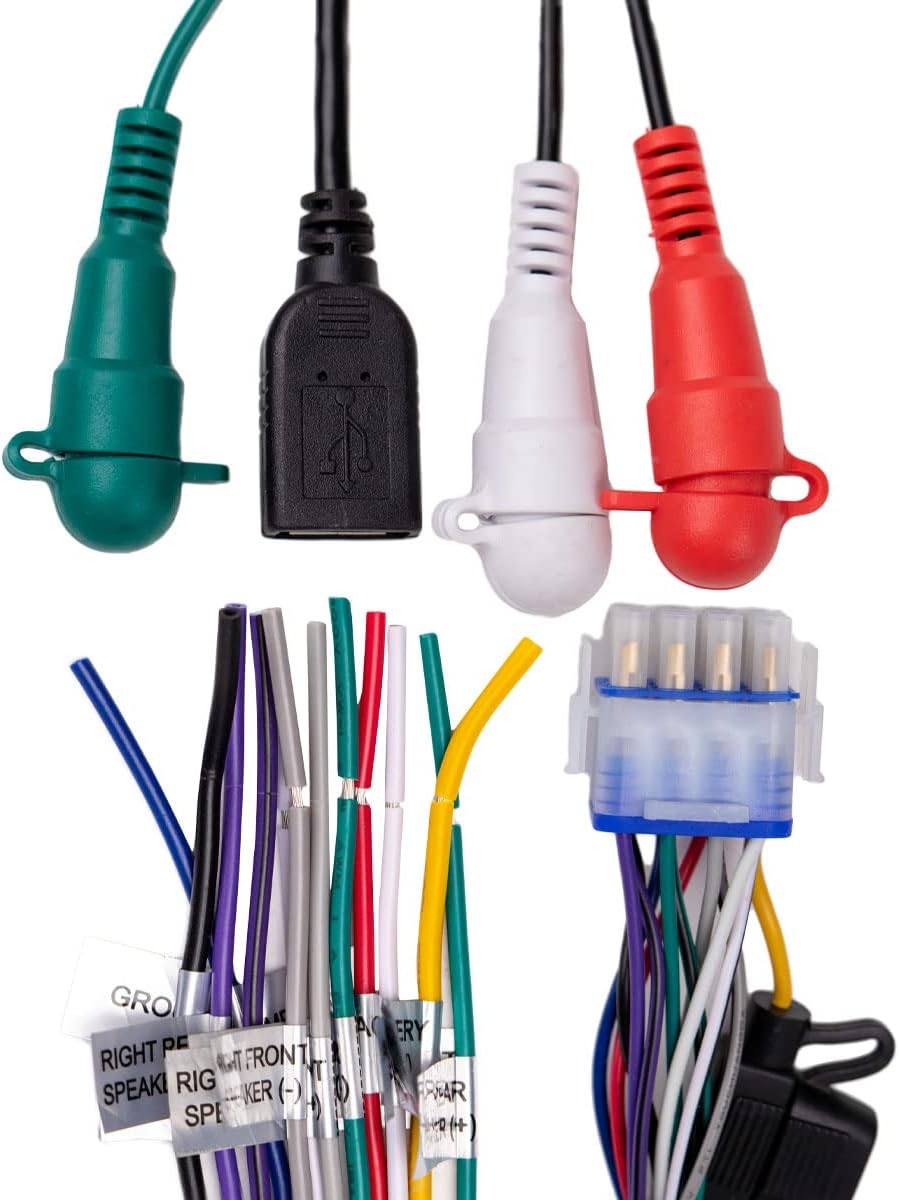

Figure 3.2: Labeled wiring harness for simplified installation.

3.3 Mounting the Source Unit

The gauge mount source unit comes with appropriate mounting hardware, including a U-bracket, threaded rods, and nuts, to secure it firmly in place.

Figure 3.3: Mounting bracket and hardware for the source unit.

4. Иштөө нускамалары

The GMR1.5S2W source unit offers versatile connectivity and intuitive controls for your marine audio experience.

4.1 Bluetooth байланышы

The Bluetooth-enabled source unit allows for quick pairing with your mobile devices. It automatically connects to the last paired device, providing seamless access to your music library. Press the 'BT' button to activate Bluetooth pairing mode.

4.2 USB and Auxiliary Inputs

In addition to Bluetooth, the unit features a USB input for playing media from USB storage devices and an auxiliary RCA input for connecting other audio sources. Use the 'USB' and 'AUX' buttons to switch between these input modes.

4.3 Башкаруу блогунун функциялары

The circular control unit provides easy access to all essential audio functions:

• BT баскычы: Bluetooth режимин иштетет.
• USB баскычы: Selects USB input.
• AUX баскычы: Selects auxiliary RCA input.
• Ойнотуу/Тындыруу баскычы (►►): Учурдагы тректи ойнотот же тындырат.
• Skip Forward Button (►►|): Кийинки трекке өтүү.
• Skip Backward Button (|◄◄): Мурунку трекке өтүшөт.
• Volume Knob (Center): Rotates to adjust the main volume.
• SUB- / SUB+ Buttons: Сабвуфердин чыгуу деңгээлин тууралайт.

Сүрөт 4.1: Алдыңкы view of the GMR1.5S2W control unit.

5. Техникалык тейлөө

To ensure the longevity and optimal performance of your MB Quart Marine Audio System, follow these maintenance guidelines:

• Тазалоо: Regularly clean the speakers and control unit with a soft, damp cloth. Avoid abrasive cleaners or solvents that could damage the marine-grade finish.
• Туташуу текшерүүлөрү: Periodically inspect all wiring connections for corrosion or looseness, especially after exposure to saltwater or harsh weather. Ensure all connections are secure and free from debris.
• Коргоо: While the system is waterproof and dustproof, consider using protective covers when the boat or vehicle is stored for extended periods, especially in extreme conditions.
• Айлана-чөйрөнү коргоо: Avoid exposing the system to direct, prolonged sunlight when not in use, as this can degrade materials over time.

6. Кыйынчылыктарды

If you encounter issues with your MB Quart Marine Audio System, refer to the following common troubleshooting steps:

• Кубат жок:
  • Check the main power connection and ensure it is securely connected to a 12V DC source.
  • Verify that the vehicle's battery has sufficient charge.
  • Inspect any inline fuses for the system and replace if blown.
• Динамиктерден үн жок:
  • Ensure the volume is turned up on both the source unit and your connected device.
  • Бардык динамик зымдарынын туташууларынын туура полярдуулугун жана бекем байланышын текшериңиз.
  • Confirm the correct audio input source (Bluetooth, USB, AUX) is selected on the unit.
  • If using the subwoofer output, ensure the subwoofer ampкөтөргүч күйгүзүлгөн жана туура туташтырылган.
• Bluetooth туташпай жатат:
  • Ensure Bluetooth is enabled on your mobile device and the source unit is in pairing mode.
  • Forget the device from your mobile device's Bluetooth settings and attempt to re-pair.
  • Move your mobile device closer to the source unit to ensure it is within range.
  • Restart both the source unit and your mobile device.

If these steps do not resolve the issue, please contact MB Quart customer support for further assistance.

7. Техникалык шарттар

8. Кепилдик жана колдоо

Your MB Quart GMR1.5S2W Marine Audio System comes with a Full Warranty, ensuring consistent out-of-the-box durability and peace of mind. Specific warranty details are typically provided with your product documentation.

For additional protection, 2-Year and 3-Year Protection Plans may be available for purchase. These plans offer extended coverage beyond the standard manufacturer's warranty.

For further support, technical assistance, or warranty claims, please visit the official MB Quart Store or contact their customer service department:

Visit the MB Quart Store on Amazon
