Pipishell Full Motion TV дубалга орнотулган колдонуучунун колдонмосу

Introduction

This manual provides detailed instructions for the safe installation and operation of your Pipishell Full Motion TV Wall Mount. Please read all instructions carefully before beginning installation. If you have any questions, contact customer support.

Сүрөт: бүттүview of Pipishell Full Motion TV Wall Mounts, models PIMFK3 and PILFK4, showing their articulating arm designs and TV mounting plates.

Маанилүү коопсуздук маалыматы

WARNING: Failure to read and follow these instructions may result in serious personal injury, property damage, or voiding of your warranty.

• Do not install this product on drywall alone. It must be mounted to a solid wood stud, concrete wall, or brick wall.
• Ensure the wall structure can safely support the combined weight of the mount and your television.
• Do not exceed the maximum weight capacity specified for each model: 99 lbs (45 kg) for PIMFK3 and 132 lbs (60 kg) for PILFK4.
• Телевизорду көтөрүү жана жайгаштыруу үчүн ар дайым жардамчыны колдонуңуз.
• Tighten all screws firmly but do not overtighten. Overtightening can damage screws and components.
• Коопсуздугун камсыз кылуу үчүн бардык байланыштарды мезгил-мезгили менен текшериңиз.

Пакеттин мазмуну

Орнотуудан мурун бардык компоненттердин бар экенин жана бузулбаганын текшериңиз. Эгерде кандайдыр бир тетиктер жок болсо же бузук болсо, Pipishell кардарларды тейлөө кызматына кайрылыңыз.

Монтаж компоненттери:

• Дубал плитасынын жыйындысы
• Сыналгы кронштейндери (2x)
• Орнотуу жабдууларынын комплекти (ар кандай бурамалар, шайбалар, аралыктар)
• көбүк деңгээли
• Кабель байламталары

Сүрөт: деталдуу view of the PIMFK3 mount, highlighting the security lock, compression hinges, and strong dual arms. Also shows the maximum weight capacity of 99 lbs and TV size range of 26-55 inches.

Сүрөт: деталдуу view of the PILFK4 mount, showcasing its six-arm structure, safety lock, extra-wide TV plate, and ultra-strong wall plate for heavy-duty support.

Талап кылынган куралдар (камтылган эмес)

• Карандаш
• Stud Finder (жыгач шпилькаларды орнотуу үчүн)
• Электрдик бургу
• Drill Bits (appropriate size for wall type and lag bolts)
• Розетка ачкычы же жөнгө салынуучу ачкыч
• Филлипс баш бурагычы
• Өлчөө лентасы

Орнотуу талаптары

TV шайкештиги:

• PIMFK3: Fits most 26-55 inch flat or curved LED, LCD, OLED TVs. Maximum weight capacity: 99 lbs (45 kg).
• PILFK4: Fits most 37-75 inch flat or curved LED, LCD, OLED TVs. Maximum weight capacity: 132 lbs (60 kg).

VESA шайкештиги:

This mount supports VESA patterns from 100x100mm up to 600x400mm. Measure the horizontal and vertical distance between the mounting holes on the back of your TV to determine its VESA pattern.

Дубал түрү шайкештиги:

The mount is designed for installation on:

• Single Wood Studs (PIMFK3) or 16-inch Wood Studs (PILFK4)
• Solid Concrete Walls
• Brick Walls

Гипсокартонго гана орнотпоңуз.

Image: Diagram illustrating VESA compatibility (Min 100mm, Max 400mm for PIMFK3) and suitable wall types: single wood stud, concrete wall, and brick wall.

Image: Diagram illustrating VESA compatibility (Max 600x400mm) and suitable wall types for PILFK4: 16-inch wood studs, concrete wall, and brick wall. A warning states: Do not mount on drywall alone.

Орнотуу жана орнотуу

Step 1: Determine Mounting Location and Wall Type

1. Use a stud finder to locate the center of a wood stud if installing on wood. Mark the stud edges.
2. For concrete or brick walls, ensure the wall is solid and free of obstructions.
3. Hold the wall plate against the wall at your desired height and use a pencil to mark the pilot hole locations. Use the included bubble level to ensure it is level.

2-кадам: Пилоттук тешиктерди бургула

• For wood studs: Drill pilot holes using a 7/32 inch (5.5mm) drill bit to a depth of 2.2 inches (55mm).
• For concrete/brick walls: Drill pilot holes using a 3/8 inch (10mm) masonry drill bit to a depth of 2.4 inches (60mm). Insert concrete anchors into the holes, ensuring they are flush with the wall surface.

3-кадам: Дубал плитасын дубалга бекитиңиз

• Align the wall plate with the drilled holes.
• Secure the wall plate to the wall using the provided lag bolts and washers. Tighten firmly with a socket wrench.

4-кадам: Телевизордун кашааларын сыналгыга бекитиңиз

1. Lay your TV face down on a soft, clean surface.
2. Identify the correct diameter and length of screws for your TV's VESA mounting holes. Use the provided spacers if the TV back is uneven or if screws are too long.
3. Attach the two TV brackets to the back of your TV using the chosen screws and washers. Ensure the brackets are centered and level.

Step 5: Mount TV to Wall Plate

• With an assistant, carefully lift the TV and hook the TV brackets onto the wall plate.
• Ensure the TV is securely seated on the wall plate.
• Engage the safety locks on the bottom of the TV brackets to prevent accidental dislodging.

Иштөө жана тууралоо

Your Pipishell Full Motion TV Wall Mount allows for various adjustments to optimize your viewтажрыйбасы.

Эңкейүүнү тууралоо:

The mount allows for a tilt range of -15° to +5° (PIMFK3) or -15° to +5° (PILFK4). Loosen the tilt adjustment knobs on the TV brackets, adjust the TV to the desired angle, and then re-tighten the knobs to secure the position.

Айланууну жөндөө:

The articulating arm allows the TV to swivel up to 90° left or right (PIMFK3) or 120° (PILFK4), depending on TV size and wall distance. Gently push or pull the TV to the desired viewбурч.

Деңгээлди тууралоо:

After installation, you can adjust the TV's level by ±3°. Loosen the leveling screws on the TV brackets, adjust the TV to be perfectly level, and then re-tighten the screws.

Кеңейтүү жана артка тартуу:

The mount can extend the TV away from the wall up to 19.5 inches (PIMFK3) or 16 inches (PILFK4) and retract it to a minimum distance of 3.2 inches (PIMFK3) or 3.1 inches (PILFK4) from the wall. Gently pull or push the TV to adjust the distance.

Image: Demonstrates the PIMFK3 mount's ability to pull out to 19.5 inches, tilt ±5° for anti-glaring, swivel ±90°, and level ±3° for an optimal viewтажрыйбасы.

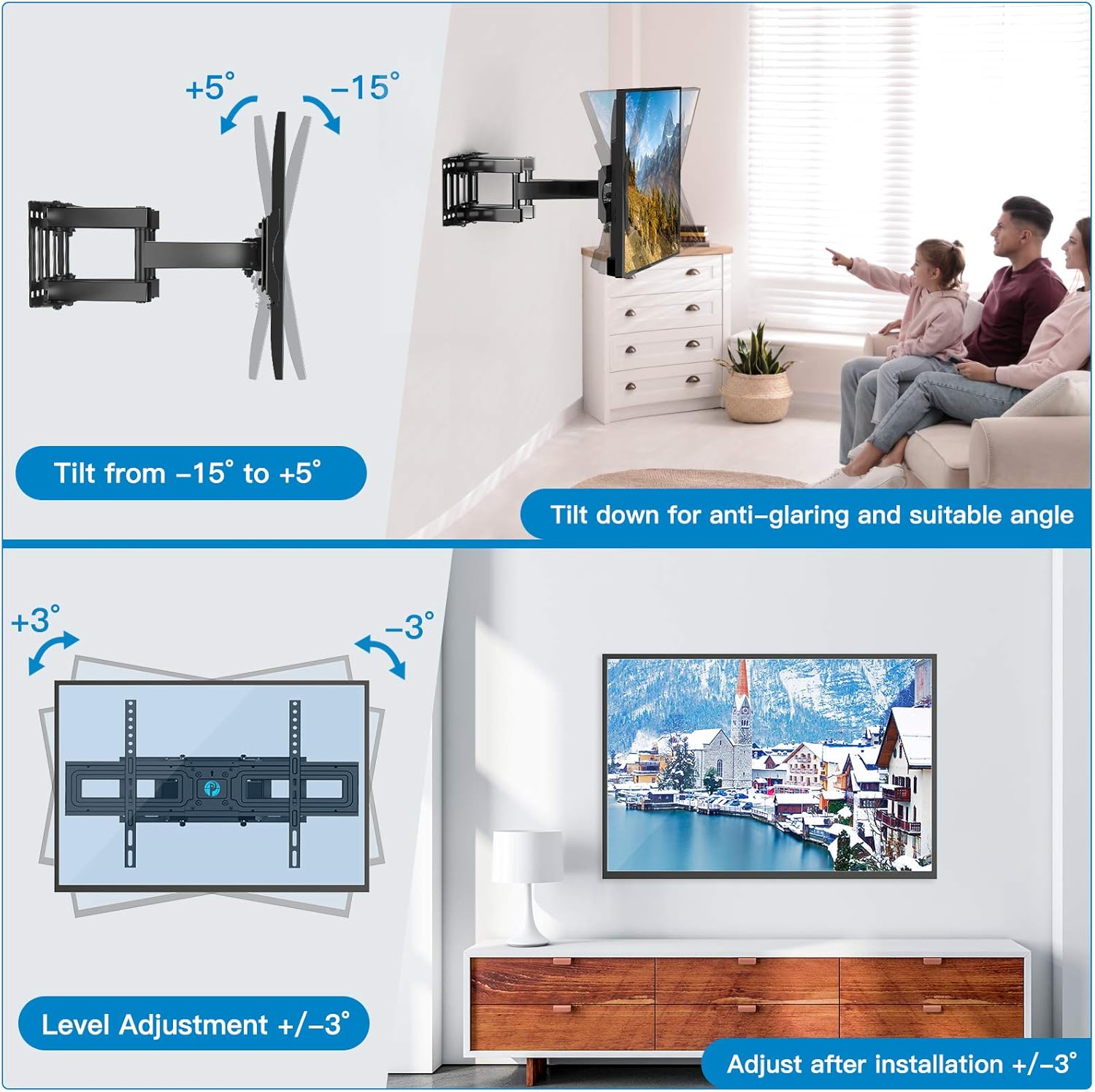

Image: Illustrates the PILFK4 mount's tilt range from -15° to +5° and level adjustment of ±3° for fine-tuning the TV's position after installation.

Image: Shows the PILFK4 mount's swivel capability of 120° and its ability to retract to 3.1 inches and extend up to 16 inches from the wall, allowing for flexible viewing positions and space saving.

Техникалык тейлөө

• Periodically check that all screws and connections are secure. Re-tighten if necessary.
• Монтажды жумшак, кургак чүпүрөк менен тазалаңыз. Абразивдүү тазалагычтардан же эриткичтерден качыңыз.
• Ensure cables are properly managed and not pinched by moving parts of the mount. Use the provided cable ties to keep cables tidy.

Проблемаларды чечүү

Телевизор орнотулгандан кийин тегиз эмес:

Loosen the level adjustment screws on the TV brackets, adjust the TV to the desired level using a bubble level, and then re-tighten the screws.

Mount feels loose on the wall:

Immediately remove the TV from the mount. Check that all lag bolts securing the wall plate to the wall are fully tightened. If the wall material is damaged, consult a professional for repair before re-mounting.

Difficulty adjusting tilt or swivel:

Ensure that the tilt adjustment knobs are sufficiently loosened before attempting to adjust the tilt. For swivel, ensure no cables are snagged or preventing movement. Do not force adjustments.

Жетишпеген бөлүктөр:

Refer to the 'Package Contents' section. If any parts are missing, contact Pipishell customer support for assistance.

Техникалык шарттар

Кепилдик жана Кардарларды колдоо

Pipishell products are manufactured with quality and care. For warranty information or technical assistance, please contact Pipishell customer support through the retailer's platform or the official Pipishell webсайт.

Please have your product model number (PIMFK3 or PILFK4) and purchase date available when contacting support.
