1. Киришүү
The Twinkly Dots TWD200STP-TUS are app-controlled flexible LED string lights designed for indoor use. This model features 200 RGB LEDs on a 33-foot clear wire, powered via USB. These smart lights combine the versatility of classic LED strings with advanced app control, allowing for extensive customization and integration into smart home ecosystems. This manual provides essential information for setup, operation, maintenance, and troubleshooting to ensure optimal performance of your Twinkly Dots.

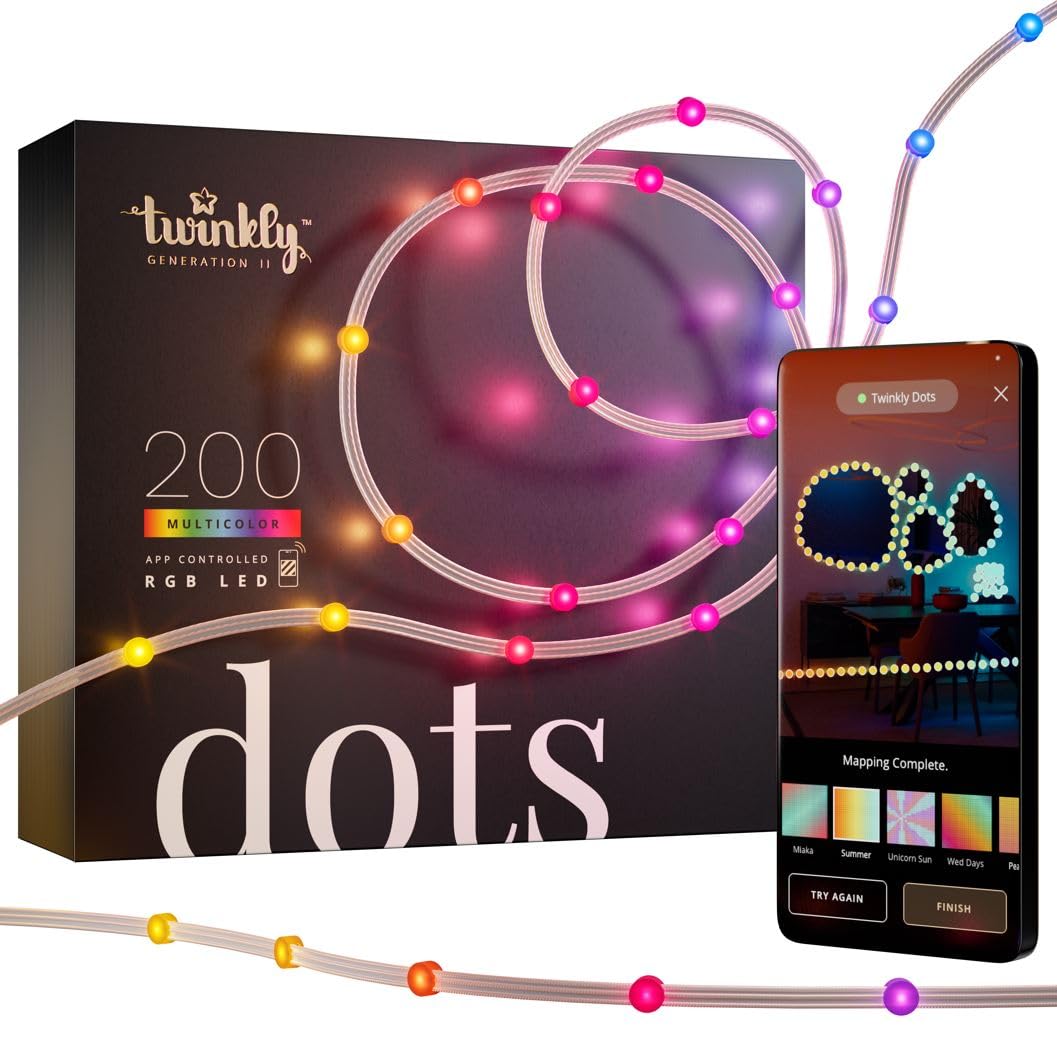

Image 1.1: Twinkly Dots product packaging and lights with smartphone app interface.
2. Коопсуздук маалыматы
Please read and follow these safety instructions carefully to prevent injury or damage to the product:
- Бул продукт үчүн иштелип чыккан үй ичинде гана колдонуу. Do not expose to water, moisture, or outdoor elements.
- Ensure the USB power source used is compatible and provides the correct voltage and current (5V, 1A minimum).
- Do not cut, modify, or attempt to repair the string lights or power cable. Unauthorized modifications may void the warranty and pose safety risks.
- Keep the lights away from heat sources, open flames, and flammable materials.
- Avoid excessive bending or twisting of the wire, which could damage internal components.
- Балдар жана үй жаныбарлары жетпеген жерде сактаңыз.
3. Пакеттин мазмуну
Пакетиңизде бардык буюмдар бар экенин текшериңиз:
- 1x Twinkly Dots String Lights (200 RGB LEDs, 33 ft Clear Wire)
- 1x USB кубат кабели
- Adhesive Pads (pre-attached or included separately)
- Ыкчам баштоо колдонмосу (эгер камтылган болсо)
4. Орнотуу нускамалары
4.1 Физикалык орнотуу
The Twinkly Dots feature small, pill-shaped bulbs that can be wrapped around objects or affixed to surfaces using the included adhesive pads. Plan your desired layout before permanent attachment.
- Ороо: Gently wrap the string lights around furniture, plants, or other decorative items.
- Клей монтаждоо: For flat surfaces, use the adhesive pads on the back of each dot to secure the lights. Ensure the surface is clean and dry for optimal adhesion.
Image 4.1: Twinkly Dots installed around various objects in a room.
4.2 Кубат туташтыруу
Connect the USB power cable to the Twinkly Dots and plug the other end into a compatible USB power adapter (not included) or a USB port. The lights will briefly illuminate to indicate power.
4.3 Колдонмону орнотуу
Download the free Twinkly app from the App Store (for iOS devices) or Google Play Store (for Android devices). Издөө "Twinkly" and install the application.
Image 4.2: Twinkly App icon for download.
4.4 Initial Connection (Bluetooth/Wi-Fi)
Follow the in-app instructions to connect your Twinkly Dots:
- Twinkly колдонмосун ачып, аккаунт түзүңүз же кириңиз.
- Select "Add New Device" and choose your Twinkly Dots model.
- The app will guide you through connecting via Bluetooth. Ensure Bluetooth is enabled on your smartphone.
- Once connected via Bluetooth, the app will prompt you to connect the lights to your home Wi-Fi network. For best performance, use a 2.4GHz Wi-Fi network.
- During the Wi-Fi setup, you may need to press and hold the button on the Twinkly controller until it blinks blue, indicating it's in pairing mode.
Image 4.3: Twinkly app showing a newly found device ready for connection.
5. Иштөө нускамалары
5.1 App Control and Customization
The Twinkly app provides extensive control over your lights:
- Preset Effects: Browse and apply a wide range of pre-designed lighting effects and animations.
- FX Wizard: Use the FX Wizard to create your own custom effects. You can virtually draw effects with any of the 16 million available colors.
- Карталоо: The app allows you to map the physical layout of your lights, enabling precise effect application.
- Ойнотмо тизмелер: Create automated playlists of your favorite effects to cycle through.
- Таймерлер: Жарыктарыңыздын автоматтык түрдө күйүп/өчүп турушу үчүн графиктерди коюңуз.
- Dimming & Brightness: Adjust the intensity of the lights to suit your mood or environment.
Image 5.1: Twinkly app interface showing a selection of lighting effects.
Image 5.2: Twinkly app indicating successful light mapping.
5.2 Бир нече түзмөктөрдү топтоштуруу
The Twinkly app supports grouping multiple Twinkly devices for synchronized displays. Refer to the app's help section for detailed instructions on how to create and manage groups.
5.3 Smart Home интеграциясы
Twinkly Dots can be integrated with various smart home platforms for hands-free voice control and automation:
- Үн жардамчылары: Compatible with Google Assistant, Amazon Alexa, and Apple HomeKit. Follow the respective platform's instructions to link your Twinkly account.
- Оюн интеграциясы: Sync your lights with multi-sensory gameplay through platforms like Razer Chroma RGB and Omen Light Studio.
Image 5.3: Twinkly Dots controlled via Amazon Alexa voice command.
5.4 Музыканы синхрондоштуруу
For dynamic lighting effects synchronized with music, the Twinkly Dots can be paired with Twinkly Music (sold separately). This smart USB-powered sound sensor interprets ambient music and applies synchronized effects to your lights.
Image 5.4: Twinkly Dots displaying effects synchronized with music.
6. Техникалык тейлөө
6.1 Тазалоо
To clean your Twinkly Dots, ensure they are unplugged from the power source. Use a soft, dry cloth to gently wipe away dust or debris. Do not use liquid cleaners or abrasive materials.
6.2 Сактоо
When not in use, store the Twinkly Dots in their original packaging or a clean, dry place away from direct sunlight and extreme temperatures. Avoid tangling the wires to prevent damage.
7. Кыйынчылыктарды
If you encounter issues with your Twinkly Dots, refer to the following common problems and solutions:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Жарыктар күйбөйт. | No power or faulty connection. | Ensure the USB power cable is securely connected to both the lights and a working USB power source. Try a different USB port or adapter. |
| Cannot connect to the Twinkly app. | Bluetooth/Wi-Fi issues, incorrect pairing mode. | Ensure Bluetooth is enabled on your device. Verify your Wi-Fi network is 2.4GHz. Press and hold the controller button until it blinks blue to enter pairing mode. Restart the app and try again. |
| Adhesive pads are not holding. | Surface not clean, unsuitable surface, or environmental factors. | Clean the surface thoroughly before application. For long-term or challenging installations, consider using additional securing methods like small clips or stronger adhesive tape. |
| Some LEDs are discolored or not working. | Hardware issue. | This may indicate a hardware fault. Contact Twinkly customer support for assistance. |
8. Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Бренд | Twinkly |
| Модель номери | TWD200STP-TUS |
| Түс | Clear wire, Multicolor LEDs |
| Ички/тышкы колдонуу | Indoor |
| Өзгөчө өзгөчөлүк | жоон |
| Жарык булагы түрү | LED |
| Power Source | DC (USB-Powered) |
| Жарык булактарынын саны | 200 |
| Ватtage | 5 ватт |
| Элементтин узундугу | 33 Фут |
| Материал | Пластик |
| Башкаруу ыкмасы | Колдонмо (Android, iOS) |
| Сууга туруктуулук деңгээли | Water Resistant (for indoor use, not submersible) |
| Элемент Салмагы | 2 фунт |
9. Кепилдик жана колдоо
Twinkly products are covered by a manufacturer's warranty. For specific warranty details, please refer to the documentation included with your product or visit the official Twinkly website. If you require technical assistance, have questions about your product, or need to make a warranty claim, please contact Twinkly customer support directly.
Көбүрөөк маалымат жана колдоо булактарын таба аласыз Amazon'догу Twinkly дүкөнү.
