Introduction
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your new Teka TMX 60 Negra Kitchen Hood. Please read these instructions carefully before installation and use, and keep them for future reference.
The Teka TMX 60 Negra is a practical kitchen hood designed for air recirculation, featuring an active carbon filter. It offers a maximum extraction capacity of 250 m³/h and operates with a sound level ranging from 44 dB (minimum) to 66 dB (maximum).
Коопсуздук маалыматы
WARNING: Please read all safety warnings and instructions carefully before installing or using this appliance. Failure to follow these instructions may result in electric shock, fire, and/or serious injury.
- Ensure the electrical installation is compliant with local regulations and that the voltage шаймандын талаптарына дал келет (110V).
- Туура орнотулган чыпкалары жок капотту иштетпеңиз.
- Regularly clean the filters to maintain optimal performance and prevent fire hazards.
- Капоттун астында жалындабаңыз.
- Бул шайман тиричиликте гана колдонууга арналган.
- Кандайдыр бир тазалоодон же тейлөөдөн мурун шайманды кубаттан ажыратыңыз.
- Иштеп жаткан жана тазалоо учурунда балдарды шаймандан алыс кармаңыз.
Продукт бүттүview
The Teka TMX 60 Negra kitchen hood is designed for efficient air purification in your kitchen. Key features include:
- Эки ылдамдык: Adjustable fan speeds for varying ventilation needs.
- LED Lamp: Provides illumination for your cooking area.
- Washable Metal Filters: Easy to remove and clean, ensuring long-term performance.
- Активдүү көмүр чыпкасы: For effective air recirculation and odor removal.
- Under Cabinet Mount: Designed for seamless integration into your kitchen cabinetry.
Figure 1: The Teka TMX 60 Negra kitchen hood, black finish, installed under a cabinet in a contemporary kitchen setting. The hood features two visible metal filters and control knobs on the front right.

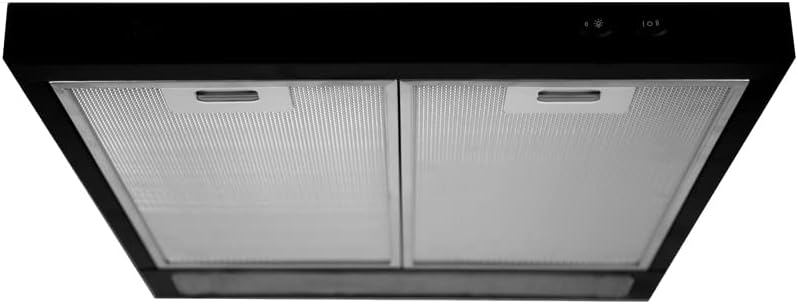

Сүрөт 2: Жакын пландан view from below the Teka TMX 60 Negra kitchen hood, highlighting the two removable metal grease filters and the control knobs for fan speed and lighting on the right side.
Орнотуу жана орнотуу
The Teka TMX 60 Negra kitchen hood is designed for under-cabinet mounting. Proper installation is crucial for optimal performance and safety.
Орнотуу талаптары:
- Монтаж түрү: Under Cabinet Mount.
- Электр байланышы: 110V. Ensure a dedicated circuit is available if required by local codes.
- Тазалоо: Maintain appropriate clearance between the cooking surface and the bottom of the hood as per local building codes and appliance manufacturer recommendations.
Орнотуу кадамдары:
- Министрлер кабинетин даярдоо: Ensure the cabinet area where the hood will be mounted is clean, dry, and structurally sound.
- Орнотуу пункттарын белгилөө: Use the provided template or measure carefully to mark the drilling points for mounting screws on the underside of the cabinet. Refer to the dimension diagram for guidance.
- Бургулоо тешиктери: Белгиленген пункттарда пилоттук тешиктерди бургула.
- Капот тоосу: Secure the hood to the cabinet using appropriate screws. Ensure it is level and firmly attached.
- Электр байланышы: Connect the hood to the electrical supply according to wiring diagrams and local electrical codes. It is recommended to have this step performed by a qualified electrician.
- Чыпкаларды орнотуу: Insert the metal grease filters and the active carbon filter (if not pre-installed) into their respective slots.
- Сыноо операциясы: Turn on the power and test all functions (fan speeds, light) to ensure proper operation.
Figure 3: An illustrative diagram detailing the recommended dimensions for installing the Teka TMX 60 Negra kitchen hood under a cabinet. Key measurements of 15 units (height) and 50 units (width) are indicated, likely in centimeters, for proper fitment.
Иштөө нускамалары
The Teka TMX 60 Negra kitchen hood is operated via simple knob controls located on the front panel.
Башкаруу каражаттары:
- Fan Speed Knob: This knob controls the extraction power. Rotate it to select between two available speeds:
- Speed 1: For light cooking and general ventilation.
- Speed 2: For heavy cooking, frying, or when strong extraction is needed.
- Жарык өчүргүч: This switch controls the incandescent lamp. Flip the switch to turn the light ON or OFF, illuminating your cooking surface.
For best results, turn on the hood a few minutes before you start cooking and leave it on for a few minutes after you finish to ensure all odors and steam are cleared.
Техникалык тейлөө
Regular maintenance of your Teka TMX 60 Negra kitchen hood will ensure its longevity and optimal performance.
Cleaning Metal Grease Filters:
The metal grease filters should be cleaned regularly, depending on usage (e.g., monthly for average use). These filters are dishwasher safe.
- Чыпкаларды алып салуу: Locate the release tabs or handles on the filters and carefully pull them down or slide them out.
- Жуу: Place the filters in a dishwasher on a normal cycle, or wash them by hand using hot water and a non-abrasive detergent.
- Кургак: Allow the filters to dry completely before re-installing them.
- Кайра орнотуу: Carefully slide or snap the dry filters back into their positions until they are securely in place.
4-сүрөт: деталдуу view of the two removable metal grease filters of the Teka TMX 60 Negra kitchen hood, showing their perforated surface and the handles for easy removal and cleaning.
Replacing Active Carbon Filter:
The active carbon filter is used for air recirculation and helps remove odors. It cannot be washed and must be replaced periodically, typically every 3-6 months depending on usage.
- Кирүү чыпкасы: Refer to your hood's specific design for accessing the carbon filter compartment, usually located behind the metal grease filters.
- Эски чыпканы алып салуу: Carefully remove the old, saturated carbon filter.
- Жаңы чыпканы орнотуу: Place a new active carbon filter (Teka genuine part recommended) into the compartment, ensuring it fits securely.
- Re-install Metal Filters: Re-attach the metal grease filters.
Жалпы тазалоо:
- Clean the exterior surfaces of the hood with a soft cloth and mild, non-abrasive detergent.
- Абразивдүү тазалоочу каражаттарды, болоттон жасалган жүндү же катуу химиялык заттарды колдонбоңуз, анткени алар бетине зыян келтириши мүмкүн.
- Ensure the hood is disconnected from power before cleaning.
Проблемаларды чечүү
Кардарларды тейлөө кызматына кайрылуудан мурун, төмөнкү жалпы маселелерди жана аларды чечүү жолдорун караңыз:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Капот күйбөйт. | Электр энергиясы жок. Башкаруу элементтери өчүк. |
Электр розеткасын жана өчүргүчтү текшериңиз. Ensure control knobs are in an ON position. |
| Начар казып алуу. | Май чыпкалары бүтүп калган. Carbon filter is saturated. Incorrect fan speed. |
Clean metal grease filters. Активдүү көмүр чыпкасын алмаштырыңыз. Select a higher fan speed. |
| Ашыкча ызы-чуу. | Filters not properly installed. Бош компоненттер. |
Ensure all filters are securely in place. Check for any loose screws or parts. |
| Жарык иштебейт. | Лампочка туура эмес. Жарыктын которгучу өчүк. |
Replace the incandescent lamp. Жарык которгучу ON абалында экенин текшериңиз. |
Эгерде бул чечимдерди колдонуп көргөндөн кийин да көйгөй чечилбесе, Teka кардарларды колдоо кызматына кайрылыңыз.
Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Бренд | Тека |
| Модел | TMX 60 Negra |
| Монтаж түрү | Кабинеттин астындагы |
| Материал | Дат баспаган болот |
| Түс | Кара |
| Продукциянын өлчөмдөрү (D x W x Y) | 19.68" x 23.62" x 5.9" (50см x 60см x 15см) |
| Элемент Салмагы | 10.12 фунт (4.6 килограмм) |
| Аба агымынын кубаттуулугу | 250 m³/h (2.5E+2 CMPH) |
| Ызы-чуу деңгээли | Min. 44 dB - Max. 66 dB |
| Ылдамдыктын саны | 2 |
| Controls Type | баскыч |
| Жарык булагы түрү | Жылытуу |
| Чыпка түрү | Activated Carbon Filter, Metal filters |
| Камтылган компоненттер | Metal filters (dishwasher safe) |
| Тtage | 110V |
| Жылдык энергия керектөө | Жылына 200 киловатт саат |
Кепилдик жана колдоо
For warranty information and customer support, please refer to the documentation included with your purchase or visit the official Teka webсайт. Ар кандай кепилдик дооматтары үчүн сатып алганыңыздын далилин сактаңыз.
For technical assistance, spare parts, or service requests, please contact Teka customer service through their official channels. When contacting support, please have your product model number (TMX 60 Negra) and serial number (if applicable) ready.
