ALEAPOW K4 Cordless Circular Saw

1. Киришүү

Thank you for choosing the ALEAPOW K4 Cordless Circular Saw. This lightweight and powerful mini saw is designed for efficient cutting of various materials including wood, plastic, and soft metal. Its cordless design offers excellent mobility, making it ideal for both indoor and outdoor projects. This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your new tool.

Камтылган компоненттер:

• 1 × ALEAPOW Cordless Circular Saw
• 1 × 20V 2.0Ah Lithium-ion Battery
• 1 × 2A Fast Charger
• 1 × 4-1/2" 24T TCT Blade (for wood)
• 1 × 4-1/2" 60T HSS Blade (for soft metal/plastics)
• 1 × Parallel Guide
• 1 × Hex Key
• 1 × Vacuum Adapter

2. Коопсуздук маалыматы

Always observe basic safety precautions when using electric tools to reduce the risk of fire, electric shock, and personal injury. Read all instructions carefully before operating the saw.

Жалпы коопсуздук эрежелери:

• Тиешелүү жеке коргоочу шаймандарды (ЖКК) кийиңиз, анын ичинде коргоочу көз айнек, угууну коргоо жана кол кап.
• Жумушчу жерди таза жана жакшы жарыктандырыңыз. Башаламан же караңгы жерлер кырсыкка чакырат.
• Жарылуучу чөйрөдө, мисалы, күйүүчү суюктуктар, газдар же чаң бар жерде электр шаймандарын иштетпеңиз.
• Электр шайманын иштетип жатканда балдарды жана жанында тургандарды алыс кармаңыз.
• Даярдоочу бөлүктүн бекем clamped or held before cutting.

Specific Saw Safety Features:

• Кош коопсуздук которгучу: The saw will only start after pressing both the safety switch and the on/off trigger simultaneously. This prevents accidental startup.
• Blade Guard: Always ensure the blade guard is functioning correctly and is not obstructed.
• Лазердик индикатор: The laser indicator is a Class 2 laser product. Do not stare directly into the laser beam.

3. Продукт бүтүп калдыview

Familiarize yourself with the components of your ALEAPOW K4 Cordless Circular Saw.

Figure 3.1: Key components of the ALEAPOW K4 Cordless Circular Saw, including the 2.0Ah battery, ergonomic rubber handle, laser indicator, double safety trigger, power switch, spindle lock, vacuum cleaner interface, bevel adjustment knob, longer iron plate, and depth adjustment knob.

Негизги компоненттер:

• 2.0Ah Батарея: Зымсыз электр кубатын камсыз кылат.
• Ergonomic Rubber Handle: Ыңгайлуу жана ишенимдүү кармоо үчүн иштелип чыккан.
• Лазердик индикатор: Projects a red line for precise cutting guidance.
• Double Safety Trigger: Requires simultaneous activation for operation.
• Кубат которгучу: Main on/off control.
• Шпиндель кулпусу: Used to secure the blade for installation or removal.
• Vacuum Cleaner Interface: Allows connection to a vacuum for dust collection.
• Жөндөө баскычы: Adjusts the cutting angle from 0-45 degrees.
• Тереңдикти жөндөө баскычы: Adjusts the cutting depth.

4. Техникалык шарттар

5. Орнотуу

5.1 Батареяны заряддоо

The 20V 2.0Ah Lithium-ion battery should be fully charged before first use. The included 2A fast charger can fully charge the battery in approximately 1 hour.

1. Заряддоо түзүлүштү стандарттуу розеткага туташтырыңыз.
2. Батареяны кубаттагычтын үстүнө, ал ордуна чыкылдаган үн чыкканча жылдырыңыз.
3. The charger's indicator light will show the charging status. Refer to the charger's specific instructions for light indications.
4. Толук заряддалгандан кийин, батареяны заряддагычтан чыгарыңыз.

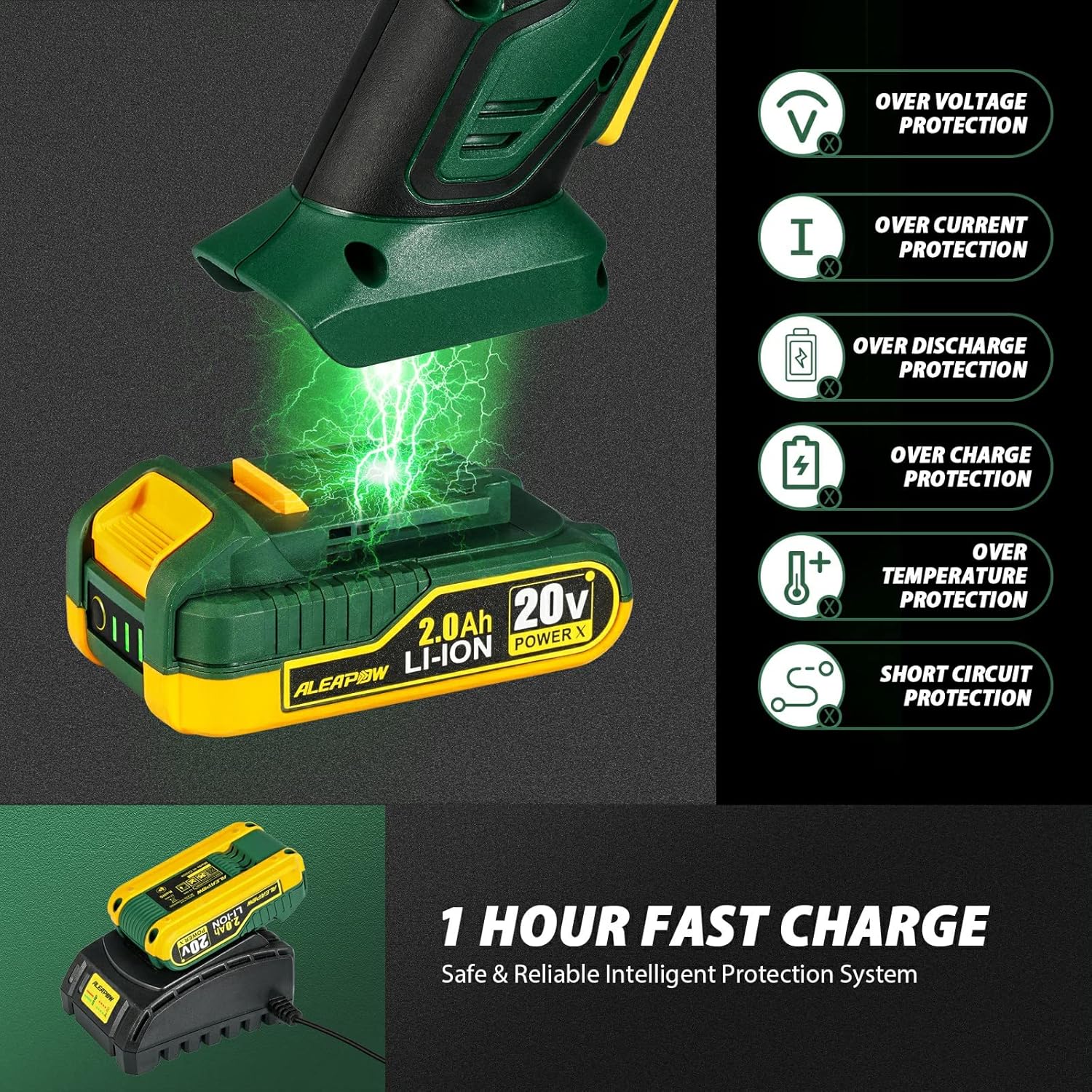

Figure 5.1: The 20V 2.0Ah Li-Ion battery being charged on the 2A fast charger. The system includes multiple protections such as over voltage, over current, over discharge, over charge, over temperature, and short circuit protection.

5.2 Бычакты орнотуу/алып салуу

Always disconnect the battery before installing or removing the blade.

1. Бычактын айланышына жол бербөө үчүн шпиндельди бекитүү баскычын басып, кармап туруңуз.
2. Бычакты кармап туруучу бураманы бошотуу үчүн берилген алты бурчтуу ачкычты колдонуңуз.
3. Сырткы фланецти жана эски бычакты алып салыңыз.
4. Place the new blade onto the spindle, ensuring the teeth are pointing in the direction of rotation indicated by the arrow on the saw and blade.
5. Replace the outer flange and tighten the blade retaining screw firmly with the hex key while holding the spindle lock.

Figure 5.2: The two included blades: a 24T TCT blade suitable for wood cutting and a 60T HSS blade for plastics and soft metal cutting. Both are 4-1/2 inches in diameter.

5.3 Attaching Parallel Guide and Vacuum Adapter

• Параллель жетектөөчү: Insert the parallel guide into the slot on the front of the saw's base plate and secure it with the locking screw. This helps achieve straight cuts.
• Вакуум адаптери: Attach the vacuum adapter to the dust port on the saw. Connect a vacuum cleaner hose to the adapter to keep your work area clean and improve cut line visibility.

6. Иштөө нускамалары

Ensure the battery is fully charged and securely inserted into the saw before operation.

6.1 Күйгүзүү/өчүрүү

To start the saw, simultaneously press the safety switch (usually a small button near the handle) and then squeeze the main trigger switch. To turn off, release the trigger switch.

6.2 Кесүү тереңдигин жөндөө

The cutting depth can be adjusted to suit the thickness of your material. Loosen the depth adjustment knob, set the desired depth, and then tighten the knob securely.

• Maximum cutting depth at 90°: 1-11/16" (42.8mm)
• Maximum cutting depth at 45°: 1-1/8" (28mm)

6.3 Adjusting Bevel Angle (0-45°)

For angled cuts, adjust the bevel angle. Loosen the bevel adjustment knob, tilt the base plate to the desired angle between 0 and 45 degrees, and then tighten the knob firmly.

Figure 6.1: The ALEAPOW K4 allows for 0-45 degree bevel cutting, with a maximum cutting depth of 1-1/8 inches at 45 degrees.

6.4 Лазердик жол көрсөткүчтү колдонуу

The integrated laser guide projects a red line onto your workpiece, assisting in maintaining a straight cutting path. Align the laser line with your marked cut line for increased precision.

Figure 6.2: The adjustable laser guide and scale ruler provide enhanced precision for straight cuts, ensuring accuracy during operation.

6.5 Кесүү техникасы

Always ensure the blade is spinning at full speed before engaging with the material. Apply steady, even pressure and allow the saw to do the work. Avoid forcing the saw through the material, as this can lead to kickback or damage to the tool/blade.

Figure 6.3: The ALEAPOW K4's compact design and ergonomic handle allow for comfortable one-handed operation, making it versatile for cutting wood, PVC pipes, and soft metals.

7. Техникалык тейлөө

Үзгүлтүксүз тейлөө сиздин тегерек арааңыздын узак жана оптималдуу иштешин камсыз кылат.

• Тазалоо: After each use, clean the saw body, blade guard, and base plate with a dry cloth. Remove any sawdust or debris from the ventilation openings. Do not use solvents or abrasive cleaners.
• Бычакты багуу: Inspect blades regularly for sharpness and damage. Replace dull or damaged blades promptly to ensure safe and efficient cutting.
• Батареяны сактоо: Store batteries in a cool, dry place away from direct sunlight and extreme temperatures. For long-term storage, charge the battery to approximately 50% capacity.
• Жалпы текшерүү: Periodically check all screws and fasteners for tightness. Ensure the blade guard moves freely and retracts properly.

8. Кыйынчылыктарды

This section addresses common issues you might encounter with your ALEAPOW K4 Cordless Circular Saw.

For issues not listed here or if solutions do not resolve the problem, please contact ALEAPOW customer support.

9. Кепилдик жана колдоо

ALEAPOW products are manufactured to high-quality standards. For information regarding warranty coverage, returns, or technical support, please refer to the warranty card included with your product or visit the official ALEAPOW brand store.

Official ALEAPOW Brand Store: Visit ALEAPOW Store on Amazon

When contacting support, please have your product model (K4) and purchase information readily available.
