Giant Recon-E HL600 Front Light User Manual

Продукт бүттүview

The Giant Recon-E HL600 is a smart and powerful front light specifically designed for e-bikes. It integrates seamlessly with various e-bike motor systems to provide enhanced power and extended runtimes. Featuring an optimized optical lens and CREE LEDs, this light offers superior illumination and can be controlled remotely for convenience.

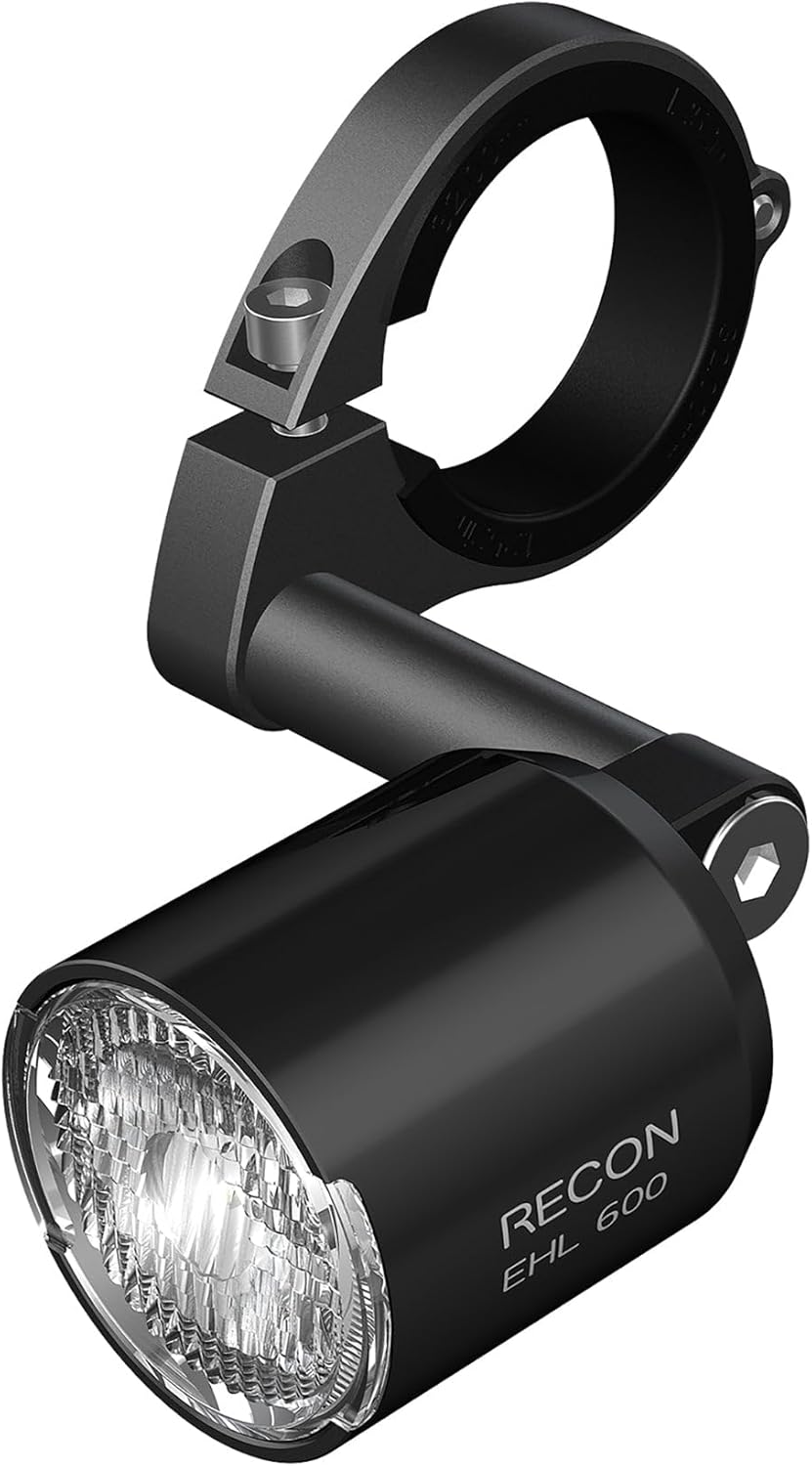

Image: The Giant Recon-E HL600 Front Light, shown detached from a bicycle, highlighting its compact design and integrated mounting bracket. The light features a clear lens and a durable black aluminum housing.

Орнотуу жана орнотуу

The Recon-E HL600 offers multiple mounting options for versatile installation on your e-bike.

Монтаждоо параметрлери:

• Fork Mount: Төмөн профессионал үчүнfile installation near the front wheel.
• Дөңгөлөктүү: Integrates with the bicycle's stem for a central position.
• Рулду орнотуу: A common and easily accessible mounting point.

Ensure the light is securely fastened using the provided hardware. Connect the light to your e-bike's motor system. A connector for Giant motors is included. Connectors for Shimano and Bosch motor systems are sold separately.

Image: The Giant Recon-E HL600 Front Light mounted underneath a bicycle handlebar, demonstrating a typical installation. The light is positioned to illuminate the path ahead.

Электр байланышы:

The Recon-E HL600 operates on a voltage range of 6-24V and draws 1.2A. Connect the light directly to the designated light output port of your e-bike's motor system. Refer to your e-bike's manual for specific wiring instructions if needed.

Иштөө нускамалары

The Recon-E HL600 is designed for easy operation, often controlled via a handlebar remote switch.

Күйгүзүү/өчүрүү:

The light typically powers on and off with your e-bike's system or via the dedicated handlebar remote switch. Consult your e-bike's display or the light's remote for specific power control methods.

Жарык режимдери:

The light features a Low Beam Mode with 600 lumens output. Additional modes, if available, can be cycled through using the handlebar remote switch.

• Low Beam Mode: Provides 600 lumens for general riding conditions.

The remote switch allows for on-the-fly control, enabling you to adjust settings without removing your hands from the handlebars.

Техникалык тейлөө

Proper maintenance ensures the longevity and optimal performance of your Recon-E HL600 Front Light.

Тазалоо:

Wipe the light's housing and lens with a soft, damp cloth. Avoid using abrasive cleaners or solvents, as these can damage the finish or the optical lens.

Суу каршылык:

The light has an IPX6 waterproof rating, meaning it is protected against powerful water jets. While it can withstand rain and splashes, it is not designed for submersion.

Сактагыч:

When not in use for extended periods, store the light in a cool, dry place away from direct sunlight.

Проблемаларды чечүү

If you encounter issues with your Recon-E HL600, refer to the following common troubleshooting steps:

If the problem persists after attempting these solutions, contact Giant customer support or an authorized service center.

Техникалык шарттар

Кепилдик жана колдоо

For warranty information and customer support, please refer to the official Giant Bicycles website or contact your authorized Giant dealer. Keep your proof of purchase for warranty claims.

Онлайн ресурстар: Visit the official Giant Bicycles website for the latest product information, FAQs, and support resources.

Ыйгарым укуктуу дилерлер: Your local authorized Giant dealer can provide assistance with installation, maintenance, and troubleshooting.
