Kärcher SC 3 EasyFix буу тазалагычынын колдонуу боюнча нускамасы

1. Киришүү

This instruction manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Kärcher SC 3 EasyFix Steam Cleaner. Please read this manual thoroughly before first use and keep it for future reference.

The Kärcher SC 3 EasyFix is designed for hygienic cleaning of various hard surfaces using steam, eliminating up to 99.99% of common household bacteria without the need for chemical cleaning agents.

2. Коопсуздук нускамалары

Кырсыктардын жана шаймандын бузулушунун алдын алуу үчүн ар дайым төмөнкү коопсуздук чараларын сактаңыз:

• Электр коопсуздугу: Негизги көлөмүн камсыз кылууtage matches the rating plate. Do not operate with a damaged power cord.
• Ысык буу коркунучу: Steam is extremely hot and can cause severe burns. Never direct steam at people, animals, or electrical components. Keep hands and face away from the steam outlet.
• Балдар жана үй жаныбарлары: Keep the appliance out of reach of children and pets. Supervise children to ensure they do not play with the appliance.
• Сууну пайдалануу: Only use clean tap water. Do not add detergents, fragrances, or other chemicals to the water tank, as this can damage the appliance or create hazardous fumes.
• Тейлөө: Disconnect the appliance from the power supply before any cleaning or maintenance work.
• Сактагыч: Шайманды кургак, үшүк жүрбөгөн жерде сактаңыз.

3. Продукциянын компоненттери жана кутучанын ичиндегилер

Your Kärcher SC 3 EasyFix steam cleaner comes with several components and accessories to facilitate various cleaning tasks. Familiarize yourself with each part:

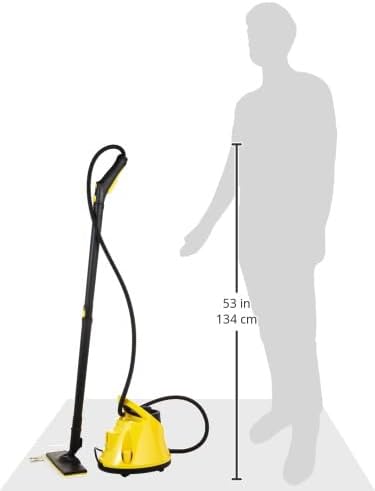

Сүрөт 3.1: Fully assembled Kärcher SC 3 EasyFix Steam Cleaner, showing the main unit, flexible hose, extension tubes, and EasyFix floor nozzle.

Сүрөт 3.2: Kärcher SC 3 EasyFix Steam Cleaner with the floor nozzle and extension tubes detached, showcasing the compact main unit and hand nozzle.

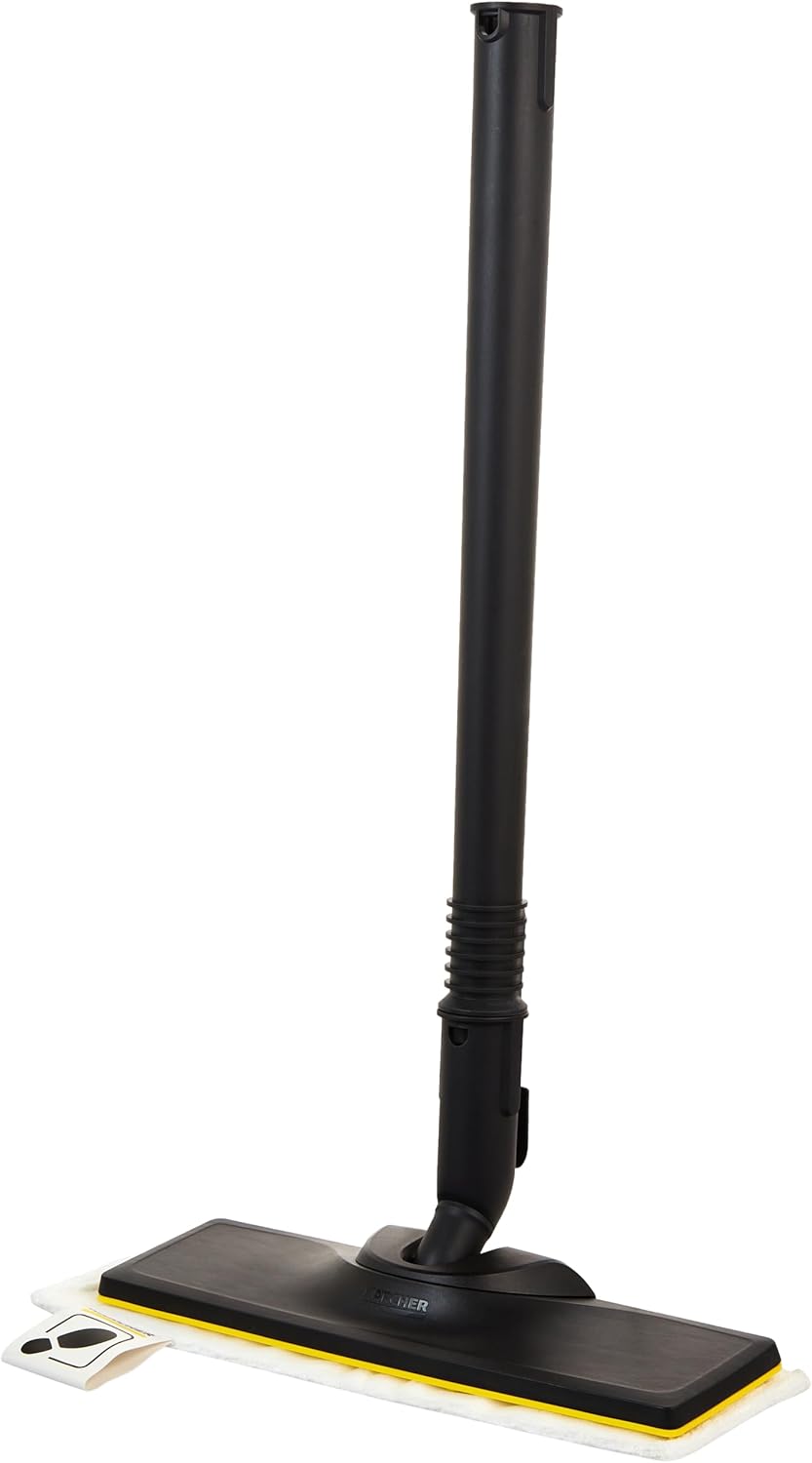

Сүрөт 3.3: Close-up of the EasyFix floor nozzle with a microfibre cloth attached, ready for floor cleaning.

Сүрөт 3.4: Таңгактоо view illustrating the included accessories: hand nozzle, microfibre cover, round brush, detail nozzle, descaling cartridge, EasyFix floor nozzle, and extension tubes.

Стандарттык аксессуарлар:

• Main Unit with integrated water tank
• Steam hose with gun
• EasyFix floor nozzle
• Микрофибра полго кездеме
• Extension tubes (2x)
• Кол насадкасы
• Microfibre cover for hand nozzle
• Деталдуу мурун
• Тегерек щетка
• Какты тазалоочу картридж

4. Орнотуу

Биринчи жолу колдонуудан мурун баштапкы орнотуу үчүн төмөнкү кадамдарды аткарыңыз:

1. Assemble the Floor Nozzle: Connect the two extension tubes to each other, then attach them to the steam gun. Finally, attach the EasyFix floor nozzle to the extension tubes.
2. Attach Microfibre Cloth: Place the microfibre floor cloth onto the EasyFix floor nozzle. The hook-and-loop fasteners will secure it.
3. Insert Descaling Cartridge: Open the water tank cap and insert the descaling cartridge into the designated slot. Ensure it is seated correctly.
4. Сууну толтуруу: Remove the water tank and fill it with clean tap water up to the 'MAX' mark. Reinsert the tank into the appliance. The SC 3 EasyFix features a continuous refill system, allowing you to refill the tank during operation.
5. Кубатка туташуу: Кубат шнурун ылайыктуу жерге туташтырылган электр розеткасына сайыңыз.
6. Күйгүзүү: Switch on the appliance. The heating indicator light will illuminate. The appliance will heat up in approximately 30 seconds. Once ready, the heating indicator light will turn off.

5. Иштөө нускамалары

Once the appliance is ready for use (heating indicator light off), you can begin cleaning.

5.1. Adjusting Steam Volume

The steam gun has a steam volume regulator. You can select between two steam levels (minimum/maximum) or the 'Steam Off' position. For general cleaning, start with the maximum steam level.

5.2. Using the Floor Nozzle

Сүрөт 5.1: A user cleaning a wooden floor with the Kärcher SC 3 EasyFix and its EasyFix floor nozzle, demonstrating effective steam application.

Attach the EasyFix floor nozzle with the microfibre cloth. Press the steam trigger on the gun and move the floor nozzle slowly and evenly over the surface to be cleaned. For heavily soiled areas, move the nozzle back and forth several times.

5.3. Using the Hand Nozzle and Other Attachments

Сүрөт 5.2: A user cleaning a sink faucet with the hand nozzle and detail nozzle attachment, showing precise steam application for fixtures.

Сүрөт 5.3: A user cleaning a stovetop with the hand nozzle fitted with a microfibre cover, demonstrating steam cleaning for kitchen surfaces.

Сүрөт 5.4: A user cleaning bathroom wall tiles with the hand nozzle and microfibre cover, highlighting its use for vertical surfaces.

Сүрөт 5.5: A user cleaning a wooden banister with the hand nozzle and microfibre cover, showing versatility for various household items.

The hand nozzle, detail nozzle, and round brush are ideal for cleaning smaller areas, fixtures, grout lines, and stubborn dirt. Attach the desired accessory directly to the steam gun. For the hand nozzle, you can also attach a microfibre cover.

• Detail Nozzle: Directs a concentrated jet of steam for cleaning corners, crevices, and edges.
• Тегерек щетка: Use with the detail nozzle for scrubbing stubborn dirt on heat-resistant surfaces like grout or oven grates.
• Hand Nozzle with Microfibre Cover: Suitable for smaller washable surfaces, shower cabins, and mirrors.

6. Техникалык тейлөө

Regular maintenance ensures the longevity and optimal performance of your steam cleaner.

6.1. Тазалоочу аксессуарлар

• Microfibre Cloths and Covers: These can be washed in a washing machine at up to 60°C (140°F). Do not use fabric softener, as this can impair their cleaning ability.
• Башка аксессуарлар: Жарнама менен тазалаңызamp кездеме.

6.2. Тазалоо

Сүрөт 6.1: Жакын план view of the water tank cap area, indicating the location for the descaling cartridge and a warning symbol for hot surfaces.

The Kärcher SC 3 EasyFix features an integrated descaling cartridge. The appliance will indicate when the cartridge needs to be replaced. Follow the instructions provided with the replacement cartridge for proper installation.

6.3. Сактоо

After use, allow the appliance to cool down completely. Store the steam cleaner and its accessories in a dry, frost-free location, away from direct sunlight.

7. Кыйынчылыктарды

If you encounter issues with your steam cleaner, refer to the following common problems and solutions:

Эгерде бул чечимдерди колдонуп көргөндөн кийин да көйгөй чечилбесе, Kärcher кардарларды колдоо кызматына кайрылыңыз.

8. Техникалык шарттар

Сүрөт 8.1: A close-up of the water tank area, highlighting the descaling cartridge and the Kärcher branding.

Сүрөт 8.2: Product packaging displaying key performance specifications such as area performance, heat-up time, and tank capacity.

9. Кепилдик жана колдоо

For information regarding warranty terms and conditions, please refer to the warranty card included with your product or visit the official Kärcher website. For technical support, spare parts, or further assistance, please contact Kärcher customer service through their official channels.

You can find more information and support resources on the official Kärcher webсайт: www.kaercher.com
