Introduction
The EUREKA NEW300 is a versatile wet and dry vacuum cleaner and mop designed for efficient hard floor cleaning. This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your appliance. Please read these instructions thoroughly before first use and retain them for future reference.
Продукт бүттүview жана компоненттер
Familiarize yourself with the parts of your EUREKA NEW300 wet and dry vacuum cleaner and its included accessories.
Сүрөттүн сүрөттөлүшү: This diagram illustrates the main unit of the EUREKA NEW300 wet and dry vacuum cleaner along with its various accessories. Key components include the main vacuum body, a storage base for convenient docking, an accessory drying rack, a filter, a brushroll cleaning tool, the brushroll itself, a cleaning brush, and a bottle of cleaning solution.
Камтылган компоненттер:
- EUREKA NEW300 Wet Dry Vacuum (Main Unit)
- Сактагыч базасы
- Кошумча кургаткыч текче
- Фильтр
- Brushroll тазалоо куралы
- Brushroll
- Тазалоочу щетка
- 236ml Cleaning Solution
Жайгашуу
- Ассамблея: Ensure all components are securely attached. The handle should click firmly into place on the main unit.
- Таза суу резервуарын толтуруңуз:
Сүрөттүн сүрөттөлүшү: Жакын план view of the EUREKA NEW300's clean water tank being held, illustrating how to detach and prepare it for filling. The tank has a capacity of 880ml.
Locate the clean water tank (880ml capacity). Remove it from the unit and fill it with clean tap water up to the MAX fill line. For enhanced cleaning, add the recommended amount of EUREKA cleaning solution or a suitable disinfectant. Reattach the tank securely to the main unit.
Сүрөттүн сүрөттөлүшү: This image displays the EUREKA NEW300's innovative dual-tank system. On the right, the larger 880ml clean water tank is shown, while on the left, the smaller 420ml dirty water tank is visible, emphasizing the separation of clean and dirty water for optimal hygiene.
- Кубат туташуу: Unwind the 7.5m power cord and plug it into a suitable electrical outlet.
Иштөө нускамалары
- Күйгүзүү: Шайманды иштетүү үчүн туткасында жайгашкан кубат баскычын басыңыз.
- Тазалоо режимин тандоо:

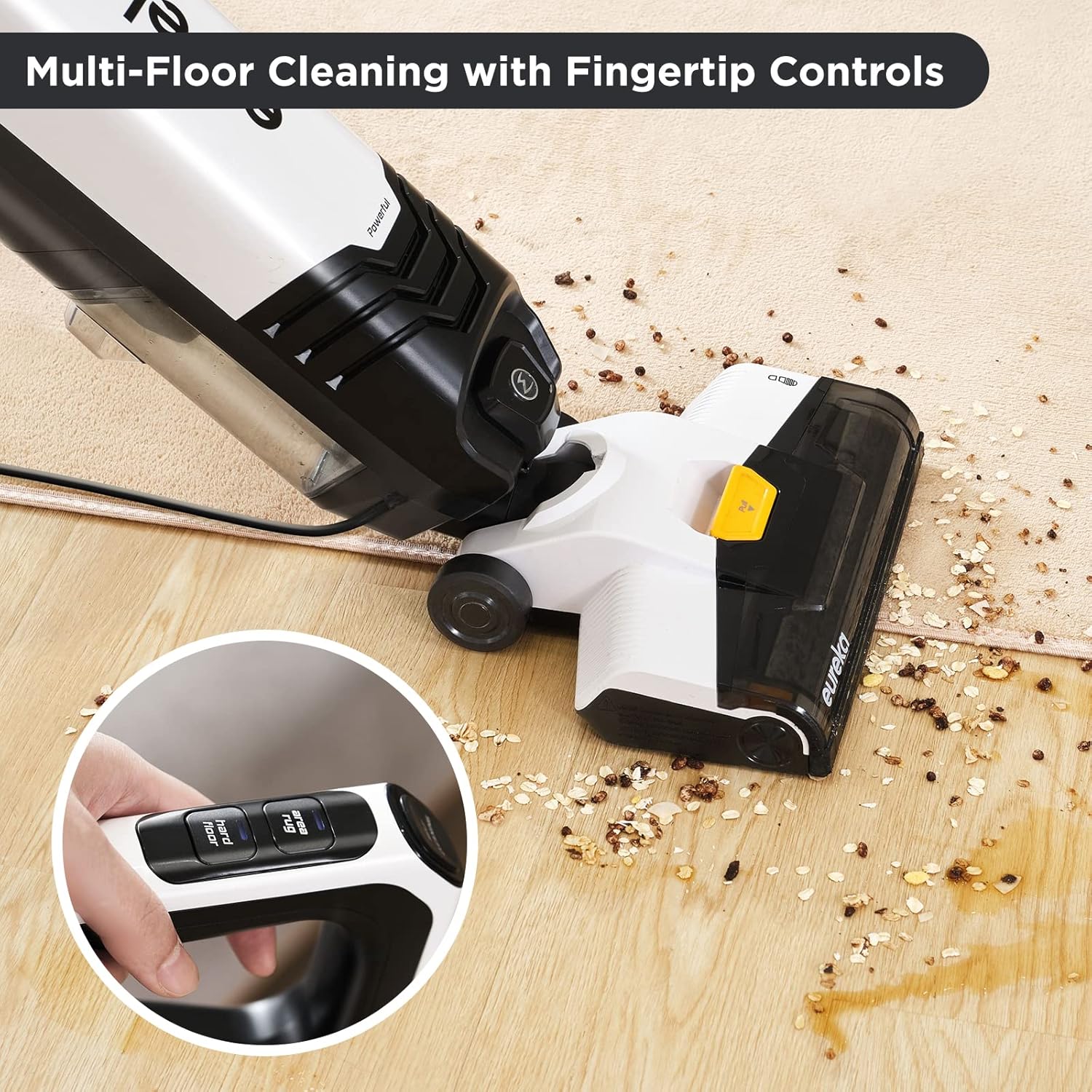

Сүрөттүн сүрөттөлүшү: А деталдуу view of the EUREKA NEW300's handle, showcasing the intuitive fingertip controls. Buttons are visible for selecting different cleaning modes, such as 'Hard Floor' and 'Area Rug', allowing for versatile cleaning across various surfaces.
Use the controls on the handle to select the appropriate cleaning mode for your floor type (e.g., Hard Floor, Area Rug). The appliance is designed for multi-floor cleaning.
- Тазалоону баштоо: Tilt the main unit back to engage the brush roll. Move the appliance slowly forward and backward over the area to be cleaned. The 550W double motor provides strong suction and simultaneous washing.
- Суу спрей функциясы: Press the water spray button on the handle to dispense cleaning solution as needed for stubborn dirt or stains.
- Четтен четке тазалоо: The brush roller is designed to glide closely against baseboards, ensuring thorough cleaning of edges and corners.
- Узун электр кабели: The 7.5m power cable allows for cleaning larger areas without frequent outlet changes.
Сүрөттүн сүрөттөлүшү: This image shows an individual operating the EUREKA NEW300 wet and dry vacuum cleaner in a spacious kitchen. The long 7.5-meter power cord is visible, demonstrating the appliance's capability to cover a large cleaning area without needing to frequently switch power outlets.
- Тазалоону аяктоо: Once cleaning is complete, return the appliance to its upright position and press the power button to turn it off.
Техникалык тейлөө
Regular maintenance ensures optimal performance and extends the lifespan of your EUREKA NEW300.
- Өзүн-өзү тазалоо функциясы:
Сүрөттүн сүрөттөлүшү: A close-up shot of the EUREKA NEW300, highlighting the "Self Cleaning" button located on the handle. This feature allows for automated cleaning of the internal hose and brush roll with a single press.
After each use, place the appliance on its storage base. Press the "Self Cleaning" button. This function flushes the inner hose and brush roller, providing quick and clean maintenance without manual effort. The pet hair screen in the dirty water tank helps in easy removal of animal hair.
- Кир суу куюлган бакты бошотуп, тазалаңыз: After each use, remove the dirty water tank (420ml capacity). Dispose of the dirty water and rinse the tank thoroughly with clean water. Ensure the pet hair screen is clear of debris.
- Clean the Brush Roll: While the self-cleaning function is effective, periodically remove the brush roll for a deeper clean using the provided brushroll cleaning tool and cleaning brush. Ensure it is free of tangled hair or debris.
- Чыпканы тазалоо: Remove and rinse the filter (Type F9) under running water. Allow it to air dry completely before reinserting. Replace the filter as recommended by the manufacturer or if suction power decreases significantly.
- Сактагыч: Store the EUREKA NEW300 on its convenient dock in a dry place. Wrap the power cord around the cord hooks on the back of the unit.
Проблемаларды чечүү
If you encounter issues with your EUREKA NEW300, refer to the following common problems and solutions:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Шайман күйбөйт | Not plugged in; Power outlet malfunction; Power button not pressed | Ensure power cord is securely plugged in. Test the outlet with another device. Press the power button firmly. |
| Начар соргуч же тазалоо көрсөткүчү | Dirty water tank full; Clean water tank empty; Clogged brush roll; Clogged filter | Empty and clean the dirty water tank. Refill the clean water tank. Clean the brush roll of debris. Clean or replace the filter. |
| Суу берилбейт | Clean water tank empty; Nozzle clogged; Water spray button not pressed | Refill the clean water tank. Check and clear any blockages in the spray nozzle. Ensure the water spray button is pressed during operation. |
| агып жаткан суу | Tanks not properly seated; Tank seals damaged | Ensure both clean and dirty water tanks are securely attached. Inspect tank seals for damage and contact support if necessary. |
| Адаттан тышкаркы ызы -чуу | Brush roll obstructed; Foreign object in suction path | Turn off and unplug the appliance. Inspect the brush roll and suction path for any obstructions and remove them. |
If the problem persists after attempting these solutions, please contact EUREKA customer support.
Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Модель номери | NEW300 |
| Продукциянын өлчөмдөрү | 29 x 26 x 116 см |
| Элемент Салмагы | 5.5 кг |
| Форма фактору | Нымдуу/кургак |
| Мотор күчү | 550 Вт |
| Таза танк сыйымдуулугу | 880ml (0.88 Liters) |
| Кир танк сыйымдуулугу | 420ml (0.42 Liters) |
| Электр шнурунун узундугу | 7.5м (7.62м) |
| Power Source | Электр зымдары |
| Тtage | 240V |
| Чыпка түрү | F9 |
| Surface Recommendation | Hard Floors, Tiles, Wooden Floors, Carpet and area rugs |
| Өзгөчөлүктөр | Dual-Tank System, Self-Cleaning Cycle, Multi-floor Cleaning, Edge-to-Edge Cleaning |
Кепилдик жана колдоо
The EUREKA NEW300 typically comes with a manufacturer's warranty. Please refer to the warranty card included with your product or visit the official EUREKA website for detailed warranty terms and conditions. Warranty coverage usually applies to manufacturing defects and does not cover damage from misuse or normal wear and tear.
For technical assistance, spare parts, or warranty claims, please contact EUREKA customer support through their official channels. Keep your purchase receipt and product model number (NEW300) readily available when contacting support.
You can visit the EUREKA Store for more information: EUREKA Official Store
