VOCOO Wireless Digital Indoor Outdoor Thermometer Hygrometer User Manual (Model 5276)

Introduction

Thank you for choosing the VOCOO Wireless Digital Indoor Outdoor Thermometer Hygrometer. This device is designed to provide accurate temperature and humidity readings for both indoor and outdoor environments, helping you maintain optimal comfort and conditions. Please read this manual thoroughly before use to ensure proper operation and longevity of your device.

Image: The main display unit and the remote outdoor sensor of the VOCOO Thermometer Hygrometer.

Кутуда эмне бар

• 1 x Indoor Thermometer Hygrometer Main Unit
• 1 x Outdoor Remote Sensor
• 4 x AAA Batteries (for both units)
• 1 x User Manual

Жайгашуу

1. Батареяны орнотуу

1. Open the battery compartment on the back of both the main unit and the remote sensor.
2. Insert 2 AAA batteries into the main unit, observing the correct polarity (+/-).
3. Insert 2 AAA batteries into the remote sensor, observing the correct polarity (+/-).
4. Батарея бөлүкчөлөрүн коопсуз жабыңыз.

The main unit will power on automatically and begin searching for the remote sensor.

2. Жайгаштыруу

Proper placement ensures accurate readings and optimal wireless signal transmission.

• Indoor Main Unit: Place the main unit on a flat surface using its retractable stand or mount it on a wall using the hanging hole. Avoid direct sunlight, heat sources, or areas with high drafts.
• Тышкы алыскы сенсор: The remote sensor is IP43 waterproof, suitable for outdoor use. Mount it in a shaded, dry location away from direct rain and sunlight for the most accurate temperature and humidity readings. Ensure the sensor is positioned with the ventilation holes facing upwards to prevent water ingress. The wireless range is up to 100m (328ft) in an open area.

Сүрөт: деталдуу view of the main unit and remote sensor, illustrating dimensions and available mounting options like the retractable stand and hanging holes. The back of the main unit shows buttons for °F/°C selection, time setting (12/24H), MAX/MIN display, and +/- adjustments.

Сүрөт: Visual examples of placing the main unit indoors (e.g., on a bedside table) and the remote sensor outdoors (e.g., on a wall under an overhang).

3. Pairing Remote Sensor

The main unit should automatically connect to the remote sensor after battery installation. If the outdoor reading is not displayed or is flashing, follow these steps:

1. Ensure batteries are correctly installed and not depleted in both units.
2. Bring the remote sensor close to the main unit.
3. Press and hold the 'CH' button on the main unit for 3 seconds to initiate a new search for the sensor.
4. The outdoor temperature and humidity should appear on the display once connected.

Иштөө нускамалары

1. Display Overview

The large LCD displays various information:

• Indoor Temperature (°C/°F)
• Indoor Humidity (%)
• Outdoor Temperature (°C/°F)
• Outdoor Humidity (%)
• Temperature and Humidity Trend Indicators (arrow icons)
• Comfort Level Icon (DRY, COMFORT, WET)
• Time (12/24H) and Date
• MAX/MIN Temperature and Humidity Records
• Төмөн батарея көрсөткүчү

Image: A visual guide highlighting the display features including temperature, humidity, MAX/MIN records, trend indicators, backlight, and comfort indicator.

2. Арткы жарык функциясы

Press the light bulb icon button on the front of the main unit or any other button to activate the backlight. The backlight will illuminate for 15 seconds, making it easy to read the display in low-light conditions.

Image: A hand demonstrating how to activate the backlight on the device's large LCD screen.

3. Температура бирдигин тандоо (°C/°F)

Press the '°F/°C' button on the back of the main unit to switch between Celsius and Fahrenheit temperature units.

4. Убакыт жана дата орнотуу

1. Press and hold the 'TIME' button on the back of the main unit for 3 seconds to enter time setting mode.
2. Use the '+' and '-' buttons to adjust the flashing value (e.g., hour, minute, year, month, day).
3. Press the 'TIME' button again to confirm the setting and move to the next parameter.
4. To switch between 12-hour and 24-hour format, press the 'TIME' button briefly while the hour is flashing.
5. Exit setting mode by pressing the 'TIME' button after setting the date or by waiting 10 seconds for automatic exit.

5. МАКС/МИН жазуулар

The device records the maximum and minimum temperature and humidity values over a 24-hour period. These records are automatically cleared every 24 hours.

• Press the 'MAX/MIN' button on the back of the main unit to view the maximum recorded values.
• Press the 'MAX/MIN' button again to view the minimum recorded values.
• Press the 'MAX/MIN' button a third time to return to current readings.

Image: A graphical representation of temperature and humidity trends over a 24-hour period, illustrating the MAX/MIN recording feature.

6. Comfort Level Indicator

The display features a comfort icon (DRY, COMFORT, WET) to indicate the current air comfort level based on humidity:

• КУРГАК: 0-39% нымдуулук
• КОМФОРТ: 40-69% нымдуулук
• СУУ: 70-99% нымдуулук

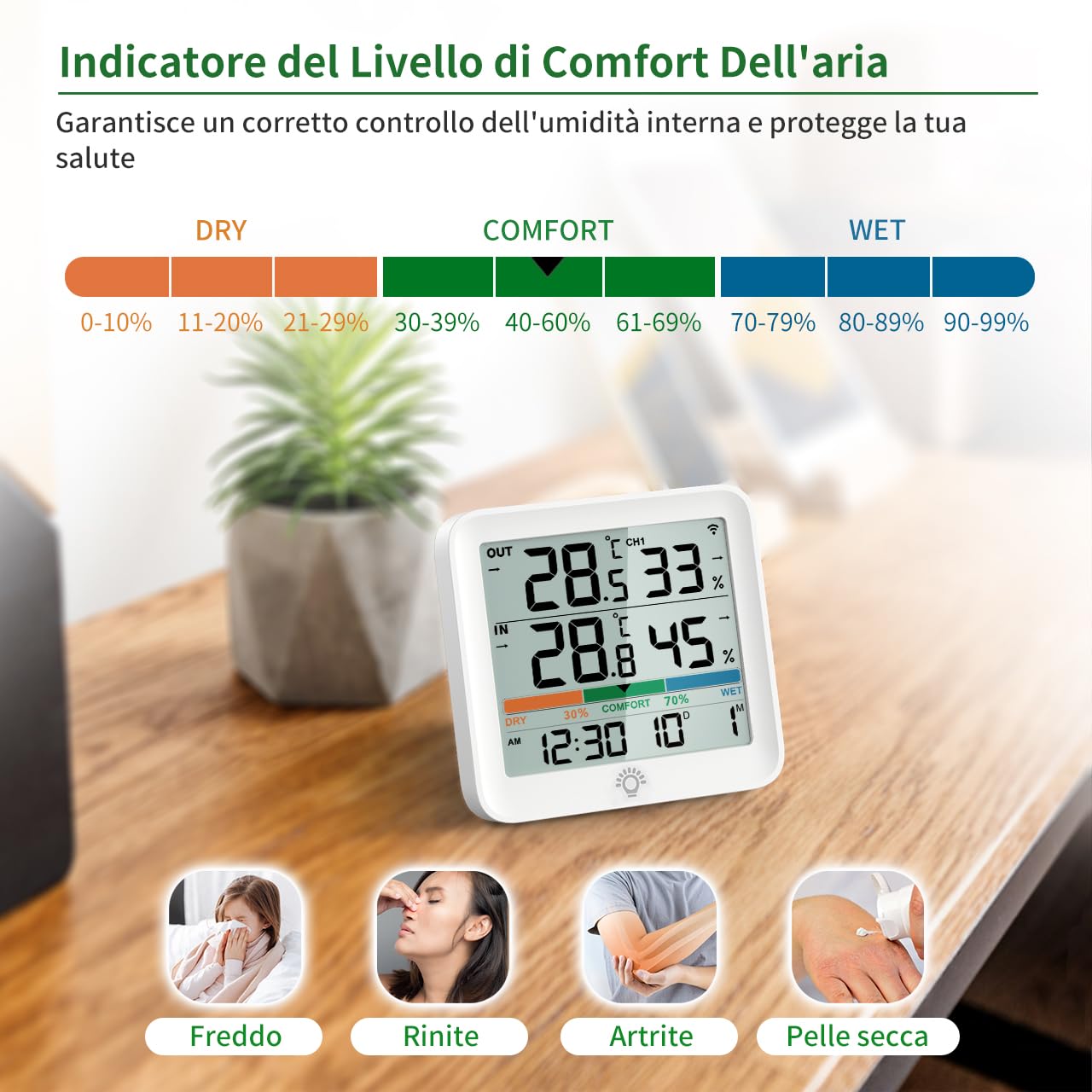

Image: An explanation of the comfort level indicator, showing humidity ranges for Dry, Comfort, and Wet conditions.

Техникалык тейлөө

1. Тазалоо

Аппаратты жумшак менен сүртүңүз, гamp кездеме. Абразивдүү тазалагычтарды колдонбоңуз же агрегаттарды сууга салбаңыз.

2. Батареяны алмаштыруу

When the low battery indicator appears on the display, replace the batteries in the respective unit (main unit or remote sensor) with new AAA batteries. Ensure correct polarity.

Проблемаларды чечүү

• No outdoor reading / Flashing outdoor reading:
  • Ensure batteries are correctly installed and not depleted in both units.
  • Bring the remote sensor closer to the main unit.
  • Press and hold the 'CH' button on the back of the main unit for 3 seconds to re-establish connection.
  • Avoid placing the sensor near large metal objects or strong electromagnetic interference.
• Туура эмес окуулар:
  • Эки блок тең күндүн түз нурунан, жылуулук булактарынан же шамалдан алыс жайгашканын текшериңиз.
  • Allow the device to stabilize for a few hours after initial setup or relocation, as sensors need time to acclimate to new environments.
  • Check if the outdoor sensor is adequately protected from direct weather elements.
• Дисплей күңүрт же бош:
  • Негизги блоктогу батарейкаларды алмаштырыңыз.
  • Батарейканын уюлдуулугун текшериңиз.

Техникалык шарттар

Image: Visual representation of the indoor and outdoor temperature ranges, and the humidity monitoring range.

Кепилдик жана колдоо

This VOCOO product comes with a standard brand warranty. For specific warranty details, please refer to the warranty card included in your package or contact VOCOO customer support.

For further assistance, troubleshooting, or product inquiries, please visit the official VOCOO webсайтка же кардарларды тейлөө бөлүмүнө кайрылыңыз.
