1. Киришүү
This manual provides essential information for the proper installation, operation, and maintenance of your Diydeg Electric LCD Display Meter, Model Diydegbadhv3eocm5585. This display is designed for electric bicycles and scooters, offering clear, real-time data and control over your vehicle's functions. Please read this manual thoroughly before use to ensure optimal performance and safety.
2. Продукт бүтүп калдыview
The Diydeg Electric LCD Display Meter is a versatile control panel featuring a large, backlit LCD screen for enhanced visibility. It is built with durable ABS material, ensuring longevity and protection for its internal components. Key features include:
- LCD арткы жарык дисплей: ачык-айкын камсыз кылат viewing of data and status, even in low-light conditions.
- Оңой орнотуу: Designed for quick and effortless mounting on 22.2mm (0.9in) handlebars without specialized tools.
- Кеңири шайкештик: Suitable for 24V, 36V, and 48V electric bicycles and scooters.
- Туруктуу курулуш: Made from robust ABS material, offering good toughness and performance.
- Реалдуу убакыттагы маалыматтарды көрсөтүү: Shows essential parameters such as battery power, current speed, and trip distance.

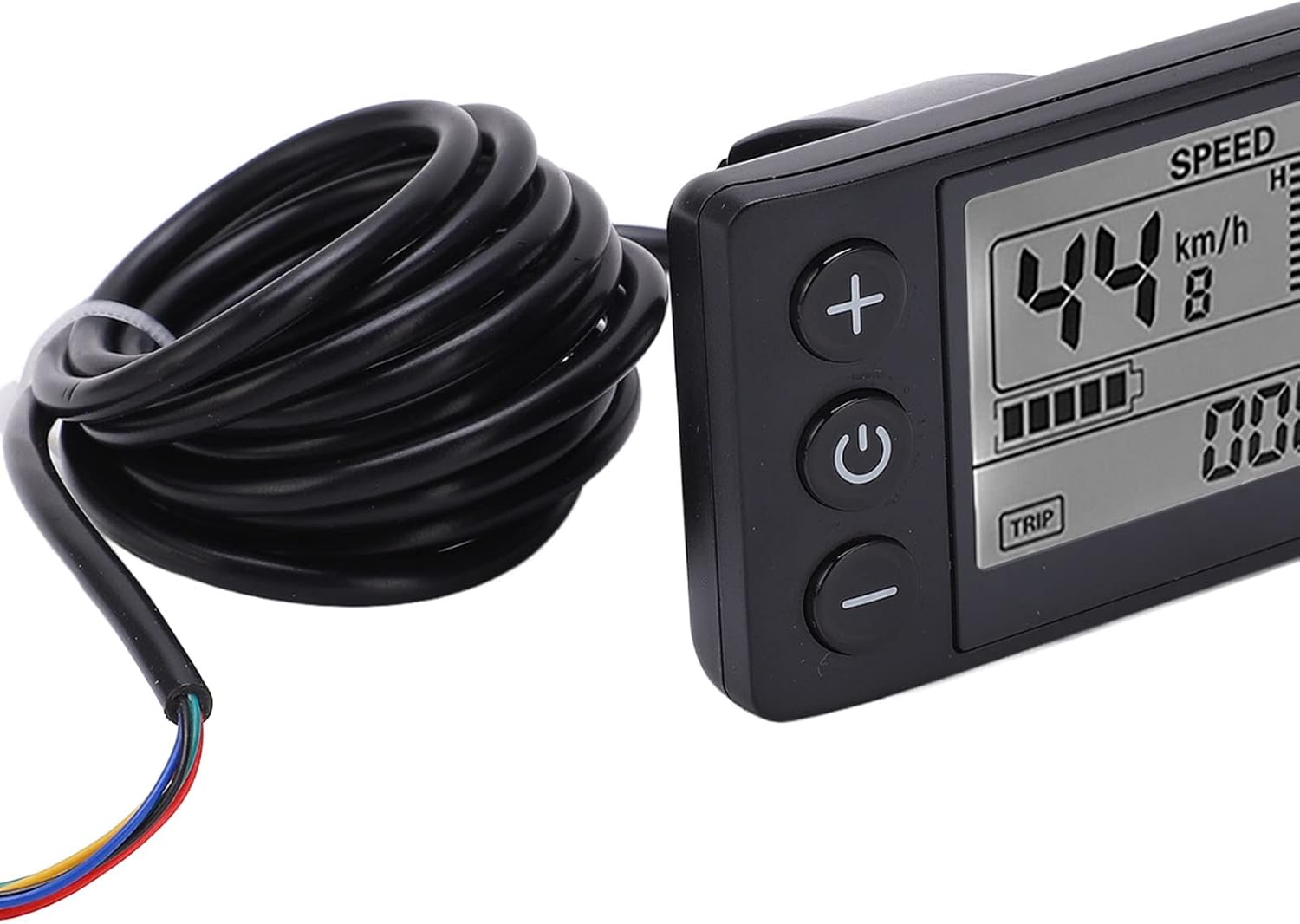

Сүрөт 2.1: Алдыңкы view of the Diydeg Electric LCD Display Meter (Model S866) with its integrated cable.
Продукт видеолору
Видео 2.1: Кыскача маалыматview of the Diydeg Electric LCD Display Meter, highlighting its features and appearance. This video is 6 seconds long.
Video 2.2: Another short presentation of the Electric LCD Display Meter, showcasing its design. This video is 11 seconds long.
Video 2.3: A detailed visual of the Electric Bicycle LCD Display Meter, demonstrating its various angles and components. This video is 24 seconds long.
3. Орнотуу нускамалары
Follow these steps to properly install your LCD Display Meter:
- Рулду даярдоо: Ensure the handlebar area where the display will be mounted is clean and free of obstructions. The display is designed for 22.2mm (0.9in) diameter handlebars.
- Дисплейди орнотуу: Position the display on your handlebar. Use the integrated bracket and secure it with the removable screw. Ensure the display is oriented for optimal viewing and button access.
Figure 3.1: The LCD Display Meter correctly mounted on a bicycle handlebar.
- Кабелди туташтыруу: Locate the SM plug on the display's cable. Connect this plug to the corresponding port on your electric vehicle's controller. Ensure the connection is firm and secure.
Figure 3.2: Detail of the SM plug (ordinary plug) for connecting the display meter.
- Кабелдик башкаруу: Route the cable neatly along the frame and secure it with cable ties to prevent interference with moving parts or accidental damage.
4. Иштөө нускамалары
The display meter features three main buttons: '+', Power, and '-'. There is also a 'TRIP' button for cycling through data.
Сүрөт 4.1: Алдыңкы view of the display meter with clearly visible control buttons.
- Күйгүзүү/өчүрүү: Press and hold the central Күч баскычы (
) for a few seconds to turn the display on or off. - Жардам деңгээлин тууралоо: колдонуу + button to increase the pedal assist level and the - button to decrease it. The current assist level (e.g., 'ASSIST 5') will be shown on the screen.
- View Сапар тууралуу маалымат: басыңыз САПАР button (located at the bottom left of the screen) to cycle through various trip data, such as trip distance, total distance, and other relevant metrics.
- Арткы жарык: The LCD screen features an automatic backlight for clear visibility in various lighting conditions, including dark environments.
5. Техникалык тейлөө
Proper maintenance ensures the longevity and reliable operation of your display meter:
- Тазалоо: Дисплейдин экранын жана корпусун жумшак менен сүртүңүз, damp кездеме. Абразивдүү тазалоочу каражаттарды, эриткичтерди же катуу химиялык заттарды колдонуудан алыс болуңуз, анткени алар экранга жеasing.
- Туташуу текшерүү: Periodically inspect all cable connections, especially the SM plug, to ensure they are secure and free from corrosion or damage. Loose connections can lead to intermittent functionality.
- Суу каршылык: The unit has an IP65 international protection rating, meaning it is protected against dust and low-pressure water jets. While it can withstand splashes and light rain, avoid prolonged submersion in water.
- Сактагыч: When not in use for extended periods, store the display meter in a dry, cool place, away from direct sunlight and extreme temperatures.
6. Кыйынчылыктарды
If you encounter issues with your display meter, refer to the following common problems and solutions:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Дисплей күйбөйт | Low or no battery power; Loose cable connection; Faulty display unit. | Check your electric vehicle's battery charge. Ensure the SM plug is securely connected. If the problem persists, contact support. |
| Ылдамдык/аралык көрсөткүчтөрү туура эмес | Speed sensor malfunction; Incorrect wheel circumference setting (if applicable). | Verify the speed sensor is properly installed and clean. Consult your electric vehicle's manual for wheel circumference adjustment if available. |
| Assist level not changing | Loose connection to controller; Controller malfunction. | Check all cable connections. Ensure the electric vehicle's system is powered on. |
| Screen is dim or flickering | Low battery; Environmental factors; Internal fault. | Ensure the battery is adequately charged. The backlight adjusts automatically; if it remains dim in bright conditions, contact support. |
If these troubleshooting steps do not resolve the issue, please contact Diydeg customer support for further assistance.
7. Техникалык шарттар
Detailed technical specifications for the Diydeg Electric LCD Display Meter:
- Бренд: Diydeg
- Модел: Diydegbadhv3eocm5585 (S866)
- Дисплей түрү: LCD
- Тtage Шайкештик: 24В, 36В, 48В
- Рулдун диаметри: 22.2мм (0.9in)
- Материал: ABS, Пластик
- Байланыш: Wired (SM Plug)
- Эл аралык коргоо рейтинги: IP65
- Кабелдин узундугу: 180 см (70.9 дюйм)
- Өлчөмдөрү (L x W x Y): Болжол менен 8 см x 4.8 см x 4.8 см (3.1 дюйм x 1.9 дюйм x 1.9 дюйм)
Figure 7.1: Dimensions and cable length of the LCD Display Meter.
8. Кепилдик жана колдоо
Diydeg is committed to providing high-quality products and customer satisfaction. This display meter comes with a quality assurance guarantee.
- Кепилдик: Diydeg offers a warranty or refund for this product. Specific terms and conditions may apply.
- Кардарларды колдоо: For any questions, concerns, or support needs regarding your purchase, please contact Diydeg customer service. We aim to resolve your inquiries within 24 hours.
