1. Продукт бүтүп калдыview
The EverBrite Rechargeable LED Headlamp is a versatile lighting device designed for various activities such as hiking, running, camping, and general tasks. It features multiple lighting modes, a motion sensor for hands-free operation, and a rechargeable battery.

Image 1.1: The EverBrite headlamp, illustrating its main features including the light, headband, USB charging cable, and motion sensor functionality.
2. Пакеттин мазмуну
- 1 x EverBrite Rechargeable LED Headlamp
- 1 x Micro-USB заряддоо кабели
- 1 x Lithium Ion Battery (pre-installed)
3. Негизги өзгөчөлүктөрү
- Кайра заряддалуучу батарея: Equipped with a 1200mAh lithium battery and Micro-USB charging.
- 9 жарык режимдери: Includes XPE, COB, XPE+COB, Red Beam, and SOS Red Strobe in key light mode, plus XPE, COB, XPE+COB, and Red Beam in motion sensor mode.
- Кыймыл сенсору: Allows hands-free operation to turn the light on/off with a wave of the hand.
- Жеңил жана бышык: Constructed from ABS hard rubber, weighing approximately 0.17 lbs (80g).
- Жөнгө салынуучу баш боосу: Elastic headband fits head circumferences from 15.7" (40cm) to 31.5" (80cm).
- Жөнгө салынуучу бурч: Headlamp can be tilted up to 45 degrees.
- Температурага туруктуу: Operates effectively in temperatures from -4℉ (-20℃) to 140℉ (60℃).
4. Орнотуу
4.1 Башты заряддооamp
- Башындагы Micro-USB кубаттоо портун табыңызamp.
- Connect the provided Micro-USB cable to the headlamp and the other end to a 5V 1A USB charger (not included), power bank, or computer USB socket.
- The power indicator lights will show the charging status. One light flashing indicates charging, and four solid lights indicate a full charge.
- Башты розеткадан ажыратыңызamp promptly after charging is complete to preserve battery life.
Маанилүү: Do not turn on the light while the headlamp заряддап жатат.

Image 4.1: Illustration of the headlamp's Micro-USB charging port and battery indicator lights, demonstrating connection to a power source.
4.2 Баш боону тууралоо
- Башты койamp сенин башыңда.
- Adjust the elastic headband to a comfortable fit. The band is designed to adapt to various head sizes (15.7"-31.5" / 40-80cm).
- Башты камсыз кылыңызamp is secure but not too tight to avoid discomfort during prolonged use.

Image 4.2: The adjustable and breathable headband of the EverBrite headlamp, shown being worn by individuals.
5. Иштөө нускамалары
5.1 Power On/Off and Mode Selection (Key Light Mode)
- Башты күйгүзүү үчүн кубат баскычын бир жолу басыңызamp.
- Within 5 seconds of turning on, press the power button repeatedly to cycle through the following modes: XPE Mode (300 Lm) > COB Mode (300 Lm) > XPE+COB Mode (500 Lm) > Red Beam > SOS Red Strobe.
- If the light has been on for more than 5 seconds in any mode, a single press of the power button will turn the light off directly, without cycling through all modes.

Image 5.1: Visual representation of the headlamp's various lighting modes and their respective lumen outputs.
5.2 Motion Sensor Mode
- To activate motion sensor mode, press the dedicated motion sensor button (usually indicated by a wave icon or distinct from the main power button). A red indicator light will illuminate.
- Once activated, wave your hand within approximately 15 cm (6 inches) of the sensor to turn the light ON or OFF.
- In motion sensor mode, you can cycle through XPE, COB, XPE+COB, жана Red Beam by pressing the main power button.
- Кыймыл сенсорунун режиминен чыгуу үчүн кыймыл сенсорунун баскычын кайра басыңыз.

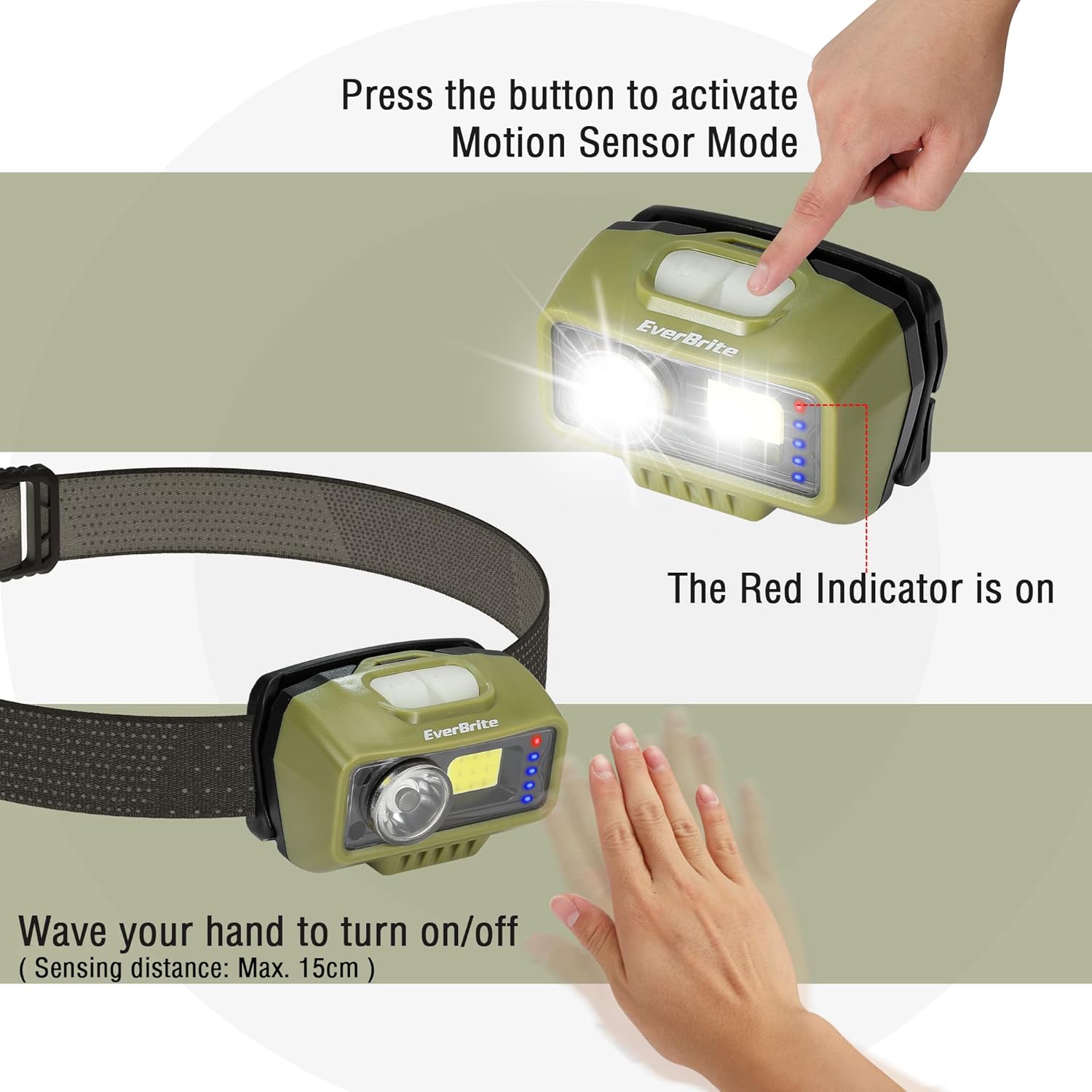

Image 5.2: Demonstration of the motion sensor feature, showing how to activate it and use hand gestures to control the light.
5.3 Бурчту тууралоо
Башчыamp unit can be tilted up to 45 degrees to direct the light precisely where needed. Gently push or pull the light housing to adjust its angle.

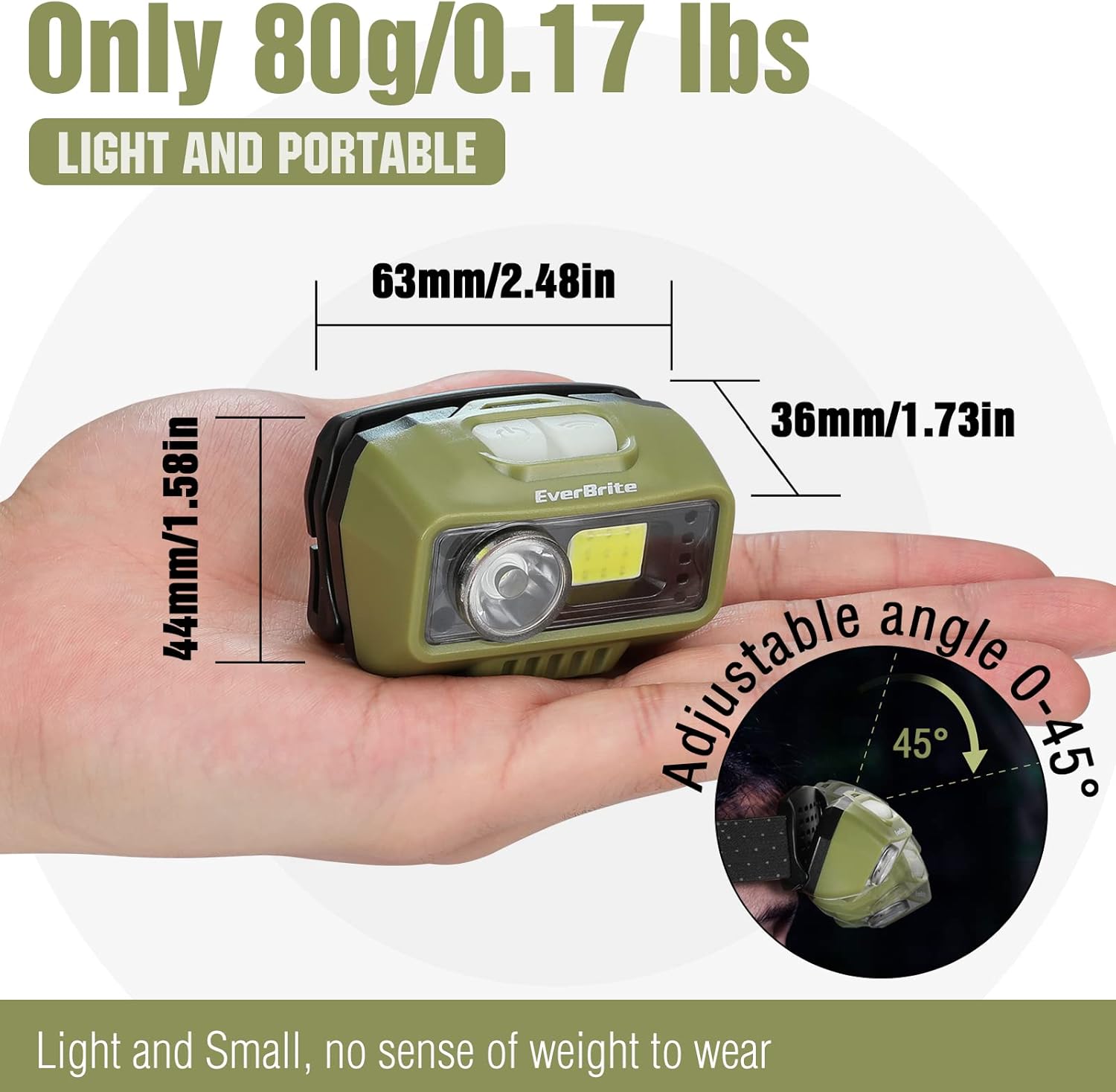

Image 5.3: The headlamp's adjustable angle mechanism, allowing users to direct the light beam.
6. Техникалык тейлөө
6.1 Тазалоо
- Башын сүртүңүзamp денеси жумшак, гamp кездеме. Абразивдүү тазалагычтарды же эриткичтерди колдонбоңуз.
- The headband is removable for easy washing. Hand wash with mild soap and water, then air dry completely before reattaching.
6.2 Сактоо
- Башты сактаңызamp күн нурунан алыс салкын, кургак жерде.
- For long-term storage, ensure the battery is partially charged (around 50%) and recharge it every 3-6 months to maintain battery health.
7. Кыйынчылыктарды
- Headlamp күйгүзбөйт:
- Ensure the battery is charged. Connect to a power source and check the charging indicator lights.
- Verify the power button is pressed correctly. - Батарейканын кыска мөөнөтү:
- Ensure the headlamp is fully charged before use. Charging time is typically 2-3 hours.
- Battery performance can decrease over time with repeated charge cycles. - Жарык жымыңдайт:
- This could indicate a low battery. Recharge the headlamp.
- If flickering persists after charging, contact customer support. - Кыймыл сенсору жооп бербей жатат:
- Ensure motion sensor mode is activated (red indicator light is on).
- Wave your hand within the optimal sensing distance (approx. 15 cm).
- Clean the sensor area to remove any obstructions.
8. Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Модель номери | E021047AU |
| Жарык булагы түрү | LED (XPE, COB) |
| Максималдуу жарыктык | 500 Lumens (XPE+COB Mode) |
| White Brightness (XPE/COB) | 300 Lumens |
| Power Source | Батарея менен иштейт |
| Батарея түрү | 1200mAh литий-ион (кошулган) |
| Заряддоо порту | Micro-USB (5V1A input) |
| Заряддоо убактысы | 2-3 саат |
| Материал | ABS |
| Элемент Салмагы | 0.17 lbs (2.72 ounces / 80g) |
| Продукциянын өлчөмдөрү | 1.42 x 2.48 x 1.73 дюйм (3.6 x 6.3 x 4.39 см) |
| Сууга туруктуулук деңгээли | Сууга чыдамдуу (IP44) |
| Иштөө температурасы | -4℉ (-20℃) to 140℉ (60℃) |
| UPC | 820909775829 |
9. Кепилдик жана колдоо
9.1 Кепилдик маалыматы
This EverBrite headlamp менен келет 2 жылдык кепилдик сатып алынган күндөн тартып. Бул кепилдик өндүрүштүн кемчиликтерин жана нормалдуу колдонуудагы чеберчиликти камтыйт. Бул туура эмес колдонуудан, кырсыктардан, уруксатсыз өзгөртүүлөрдөн же кадимки эскирүүдөн келип чыккан зыянды камтыбайт.
9.2 Кардарларды колдоо
For technical assistance, warranty claims, or any questions regarding your EverBrite headlamp, please contact our customer support team:
- Электрондук почта: support@everbrite.com (Exampле)
- Телефон: 1-800-XXX-XXXXX (Мисampле)
- Webсайт: Visit the EverBrite Store on Amazon
Please have your model number (E021047AU) and proof of purchase ready when contacting support.
