Introduction
Thank you for choosing the EverBrite Rechargeable Portable Magnetic LED Work Light. This manual provides essential information for the safe and effective use of your new work light. Please read it thoroughly before operation and retain it for future reference.
This versatile work light features a 1000 lumen output, a 2200mAh rechargeable lithium battery, and four distinct lighting modes. Its durable construction, magnetic base, and 180-degree rotatable stand make it suitable for various applications, from automotive repair to outdoor activities and emergency situations.
Image: The EverBrite Rechargeable Portable Magnetic LED Work Light, showcasing анын компакттуу дизайны жана USB-C кубаттоочу кабели камтылган.
Продукт өзгөчөлүктөрү
- Кайра заряддалуучу батарея: Equipped with a 2200mAh lithium battery for extended use. Includes a USB-Type-C charging cable.
- Төрт жарык режими: Offers Low Light (300 Lumen), High Light (1000 Lumen), High SOS, and Low SOS to suit different needs.
- Туруктуу курулуш: Made from ABS hard rubber for compression, impact, and abrasion resistance.
- Магниттик база: Strong magnet allows secure attachment to metal surfaces.
- Ийкемдүү жайгаштыруу: 180-degree rotatable angle for directing light precisely.
- Tripod шайкештиги: Features an M6 thread mount for use with most tripods.
- Портативдик дизайн: Compact size (4.2" x 3.7" x 1.6") and lightweight (7.4 ounces) for easy handling and transport.
Жайгашуу
Баштапкы заряддоо
- Locate the USB-Type-C charging port on the work light.
- Connect the provided USB-Type-C cable to the work light and a compatible USB power source (e.g., power bank, computer USB socket, car USB socket, wall adapter).
- The power indicator lights will illuminate to show the charging status. A full charge is indicated when all lights are solid.
- Эскертүү: Do not turn on the light while the work light is charging.
Сүрөт: Жакын план view of the work light's rear, showing the USB-Type-C charging port and the power indicator lights.
Иштөө нускамалары
Күйгүзүү/өчүрүү жана режимди тандоо
- To turn on the light, press the power button located on the back of the unit.
- Each subsequent press of the power button will cycle through the four lighting modes:
- Төмөн жарык: 300 lumens, suitable for general illumination and extended battery life.
- Жогорку жарык: 1000 lumens, for maximum brightness.
- High SOS: A bright SOS signal for emergency situations.
- Low SOS: A lower intensity SOS signal.
- To turn off the light, continue pressing the power button until the light switches off, or press and hold the power button for approximately 2 seconds.
Image: Visual representation of the four lighting modes: Low Light, High Light, High SOS, and Low SOS.
Монтаждоо жана жайгаштыруу
- Магниттик тиркеме: The strong magnetic base allows the work light to be securely attached to any ferrous metal surface. Ensure the surface is clean and stable before attachment.
- Tripod орнотуу: For non-metallic surfaces or specific positioning needs, utilize the M6 thread mount located at the bottom of the unit. This is compatible with most standard tripods.
- Жөнгө салынуучу бурч: The integrated stand allows for a 180-degree rotation, enabling you to direct the light beam precisely where needed.
Image: The work light attached magnetically to a car hood, demonstrating its powerful magnetic base.
Image: Diagram illustrating the 180-degree rotation capability of the work light's stand.
Техникалык тейлөө
Тазалоо
To clean the work light, wipe it with a soft, damp cloth. Do not use abrasive cleaners or solvents, as these may damage the surface or internal components. Ensure the charging port cover is closed to prevent dust and moisture ingress.
Батареяга кам көрүү жана сактоо
- Батареянын оптималдуу иштөө мөөнөтү үчүн, бат-баттан батарейканы толук зарядсыздандырбаңыз.
- Батареянын ден соолугун сактоо үчүн, колдонбосо дагы, аппаратты дайыма заряддап туруңуз.
- Store the work light in a cool, dry place away from direct sunlight and extreme temperatures.
- Эгер узак убакытка сактасаңыз, батареяны ар бир 3-6 ай сайын болжол менен 50% га чейин заряддаңыз.
Проблемаларды чечүү
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Жарык күйбөйт. | Батарея түгөнүп калды. | Charge the work light using the provided USB-Type-C cable. |
| Жарык күңүрт же бүлбүлдөп турат. | Батареянын деңгээли төмөн. | Батареяны кайра заряддаңыз. |
| Work light does not charge. | Кабель же кубат булагы туура эмес. | Try a different USB-Type-C cable or power adapter. Ensure connections are secure. |
| Magnetic base does not hold securely. | Surface is not metallic or is uneven. | Ensure attachment to a clean, flat, ferrous metal surface. Consider using the M6 thread mount with a tripod if a suitable magnetic surface is unavailable. |
Техникалык шарттар
| Модел: | B09YKLG56C |
| Бренд: | EverBrite |
| Жарыктык: | 1000 Lumens (High Light), 300 Lumens (Low Light) |
| Батарея: | 2200mAh Lithium-Ion (included) |
| Заряддоо порту: | USB-түрү-C |
| Тtage: | 3.7 вольт |
| Ватtage: | 10 Ватт |
| Продукциянын өлчөмдөрү: | 4.2"L x 3.7"W x 1.6"H |
| Элемент Салмагы: | 7.4 унция |
| Материал: | ABS Hard Rubber, Metal |
| Монтаж түрү: | Magnetic Mount, M6 Thread Mount |
| Таасирге каршылык: | 1 Meter Drop Test (approximate) |

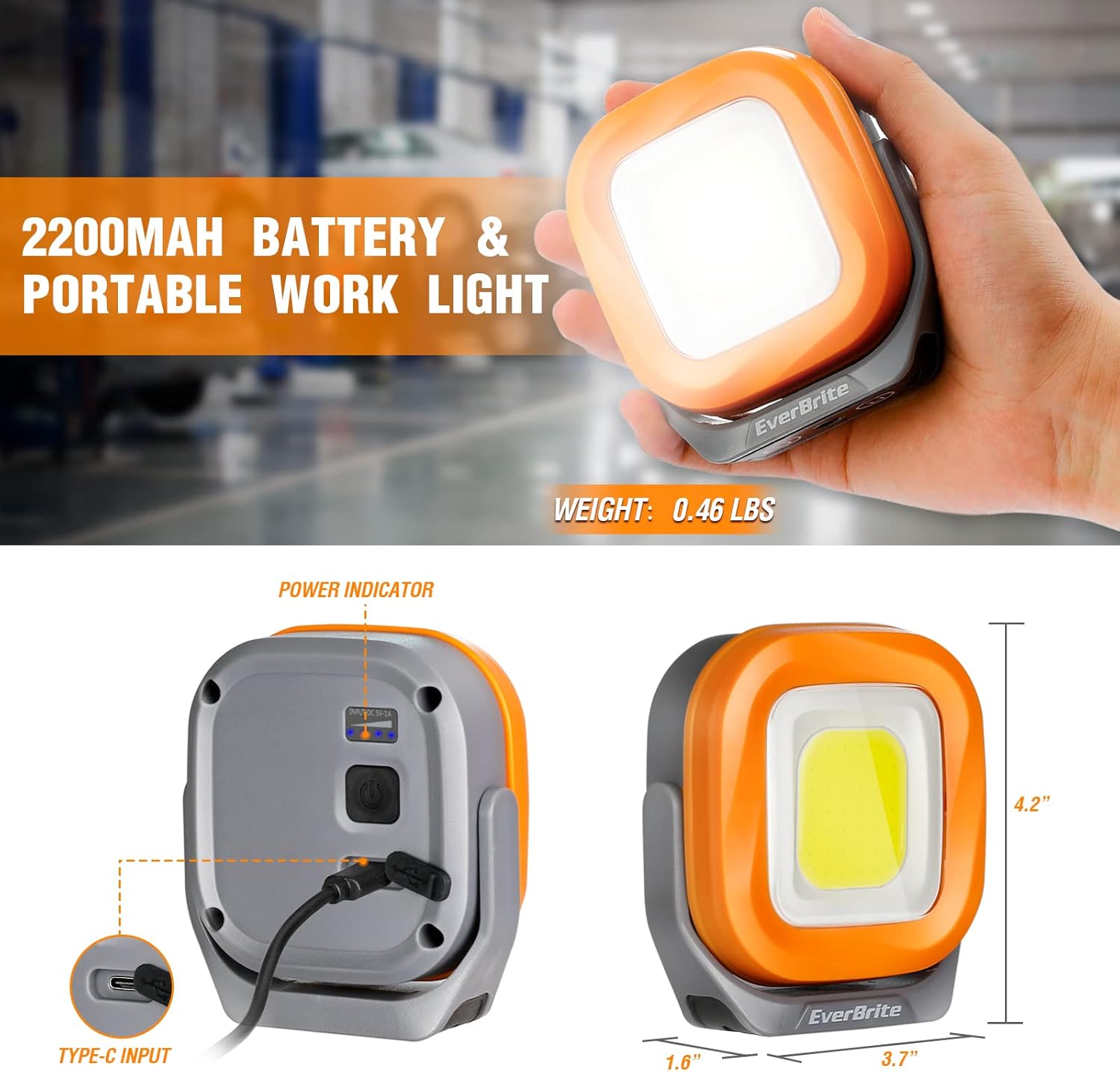

Image: The work light with its dimensions (4.2" x 3.7" x 1.6") and 2200mAh battery capacity highlighted.
Кепилдик жана колдоо
For warranty information or technical support, please contact EverBrite customer service. You may also visit the official EverBrite store for additional product information and support resources.
