Introduction
Thank you for choosing the IKK Modern Rectangle Gold Crystal Chandelier. This elegant lighting fixture is designed to enhance the ambiance of your dining room, kitchen island, living room, or other suitable indoor spaces. Featuring 100% handcrafted water ripple glass and a gold matte coated metal frame, this chandelier brings a unique, nature-inspired aesthetic to your home. Please read this manual thoroughly before installation and use to ensure safe and proper operation.
Figure 1: IKK Modern Rectangle Gold Crystal Chandelier
Коопсуздук маалыматы
- Always turn off the power at the main circuit breaker before beginning installation or performing any maintenance.
- Орнотуу процессине ишенбесеңиз, квалификациялуу электрикке кайрылыңыз.
- Бардык зымдарды туташтыруу коопсуз жана жергиликтүү электр коддоруна ылайык экенин текшериңиз.
- Максималдуу ваттан ашпаңызtage specified for the bulbs (Max 40 Watts per bulb).
- Handle glass components with care to prevent breakage. Gloves are recommended during assembly.
- This fixture is designed for indoor use only. Do not expose to moisture.
Кутуда эмне бар
Carefully unpack all components and inspect for any damage. Keep all packaging materials until you are satisfied with the product.
- Chandelier Frame (Gold Matt Coating Metal)
- Water Ripple Glass Panels (Handcrafted)
- Adjustable Hanging Rods/Tubes (Multiple lengths for height adjustment)
- Canopy (US Standard size: L14" x W4.3" x H1.1")
- Mounting Hardware (Screws, wire nuts, etc.)
- Extra Spare Crystals
- Колкаптар
- Detailed Installation Manual (Paper copy)
Figure 2: Included accessories (extra crystals, gloves) and recommended bulb types (bulbs not included).
Орнотуу жана орнотуу
The chandelier arrives pre-assembled for the main frame. The glass panels and hanging rods require assembly. A detailed installation video is available for reference.
1. Орнотууга чейинки текшерүүлөр
- Автоматтык өчүргүчтөн электр кубатын өчүрүңүз.
- Ensure the mounting location can support the chandelier's weight (approx. 32 lbs).
- Бардык компоненттер бар экенин жана бузулбаганын текшериңиз.
2. Чогултуу кадамдары
- Attach the hanging rods to the chandelier frame. The height is adjustable from 4" to 60" by changing the combination of rods (4", 12", 20" sections provided).
- Securely mount the canopy to the ceiling junction box using the provided hardware. This fixture works on both flat and slanted ceilings.
- Connect the electrical wires (live, neutral, ground) from the chandelier to the corresponding wires in the ceiling junction box. Ensure connections are tight.
- Carefully attach each water ripple glass panel to the chandelier frame using the small screws. Wear gloves to avoid fingerprints.
- Install 6 E12 base bulbs (not included). LED, CFL, incandescent, or vintage filament bulbs are compatible.

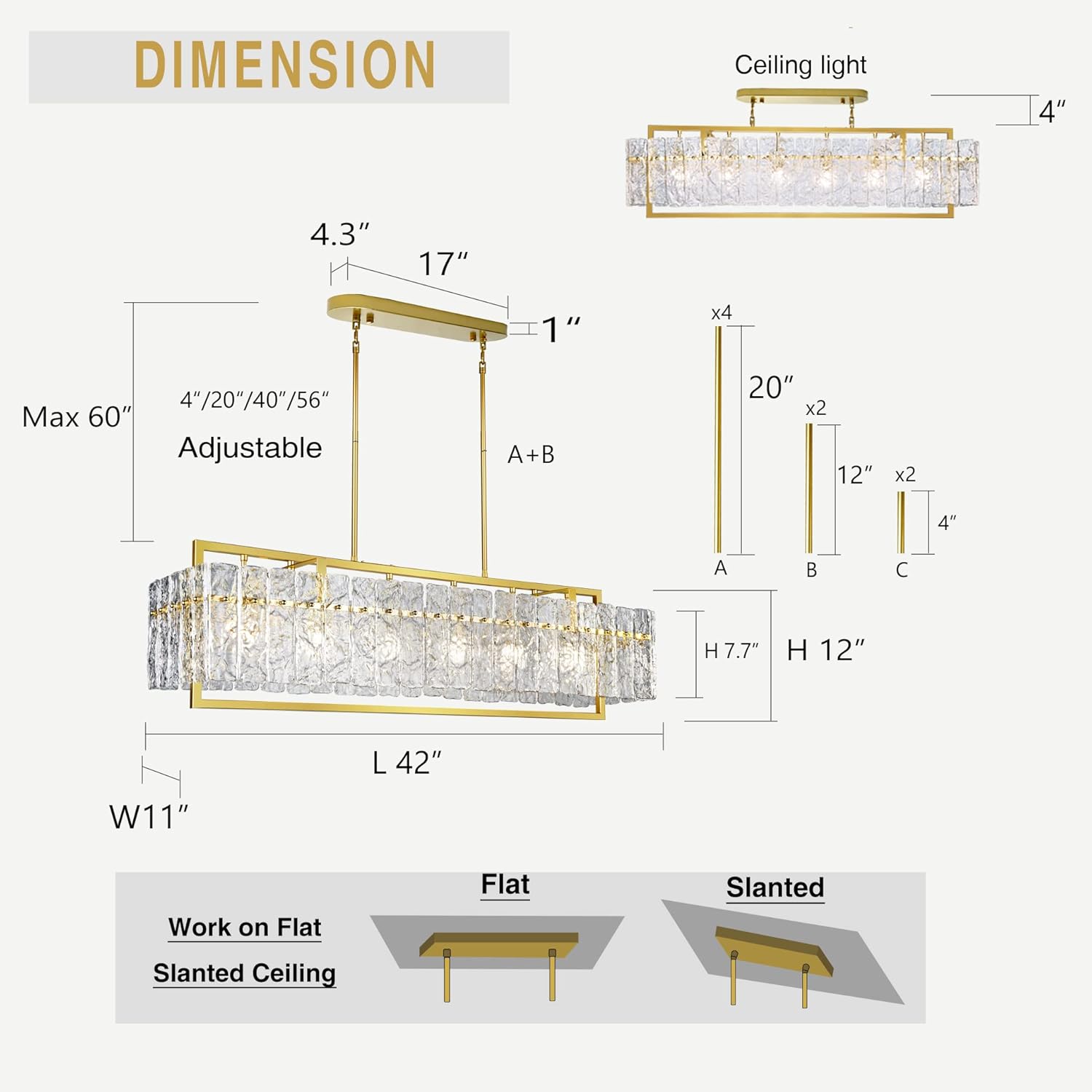

Figure 3: Chandelier dimensions and adjustable height mechanism.
Figure 4: Detail of the handcrafted water ripple glass panels.
Иштөө нускамалары
Once installed, restore power at the circuit breaker. The chandelier is operated via a standard wall switch. For dimming functionality, ensure you use dimmable E12 bulbs and a compatible dimmer switch (both not included).
Figure 5: Chandelier appearance in different lighting conditions (day and night).
Техникалык тейлөө
- Тазалоо: Turn off power and allow the fixture to cool. Wipe the metal frame with a soft, dry cloth. For glass panels, use a soft, damp cloth with a mild glass cleaner if necessary, then dry immediately. Avoid abrasive cleaners or solvents.
- Лампаны алмаштыруу: Ensure power is off. Allow bulbs to cool before replacing. Use only E12 base bulbs, max 40 watts per bulb.
- Текшерүү: Мезгил-мезгили менен бардык туташтырууларды жана компоненттерди бекемдигин жана эскилигин текшерип туруңуз.
Проблемаларды чечүү
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Жарык күйбөйт | No power to fixture; Loose wiring; Faulty bulb | Check circuit breaker. Verify all wire connections. Replace bulb(s). |
| Жаркылдаган жарыктар | Loose bulb; Incompatible dimmer switch/bulbs | Tighten bulbs. Ensure dimmer and bulbs are compatible and rated for dimming. |
| Glass panels appear uneven | Handcrafted nature of glass; Installation alignment | Minor variations are inherent to handcrafted glass. Re-adjust panels if possible, ensuring screws are tightened evenly. |
Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Бренд | IKK |
| Модель номери | M-MJ-CH-ISL0802 |
| Өлчөмдөрү (L x W x Y) | 42" x 11" x 12" (Fixture only) |
| Жөнгө салынуучу асма бийиктиги | 4" - 60" |
| Чатырдын өлчөмү | L14" x W4.3" x H1.1" |
| Салмагы | Болжол менен 32 фунт |
| Материал | Айнек, металл |
| Түс | Gold (Frame), Clear (Glass) |
| Лампанын базасы | E12 |
| Жарык булактарынын саны | 6 |
| Макс Ватtage per Lampochka | 40 Ватт |
| Киргизүү көлөмүtage | 110V |
| Dimmable | Ооба (шайкеш лампочкалар жана диммер которгучтары менен) |
| Орнотуу түрү | Semi Flush Mount / Hanging |
| Бөлмө түрү шайкештиги | Dining Room, Kitchen Island, Living Room, Foyer, Bedroom, Bathroom |
Кепилдик жана колдоо
IKK provides a 3 жылдык кепилдик for this product. In case of any loss or damage during transportation, or for any technical assistance, please contact our customer support.
Кардарларды колдоо: Available 24/7. You can reach us by navigating to "YOUR ACCOUNT" > "YOUR ORDER" > "CONTACT SELLER" on the platform where you purchased the product.
